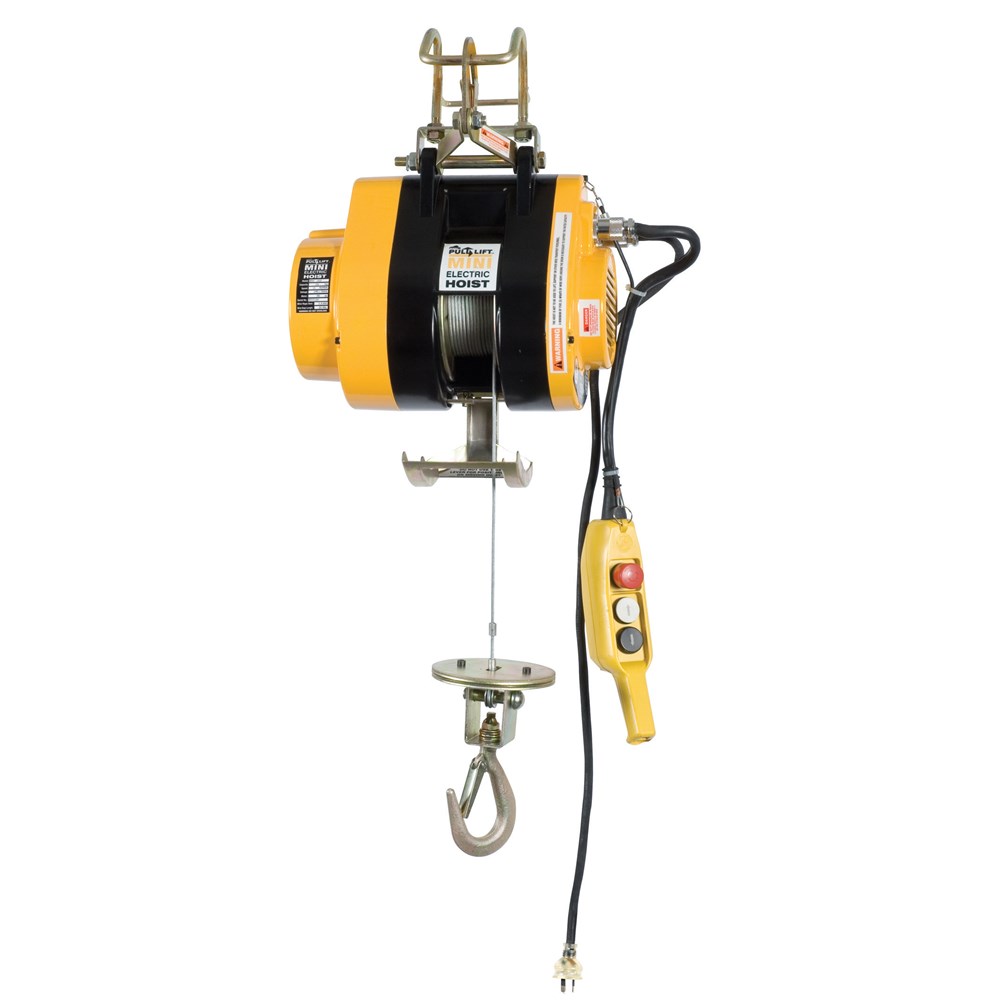

Beaver Single Phase Electric Mini Hoists are ideal for lifting small loads that are too heavy to be handled manually.
The compact and convenient hoist has a robust construction suitable for building sites.
Product Features:
- Heavy duty motor with automatic load brake and overload clutch
- IP54 rated lightweight body
- IP65 European pendant control c/w emergency stop
- Upper limit switch
- Complete with 20Meters -Non Rotating Galvanised wire rope
Approved Standards:
Product Code |
Rated Capacity |
Speed |
Lifting Height |
Weight |
BMI1015 |
0.15t |
15m/min |
20m |
28kg |
BMI1025 |
0.25t |
12m/min |
2m0 |
30kg |
The connection of the wire rope to the winch drump is via set screw, to ensure rope retention.
Rated Capacity |
Input Power |
% ED |
Rope Diameter |
Rope Construction |
Grade of Rope |
0.15t |
780W |
25 |
3.8mm |
7x19 |
1960min |
0.25t |
1200W |
25 |
4.2mm |
7x19 |
1960min |
For more information on our materials handling range, please contact our Customer Care team.
