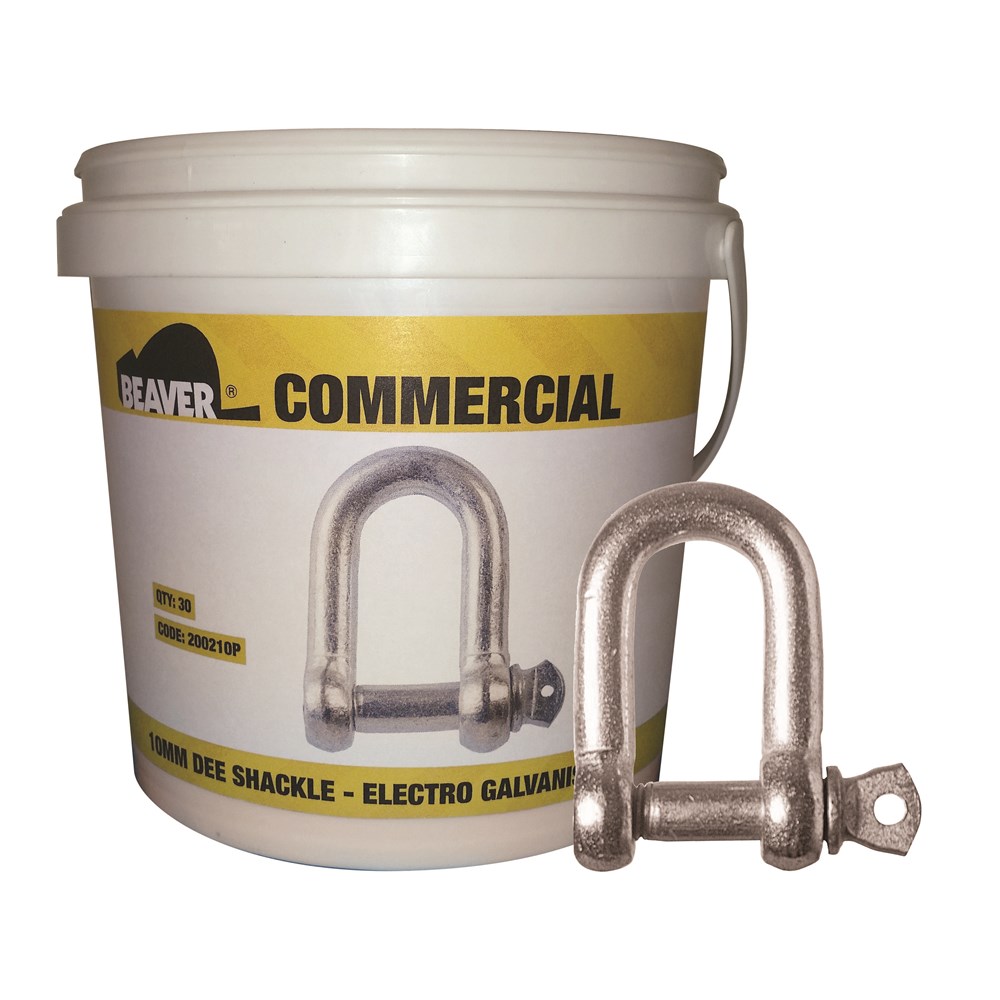

Beaver Electro Galvanised Commercial Dee Shackles are used for general anchoring or connecting objects.
The shackles come in pails.
Note: They must not be used for any lifting or load bearing applications.
Commercial product specifications may vary to +/- 10% on actual dimensions.
Product Features:

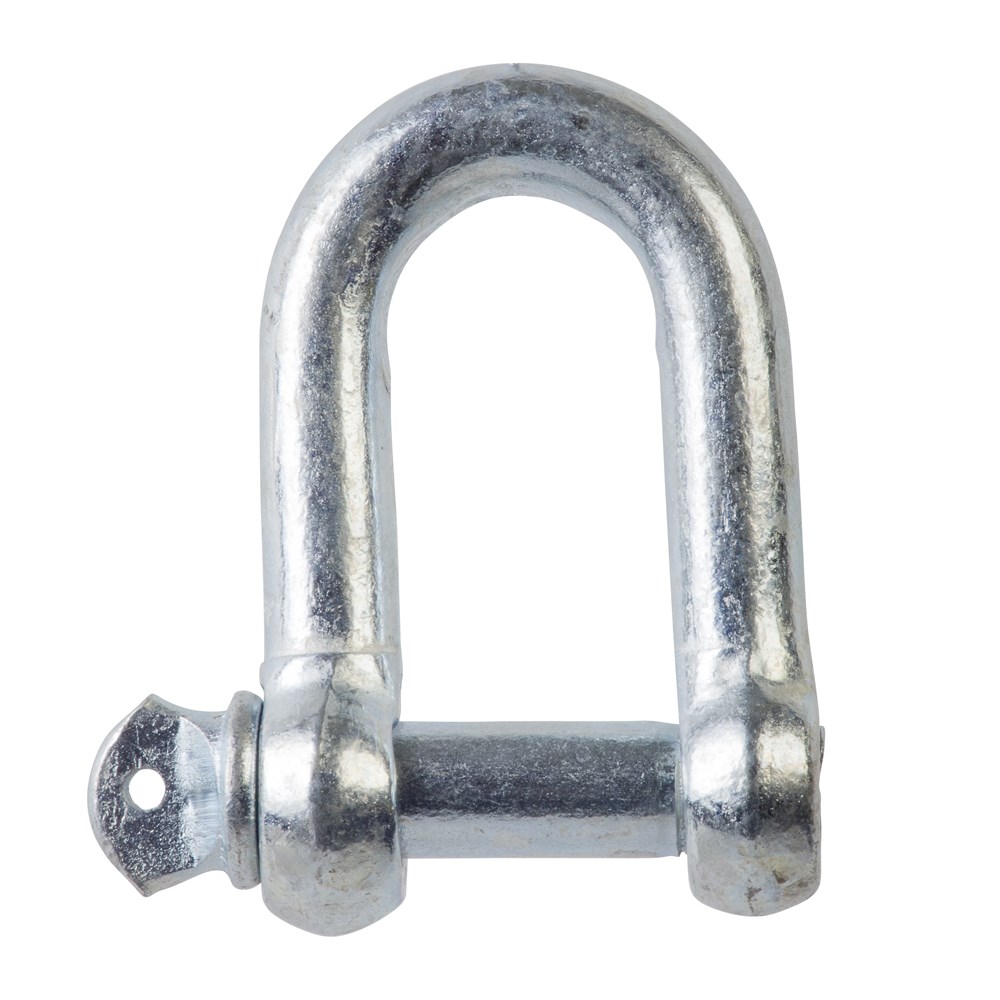

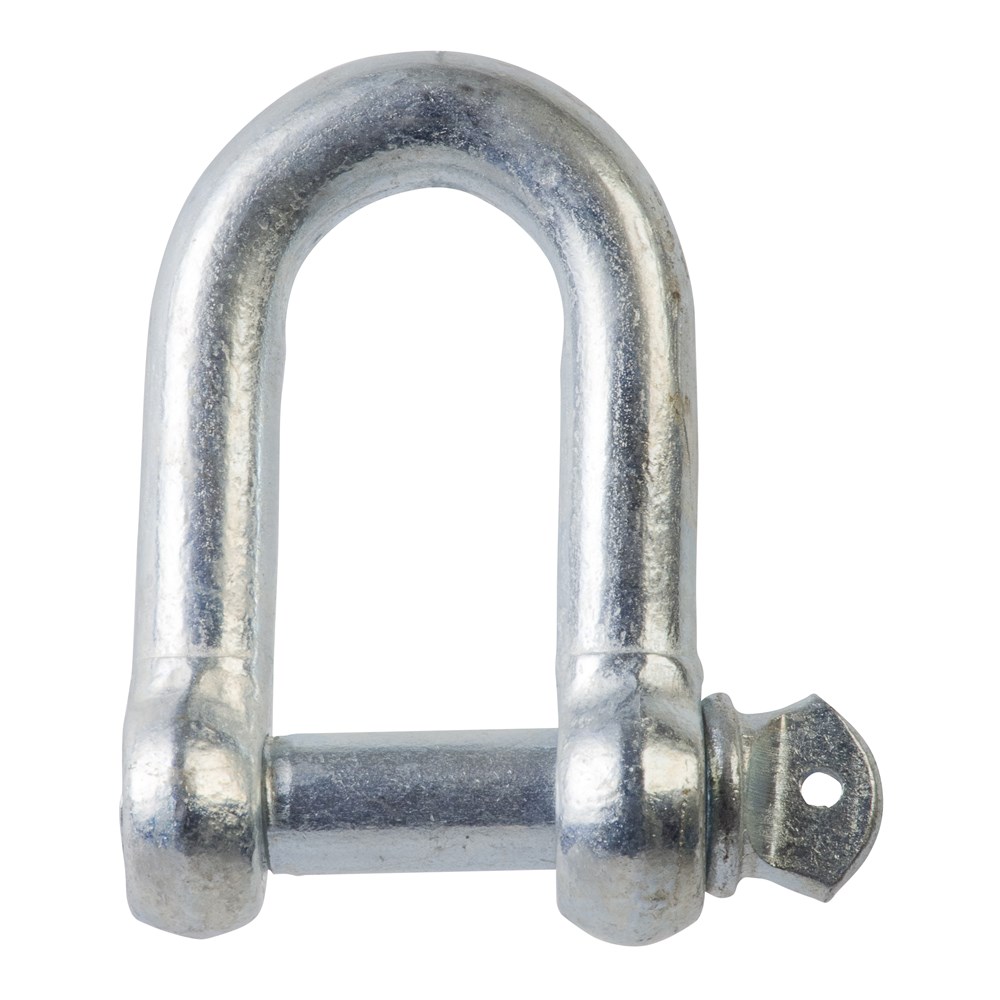

- Dee shaped shackle with screw pin for securing item
- Engineered from mild steel with durable electro galvanised finish
- Shackles supplied in handy buckets / pails
Product Code |
Size |
Finish |
Shape |
Closing Method |
QTY per Bucket |
Bucket Capacity |
Bucket Weight |
200205P |
5mm |
Electro Galvanised |
Dee |
Screw |
50 |
0.75L |
0.7kg |
200206P |
6mm |
Electro Galvanised |
Dee |
Screw |
50 |
0.75L |
1.24kg |
200208P |
8mm |
Electro Galvanised |
Dee |
Screw |
40 |
1L |
2.2kg |
200210P |
10mm |
Electro Galvanised |
Dee |
Screw |
30 |
2L |
3.24kg |
200213P |
13mm |
Electro Galvanised |
Dee |
Screw |
30 |
4L |
6.88kg |
200216P |
16mm |
Electro Galvanised |
Dee |
Screw |
20 |
4L |
8.89kg |
200220P |
20mm |
Electro Galvanised |
Dee |
Screw |
6 |
2L |
4.88kg |
200225P |
25mm |
Electro Galvanised |
Dee |
Screw |
6 |
4L |
9.86kg |
Commercial product specifications may vart to +/- 10% on actual dimensions.

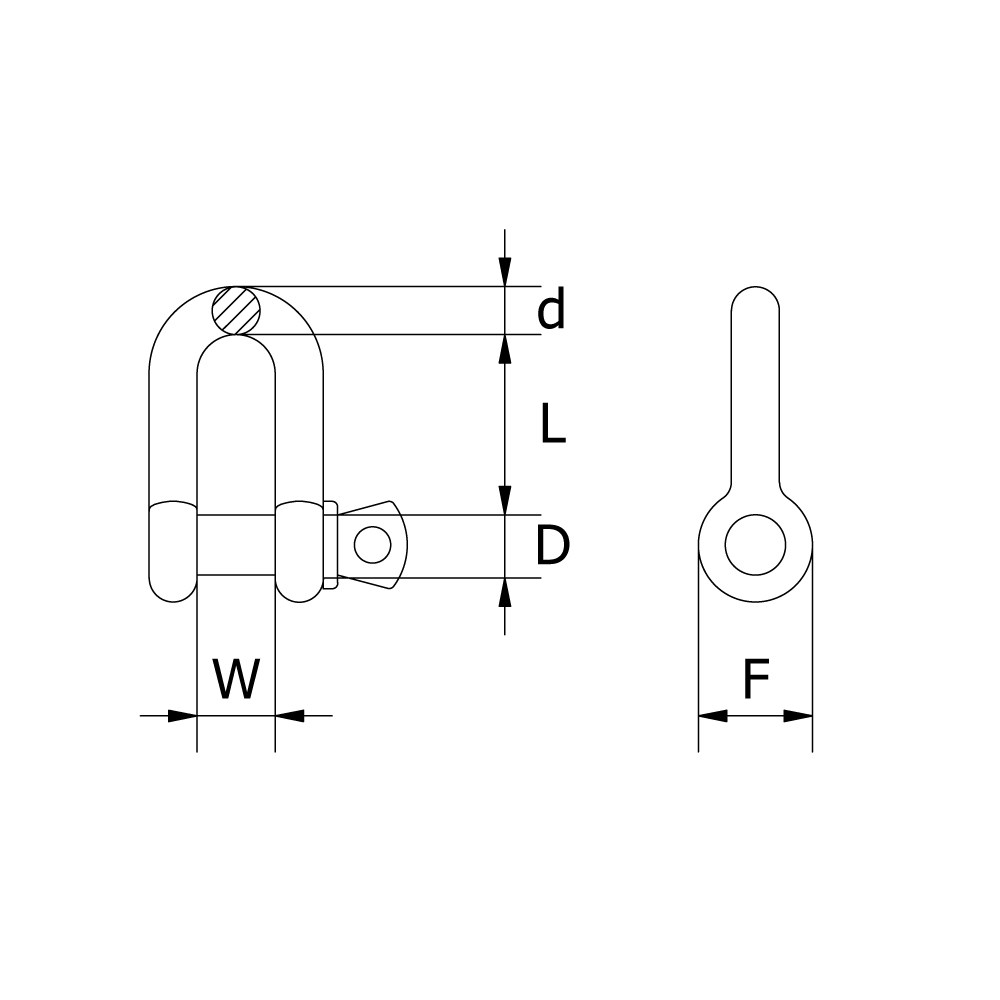

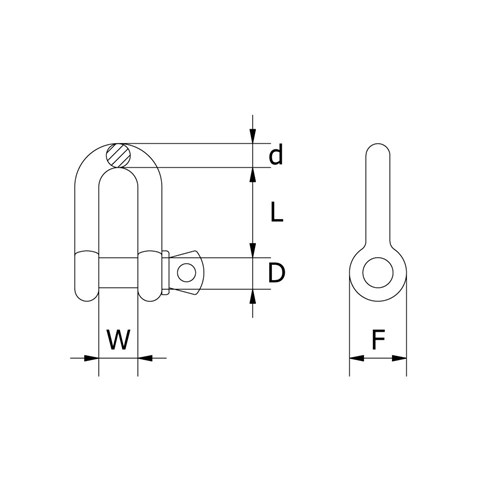

Size |
W |
L |
D |
d |
F |
5mm |
11mm |
19mm |
7mm |
4.5mm |
10mm |
6mm |
13mm |
26mm |
7mm |
5.5mm |
11mm |
8mm |
18mm |
32mm |
9mm |
7.8mm |
16mm |
10mm |
19mm |
38mm |
11mm |
9.8mm |
19mm |
13mm |
29mm |
55mm |
15mm |
13mm |
26mm |
16mm |
33mm |
60mm |
18mm |
15.5mm |
30mm |
20mm |
39mm |
75mm |
22mm |
19mm |
33mm |
25mm |
50mm |
90mm |
27mm |
24mm |
45mm |
For more information on our materials handling range, please contact our Customer Care team.
