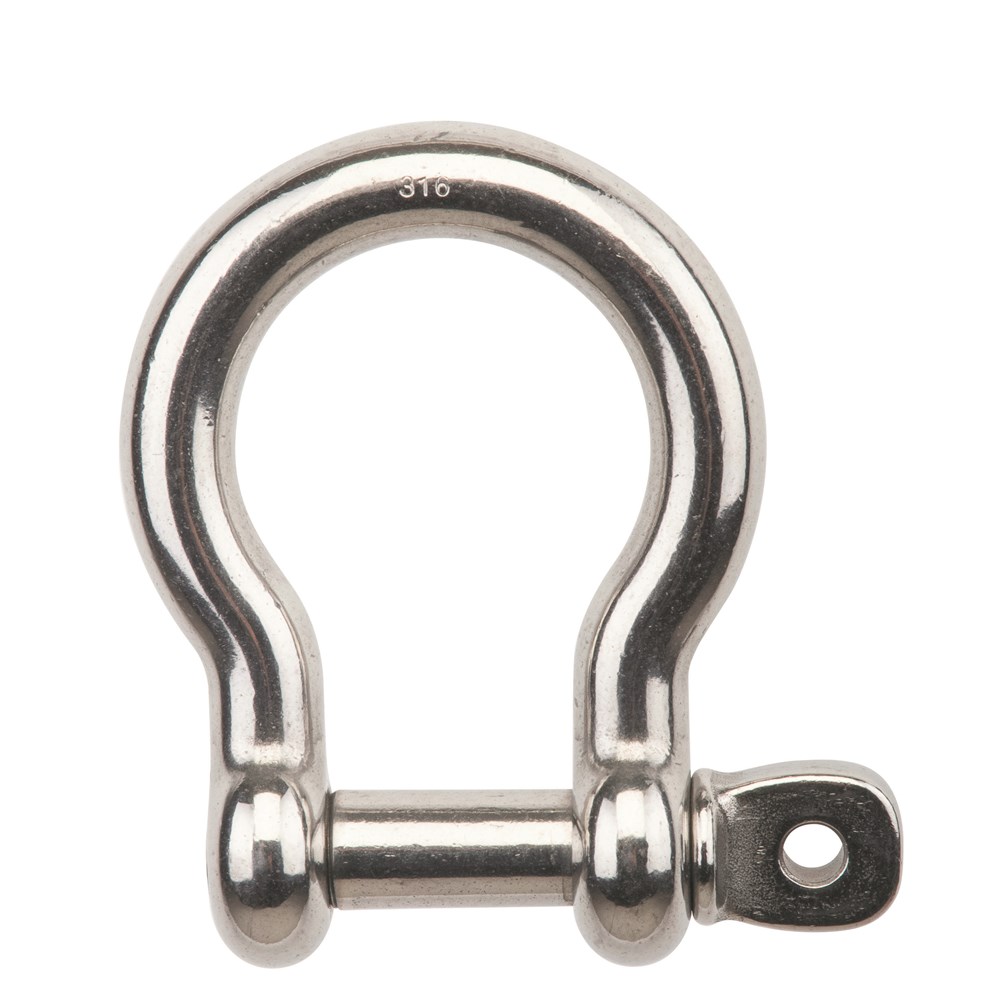

Beaver Grade 316 Stainless Steel Bow Shackles have a high corrosion resistance, and is best used in harsher corrosive applications, such as saltwater environments. It is also suitable for food and pharmaceutical processing applications and is commonly used on boats, and in any coastal environment.
Note: This shackle is not to be used for lifting.
Product Features:
- Shiny grade 316 marine grade, corrosion resistant stainless steel
- Removable pin for easy connection and disconnection

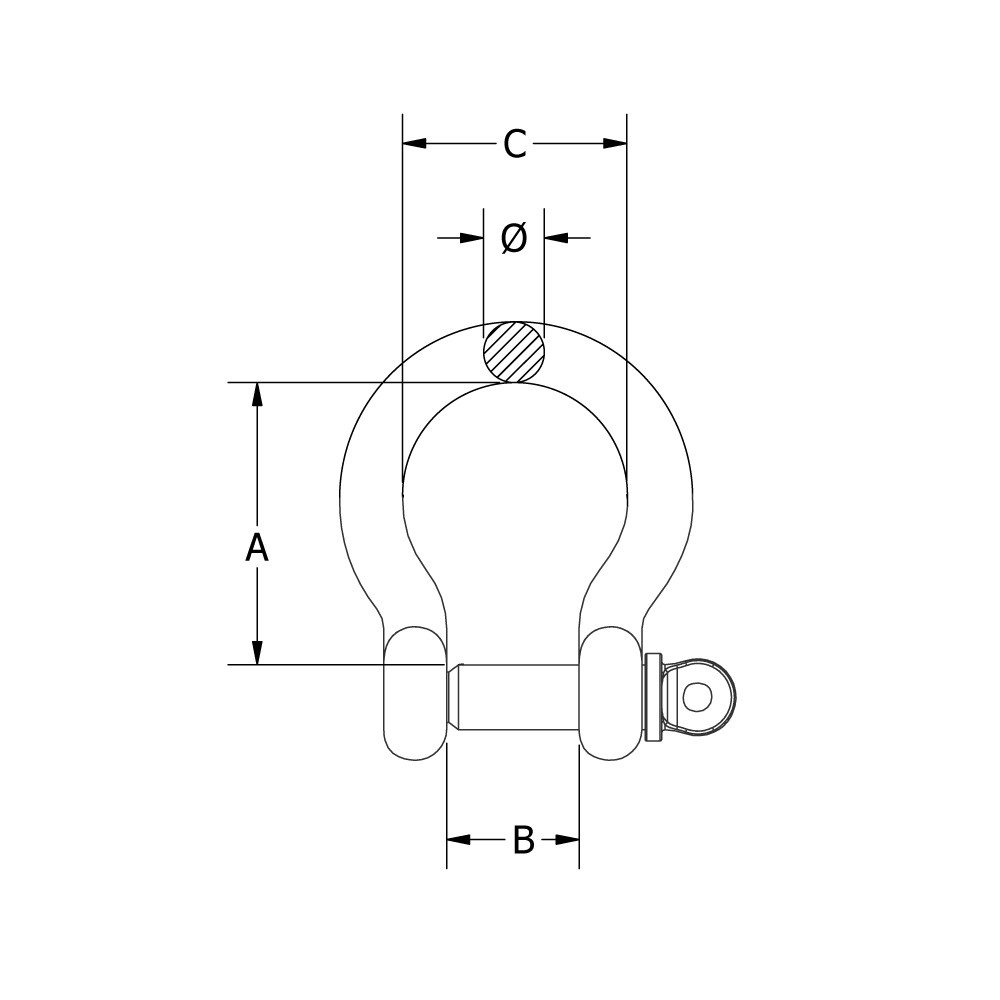

Product Code |
Diameter |
A |
B |
C |
Type |
Shape |
Closing Method |
Weight |
615505 |
5mm |
23mm |
10.8mm |
17mm |
Grade 316 |
Bow |
Screw Pin |
0.02kg |
615506 |
6mm |
31mm |
13mm |
21mm |
Grade 316 |
Bow |
Screw Pin |
0.03kg |
615508 |
8mm |
36.5mm |
17.5mm |
28mm |
Grade 316 |
Bow |
Screw Pin |
0.06kg |
615510 |
10mm |
44mm |
21.5mm |
35.5mm |
Grade 316 |
Bow |
Screw Pin |
0.11kg |
615512 |
12mm |
52.5mm |
27mm |
41mm |
Grade 316 |
Bow |
Screw Pin |
0.22kg |
615516 |
16mm |
73.5mm |
32mm |
54mm |
Grade 316 |
Bow |
Screw Pin |
0.49kg |
