Beaver Grade 316 Stainless Steel Dee Shackles With Captive Pin can be used in corrosive marine rigging applications. They are also suitable for food and pharmaceutical processing environments as well as for agricultural and shade sail use.
The captive pin ensures the pin cannot fall out or be fully removed.
This shackle is not to be used for lifting.
Poduct Features:
- Made from high quality polished marine grade stainless steel
- High corrosion resistance
- High durability
- Captive pin for added safety

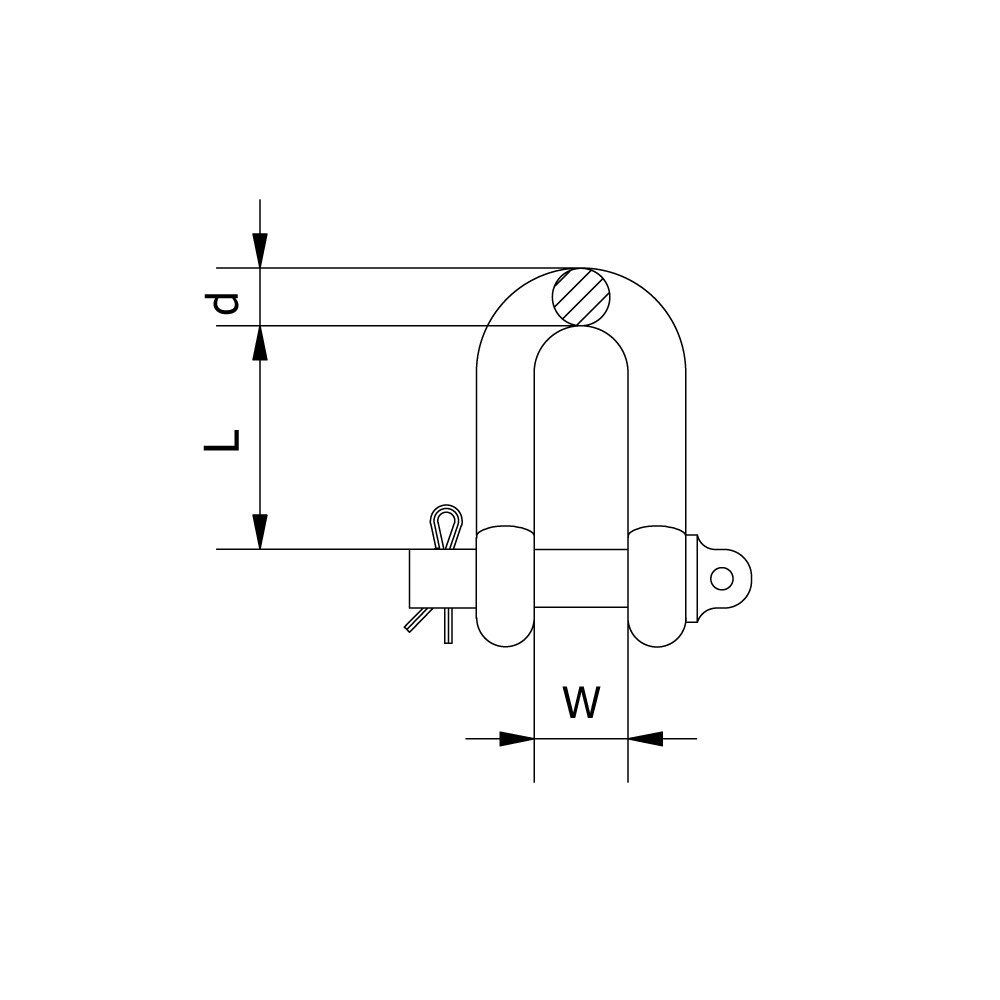

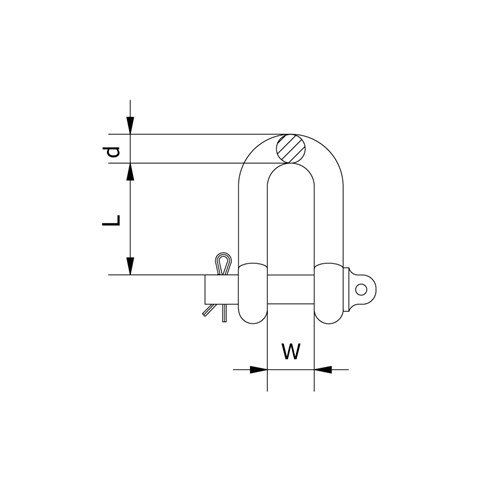

Product Code |
Diameter (d) |
L |
W |
Type |
Shape |
Closing Method |
Weight |
615305 |
5mm |
17.8mm |
10.4mm |
Grade 316 |
Dee |
Screw Pin |
0.01kg |
615306 |
6mm |
22.5mm |
13mm |
Grade 316 |
Dee |
Screw Pin |
0.02kg |
615308 |
8mm |
24.5mm |
17.3mm |
Grade 316 |
Dee |
Screw Pin |
0.05kg |
615310 |
10mm |
35.6mm |
28.6mm |
Grade 316 |
Dee |
Screw Pin |
0.09kg |
615312 |
12mm |
42.4mm |
25mm |
Grade 316 |
Dee |
Screw Pin |
0.18kg |
For more information on special pricing available for bulk/pail sales, please contact our Customer Care team.
