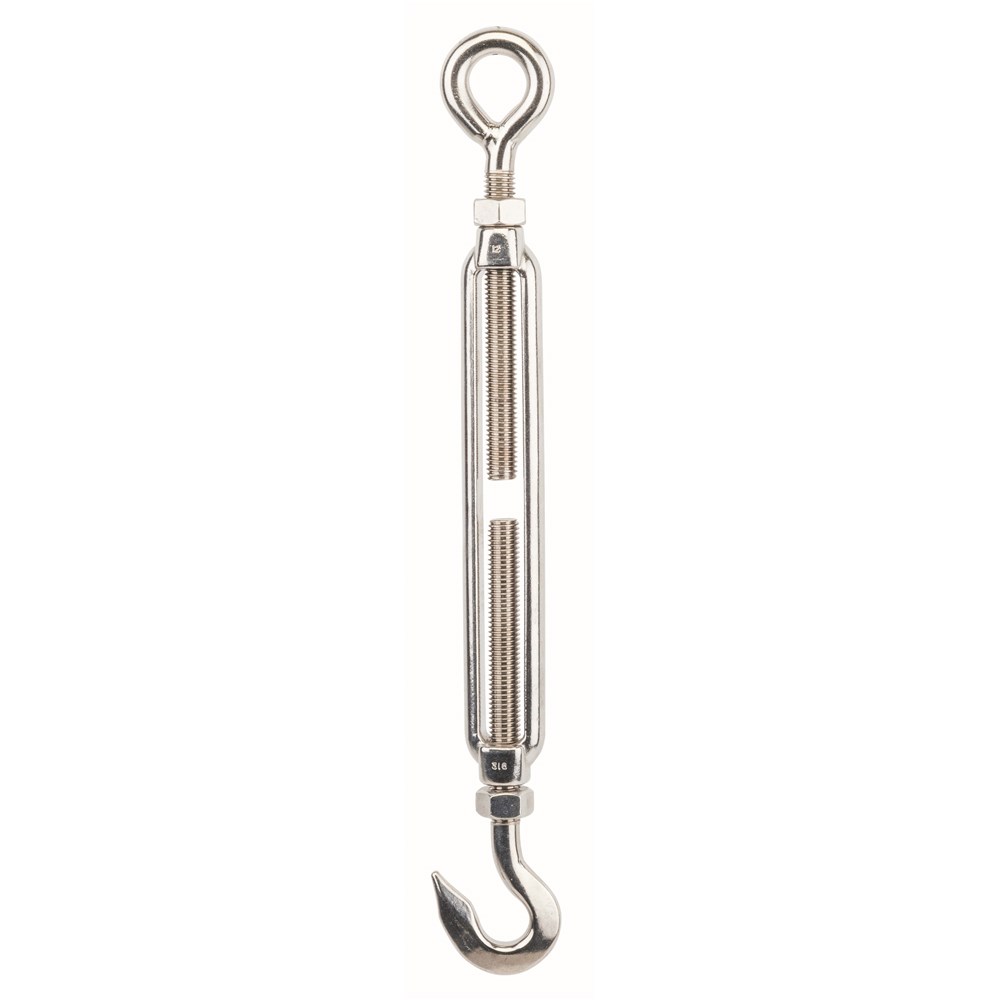

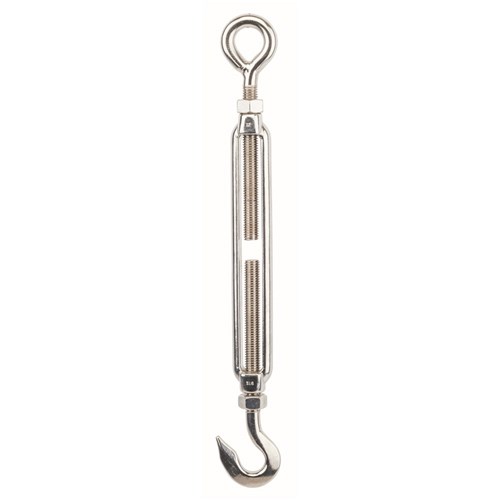

Manufactured from marine grade 316 stainless steel, these Hook and Eye Turnbuckles with Locknuts are suitable for harsh corrosive environments.
One end has a left-hand thread and the other with a right-hand thread so that when the bolts are screwed in or out; the frame is turned – thereby reducing the length of the unit and tensioning whatever they are attached to.
Product Features:
- High corrosion resistance marine grade stainless steel
- With lock nuts to hold correct adjustment
Note:- Not to be used for lifting applications

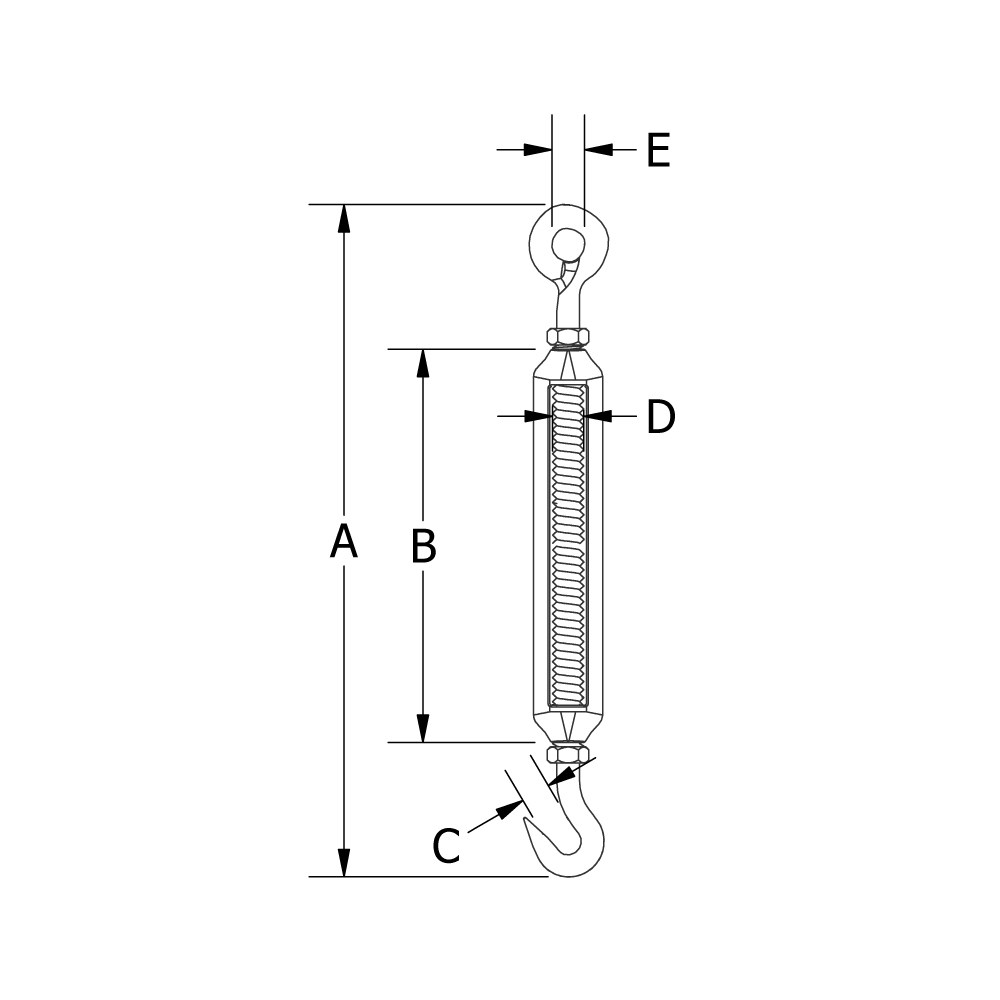

Product Code |
Size (mm) |
A |
B |
C |
D |
E |
Grade |
Weight |
600404 |
4mm |
110mm |
61.5mm |
9mm |
M4mm |
8mm |
316 |
0.02kg |
600405 |
5mm |
127.5mm |
71mm |
9.5mm |
M5mm |
10mm |
316 |
0.05kg |
600406 |
6mm |
163mm |
90.5mm |
9mm |
M6mm |
12mm |
316 |
0.08kg |
600408 |
8mm |
212mm |
122mm |
10.3mm |
M8mm |
14mm |
316 |
0.15kg |
600410 |
9mm |
259mm |
151.5mm |
12.5mm |
M10mm |
16mm |
316 |
0.29kg |
600412 |
12mm |
321mm |
201mm |
14mm |
M12mm |
18mm |
316 |
0.59kg |
*This fitting is not to be used for liftingFor more information on special pricing available for bulk/pail sales, please contact our Customer Care team.
