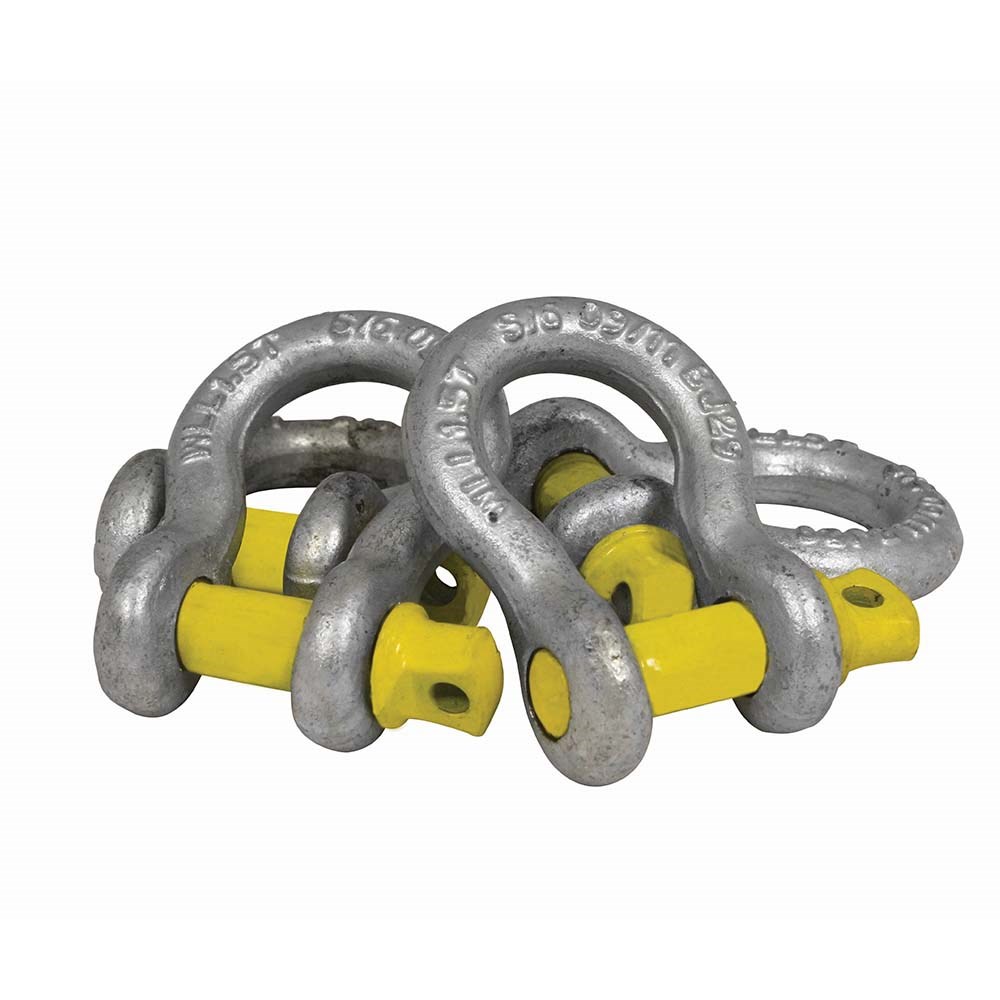

Beaver Hot Dipped Galvanised Screw Pin Bow Shackles are rated shackles used mainly for non-permanent applications.
Grade S shackles are recommended where a high strength to weight ratio is required, therefore making them ideal for lifting, towing, and 4WD applications.
Product Features:

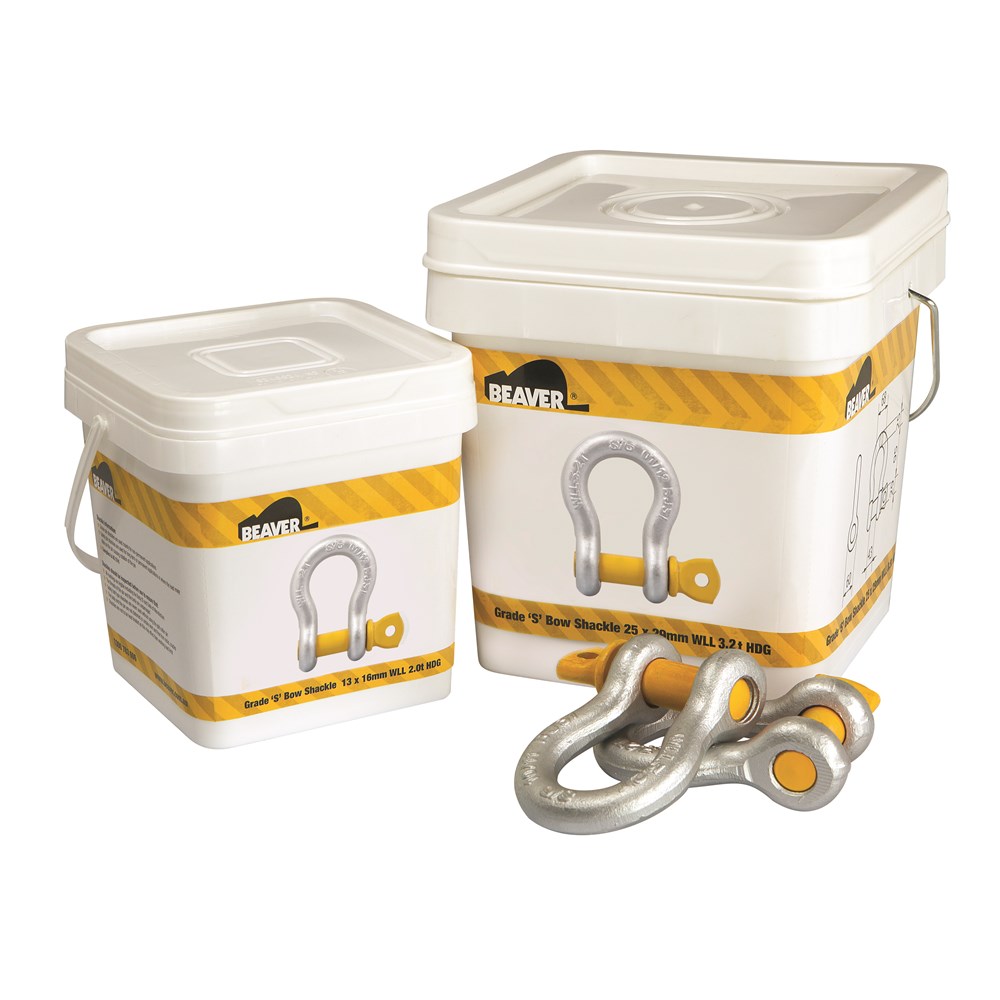

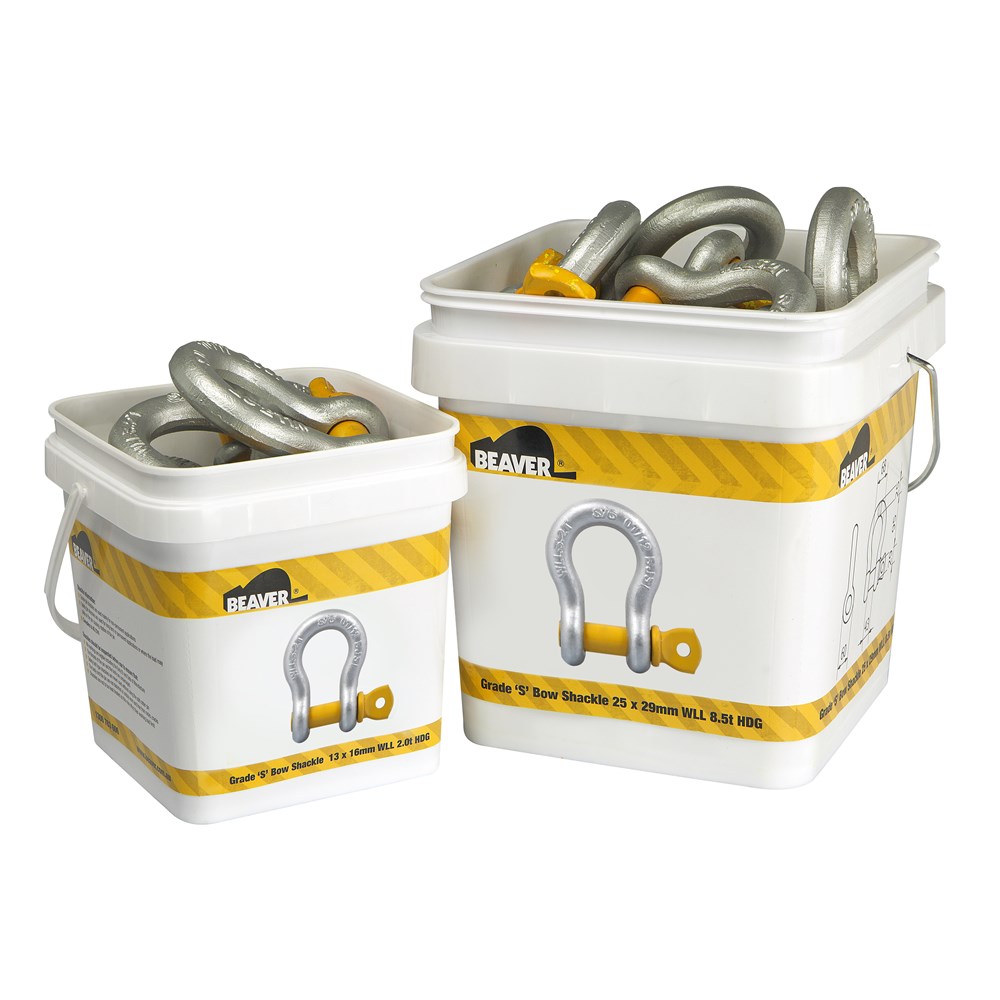

- Supplied in handy pails
- Hot dip galvanised for corrosion protection.
- Suitable for lifting & towing applications.

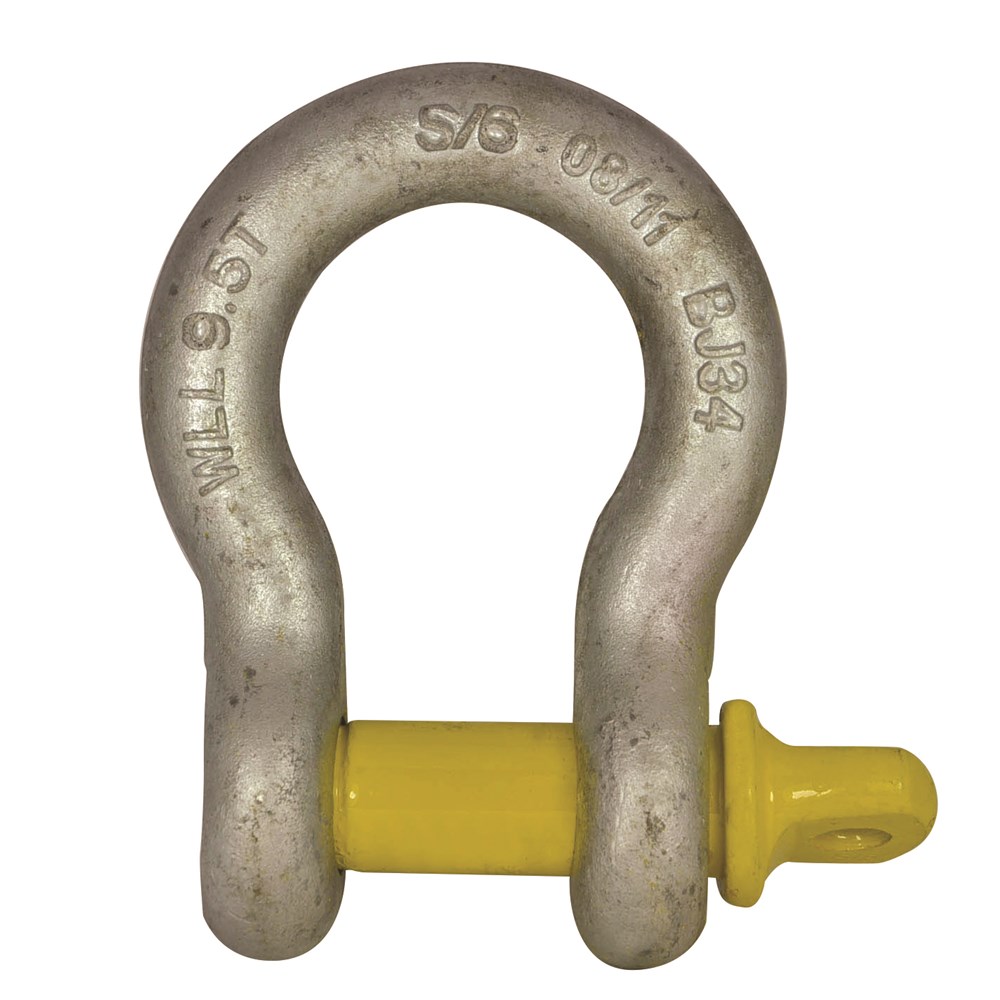

- Marked with WLL, quality grade, size, batch ID / date of manufacture
- Proof tested to the Australian Standard
- Test certificates available on request
Approved Standards:
Product Code |
Size |
WLL |
Bucket Capacity |
QTY per Bucket |
Bucket Weight |
242305P |
5mm x 6mm |
0.33t |
2L |
100 |
2.7kg |
242306P |
6mm x 8mm |
0.5t |
2L |
100 |
3kg |
242308P |
8mm x 10mm |
0.75t |
2L |
50 |
4.3kg |
242310P |
10mm x 11mm |
1.0 |
2L |
30 |
4.63kg |
242311P |
11mm x 13mm |
1.5t |
2L |
20 |
4.44kg |
242313P |
13mm x 16mm |
2t |
2L |
14 |
4.62kg |
242316P |
16mm x 19mm |
3.2t |
5L |
20 |
12.4kg |
242319P |
19mm x 22mm |
4.7t |
5L |
10 |
10.7kg |
242322P |
22mm x 25mm |
6.5t |
5L |
8 |
13.12kg |
242325P |
25mm x 29mm |
8.5t |
5L |
4 |
9.2kg |
Please note that all dimensions are nominal. Actual dimensions fall within the tolerances of AS 2741.

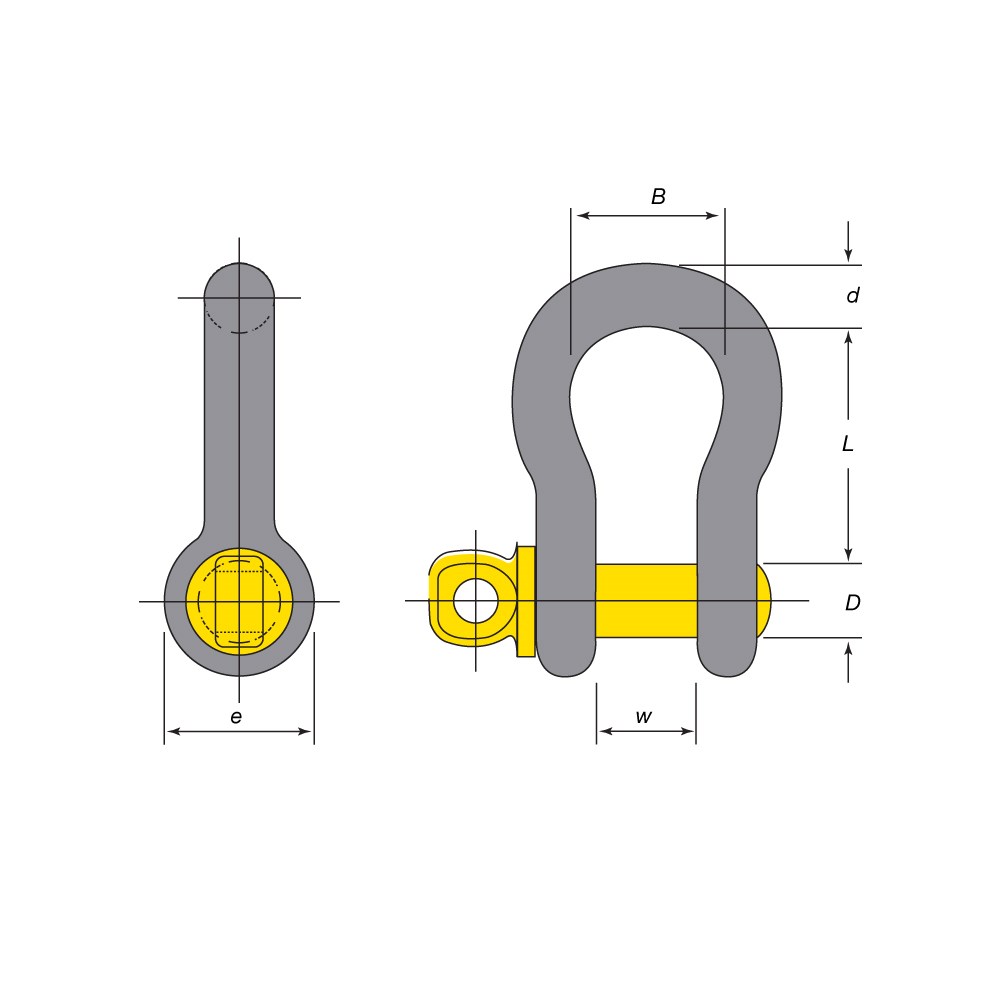

Product Code |
Size |
Diameter |
Pin Diameter (D) |
Inside Width (w) |
Width of Bow (B) |
Inside Length (L) |
Diameter Boss (e) |
242305P |
5mm x 6mm |
5mm |
6mm |
10mm |
15mm |
22mm |
14mm |
242306P |
6mm x 8mm |
6mm |
8mm |
12mm |
20mm |
29mm |
17mm |
242308P |
8mm x 10mm |
8mm |
10mm |
13mm |
21mm |
31mm |
21mm |
242310P |
10mm x 11mm |
10mm |
11mm |
17mm |
26mm |
37mm |
25mm |
242311P |
11mm x 13mm |
11mm |
13mm |
18mm |
29mm |
43mm |
27mm |
242313P |
13mm x 16mm |
13mm |
16mm |
21mm |
33mm |
48mm |
33mm |
242316P |
16mm x 19mm |
16mm |
19mm |
27mm |
43mm |
61mm |
40mm |
242319P |
19mm x 22mm |
19mm |
22mm |
32mm |
51mm |
72mm |
48mm |
242322P |
22mm x 25mm |
22mm |
25mm |
37mm |
58mm |
34mm |
54mm |
242325P |
25mm x 29mm |
25mm |
29mm |
43mm |
68mm |
95mm |
60mm |
For more information on our materials handling range, please contact our Customer Care team.
