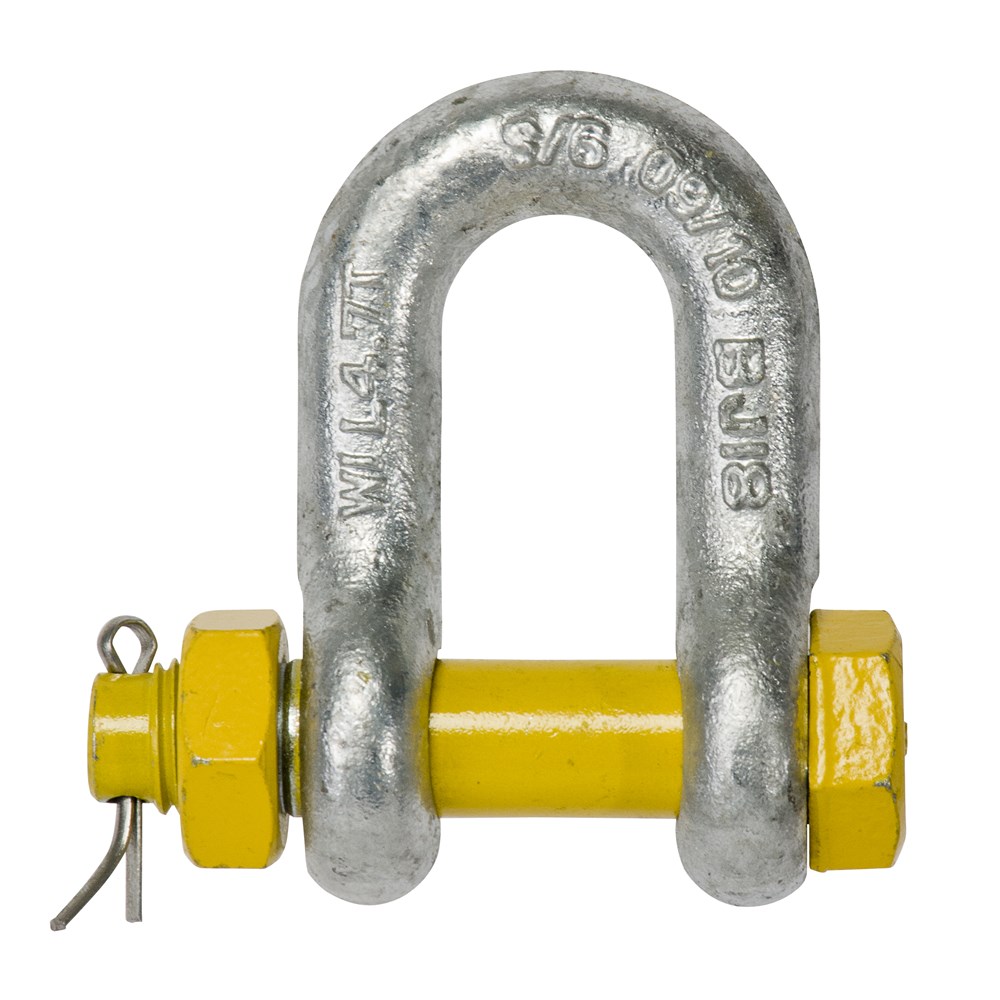

Beaver Grade S Yellow Safety Pin Galvanised Dee Shackles are suitable for long-term or permanent lifting applications, or where the load may slide on the pin, causing rotation.
Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.
Product Features:
- Dee shape shackle with safety pin
- Hot dipped galvanised with yellow painted pin
- Suitable for equipment that may vibrate to ensure pin will not dislodge during use.
- The safety pin allows the pin to rotate during loading conditions
- High strength to size ratio
Approved Standards:
Product Code |
Size |
WLL |
Type |
Shape |
Closing Method |
Weight |
243313 |
13mm x 16mm |
2t |
Grade S |
Dee |
Safety Pin |
0.44kg |
243316 |
16mm x 19mm |
3.2t |
Grade S |
Dee |
Safety Pin |
0.79kg |
243319 |
19mm x 22mm |
4.7t |
Grade S |
Dee |
Safety Pin |
1.26kg |
243322 |
22mm x 25mm |
6.5t |
Grade S |
Dee |
Safety Pin |
1.88kg |
243325 |
25mm x 29mm |
8.5t |
Grade S |
Dee |
Safety Pin |
2.78kg |
243329 |
29mm x 32mm |
9.5t |
Grade S |
Dee |
Safety Pin |
3.87kg |
243332 |
32mm x 35mm |
12t |
Grade S |
Dee |
Safety Pin |
5.26kg |
Safety pin shackles are used for long-term or permanent applications, or where the load may slide on the pin, cuasing rotation of the pin. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

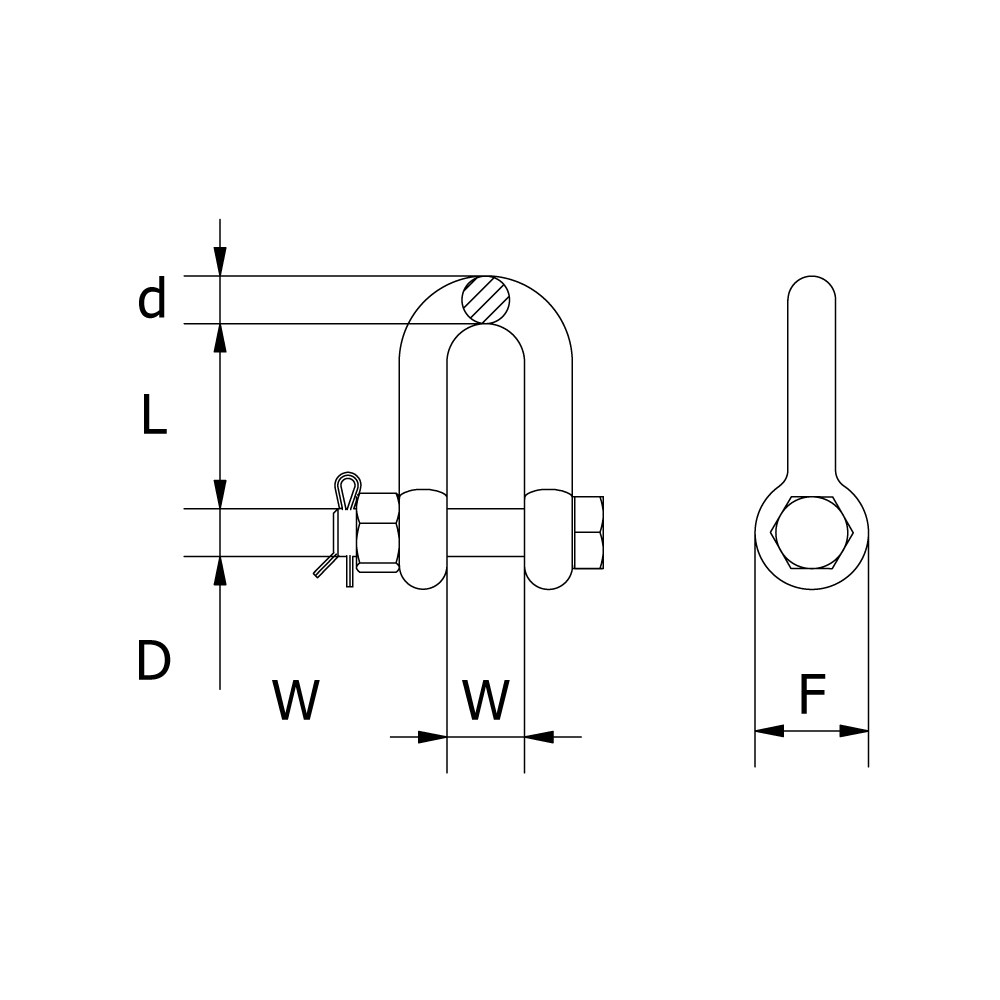

Product Code |
Size |
Diameter |
Pin Diameter (D) |
Inside Width (W) |
Inside Length (L) |
Diameter Boss (F) |
243313 |
13mm x 16mm |
13mm |
16mm |
21mm |
41mm |
33mm |
243316 |
16mm x 19mm |
16mm |
19mm |
27mm |
51mm |
40mm |
243319 |
19mm x 22mm |
19mm |
22mm |
32mm |
60mm |
48mm |
243322 |
22mm x 25mm |
22mm |
25mm |
37mm |
71mm |
54mm |
243325 |
25mm x 29mm |
25mm |
29mm |
43mm |
81mm |
60mm |
243329 |
29mm x 32mm |
29mm |
32mm |
46mm |
90mm |
67mm |
243332 |
32mm x 35mm |
32mm |
35mm |
52mm |
100mm |
76mm |
