Beaver 3S Industrial Manual Chain Blocks (6m Standard Lift)

Product Code: MH5036

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur. This product features a double pawl and double guide rollers to enhance perfomance and reliability, as well as a unique curling design that enables the hand chain to successfully feed directly inot the wheel sprockets.

The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

Product Code Rated Capacity Colour Code Standard Lift Effort on Lever to Lift Full Load No. Load Chain Falls Load Chain Diameter

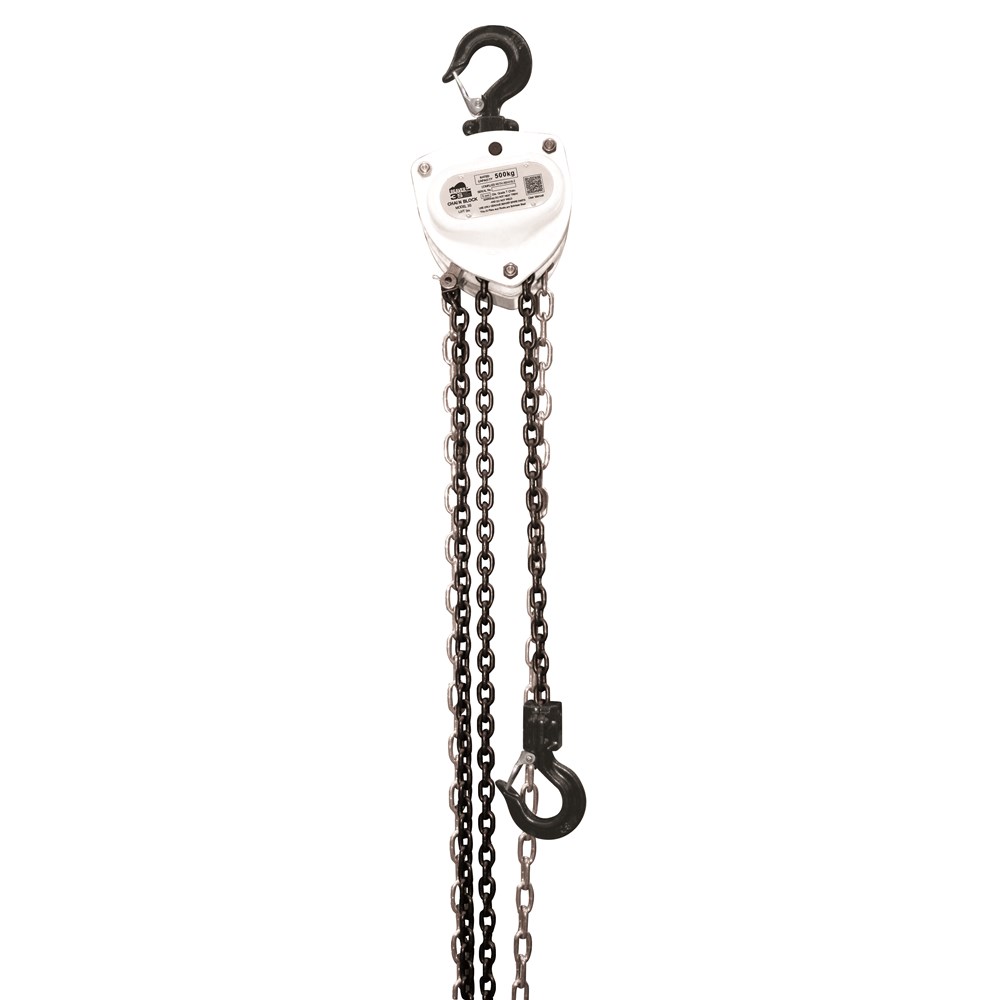

503056 0.5t White 6m 240kg 1 5mm x 15mm

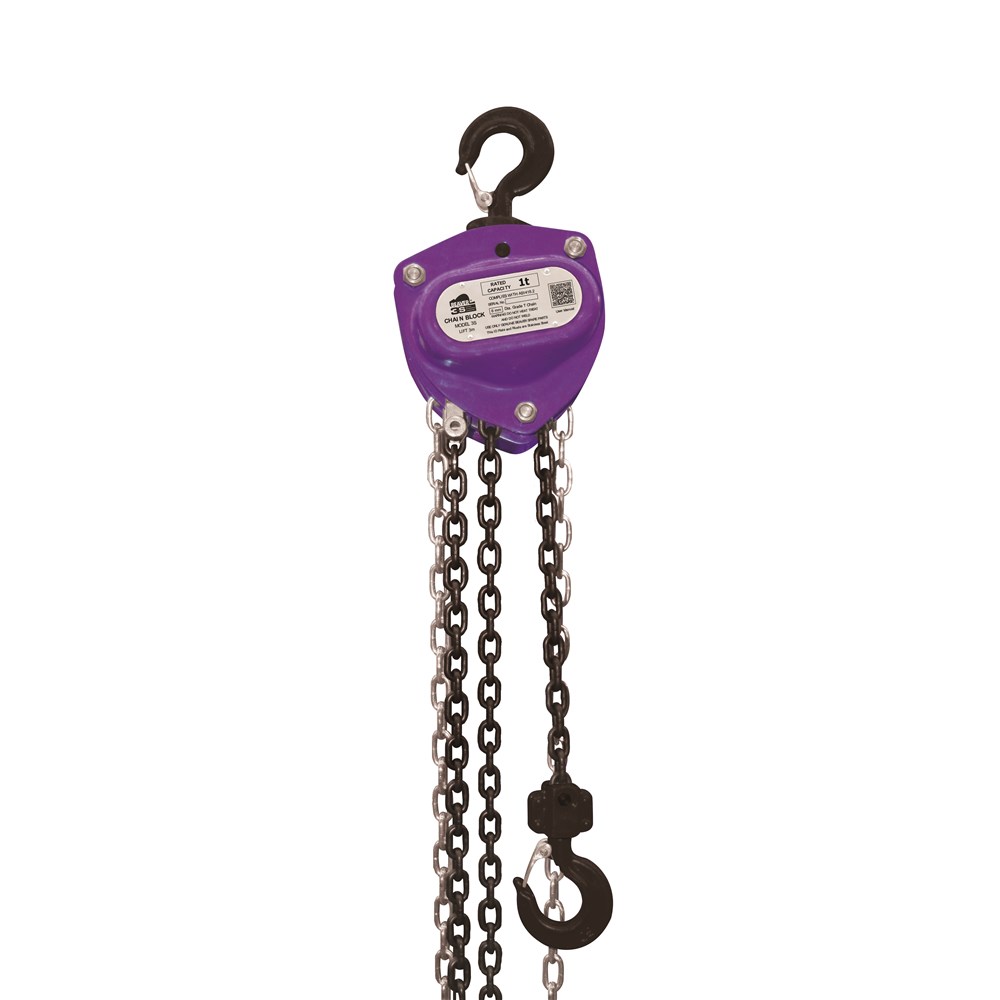

503106 1t Violet 6m 250kg 1 6mm x 18mm

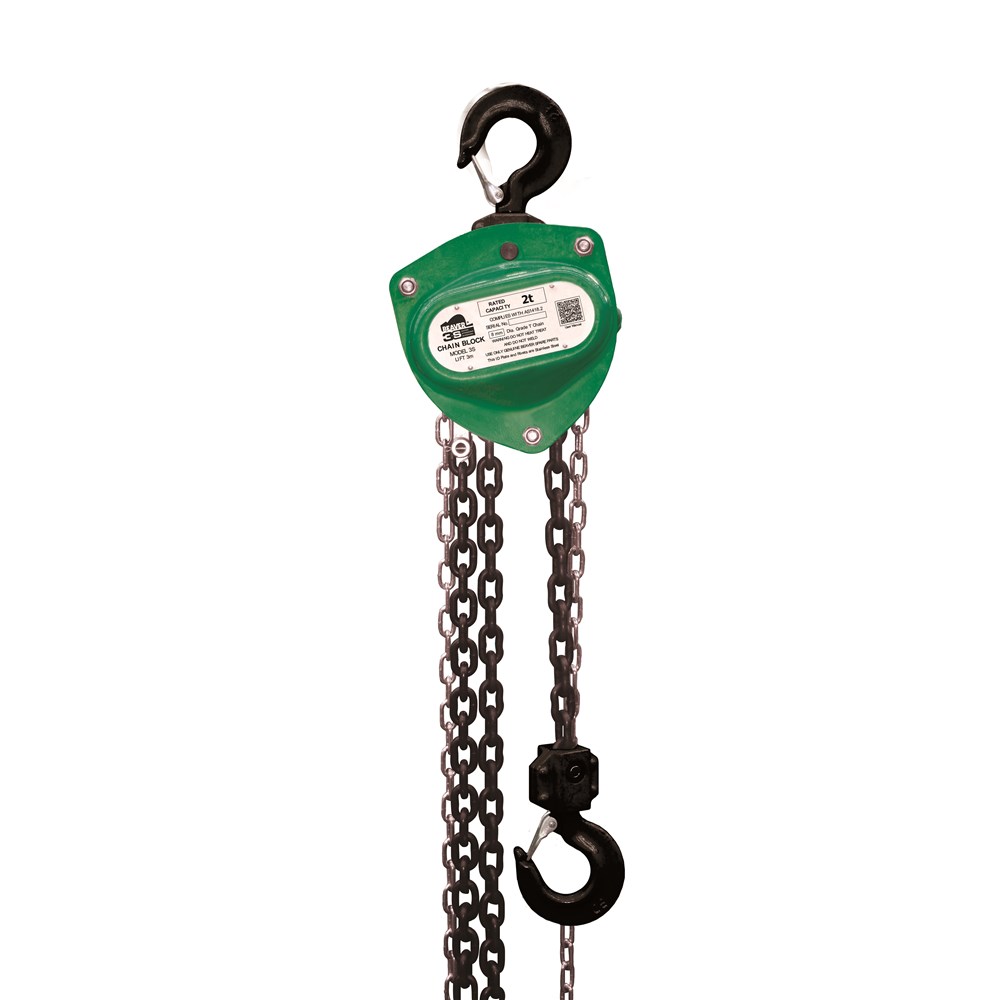

503206 2t Green 6m 335kg 1 8mm x 24mm

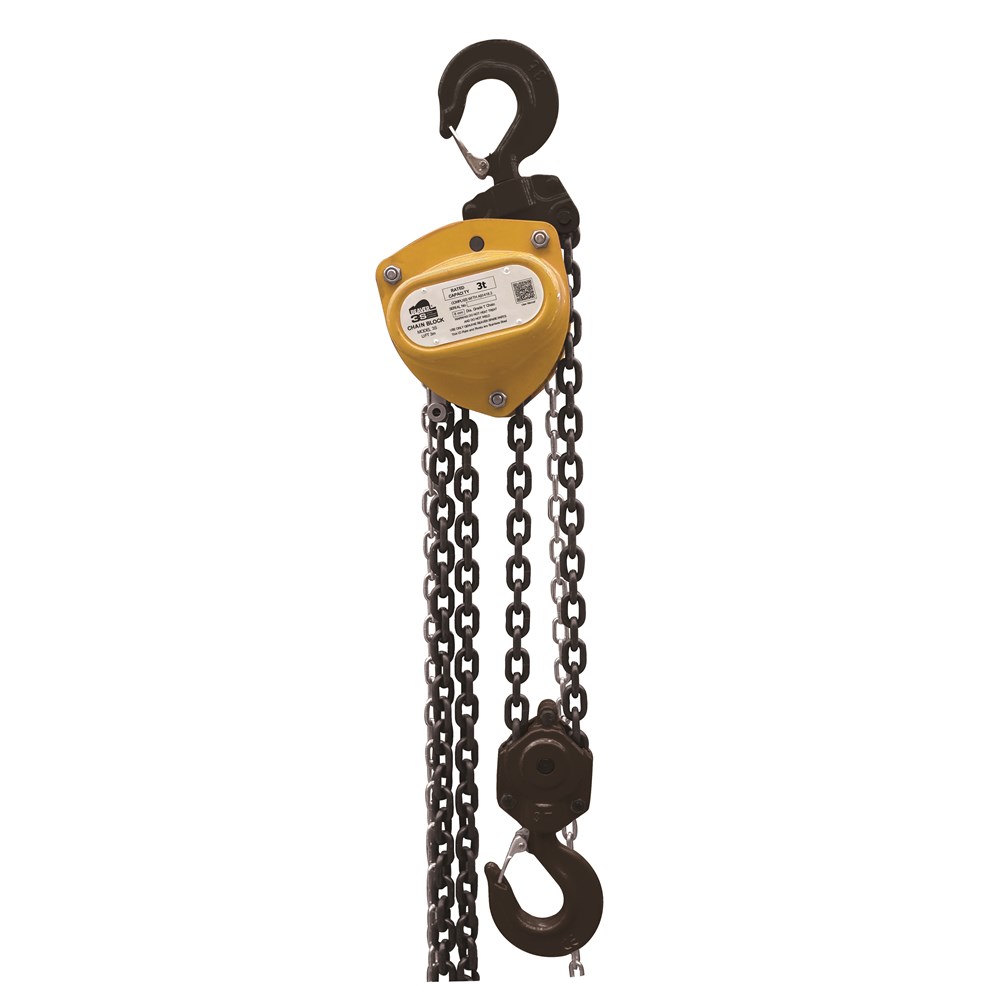

503306 3t Yellow 6m 335kg 2 8mm x 24mm

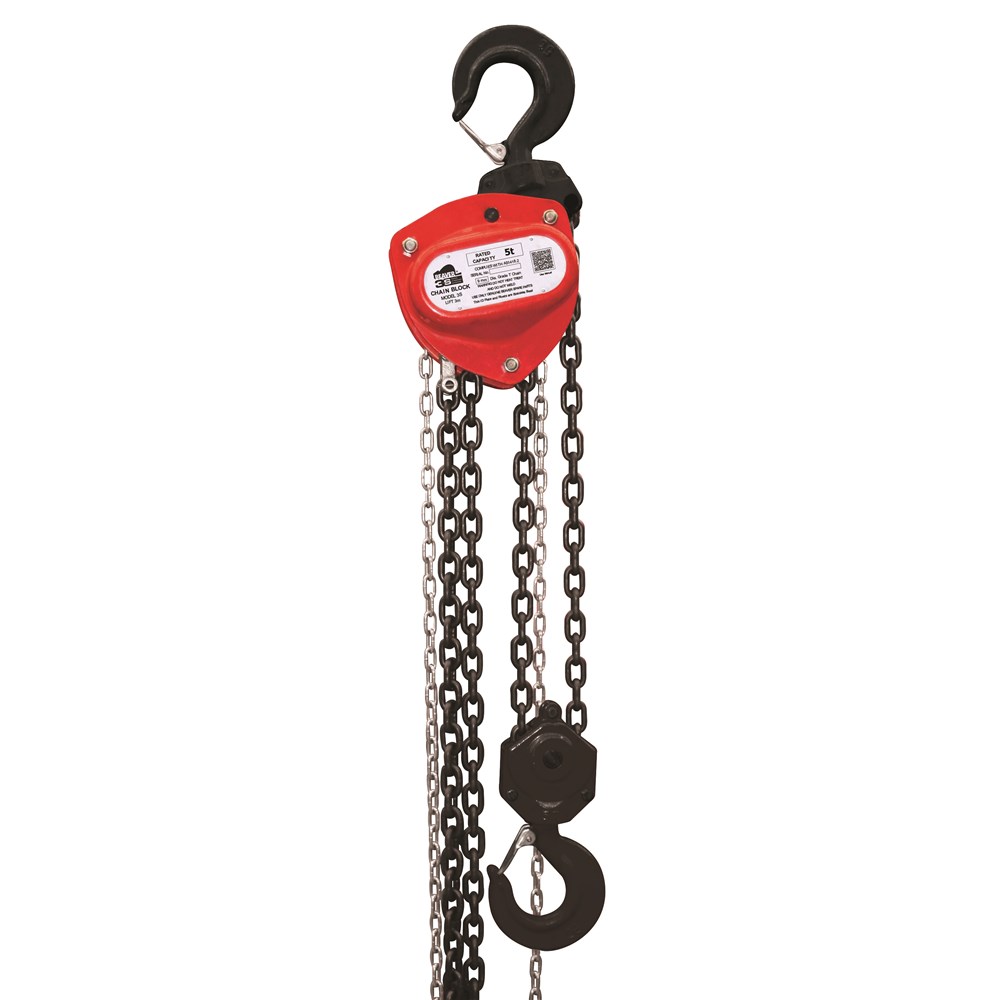

503506 5t Red 6m 363kg 2 9mm x 30mm

These chain blocks are colour coded to match international lifting standards for fast and accurate identification of WLL. Every chain block is also operationally tested to its rated capacity and is supplied with a Beaver test certificate, relating to its stamped identification side plate.

Product Code Rated Capacity A B C H Net Weight
503056 0.5t 132mm 148mm 28mm 345mm 12.6kg
503106 1t 151mm 172mm 32mm 376mm 14.8kg
503206 2t 175mm 210mm 36mm 470mm 23.6kg
503306 3t 176mm 230mm 46mm 565mm 37.2kg
503506 5t 189mm 280mm 46mm 688mm 54.5kg

For technical drawings of these lever blocks, please see the linked data sheet below.

For more information on our materials handling range, please contact our Customer Care team.
