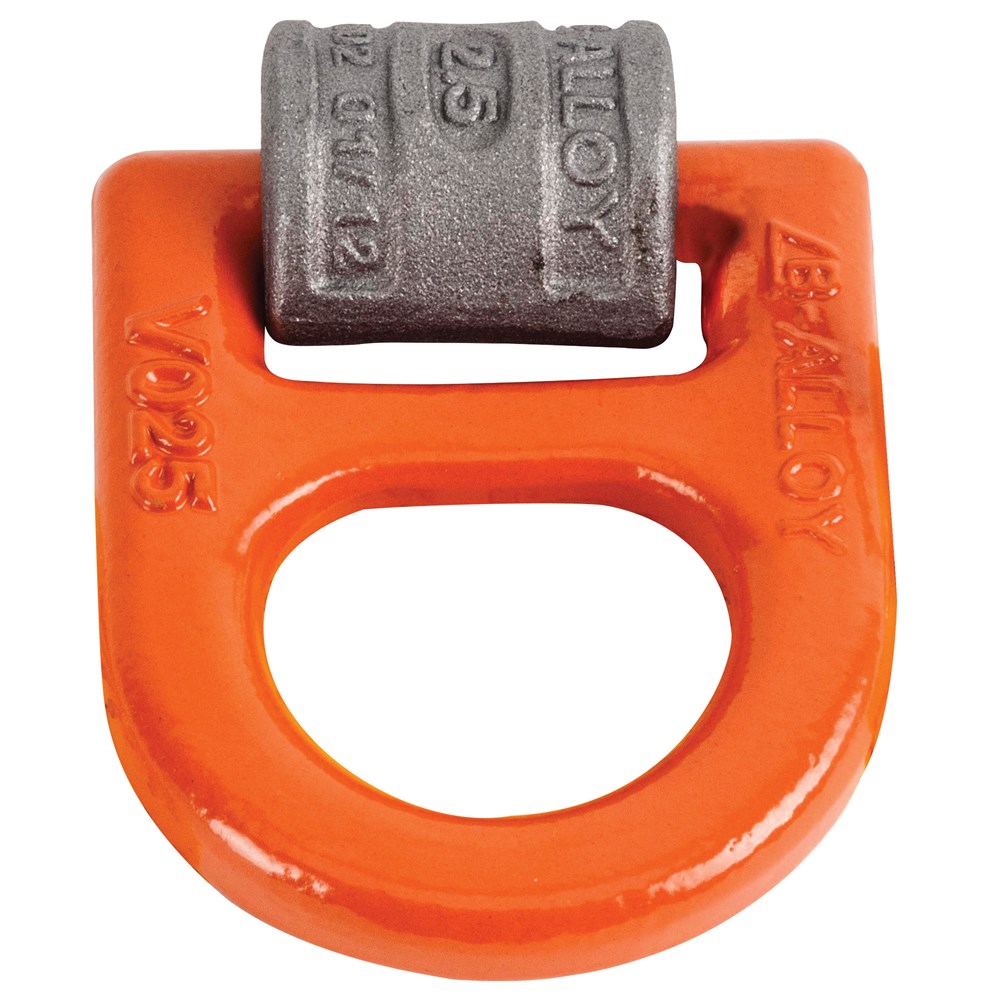

Beaver B-Alloy Grade 100 weld-on lifting and lashing rings are manufactured using quenched and tempered, quality alloy steel and offer a full working load limit at all angles.These lifting and lashing rings have a durable powder coated baked enamel finish and can be welded into the required position with the aid of height lugs on a weld block Just some of the many applications for this innovative product include mining, offshore exploration, road or rail transport, and maritime associated industries. The Weld-n lifting carry disguising marks for easy traceability .
Features:
- Extremely high strength attachment as a lifting and lashing point
- The welding should only be carried out according to EN 287 or AWS Standards by an authorised welder
- Functional compact design
- Lifting ring has durable powder coated baked enamel finish
- Welding Instructions & procedures supplied with each unit
Approved Standards:

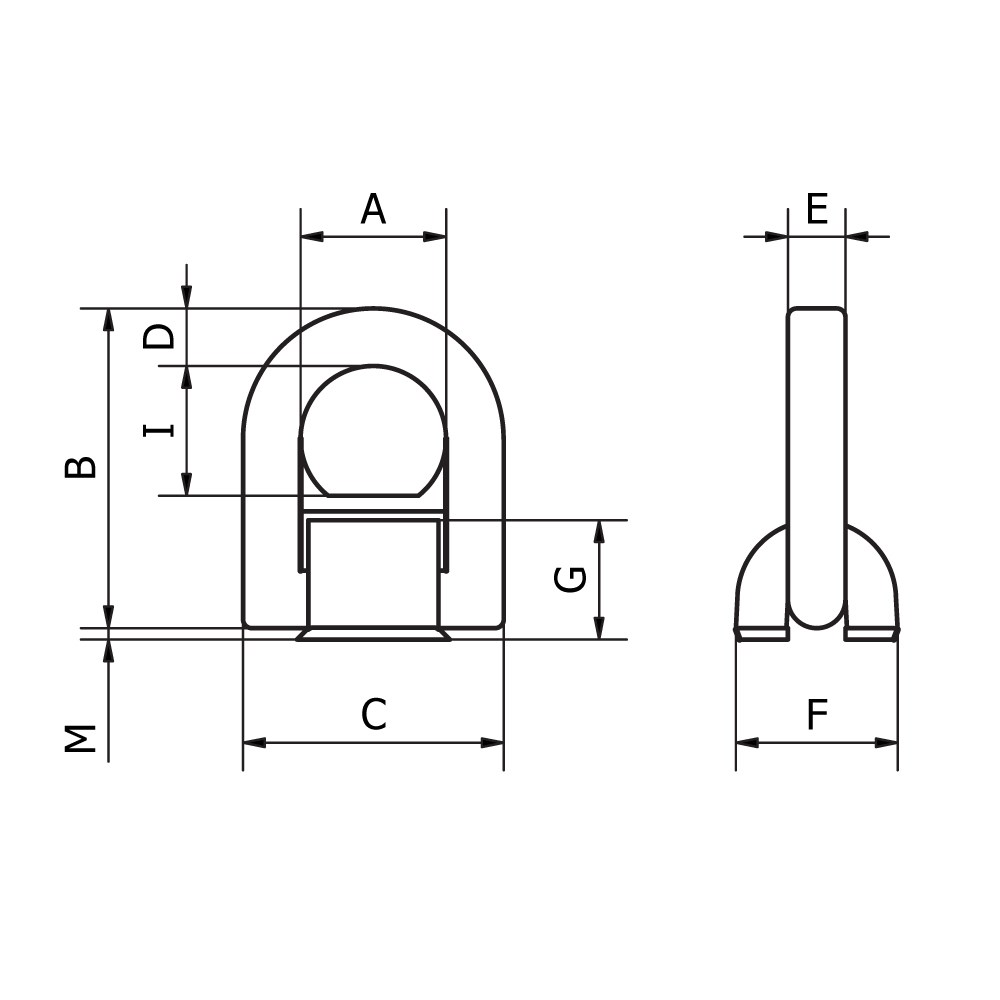

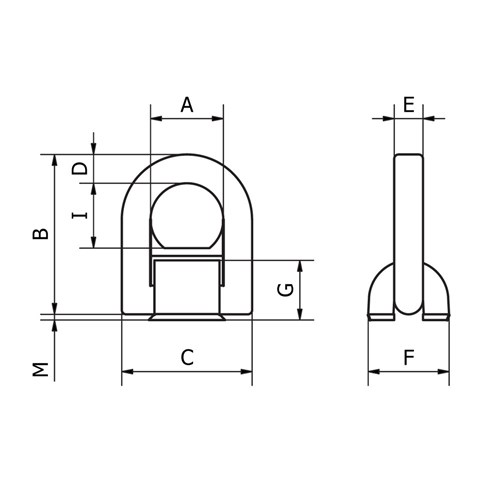

Product code |
WLL |
A |
B |
C |
D |
E |
F |
G |
I |
M |
Approx Weight |
BALPV015 |
1.5t |
38mm |
79mm |
66mm |
14mm |
13.5mm |
32mm |
25mm |
31mm |
2mm |
0.4kg |
BALPV025 |
2.5t |
45mm |
92.5mm |
77mm |
16mm |
13.5mm |
36mm |
27mm |
38mm |
3.5mm |
0.6kg |
BALPV040 |
4t |
51mm |
102mm |
87mm |
18mm |
16.5mm |
42mm |
32mm |
40.5mm |
2mm |
0.9kg |
BALPV067 |
6.7t |
67mm |
138mm |
115mm |
24mm |
22.5mm |
61mm |
44mm |
55mm |
4mm |
2kg |
BALPV100 |
10t |
67.5mm |
142mm |
129mm |
26.5mm |
57.5mm |
75mm |
53mm |
57.5mm |
4mm |
3kg |
BALPV160 |
16t |
100mm |
216.4mm |
190mm |
40mm |
26mm |
95mm |
69mm |
85mm |
5mm |
6.9kg |
Detailed welding instructions are available on request.
