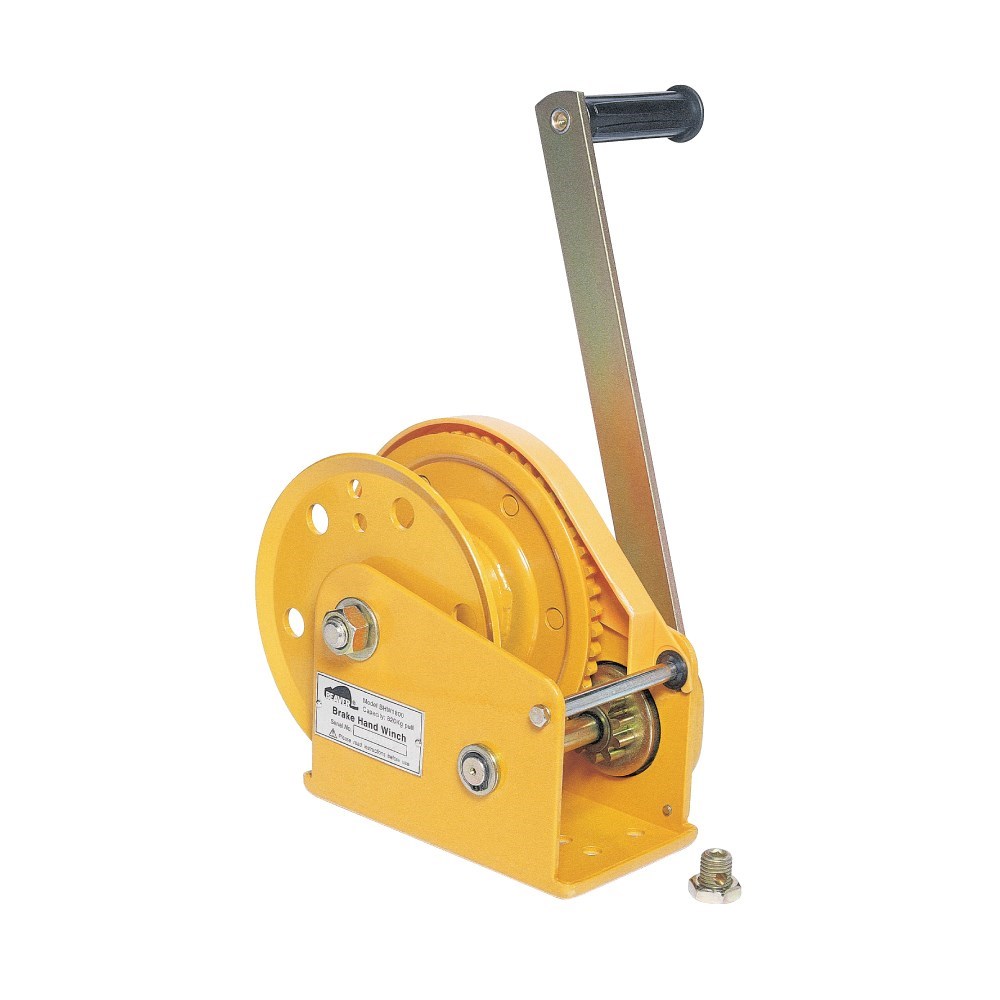

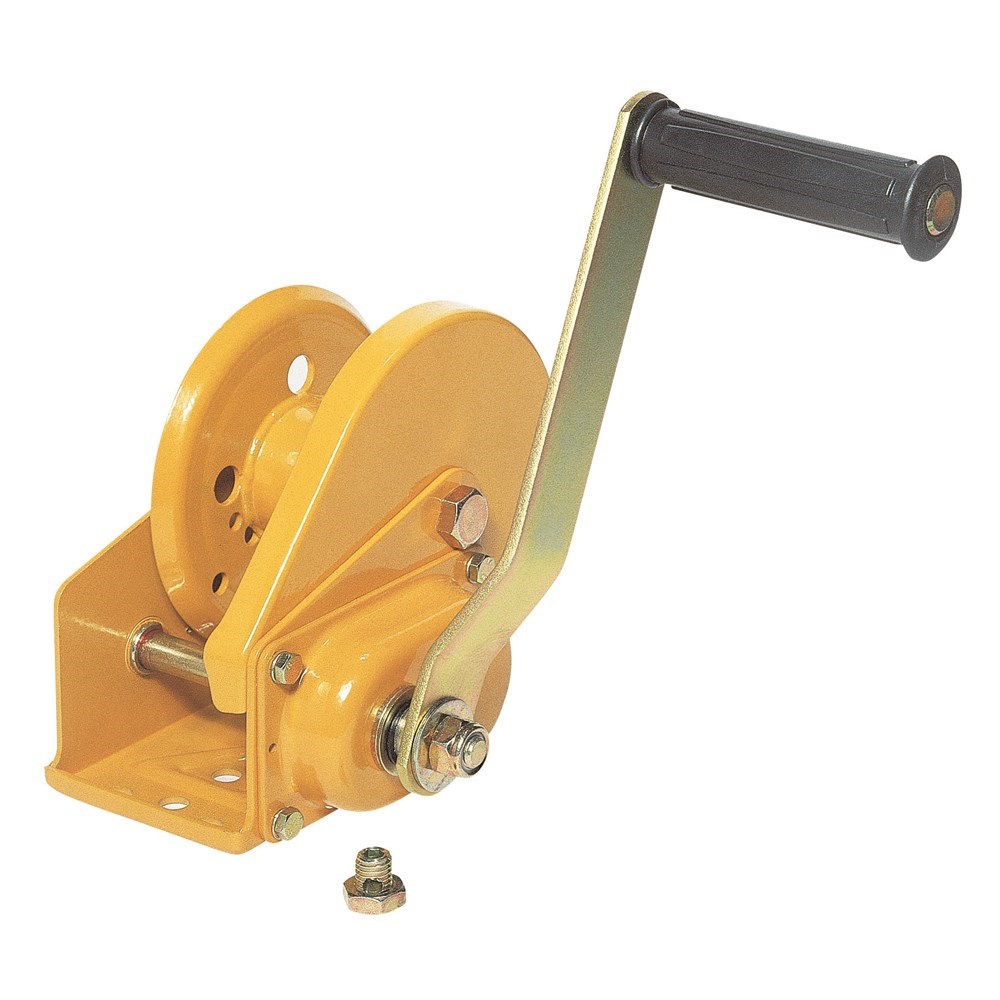

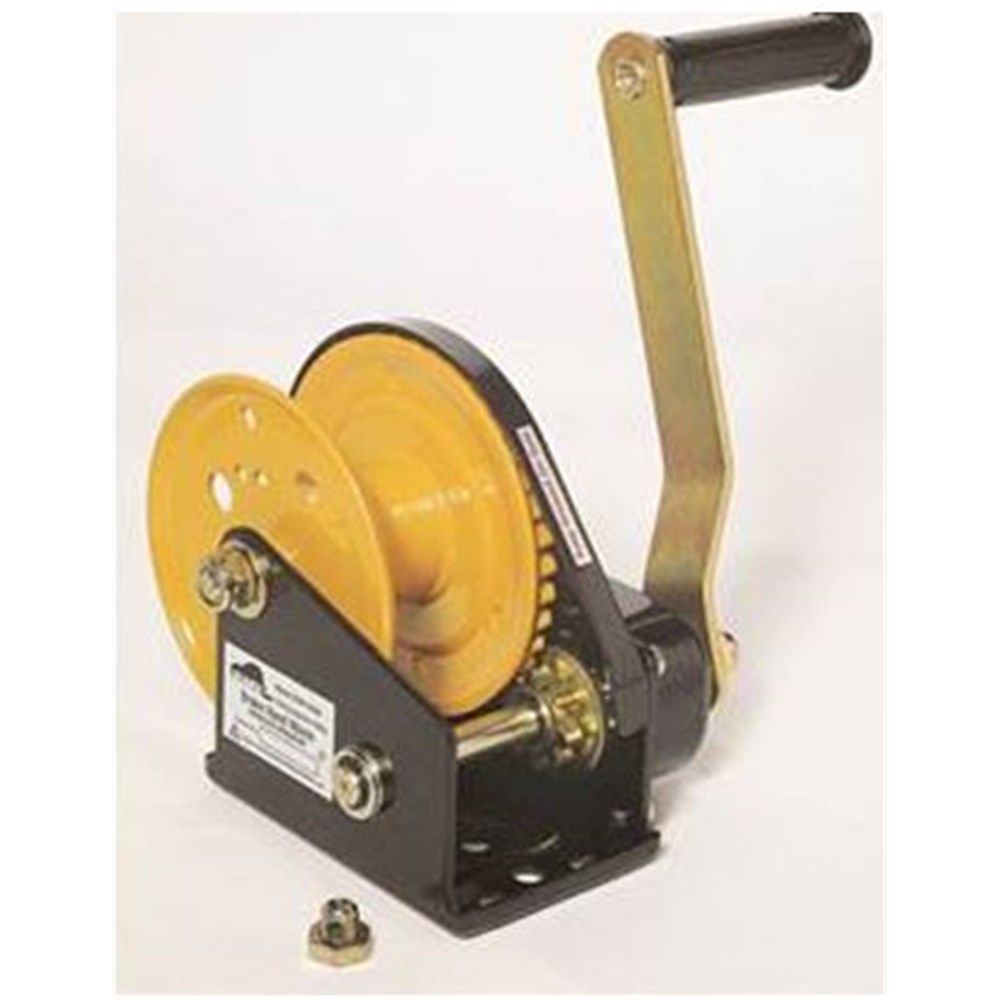

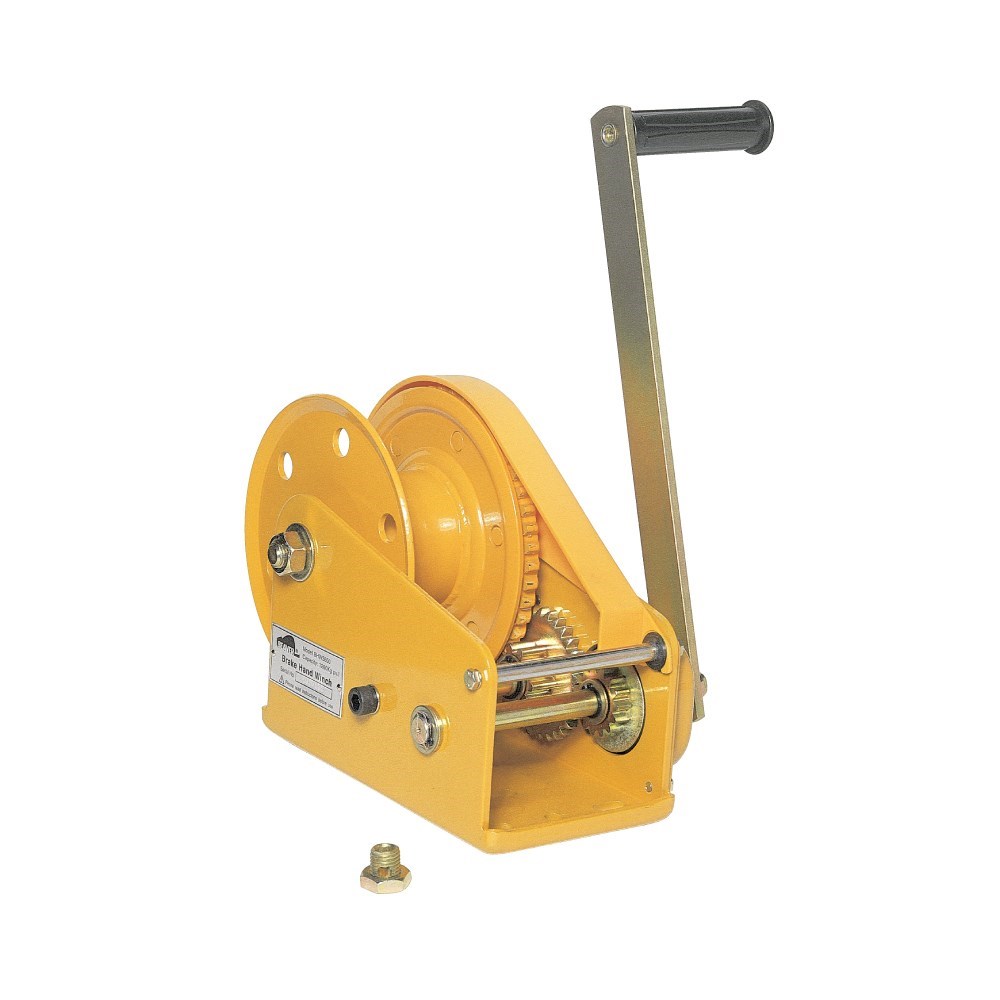

Beaver Brake Hand Winches

Product Code: MHBHW1

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver Brake Hand Operated Winches are a cost effective, versatile solution for a variety of applications.  They can be used for both pulling and lifting applications.
Often referred to as crank winches, they are easy to carry and use.

Propduct Features:

  • High precision construction minimises gear noise
  • Positive load actuated brake can hold the load in any position
  • Lightweight, yet durable
  • Mechanical components enclosed for protection and safety
  • Heat-treated gears
  • Strong removable handles
Model No. Bare BHW800 BHW1200 BHW1800  BHW2600
Model No. Wire Rope BHW800 BHW1200R BHW1800R BHW2600R
Rated Capacity - Pulling (Kg) (kN) 370/3.63 550/5.39 820/8.04 1200/11.77
Rated Capacity - Hoisting (Kg) 185 275 410 600
Type of Brake Single Paw Single Paw Double Paw Double Paw
Max Hand Force Req. (kg) 14.5 15 22 19
Gear Ratio 4:1:1 4:1:1 5:1 10:1
Hub Diamater (mm) Ø40 Ø50 Ø70 Ø82
Handle Length (mm) 160 210 320 320
Unit Weight - Bare (kg) 3 3.5 8 10.5
Wire Rope Diameter (mm) 4 5 6 8
Wire Rope Construction 7x19 RHOL 7x19 RHOL 7x19 RHOL 7x19 RHOL
Grade of Wire Rope G2070 G2070 G2070 G2070
Wire Rope Finish Galvanised Galvanised Galvanised Galvanised
Wire Rope Storage Capacity (m) 36 23 24 18

For more information on our materials handling range, please contact our Customer Care team.
