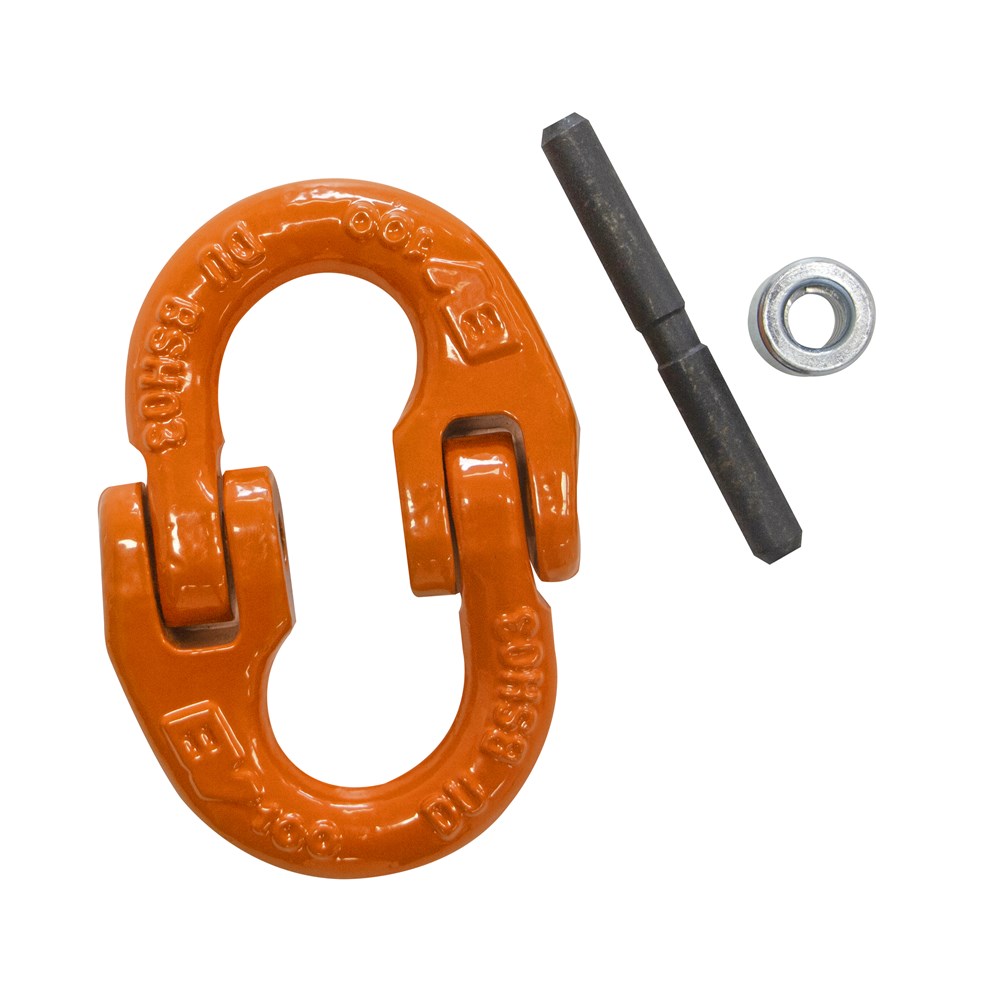

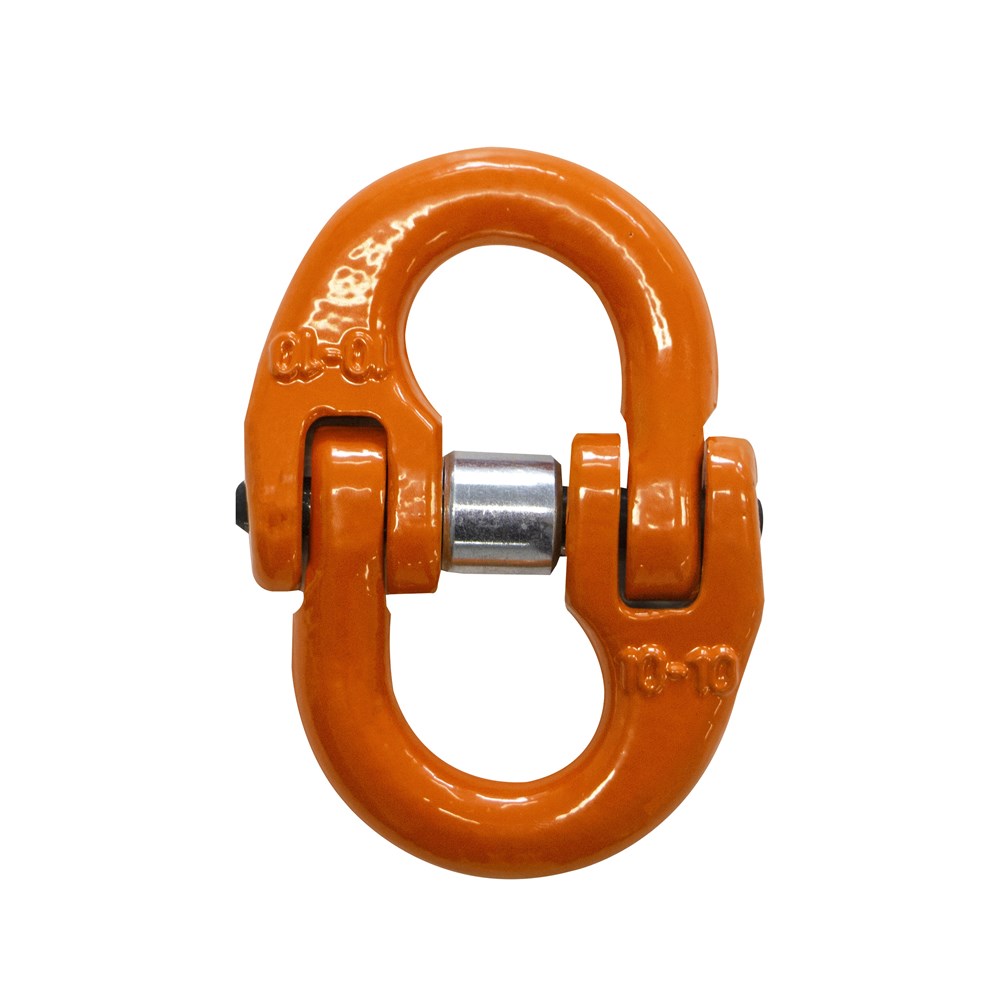

The versatile Beaver BV100 Grade 100 Connecting Link or Coupler is manufactured from heat treated alloy steel and ideal for heavy lifting applications. The connector consists of two heavy duty symmetrical, die-forged halves joined with a heavy-duty stud and pin which can be disconnected if required. The connector comes in a range of sizes from 8mm to 16mm and is generally used for connecting chains, head rings, hooks and other lifting components. All Beaver BV100 Grade 100 lifting components are quality tested throughout the manufacturing process and carry distinguishing marks for easy identification.
Features:
- Conventional style connecting link to Grade 100 chain
- Superior resistance to wear due to heat treatment
- High strength, versatile and low weight
- 25% higher load capacity than Grade 80
- 30% weight saving over Grade 80
Applications:
- Lifting components
- Ideal to connect chain to a master link, hooks and other components, commonly used in a Grade 100 chain assembly
Approved Standards:
Product Code |
Chain Size |
W.L.L |
Approx Weight |
UOM |
Pack Quantity |
CONNTBV100008MM |
8mm |
2.5t |
0.18kg |
Each |
100 |
CONNTBV100010MM |
10mm |
4t |
0.34kg |
Each |
50 |
CONNTBV100013MM |
13mm |
6.7t |
0.68kg |
Each |
30 |
CONNTBV100016MM |
16mm |
10t |
1.22kg |
Each |
20 |

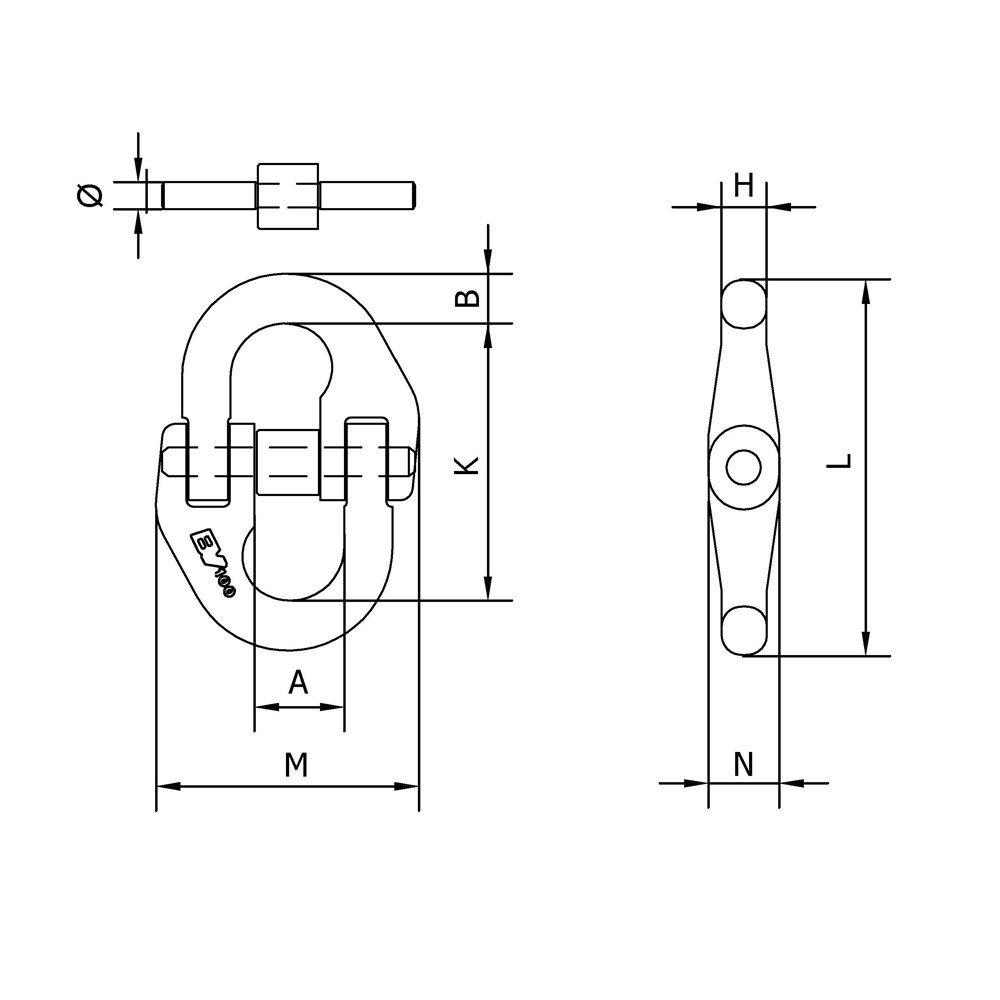

Product Code |
A |
B |
L |
K |
H |
M |
N |
Ø |
CONNTBV100008MM |
18.5mm |
10.5mm |
84mm |
63mm |
10mm |
54mm |
14mm |
6.2mm |
CONNTBV100010MM |
23mm |
12.6mm |
97mm |
71mm |
12.6mm |
67mm |
18mm |
8mm |
CONNTBV100013MM |
28mm |
16.5mm |
126mm |
92.5mm |
16.5mm |
83mm |
23mm |
10.2mm |
CONNTBV100016MM |
33.5mm |
20mm |
148mm |
106.5mm |
20mm |
103mm |
30mm |
12.5mm |
For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.
