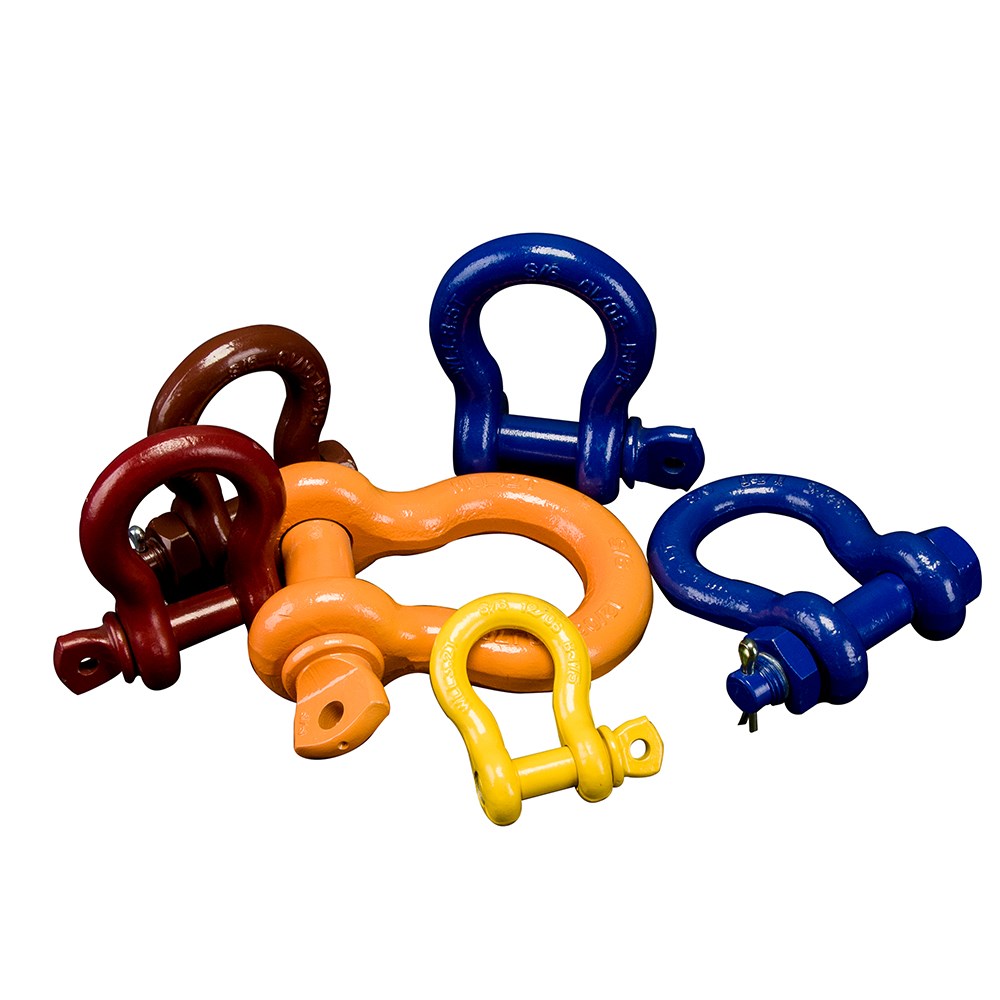

Beaver Grade S Colour-Coded shackles take the guess work out of choosing the right capacity when matching lifting components.
These shackles are suitable for mining, industrial, and construction applications.
Product Features:
- Colour coded to international WLL lifting standards for safety
- Clearly marked with WLL, quality grade, size, batch ID / date of manufacture
- Proof tested to the Australian Standard
- Test certificates available on request
Approved Standards:
Product Code |
Size |
WLL |
Shackle Colour |

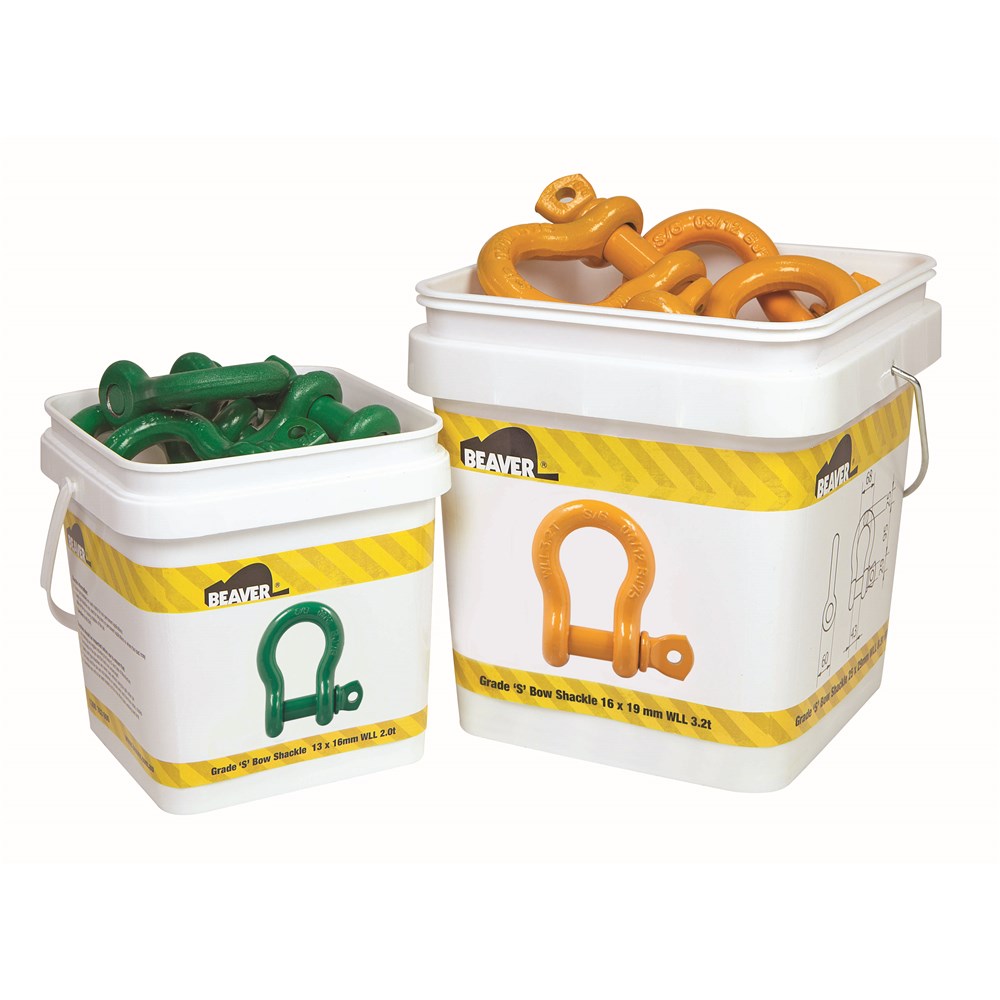

Bucket Capacity |
QTY per Bucket |
Shackle Weight |
Bucket Weight |
242310MP |
10mm x 11mm |
1t |

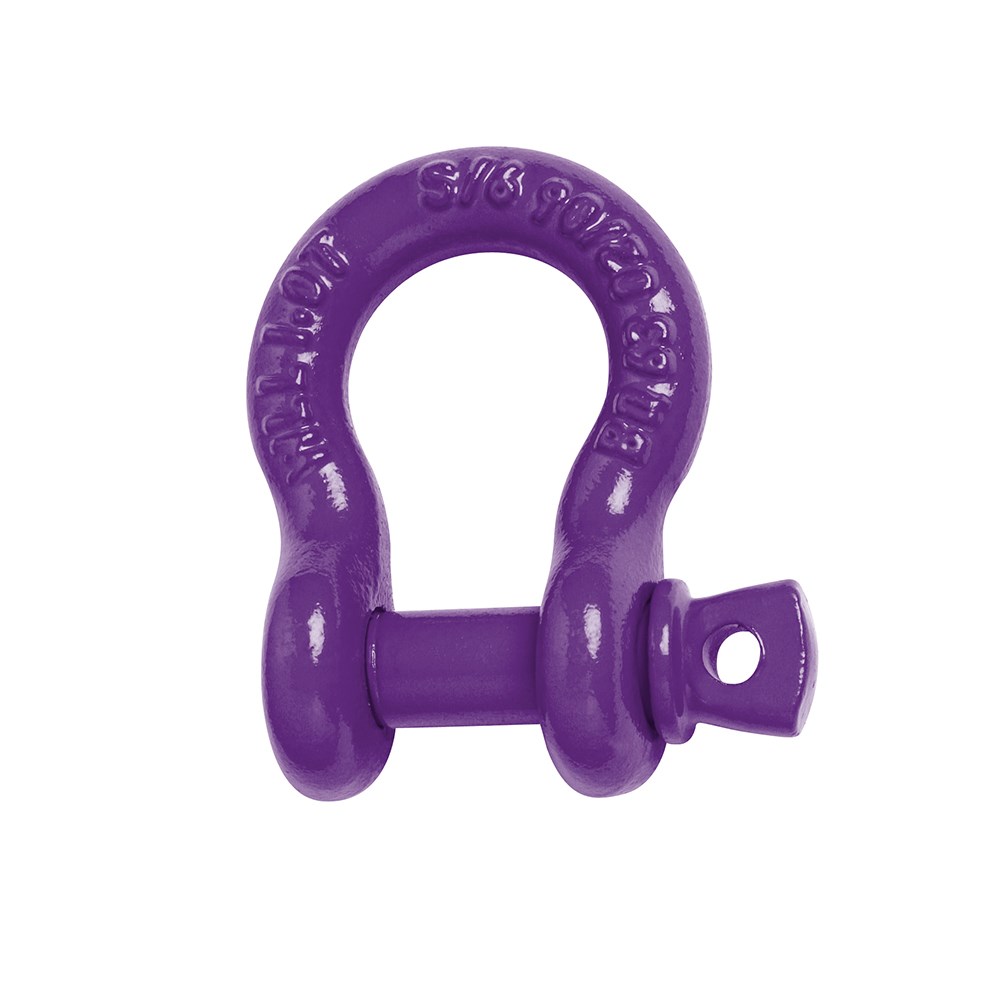

Violet |
2L |
30 |
0.15kg |
4.23kg |
242313MP |
13mm x 16mm |
2t |
Green |
2L |
14 |
0.37kg |
4.62kg |
242316MP |
16mm x 19mm |
3.2t |
Yellow |
5L |
20 |
0.65kg |
12.4kg |
242319MP |
19mm x 22mm |
4.7t |
Grey |
5L |
10 |
1.06kg |
10.7kg |
242322MP |
22mm x 25mm |
6.5t |
Brown |
5L |
8 |
1.56kg |
13.12kg |
242325MP |
25mm x 29mm |
8.5t |

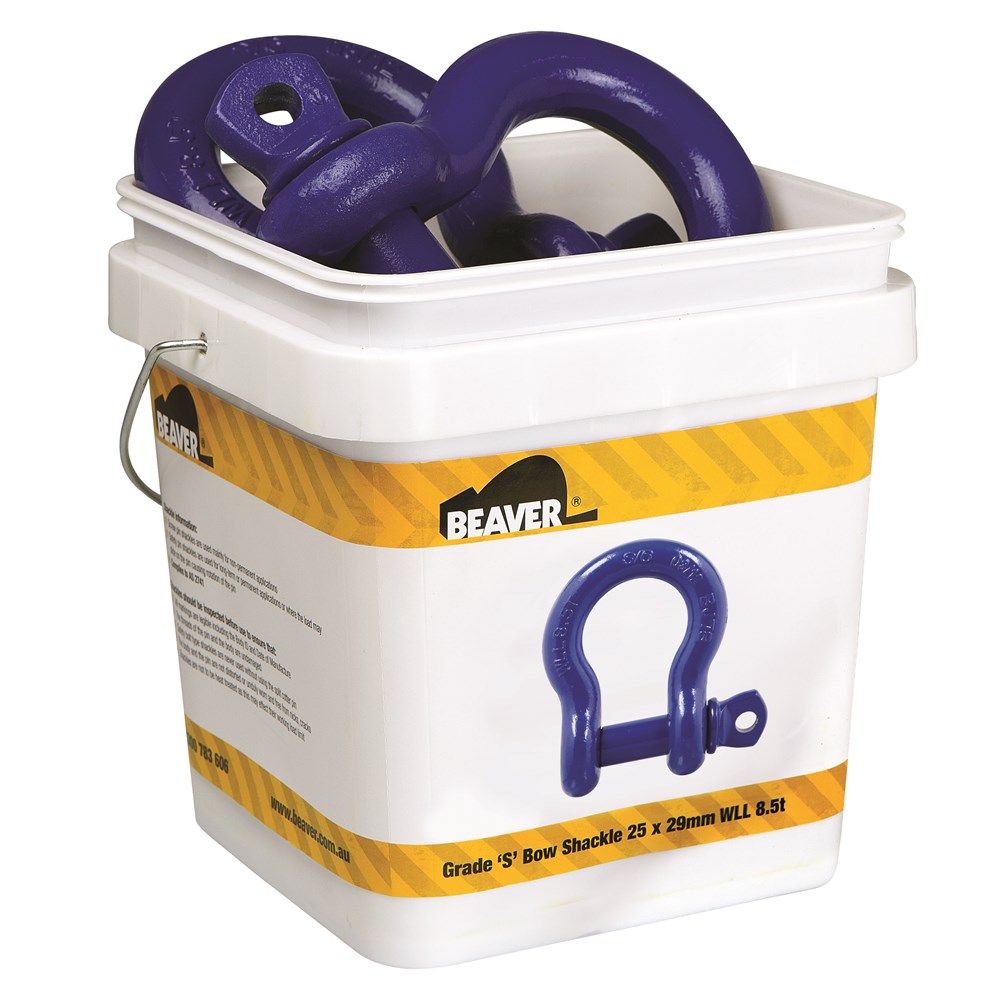

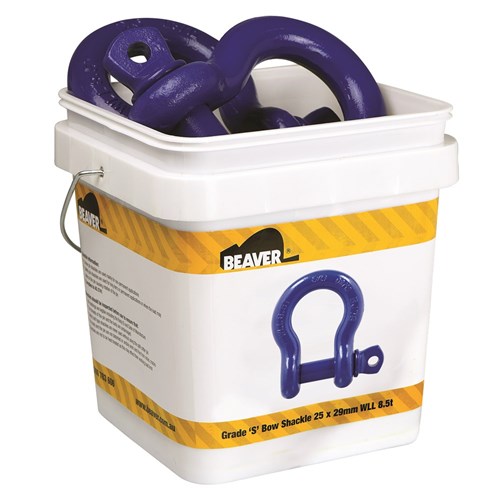

Blue |
5L |
4 |
2.32kg |
9.2kg |
All Beaver grade S shackles are easily identified with prominent stamping indicating MM/YY, for quick reference of the products manufacture and working load limit. Test certificates are readily available on request.

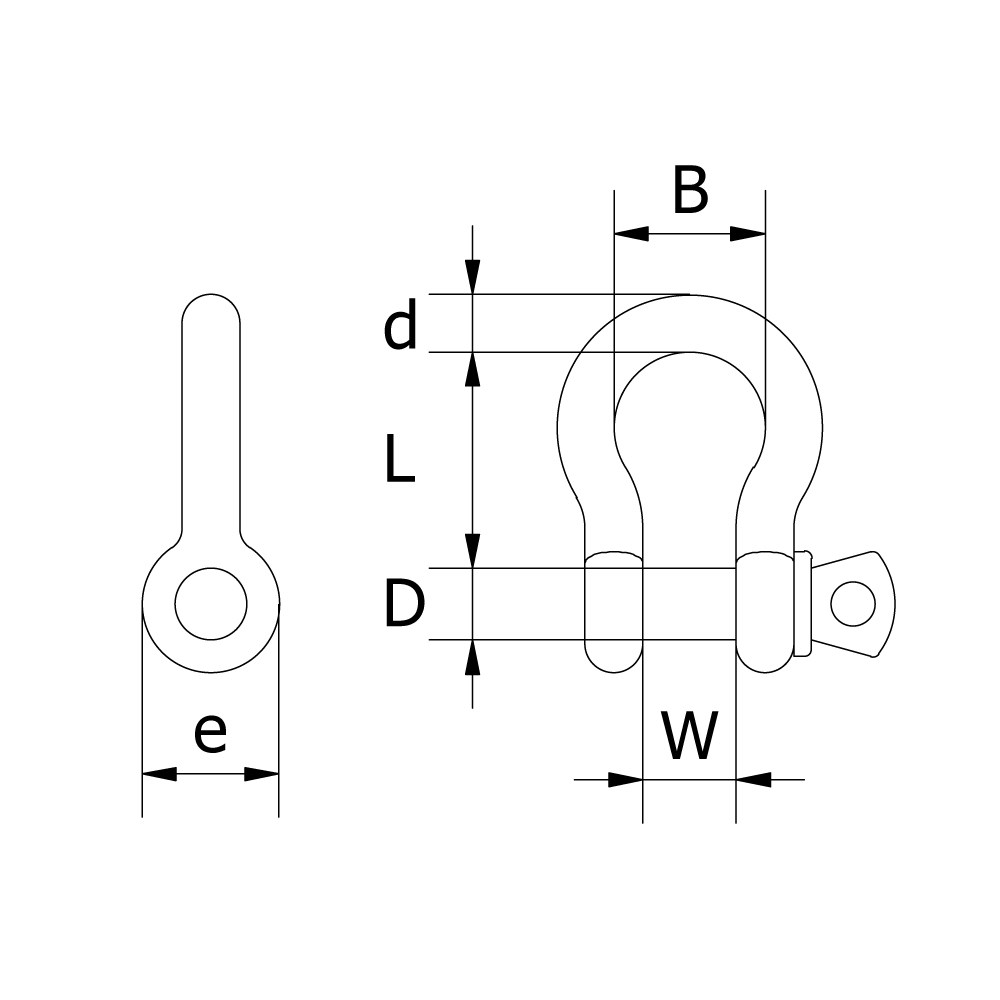

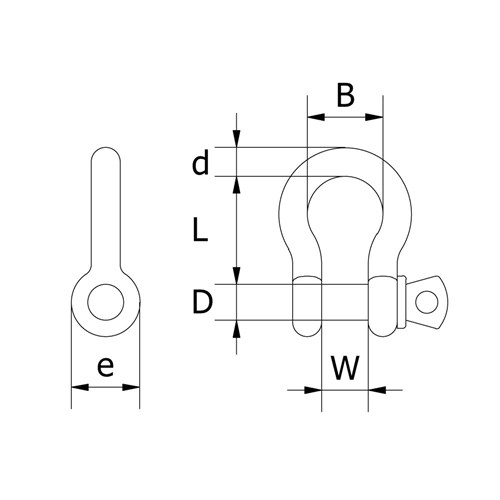

Product Code |
Size |
Diameter |
Pin Diameter (D) |
Inside Width (W) |
Inside Length (L) |
Diameter Boss (e) |
Width of Bow (B) |
242310MP |
10mm x 11mm |
10mm |
11mm |
17mm |
37mm |
25mm |
26mm |
242313MP |
13mm x 16mm |
13mm |
16mm |
21mm |
48mm |
33mm |
33mm |
242316MP |
16mm x 19mm |
16mm |
19mm |
27mm |
61mm |
40mm |
43mm |
242319MP |
19mm x 22mm |
19mm |
22mm |
32mm |
72mm |
48mm |
51mm |
242322MP |
22mm x 25mm |
22mm |
25mm |
37mm |
84mm |
54mm |
58mm |
242325MP |
25mm x 29mm |
25mm |
29mm |
43mm |
95mm |
60mm |
68mm |
For more information on our materials handling range, please contact our Customer Care team.
