Beaver Geared Girder Trolleys

Product Code: MH5230S

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver Geared Girder Trolleys are suited for heavier loads, higher suspension levels, or high use applications.

The units suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin

These girder trolleys are lightweight, despite their robust all-steel construction and have been operationally tested to 150% of their rated capacity.

Note:-Beaver Geared Girder Trolleys are not designed for passenger elevator applications and must not be used for this purpose. Selection and calculation of the proper beam construction is the responsibility of the user.

Features:

  • Fully adjustable
  • Hand chain features a special corrosion resistance zinc dichromate (gold) finish
  • Anti-tilt blocks fitted as standard for additional safety
  • Colour coded to match international WLL lifting standards
  • Stainless steel ID plate for traceability
Approved Standards:
  • Complies to AS 1418.2
Product Code Rated Capacity Colour Code Proof Load Minimum Radius Curve Net Weight
523010S 1t Violet 14.71kN 1m 14.5kg

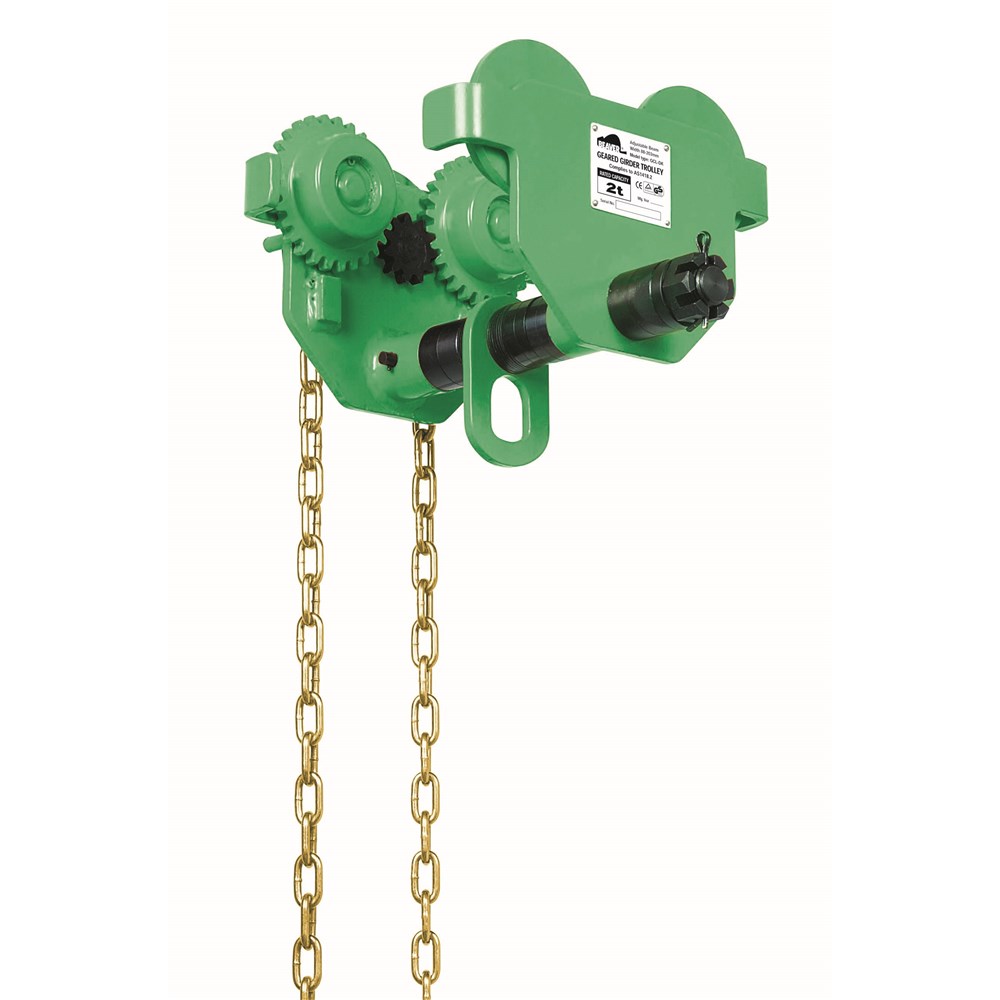

523020S 2t Green 29.42kN 1.1m 21.5kg

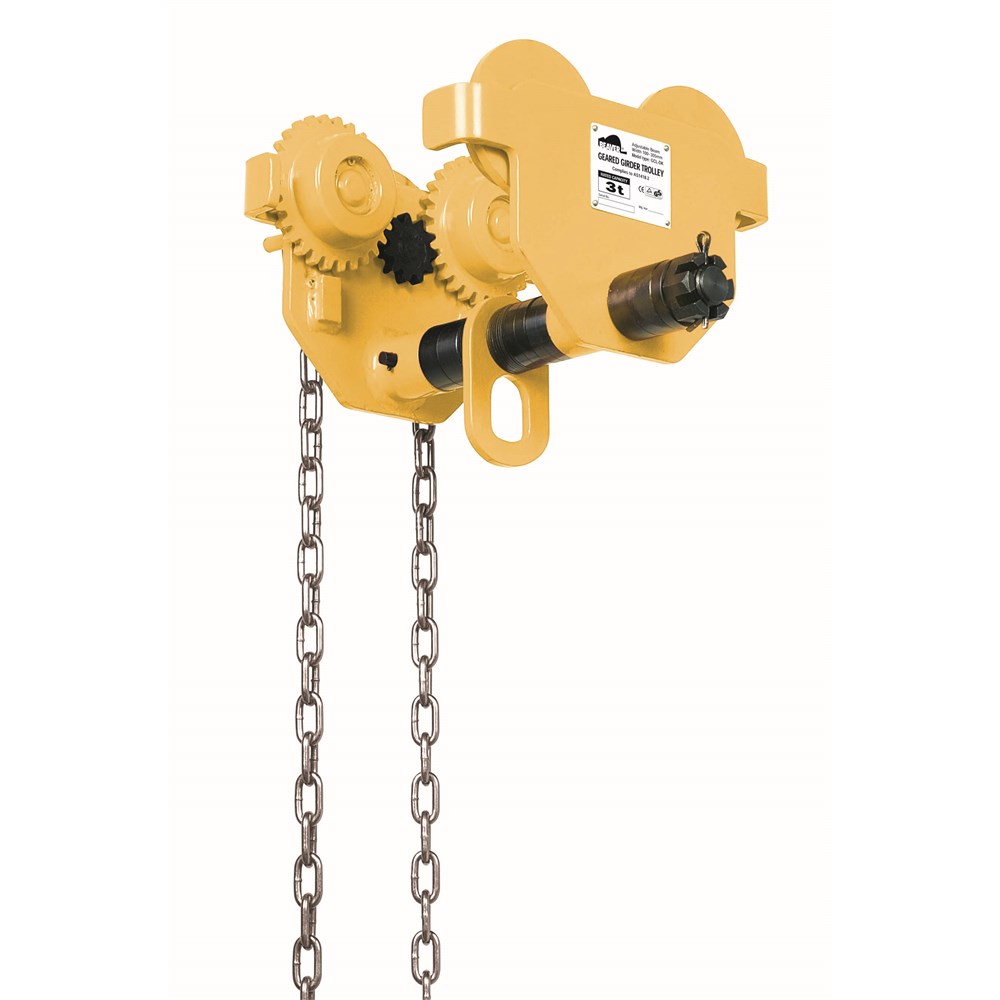

523030S 3t Yellow 44.13kN 1.3m 31kg

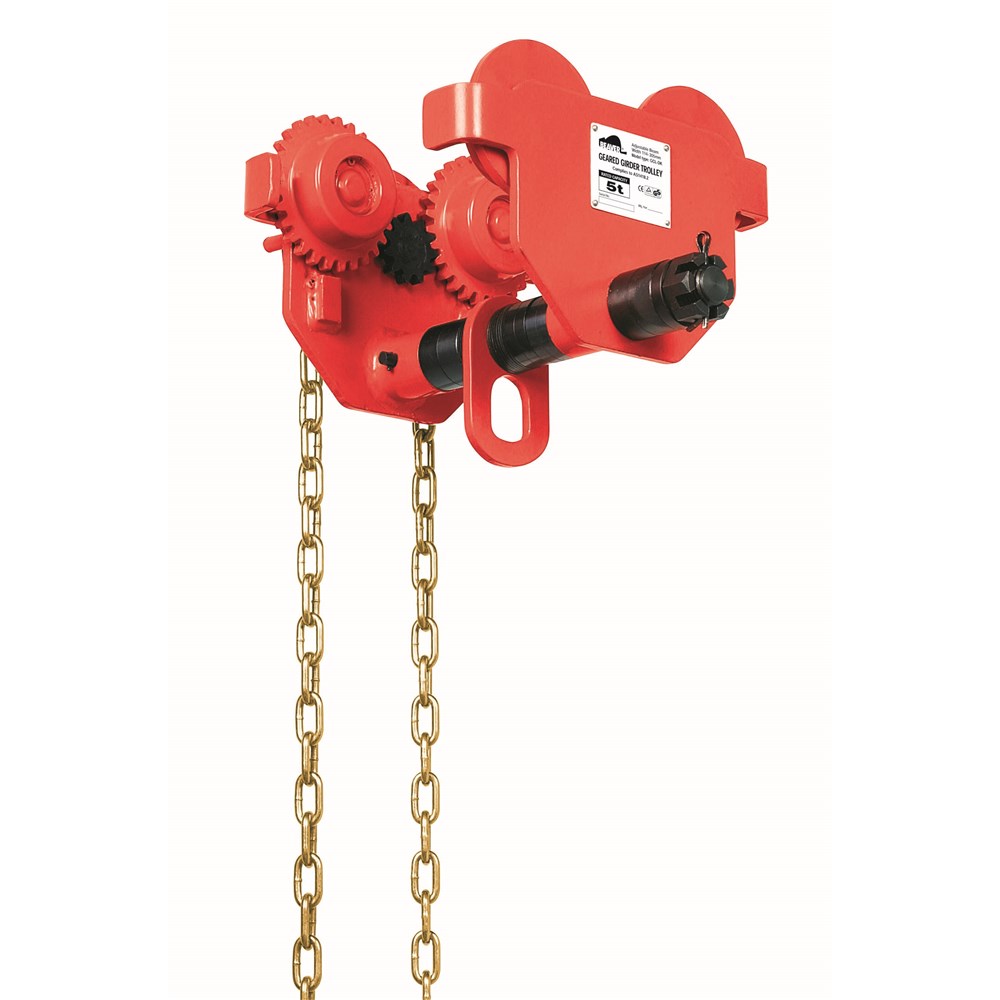

523050S 5t Red 61.29kN 1.4m 46kg

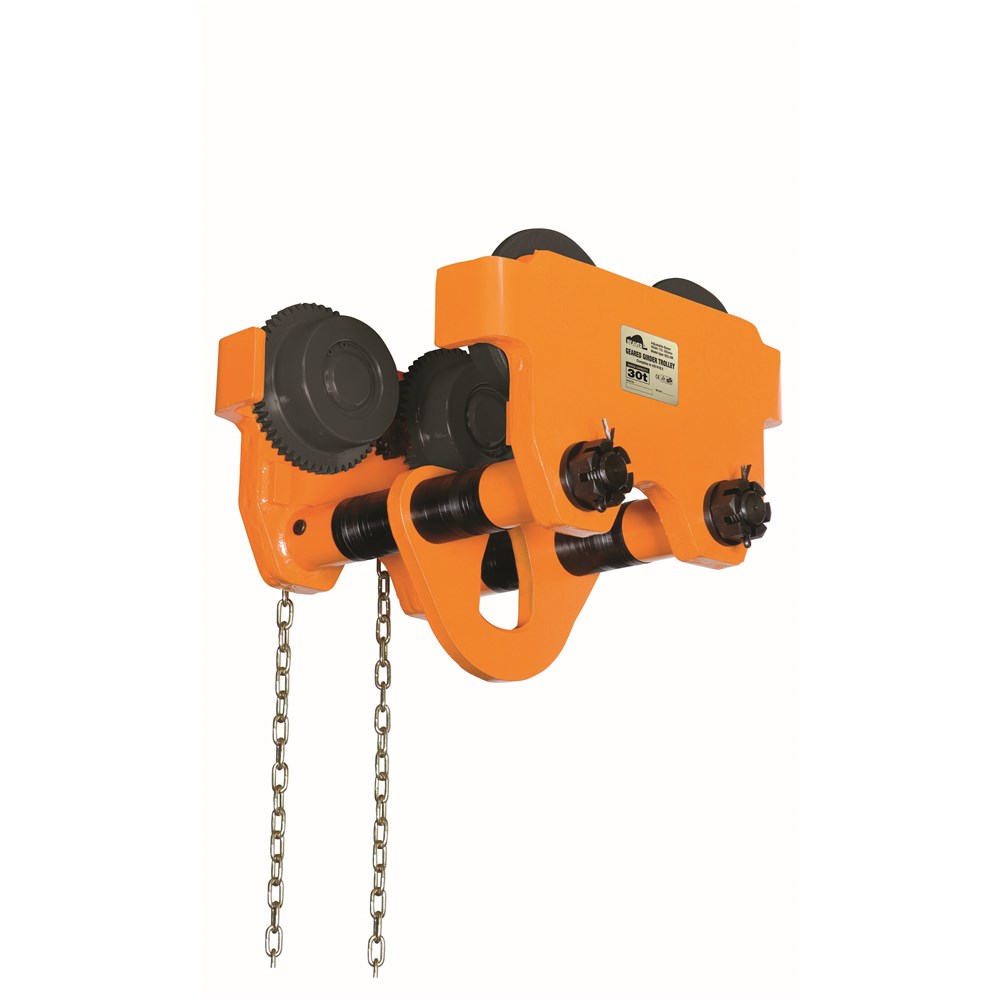

523100S 10t Orange 122.58kN 2m 75kg
523200S 20t Orange 245.17kN 3.5m 172kg

Each Beaver girder trolley has an individual serial number stamped on the stainless steel identification plate. This number coincides directly to the test certificate of the product (which is provided), for quick and easy tracing and reference. These products are also operationally tested to 150% of its rated capacity.

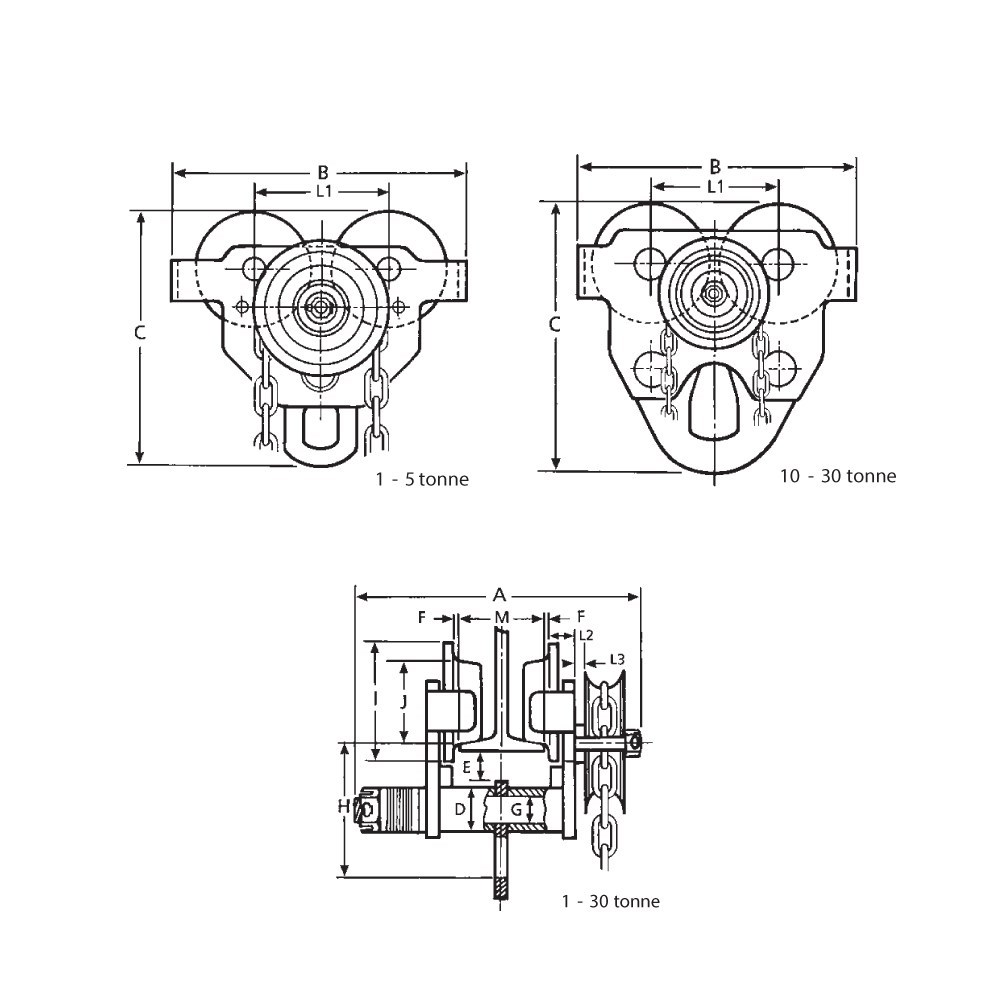

Product Code Rated Capacity A B C D E F G
523010S 1t 338mm 246mm 222mm 40mm 38mm 1.5-3mm 30mm
523020S 2t 349mm 276mm 263mm 52mm 38mm 1.5-3mm 36mm
523030S 3t 464mm 332mm 309mm 58mm 40mm 1.5-3mm 42mm
523050S 5t 476mm 377mm 353mm 64mm 42mm 2-3.5mm 48mm
523100S 10t 510mm 424mm 396mm 64mm 45mm 2-3.5mm 48mm
523200S 20t 600mm 555mm 498mm 75mm 58mm 2-3.5mm 55mm
Rated Capacity H I J L1 L2 L3 M
523010S 1t 125mm 95mm 68mm 120mm 23mm 8mm 64-203mm
523020S 2t 150mm 108mm 80mm 132mm 26mm 8mm 88-203mm
523030S 3t 171mm 131mm 100mm 155mm 29mm 10mm 100-305mm
523050S 5t 186mm 144mm 110mm 168mm 35mm 10mm 114-305mm
523100S 10t 190mm 176mm 136mm 200mm 52mm 25mm 124-305mm
523200S 20t 233mm 226mm 175mm 272mm 78mm 58mm 136-305mm
