Beaver Push Girder Trolleys


Product Code: MH5220S

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver push girder trolleys are fully adjustable to suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin. This trolley complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.

These girder trolleys are manufactured to have a lightweight but robust all-steel construction. The hand chain has a special corrosion resistance zinc dichromate (gold) finish. Anti-tilt blocks fitted as standard for additional safety. Beaver push trolleys are not designed for passenger elevator applications and must not be used for this purpose. Selection and calculation of the proper beam construction are the responsiblity of the user.

Product CodeRated CapacityColour CodeProof LoadMinimum Radius CurveNet Weight

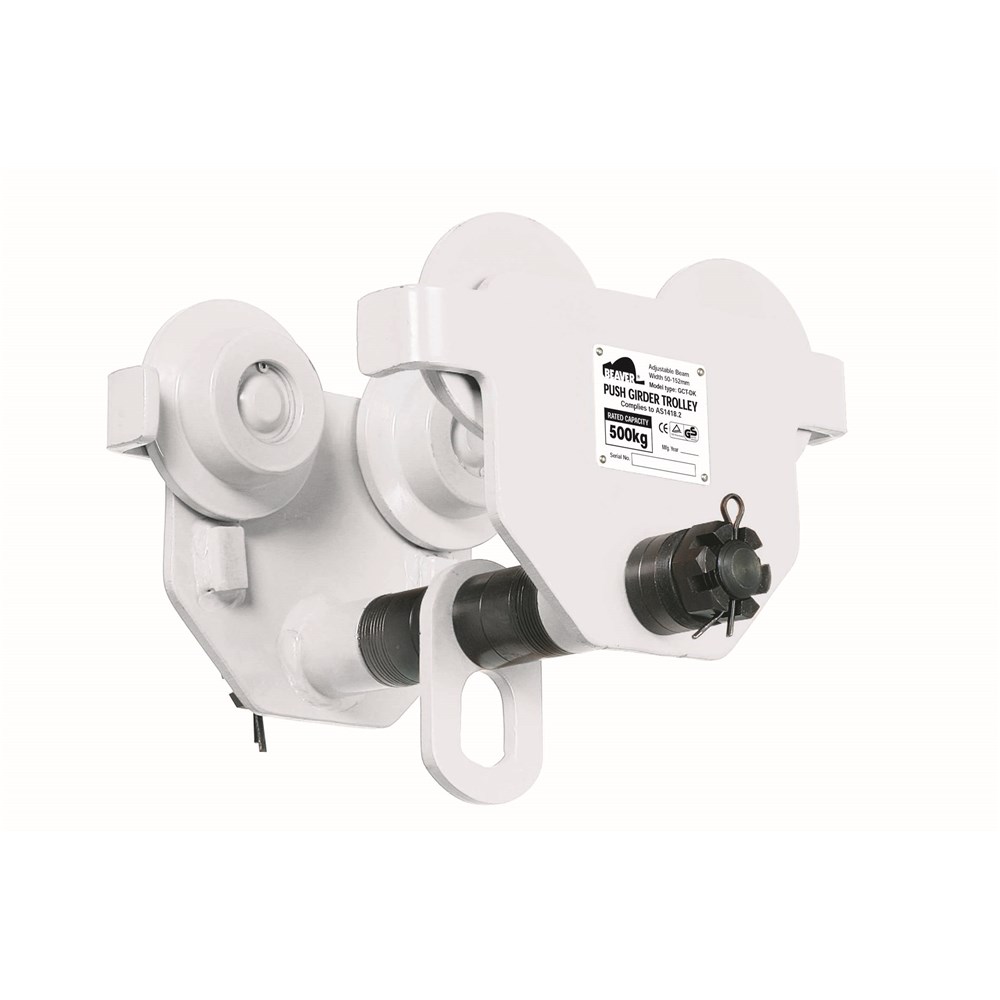

522005S0.5tWhite7.35kN 0.8m6.5kg

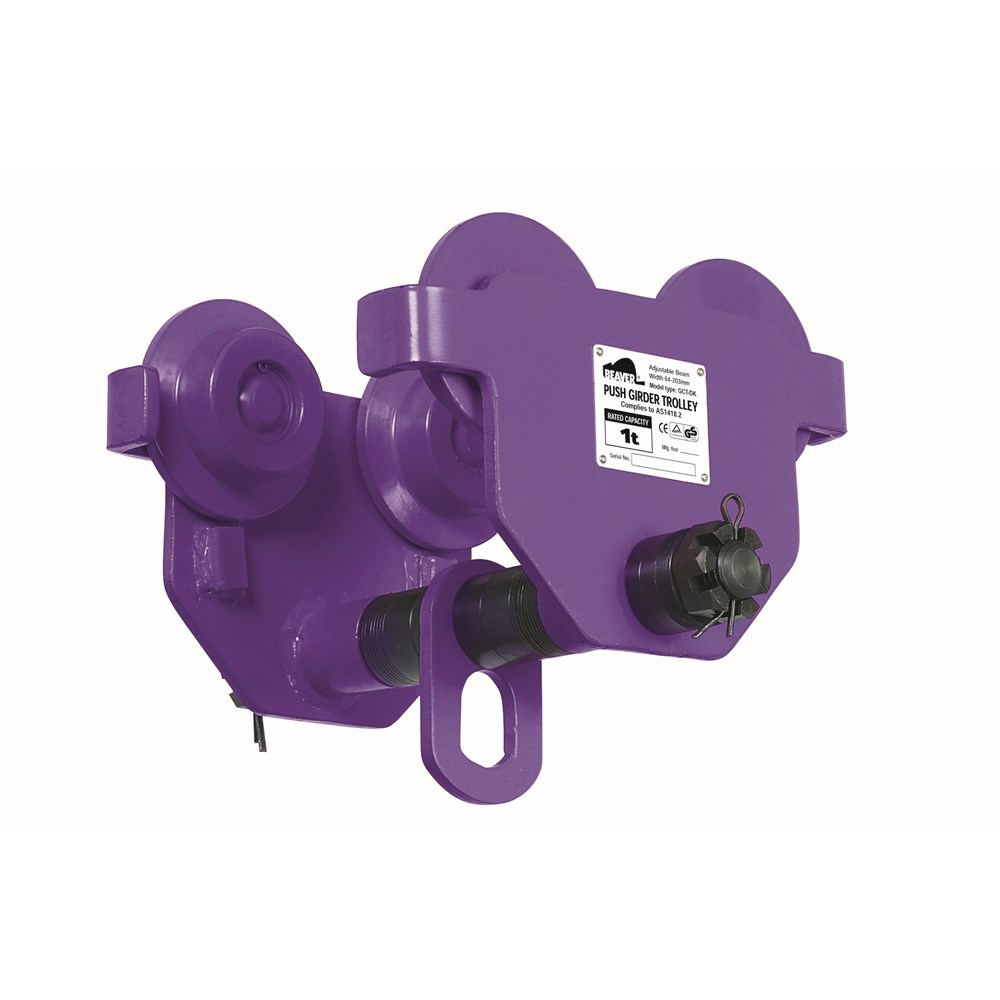

522010S1tViolet14.71kN1m10.5kg
522015S1.5tOrange22.06kN1m17.5kg

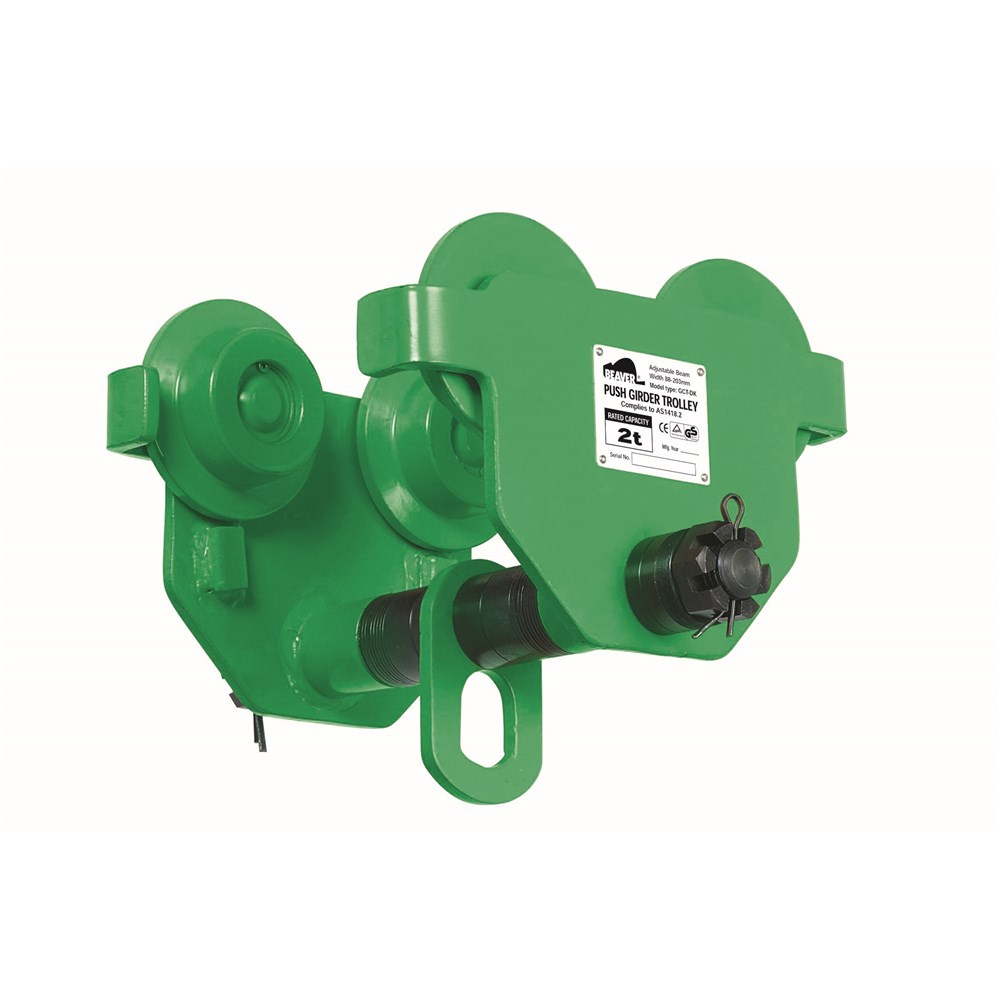

522020S2tGreen29.42kN1.1m17.5kg

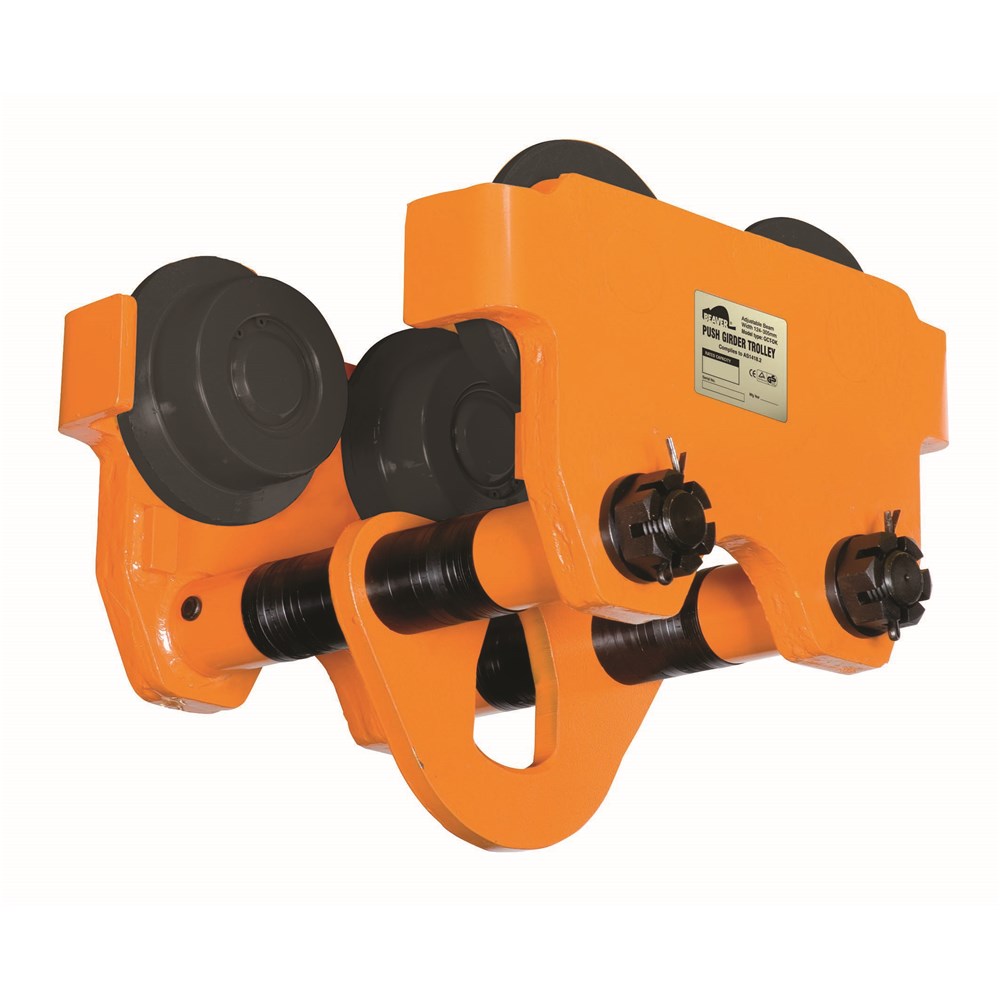

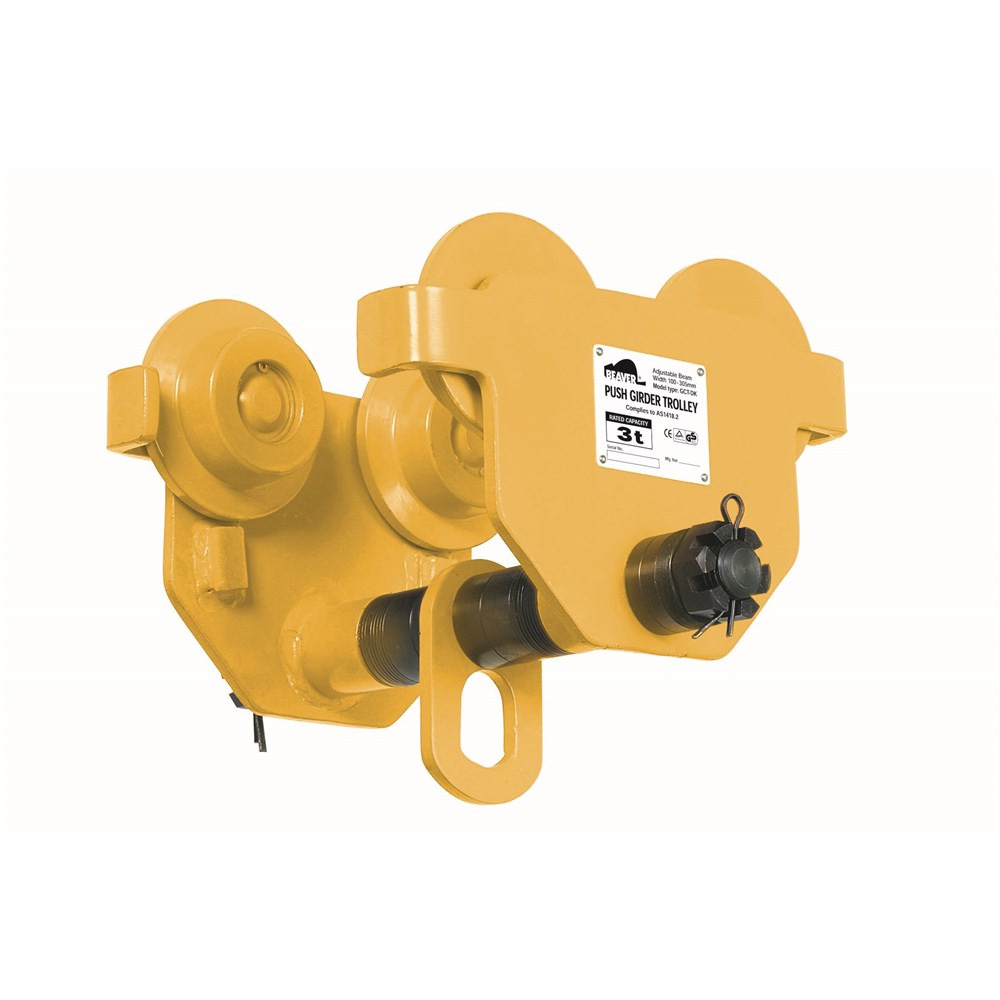

522030S3tYellow44.13kN1.3m27kg
522050S5tRed61.29kN1.4m41kg

Each Beaver girder trolley has an individual serial number stamped on the stainless steel identification plate. This number coincides directly to the test certificate of the product (which is provided), for quick and easy tracing and reference. These products are also operationally tested to 150% of its rated capacity.

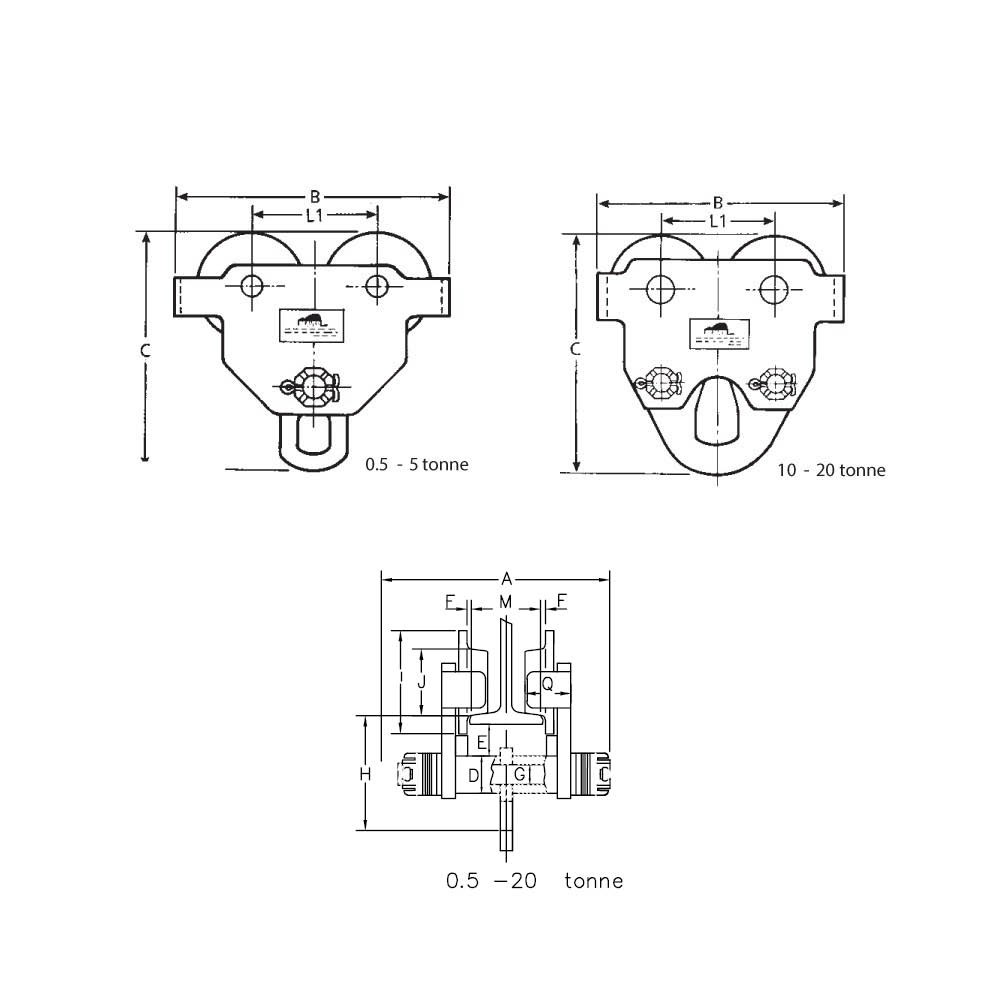

Product CodeRated CapacityABCDEF
522005S0.5t245mm199mm187mm34mm30mm1.5-3mm
522010S1t311mm246mm222mm40mm38mm1.5-3mm
522015S1.5t338mm260mm238mm45mm38mm1.5-3mm
522020S2t327mm276mm263mm52mm38mm1.5-3mm
522030S3t445mm332mm309mm58mm40mm1.5-3mm
522050S5t457mm377mm353mm64mm42mm2-3.5mm
Rated CapacityGHIJL1M
522005S0.5t24mm105mm79mm55mm100mm50-152mm
522010S1t30mm125mm95mm68mm120mm64-203mm
522015S1.5t33mm134mm102mm74mm125mm74-203mm
522020S2t36mm150mm108mm80mm132mm88-203mm
522030S3t42mm171mm131mm100mm155mm100-305mm
522050S5t48mm196mm144mm110mm168mm114-305mm

For more information on our materials handling range, please contact our Customer Care team.
