Beaver YC Industrial Girder Clamps

Product Code: MH2700Y

 Find a Stockist
Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

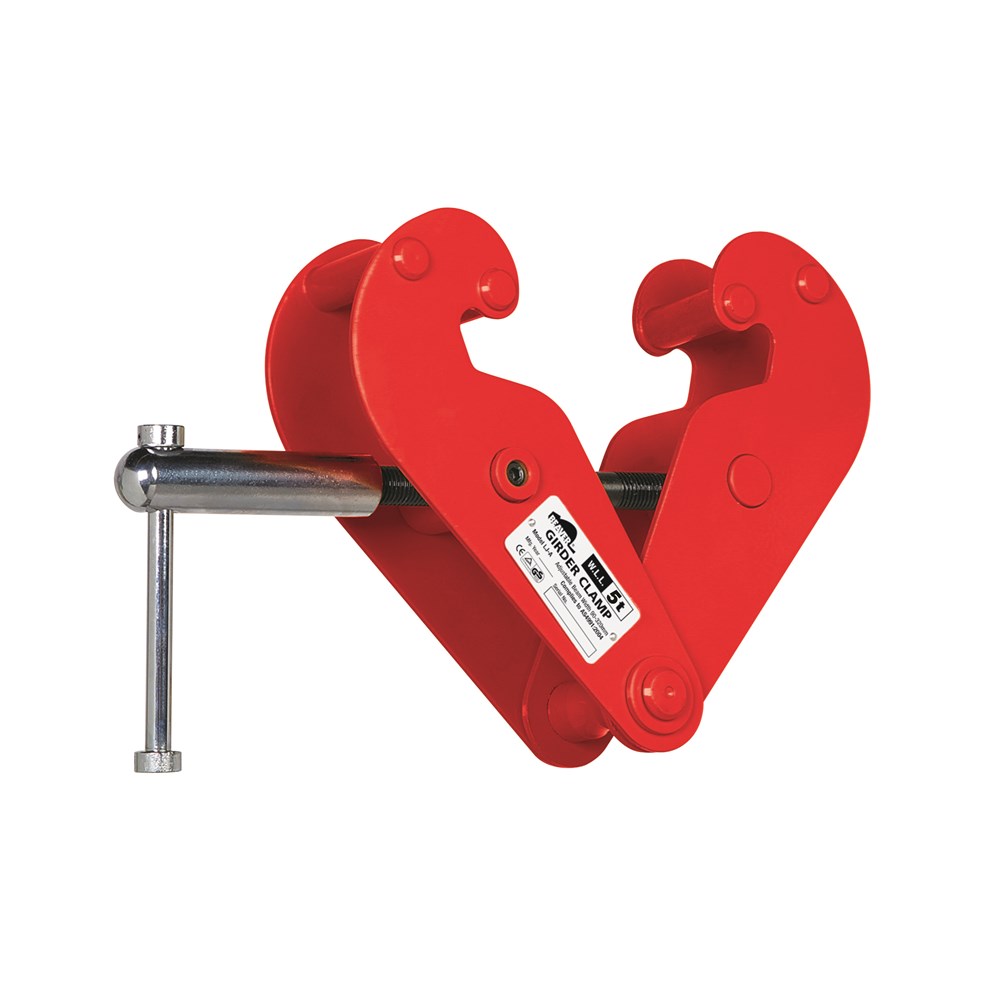

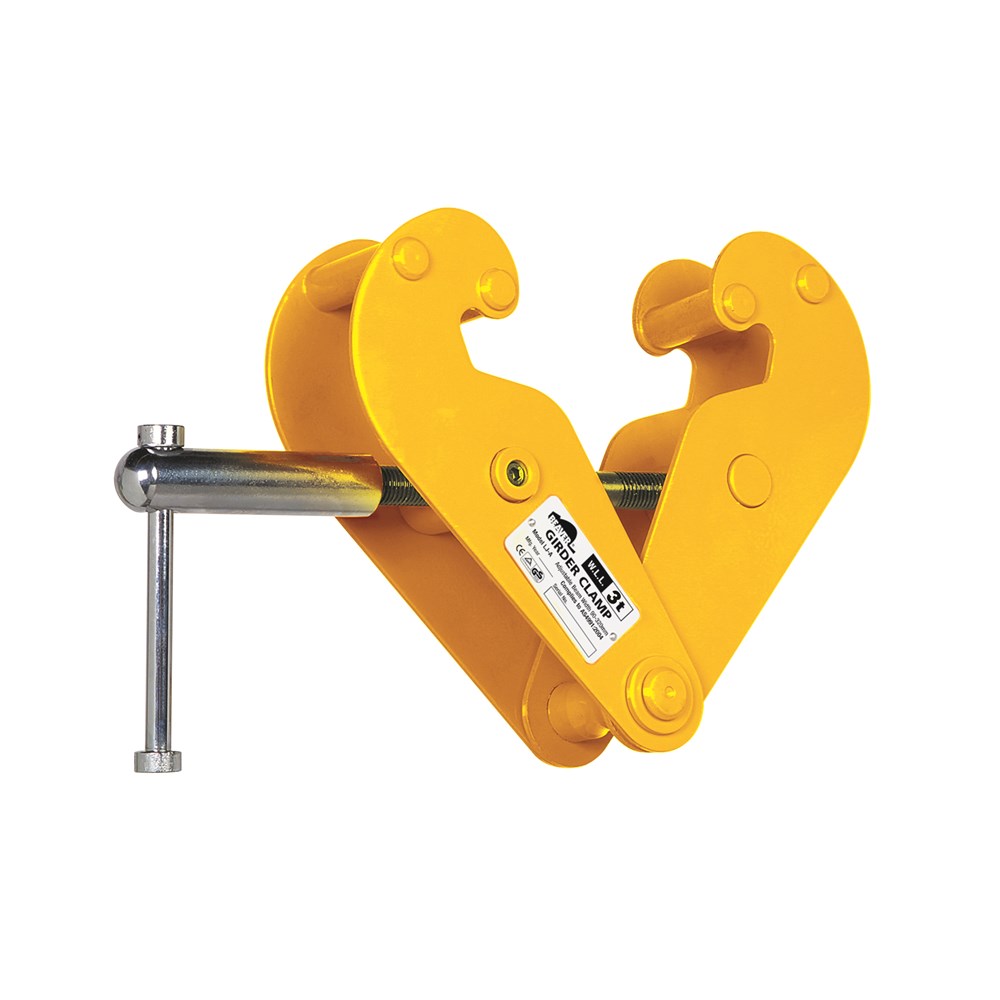

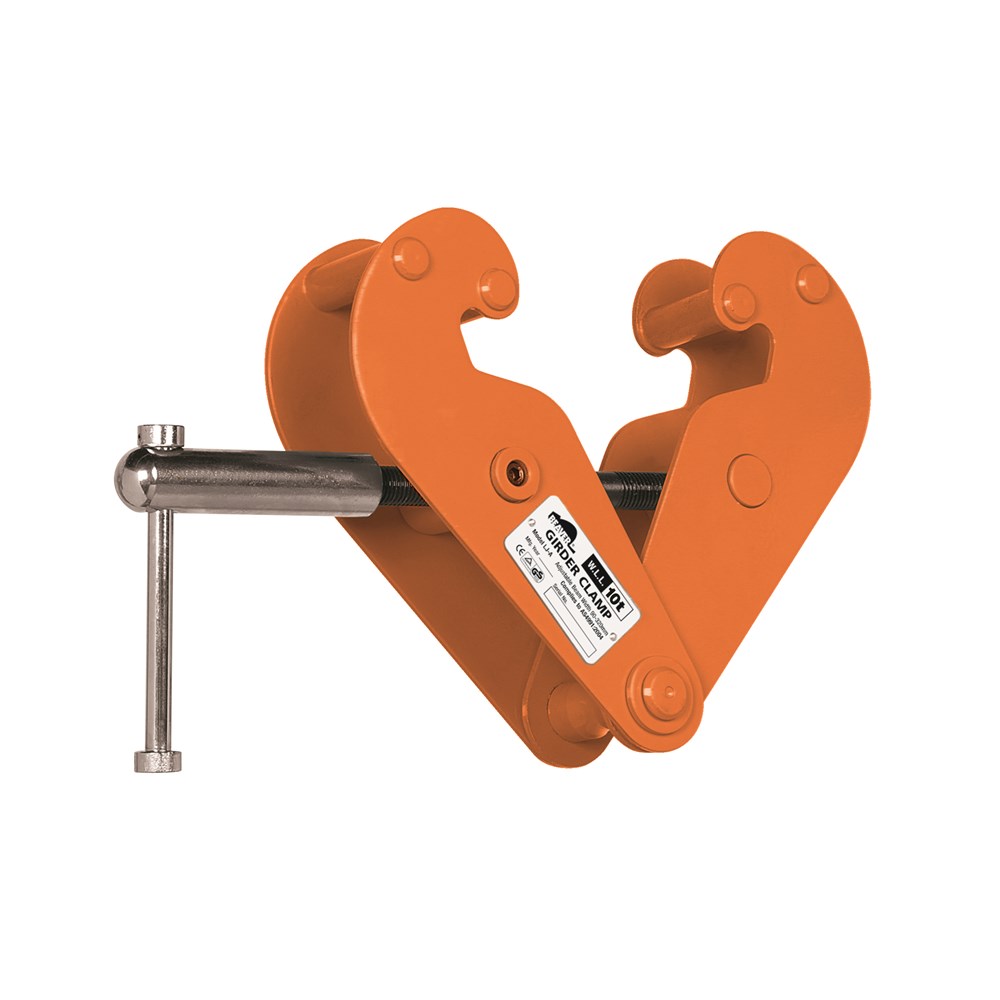

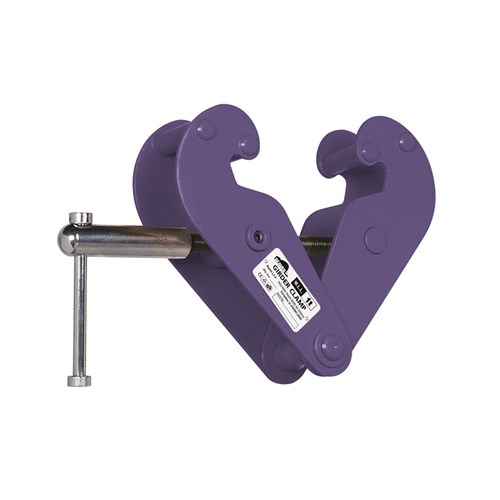

Beaver girder clamps are manufactured using a robust all-steel construction, and are easy and simple to mount for permanent or temporary mounting. These clamps are designed to provide a quick and versatile point for all your lifting, rigging, and hoisting needs, and comply to AS 4991.

All Beaver girder clamps are opertaionally tested to 150% of the working load limit, and come with individual test certificates. Each clamp also has an individial serial number stamped on the body of the clamp and also on the stainless steel identification plate. This number coincides directly to the test certificate of the product for quick and easy tracing and reference.

Features:

  • Threaded adjustment mechanism easily attaches to beam or girder flange providing a safe and secure grip
  • Additional safety provided by threaded adjustment screws
  • Adjustable to fit wide range of flange widths and beams
  • Special clap jaw design applies load away from edge of flange, reducing flange stress
  • Serial number identification on body and stainless steel ID plate for better traceability
  • Colour coded to match international WLL lifting standards
Approved Standards:
  • Complies to AS 4991


Product Code WLL Colour Code Net Weight Adjustable Beam Width Model Type
270010Y 1t Violet 4kg 75-230mm YC
270020Y 2t Green 5kg 75-230mm YC
270030Y 3t Yellow 9kg 80-320mm YC
270050Y 5t Red 11kg 90-320mm YC
270100Y 10t Orange 18kg 90-320mm YC

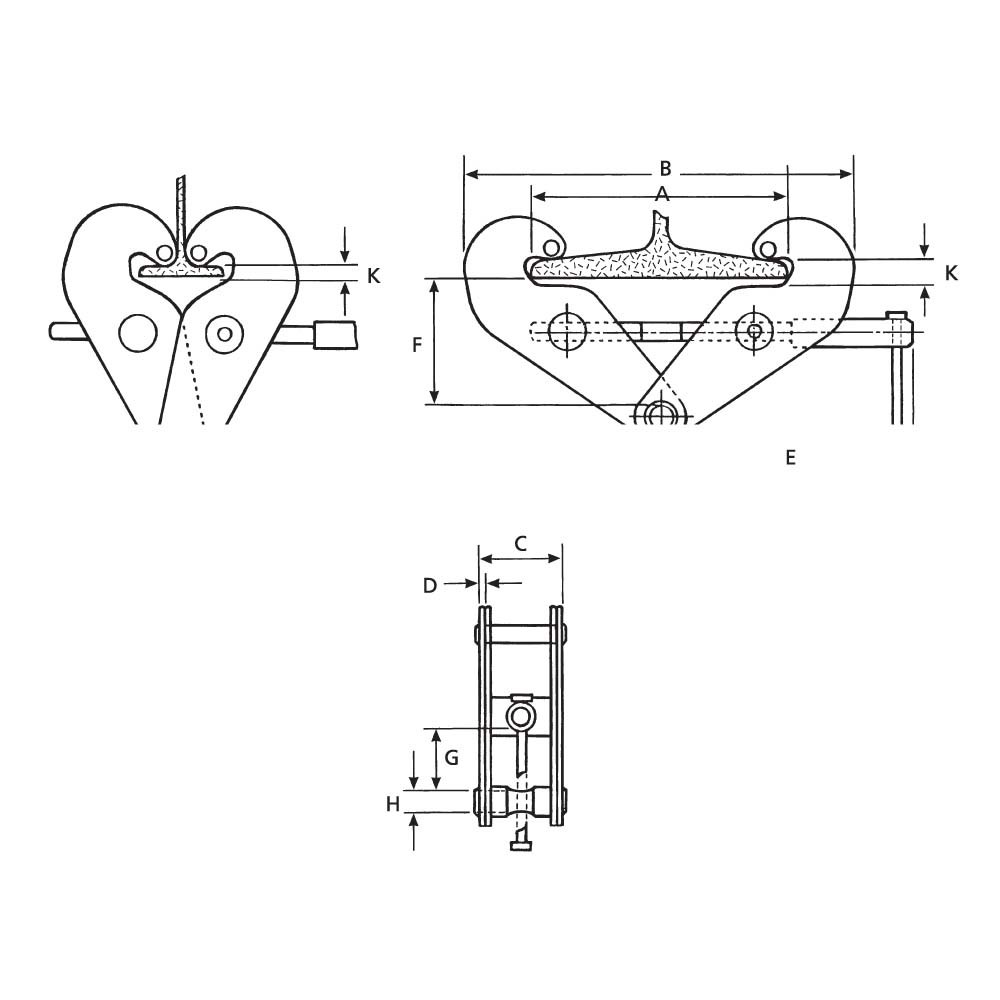

Product Code WLL A (max) B (min-max) C D E F (min-max) G (min) H K (min-max)
270010Y 1t 241mm 183-325mm 83mm 4mm 220mm 125-162mm 48mm 20mm 13-17mm
270020Y 2t 241mm 183-325mm 88mm 6mm 220mm 125-162mm 48mm 22mm 13-17mm
270030Y 3t 335mm 236-460mm 112mm 8mm 271mm 190-239mm 76mm 24mm 25-38mm
270050Y 5t 335mm 244-457mm 122mm 10mm 271mm 190-239mm 76mm 30mm 26-38mm
270100Y 10t 326mm 268-480mm 143mm 12mm 280mm 181-233mm 67mm 40mm 20-28mm

For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.
