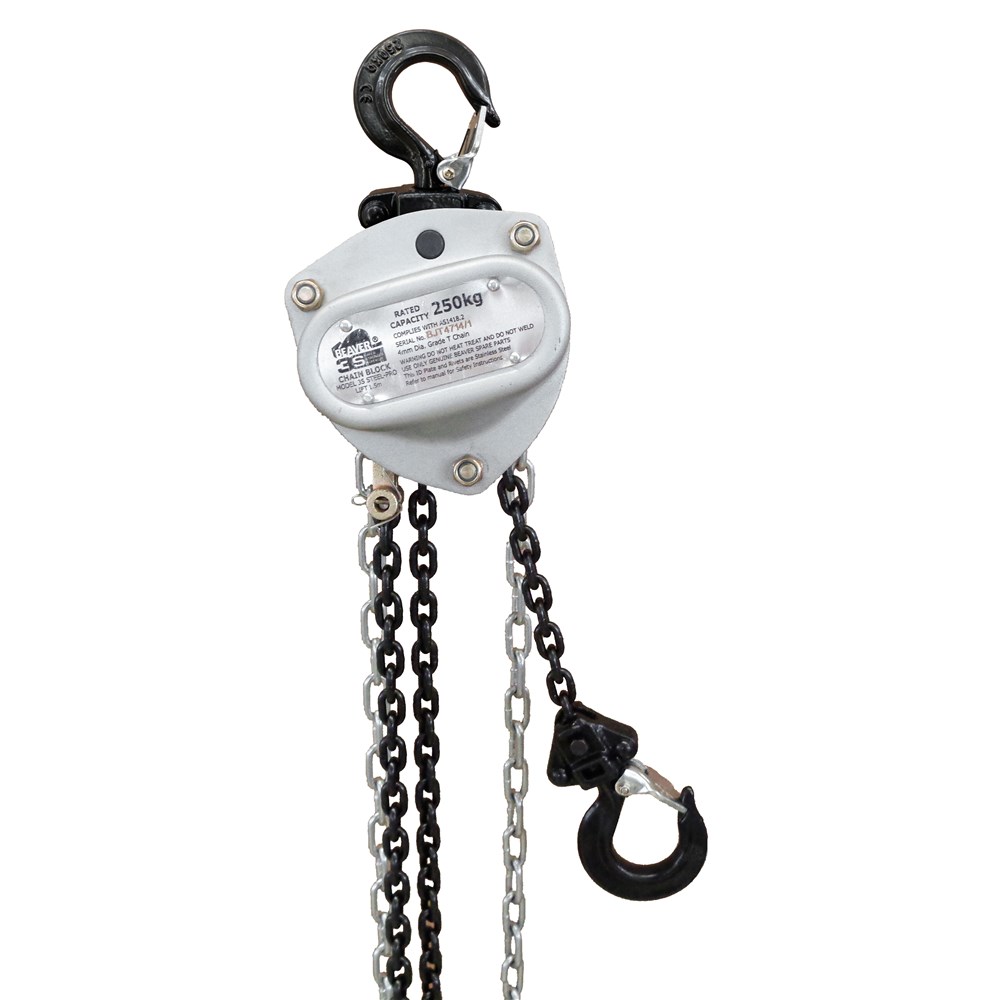

TheBeaver 3S Steel Pro Chain Block 250kg x 1.5m lift is designed for small to medium size lifting and extraction applications. The compact, yet heavy duty 250kg WLL chain block is ideal for narrow spaces or overhead work and is a must have for most workshops and garages. Individual test certificate and Operational Manual included in the packaging.
Features & Benefits:
- Compact, lightweight rugged design only weighs 4.86kg
- Full Body Steel cast construction, gear case and cover are impact resistant
- Unique design on top and bottom hooks with ball bearings with safety catches
- Comprehensive range of spare parts are available
- Every 3S Chain Block Steel Pro 250kg is identified with its own serial number that relates directly to a test certificate
Materials:
- Heavy duty steel
- G80 Calibrated load chain
- Robust cast steel housing
- Ball bearings in top & bottom hooks
Applications:
- Mining
- Rigging and constructions
- General Purpose
- Industrial use
- Mechanical
- Lightweight small and compact for confined work areas
Approved Standards:
- Complies to AS/NZS 1418.2
- Grade 80 Calibrated Chain and marked according to ISO 3077
Product Code |
Rated Capacity |
Colour |
Standard Lift |
Fall of Chain |
Efforts on Lever to Lift Full Load |
Net Weight |
Load Chain Diameter |
Extra Weight per Metre of Extra Lift |
Headroom (H) |
No. of Load chain Falls |
505025 |
250kg |
Silver |
1.5m |
1 |
240N |
4.86kg |
Ø4mmx12mm |
0.88kg |
285mm |
- |

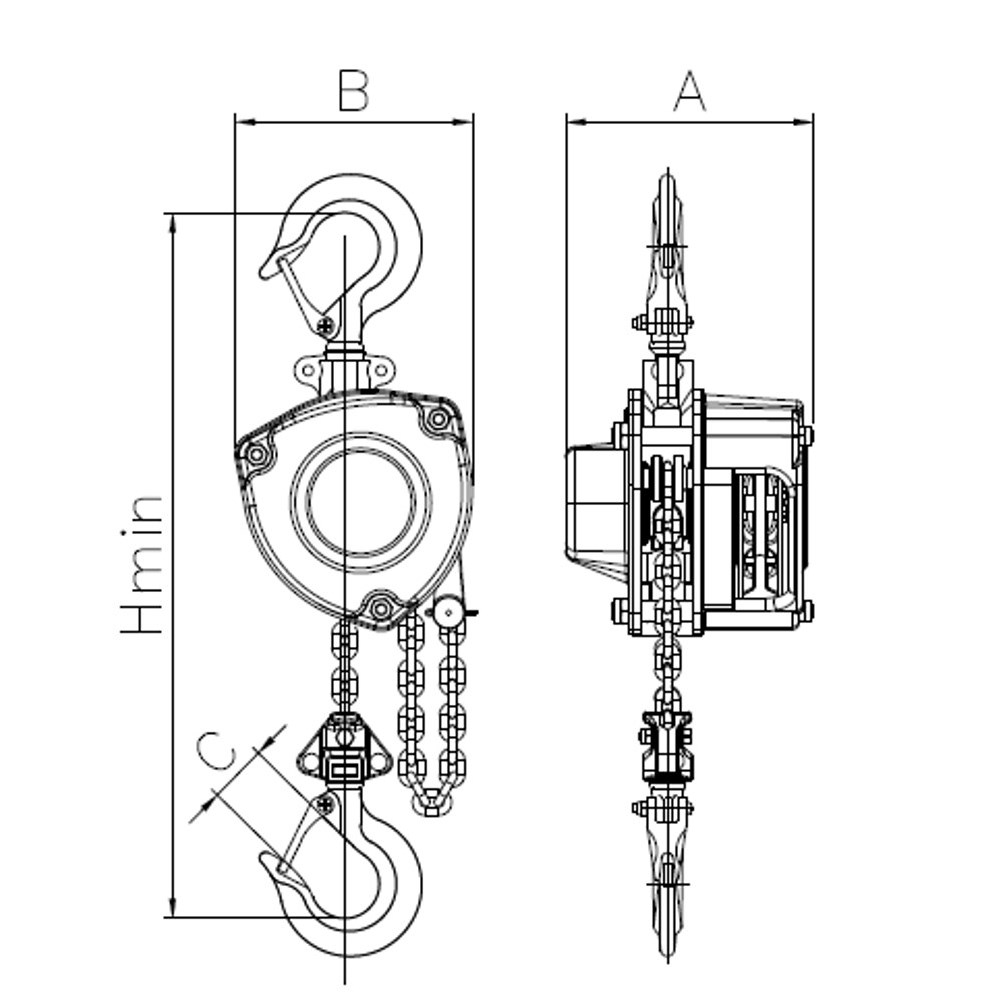

Dimensions Table:
Product Code |
A |
B |
C |
505025 |
125mm |
116mm |
25mm |
