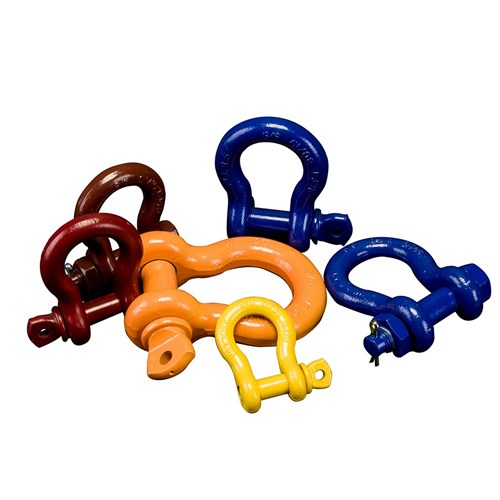

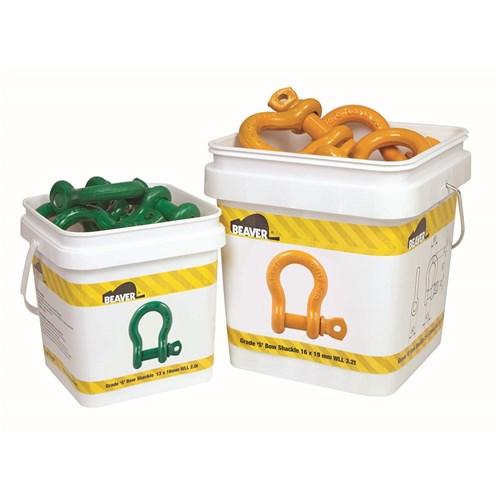

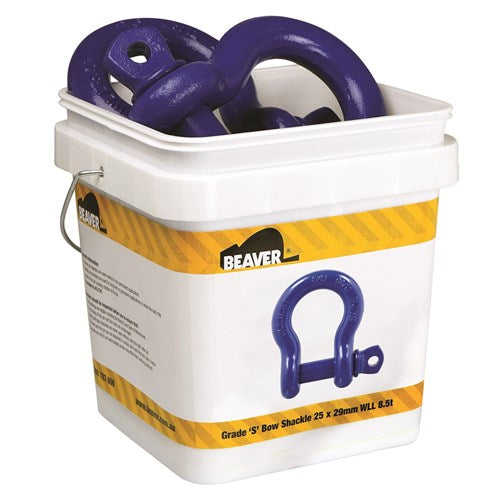

Beaver Colour Coded Screw Pin Bow Shackles (Pail)
Beaver Grade S Colour-Coded shackles take the guess work out of choosing the right capacity when matching lifting components.
These shackles are suitable for mining, industrial, and construction applications.
Product Features:- Colour coded to international WLL lifting standards for safety
- Clearly marked with WLL, quality grade, size, batch ID / date of manufacture
- Proof tested to the Australian Standard
- Test certificates available on request
- Complies to AS 2741
| Product Code | Size | WLL | Shackle Colour | Bucket Capacity | QTY per Bucket | Shackle Weight | Bucket Weight |

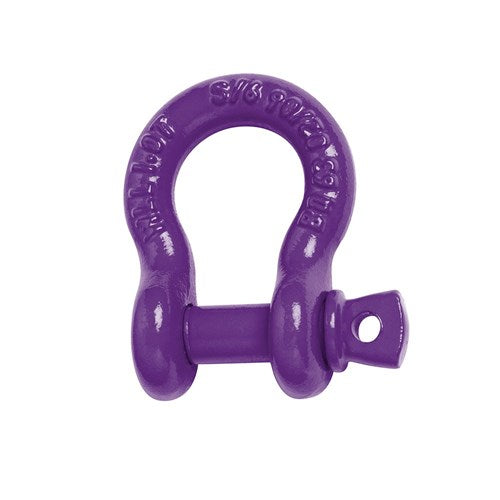

| 242310MP | 10mm x 11mm | 1t | Violet | 2L | 30 | 0.15kg | 4.23kg |
| 242313MP | 13mm x 16mm | 2t | Green | 2L | 14 | 0.37kg | 4.62kg |
| 242316MP | 16mm x 19mm | 3.2t | Yellow | 5L | 20 | 0.65kg | 12.4kg |
| 242319MP | 19mm x 22mm | 4.7t | Grey | 5L | 10 | 1.06kg | 10.7kg |
| 242322MP | 22mm x 25mm | 6.5t | Brown | 5L | 8 | 1.56kg | 13.12kg |
| 242325MP | 25mm x 29mm | 8.5t | Blue | 5L | 4 | 2.32kg | 9.2kg |
All Beaver grade S shackles are easily identified with prominent stamping indicating MM/YY, for quick reference of the products manufacture and working load limit. Test certificates are readily available on request.

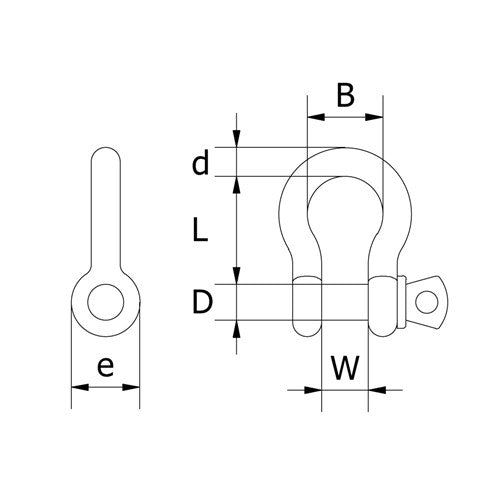

| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (e) | Width of Bow (B) |
| 242310MP | 10mm x 11mm | 10mm | 11mm | 17mm | 37mm | 25mm | 26mm |
| 242313MP | 13mm x 16mm | 13mm | 16mm | 21mm | 48mm | 33mm | 33mm |
| 242316MP | 16mm x 19mm | 16mm | 19mm | 27mm | 61mm | 40mm | 43mm |
| 242319MP | 19mm x 22mm | 19mm | 22mm | 32mm | 72mm | 48mm | 51mm |
| 242322MP | 22mm x 25mm | 22mm | 25mm | 37mm | 84mm | 54mm | 58mm |
| 242325MP | 25mm x 29mm | 25mm | 29mm | 43mm | 95mm | 60mm | 68mm |
For more information on our materials handling range, please contact our Customer Care team.
