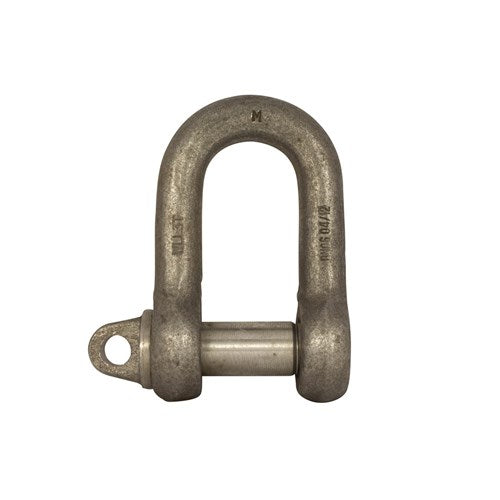

Beaver Grade M Dee Shackle Self Colour
Beaver Grade M Self Colour Dee Shackles are a rated shackle commonly used in commercial fishing and marine applications.
Suitable for lifting applications
Product Features:
- Dee shape shackle with screw pin
- Self-colour finish
- Engineered from Grade 40 alloy steel
- Screw collar pin formation
- Grade, WLL, Manufacture Date and Body ID stamped on each shackle for safety and traceability.
- Complies to AS 2741
| Product Code | Size | WLL | Type | Finish | Shape | Closing Method | Weight |
| 230010 | 10mm x 13mm | 0.5t | Grade M | Self Colour | Dee | Screw | 0.16kg |
| 230013 | 13mm x 16mm | 0.75t | Grade M | Self Colour | Dee | Screw | 0.35kg |
| 230016 | 16mm x 19mm | 1.5t | Grade M | Self Colour | Dee | Screw | 0.61kg |
| 230020 | 19mm x 22mm | 2t | Grade M | Self Colour | Dee | Screw | 1.1kg |
| 230023 | 22mm x 25mm | 3t | Grade M | Self Colour | Dee | Screw | 1.5kg |
| 230025 | 25mm x 29mm | 3.8t | Grade M | Self Colour | Dee | Screw | 2.14kg |
| 230028 | 29mm x 32mm | 5t | Grade M | Self Colour | Dee | Screw | 2.98kg |
| 230032 | 32mm x 35mm | 6t | Grade M | Self Colour | Dee | Screw | 3.1kg |
| 230035 | 35mm x 38mm | 7t | Grade M | Self Colour | Dee | Screw | 4.61kg |
| 230038 | 38mm x 44mm | 9.5t | Grade M | Self Colour | Dee | Screw | 8.01kg |
| 230042 | 41mm x 48mm | 11t | Grade M | Self Colour | Dee | Screw | 10.48kg |
| 230045 | 44mm x 51mm | 13t | Grade M | Self Colour | Dee | Screw | 12.65kg |
| Product Code | Size | Diameter | Pin Diameter (D) | Inside Width (W) | Inside Length (L) | Diameter Boss (F) |
| 230010 | 10mm x 13mm | 10mm | 13mm | 19mm | 38mm | 25mm |
| 230013 | 13mm x 16mm | 13mm | 16mm | 28mm | 54mm | 32mm |
| 230016 | 16mm x 19mm | 16mm | 19mm | 32mm | 63mm | 38mm |
| 230020 | 19mm x 22mm | 19mm | 22mm | 38mm | 73mm | 44mm |
| 230023 | 22mm x 25mm | 22mm | 25mm | 44mm | 83mm | 51mm |
| 230025 | 25mm x 29mm | 25mm | 29mm | 51mm | 95mm | 57mm |
| 230028 | 29mm x 32mm | 29mm | 32mm | 54mm | 105mm | 63mm |
| 230032 | 32mm x 35mm | 32mm | 35mm | 60mm | 114mm | 70mm |
| 230035 | 35mm x 38mm | 35mm | 38mm | 67mm | 127mm | 76mm |
| 230038 | 38mm x 44mm | 38mm | 44mm | 70mm | 137mm | 89mm |
| 230042 | 41mm x 48mm | 41mm | 48mm | 76mm | 146mm | 95mm |
| 230045 | 44mm x 51mm | 44mm | 51mm | 83mm | 156mm | 102mm |
