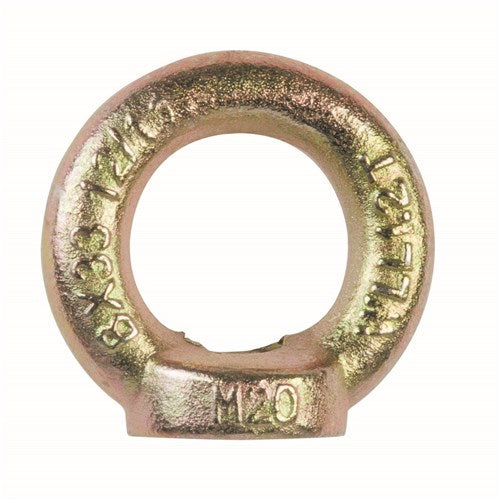

Beaver Metric Shouldered Eye Nuts to DIN 582
Beaver lifting eyebolts and eyenuts come in a range of threads, including BSW, UNC, and Metric, and are predominately used for lifting applications. This eyenut is rated to DIN 582.
| Product Code | Size (mm) | WLL | Transverse Load Tonne | Finish | Weight |
| 359208 | 8mm | 0.14t | 0.03 | Zinc Dichromate | 0.05kg |
| 359210 | 10mm | 0.23t | 0.06 | Zinc Dichromate | 0.09kg |
| 359212 | 12mm | 0.3t | 0.07 | Zinc Dichromate | 0.16kg |
| 359216 | 16mm | 0.7t | 0.17 | Zinc Dichromate | 0.24kg |
| 359220 | 20mm | 1.2t | 0.3 | Zinc Dichromate | 0.36kg |
| 359222 | 22mm | 1.5t | 0.37 | Zinc Dichromate | 0.58kg |
| 359224 | 24mm | 1.8t | 0.45 | Zinc Dichromate | 0.72kg |
It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.
| Product Code | Size (mm) | W | H | D1 | D2 | D3 | D4 | E |
| 359208 | 8mm | 36mm | 36mm | 20mm | 8mm | 8mm | 20mm | 8.5mm |
| 359210 | 10mm | 45mm | 45mm | 25mm | 10mm | 10mm | 25mm | 10mm |
| 359212 | 12mm | 54mm | 52mm | 30mm | 12mm | 12mm | 30mm | 11mm |
| 359216 | 16mm | 63mm | 61mm | 35mm | 16mm | 14mm | 35mm | 13mm |
| 359220 | 20mm | 72mm | 70mm | 40mm | 20mm | 16mm | 40mm | 16mm |
| 359222 | 22mm | 81mm | 80mm | 45mm | 22mm | 18mm | 45mm | 19.4mm |
| 359224 | 24mm | 90mm | 90mm | 50mm | 24mm | 20mm | 50mm | 20mm |
For more information on our materials handling range, please contact our Customer Care team.
