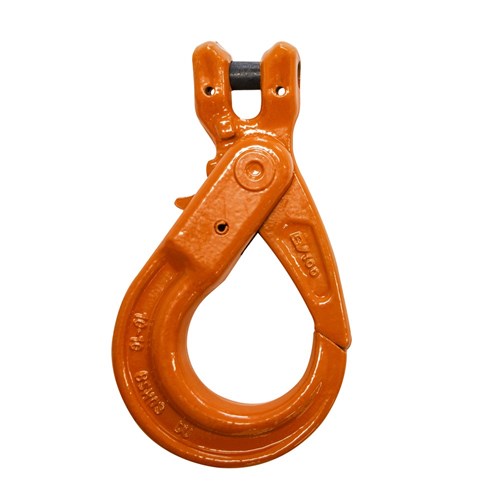

Beaver BV100 G100 Clevis Self Locking Hook
The Beaver BV100 Grade 100 Clevis Self Locking Hook closes and locks automatically, ensuring it won’t open under load. Available in sizes from 8mm to 16mm. Made from premium quality heat treated alloy steel all Beaver BV100 Grade 100 lifting components are quality tested throughout the manufacturing process and carry distinguishing marks for easy identification.
Features:- Self-locking mechanism when hook is under load
- Ideal for heavy duty lifting applications
- Clevis pin for direct connection to chain without using connecting link
- Replacement pin available
- Superior resistance to wear due to heat treatment
- 25% higher load capacity than Grade 80
- 30% weight saving over Grade 80
- Lifting components, commonly used in a Grade 100 chain assembly
-
Complies to AS 3776
| Product Code | Chain Size | W.L.L | Approx Weight | UOM | Pack Quantity | Replacement Trigger Kit |
| HKCSLBV100008MM | 8mm | 2.5t | 0.9kg | Each | 25 | RSLKBV1008MM |
| HKCSLBV100010MM | 10mm | 4t | 1.4kg | Each | 14 | RSLKBV10010MM |
| HKCSLBV100013MM | 13mm | 6.7t | 2.9kg | Each | 6 | RSLKBV10013MM |
| HKCSLBV100016MM | 16mm | 10t | 5.5kg | Each | 3 | RSLKBV10016MM |

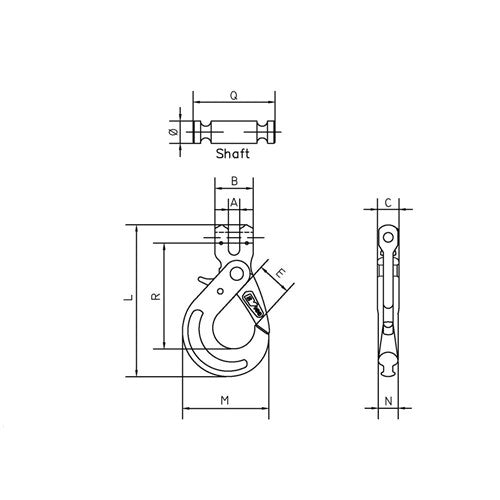

| Product Code | A | B | C | E | R | M | N | L | Q | Ø |
| HKCSLBV100008MM | 9.5mm | 36mm | 28mm | 36mm | 121mm | 90mm | 20mm | 163mm | 34mm | 9.8mm |
| HKCSLBV100010MM | 12mm | 46mm | 33mm | 45mm | 144mm | 108mm | 26mm | 194mm | 44mm | 13mm |
| HKCSLBV100013MM | 15mm | 59mm | 37mm | 53.5mm | 182mm | 137mm | 32.5mm | 250mm | 57mm | 15.8mm |
| HKCSLBV100016MM | 18mm | 70mm | 56mm | 61mm | 220mm | 170mm | 38mm | 303mm | 68mm | 19.5mm |
For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.
