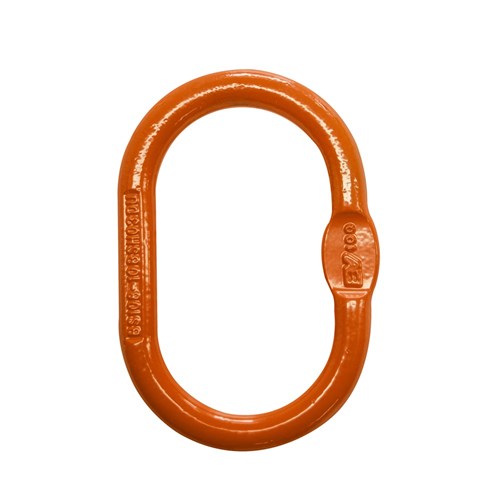

Beaver BV100 G100 Single Master Link
Beaver BV100 Grade 100 Single Master Links offer high strength and durability and are available in sizes from 10mm to 16mm. All Beaver BV100 Grade 100 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. These components also carry distinguishing marks for easy identification. When used in chain sling assemblies please refer to the WLL Chart for relevant chain size.
Features:
- Suitable for single and 2 leg slings
- Superior resistance to wear due to heat treatment
- 25% higher load capacity than Grade 80
- 30% weight saving over Grade 80
Applications:
- G100 Lifting components
- Ideal for single leg, double leg chain slings, wire rope slings and heavy lifting application
- Rigging
- Complies to AS 3776

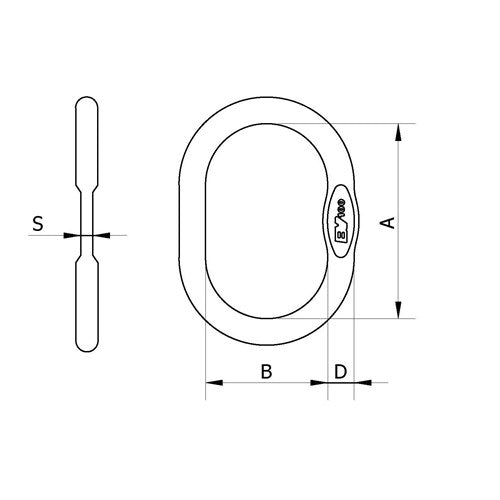

| Product Code | Chain Size 1 Leg | Chain Size 2 Leg | W.L.L | A | B | D | S | Approx Weight | UOM | Pack Quantity |
| LINKSBV100010MM | 10mm | 8mm | 4.3t | 140mm | 80mm | 17mm | 8 | 0.7kg | Each | 20 |
| LINKSBV100013MM | 13mm | 10mm | 6.9t | 160mm | 95mm | 22mm | 11 | 1.5kg | Each | 10 |
| LINKSBV100016MM | 16mm | 13mm | 11.6t | 180mm | 100mm | 27mm | 14 | 2.5kg | Each | 6 |
| LINKSBV100020MM | 20mm | 16mm | 17.3t | 240mm | 140mm | 32mm | 17 | 5.1kg | 25 | 3 |
For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.
