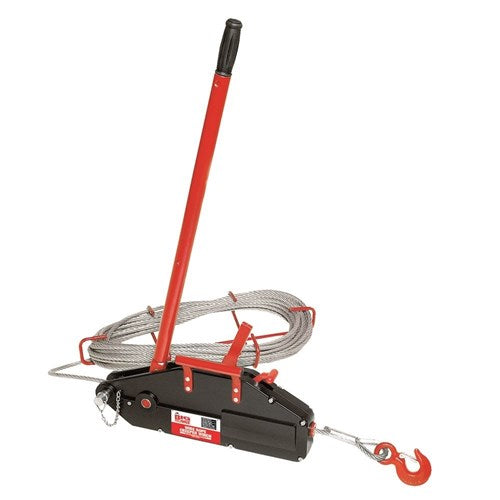

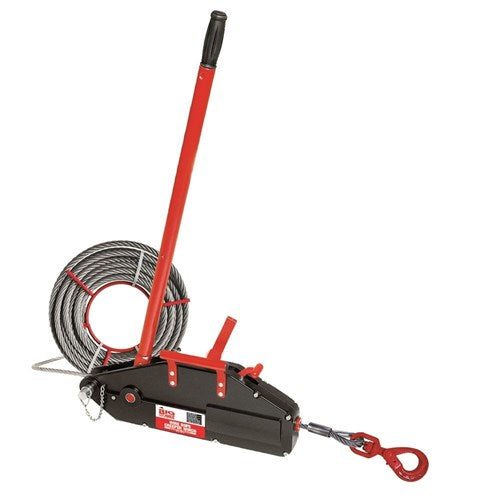

Beaver Bighaul Wire Rope Hoists
The Bighaul Wire Rope Hoist is a versatile, portable, and compact creeper winch for pulling, lifting, lowering, spanning, 4WD recovering, and securing loads over large distances. The unit comes complete with an operating lever, and 20m of wire rope mounted on a reel.
Product Features:- Aluminium body is lightweight and offers corrosion resistance
- Inbuilt overload protection system with a shear pin in forward lever, (shears when approximately 25% overloaded)
- Proof load tested at time of manufacture
- Individual serial numbers for easy traceability to a test certificate
- Wire rope fitted with safety latch hook at one end and tapered at other end for easy insertion into the unit
- Dual rated for pulling of lifting applications
Other Features:
- 0.8t and 1.6t Hoist supply with Eye Sling Hook with Safety Latch
- 3.2t hoist supply with Eye Swivel Self Locking Hook
Approved Standards:
- Complies to AS 1418.2
| Product Code | 518508 | 518516 | 518532 |
| Rated Lifting Capacity | 0.8t | 1.6t | 3.2t |
| Rated Pulling Capacity | 1.25t | 2.5t | 5t |
| Wire Rope Diameter | 8.3mm | 11mm | 16mm |
| Std Rope Length | 20m | 20m | 20m |
| Rope Advanced per Full Stroke Cycle | 60mm | 60mm | 40mm |
| Effot on Handling at Rated Lifting Capacity; Forward Operation | 284kN | 412kN | 441kN |
| Nett Weight | 7.5kg | 12kg | 13kg |
This model complies to AS 1418.2 and comes with an overload protection system built in, with a shear pin in the forward lever, which will shear when approximately 25% overloaded. These winches are tested and have individual serial numbers for easy traceability to a test certificate.

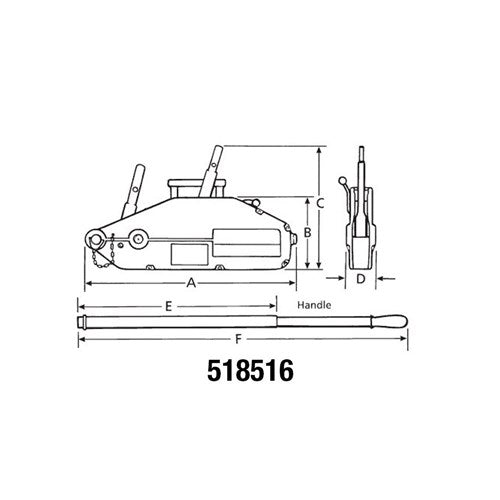

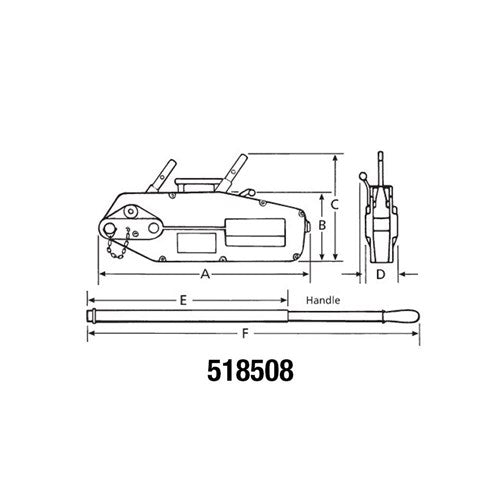

| Product Code | Rated Lifting Capacity | A | B | C | D | E | F |
| 518508 | 0.8t | 430mm | 165mm | 230mm | 60mm | 800mm | - |
| 518516 | 1.6t | 540mm | 190mm | 300mm | 75mm | 790mm | 1200mm |
| 518532 | 3.2t | 660mm | 220mm | 330mm | 110mm | 790mm | 1200mm |
For more information on our materials handling range, please contact our Customer Care team.
