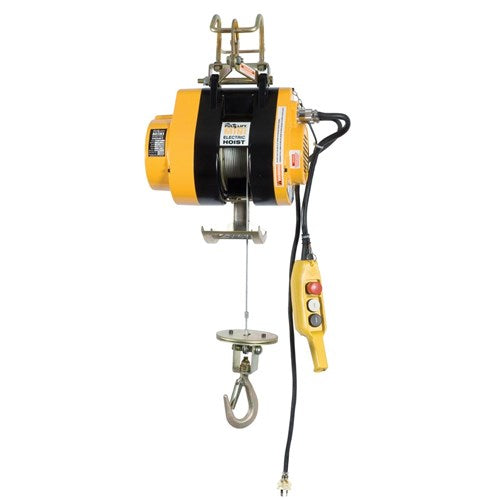

Beaver Electric Single Phase Mini Hoist
Beaver Single Phase Electric Mini Hoists are ideal for lifting small loads that are too heavy to be handled manually.
The compact and convenient hoist has a robust construction suitable for building sites.
- Heavy duty motor with automatic load brake and overload clutch
- IP54 rated lightweight body
- IP65 European pendant control c/w emergency stop
- Upper limit switch
- Complete with 20Meters -Non Rotating Galvanised wire rope
- AS1418.2 Section 5
| Product Code | Rated Capacity | Speed | Lifting Height | Weight |
| BMI1015 | 0.15t | 15m/min | 20m | 28kg |
| BMI1025 | 0.25t | 12m/min | 2m0 | 30kg |
The connection of the wire rope to the winch drump is via set screw, to ensure rope retention.
| Rated Capacity | Input Power | % ED | Rope Diameter | Rope Construction | Grade of Rope |
| 0.15t | 780W | 25 | 3.8mm | 7x19 | 1960min |
| 0.25t | 1200W | 25 | 4.2mm | 7x19 | 1960min |
For more information on our materials handling range, please contact our Customer Care team.
