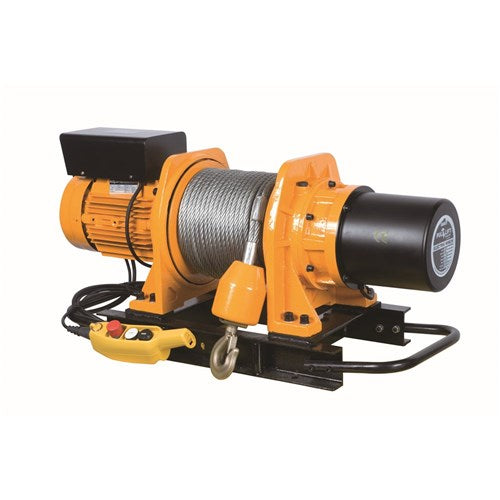

Beaver Electric Three Phase Winches
The Beaver Three Phase Electric Winches are precision engineered with a robust construction and quality seals, making them suitable for building sites, slipways, and industrial use.
Product Features:
- Reliable, powerful motor
- Lightweight and compact
- 24V, IP65 pendant control
- Emergency stop function
- Automatic load brake and overload clutch
- Connection of the wire rope to winch drum is via set screw, to ensure rope retention.
- Cast steel foot mountings
- Complies to AS1418.2
| Product Code | Rated Capacity | Speed | Motor Power | % ED | Effective Pull Height | Wire Rope Diameter x Length | Weight |
| BPL3050 | 0.5t | 12-18m/min | 2.5HP | 25 | 58m | 9mm x 60mm | 136kg |
| BPL3100 | 1t | 12-18m/min | 5HP | 25 | 58m | 11mm x 60mm | 156kg |
| BPL3220 | 2.2t | 7-12.5m/min | 7.5HP | 25 | 97m | 16mm x 100mm | 450kg |

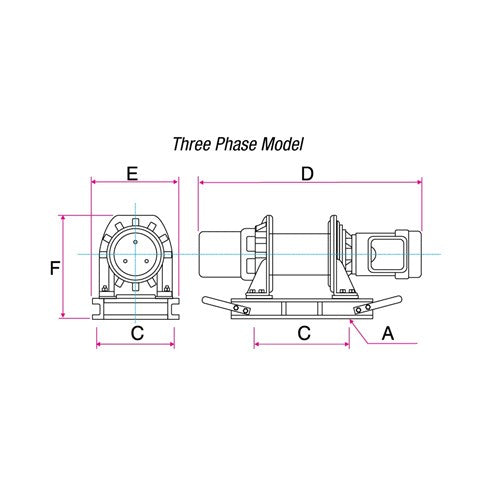

| Rated Capacity | A | B | C | D | E | F |
| 0.5t | 4 x 10.5D | 400mm | 330mm | 922mm | 372mm | 430mm |
| 1t | 4 x 10.5D | 400mm | 330mm | 935mm | 372mm | 430mm |
| 2.2t | 4 x 12D | 600mm | 499mm | 1160mm | 565mm | 658mm |
For more information on our materials handling range, please contact our Customer Care team.
