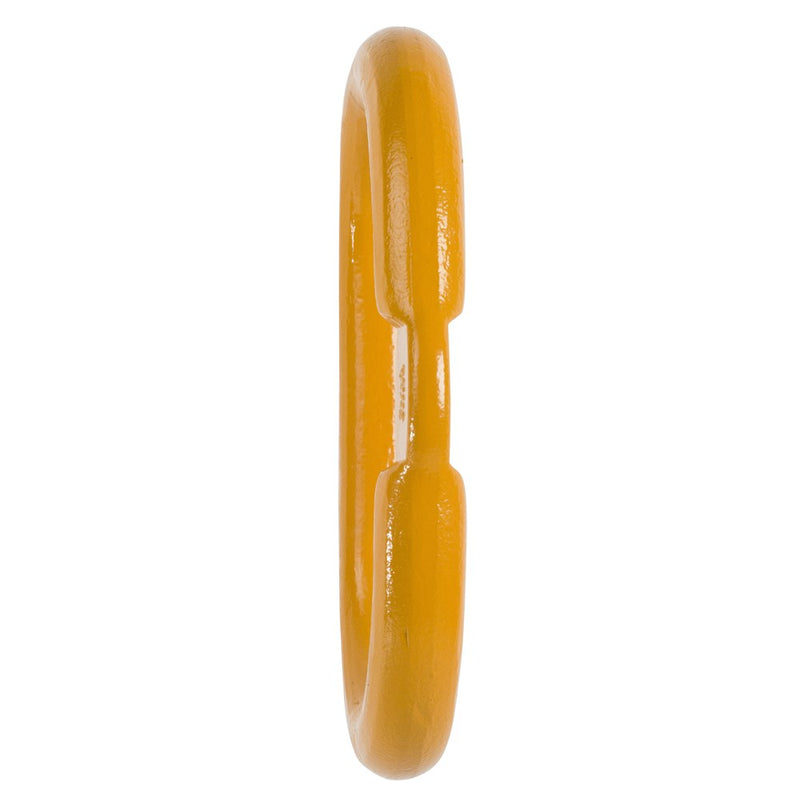

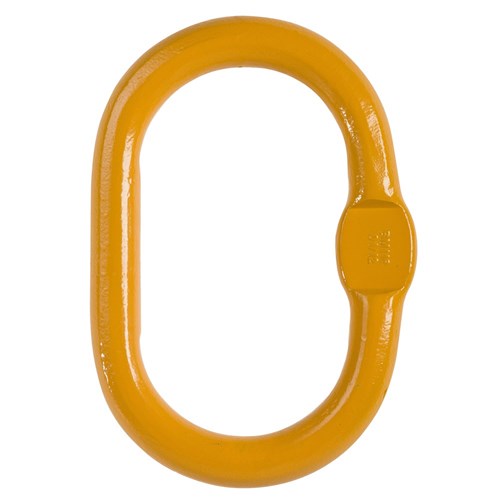

Beaver G80 Single Master Link
Beaver Grade 80 Master Links are suitable for both single and 2 leg chain sling configurations. When used in chain slings, please refer to the table below for recommended chain sizes. Beaver Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. All Beaver Grade 80 hooks and components also carry distinguishing marks for easy identification.
Product Features:
- Ideal for 1 and 2 leg chain slings
- High strength, rugged, and versatile
- Complies to AS 3776

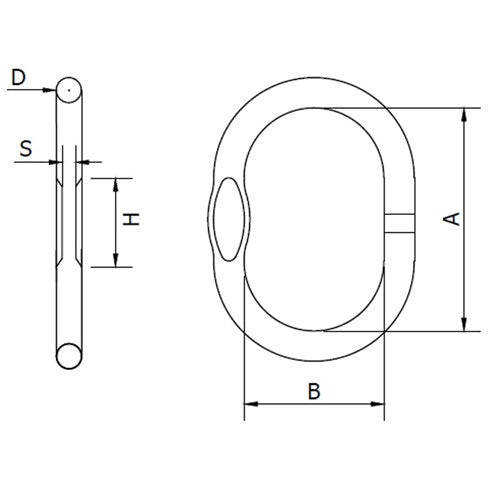

| Product Code | 1 Leg Chain Size | 2 Leg Chain Size | WLL | A | B | D | S x H | Approx Weight |
| 883507A | 7mm | 6mm | 1.9t | 110mm | 60mm | 14mm | 7+0.5x25 | 0.34kg |
| 883508A | 8mm | 7mm | 2.6t | 120mm | 70mm | 14mm | 7+0.5x25 | 0.38kg |
| 883510A | 10mm | 8mm | 3.5t | 140mm | 80mm | 17mm | 8+0.5x28 | 0.67kg |
| 883513A | 13mm | 10mm | 5.5t | 160mm | 95mm | 20mm | 11±0.5x35 | 1.20kg |
| 883516A | 16mm | 13mm | 9.2t | 190mm | 110mm | 26mm | 14±0.5x43 | 2.45kg |
| 883520A | 20mm | 16mm | 13.8t | 230mm | 130mm | 32mm | 17±0.5x55 | 4.48kg |
| 883522A | 22mm | 20mm | 21.6t | 275mm | 150mm | 38mm | - | 7.50kg |
| 883526A | 26mm | 22mm | 26t | 340mm | 180mm | 45mm | - | 12.80kg |
| 883532A | 32mm | 26mm | 36.7t | 350mm | 190mm | 50mm | - | 16.55kg |
| 883536A | 36mm | 32mm | 54.5t | 400mm | 200mm | 56mm | - | 23.28kg |
For more information on our special pricing available for bulk/pail sales, please contact our Customer Care team.
