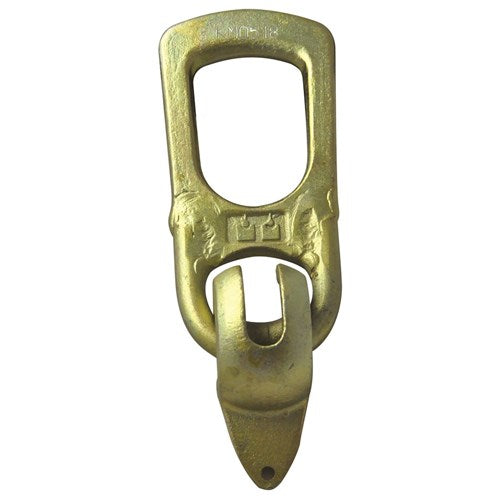

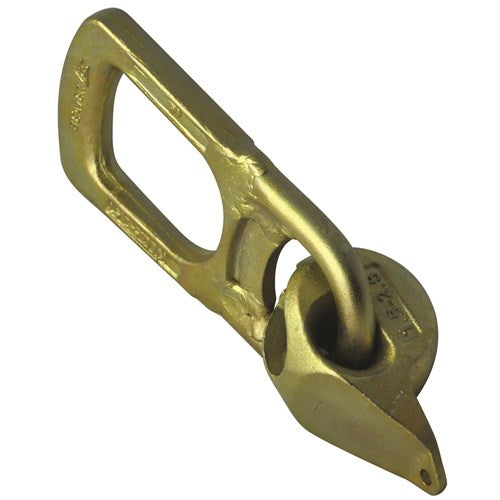

Beaver B-Alloy Concrete Lifting Clutch
The Beaver Concrete lifting clutch has been designed to engage easily while the system is under load and can be used for lifting prefabricated concrete products that have a specific precast pin implanted.
Features:
- Designed to engage easily while system is under load, providing they are connected correctly
- Quick and simple clutch release when lift is complete

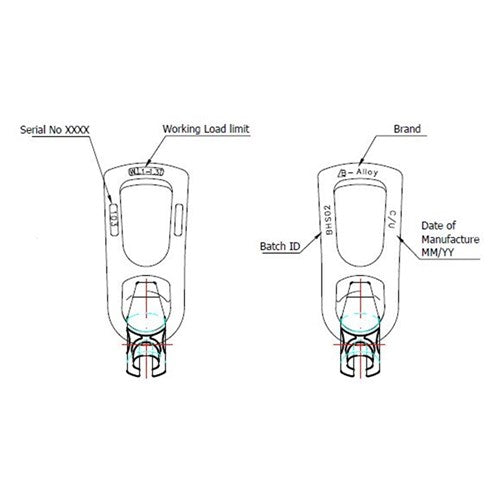

- Marked with WLL, batch ID, Date of Manufacture and a unique serial number
- Supplied with load test certificateÂ
- Available in WLL 1.3t to 20t
- Complies to AS3850.1

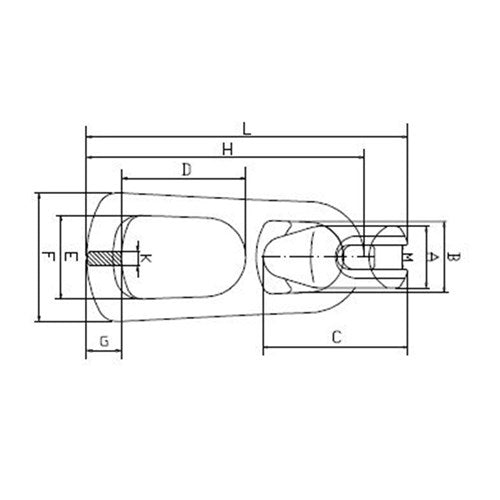

| Product Code | WLL tonne | A mm | B mm | C mm | D mm | E mm | F mm | H mm | M mm | L mm | G mm  | K mm | Approx Weight (kg) |
| 260013 | 1.3 | 33 | 42 | 82 | 70 | 44 | 73 | 160 | 11 | 185 | 18 | 12.5 | 0.91 |
| 260025 | 2.5 | 41 | 48 | 100 | 85 | 56 | 88 | 188 | 16 | 217 | 24 | 14 | 1.44 |
| 260050 | 5 | 57 | 69 | 129 | 88 | 68 | 110 | 240 | 22 | 278 | 38 | 18 | 3.24 |
| 260100 | 10 | 74 | 90 | 170 | 112 | 82 | 160 | 338 | 30 | 386 | 50 | 28 | 9.13 |
| 260200 | 20 | 111 | 112 | 227 | 132 | 106 | 180 | 429 | 42 | 497 | 74 | 32 | 20.39 |
For more information on our materials handling range, please contact our Customer Care team.
