Beaver Push Girder Trolleys
Beaver Close Headroom Geared Girder Trolleys are used for applications where reduced headroom is required and are suited for heavier loads, higher suspension levels, or high use applications.
The units suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin
These girder trolleys are lightweight, despite their robust all-steel construction and have been operationally tested to 150% of their rated capacity.
Note:-Beaver Close Headroom Geared Trolleys are not designed for passenger elevator applications and must not be used for this purpose. Selection and calculation of the proper beam construction is the responsibility of the user.
Features:
- Fully adjustable
- Hand chain features a special corrosion resistance zinc dichromate (gold) finish
- Anti-tilt blocks fitted as standard for additional safety
- Colour coded to match international WLL lifting standards
- Stainless steel ID plate for traceability
- Complies to AS 1418.2
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight | Q (mm) |
| 522005S | 0.5t | White | 7.35kN | 0.8m | 6.5kg | 35.5 |
| 522010S | 1t | Violet | 14.71kN | 1m | 10.5kg | 41 |
| 522015S | 1.5t | Orange | 22.06kN | 1m | 17.5kg | 43 |

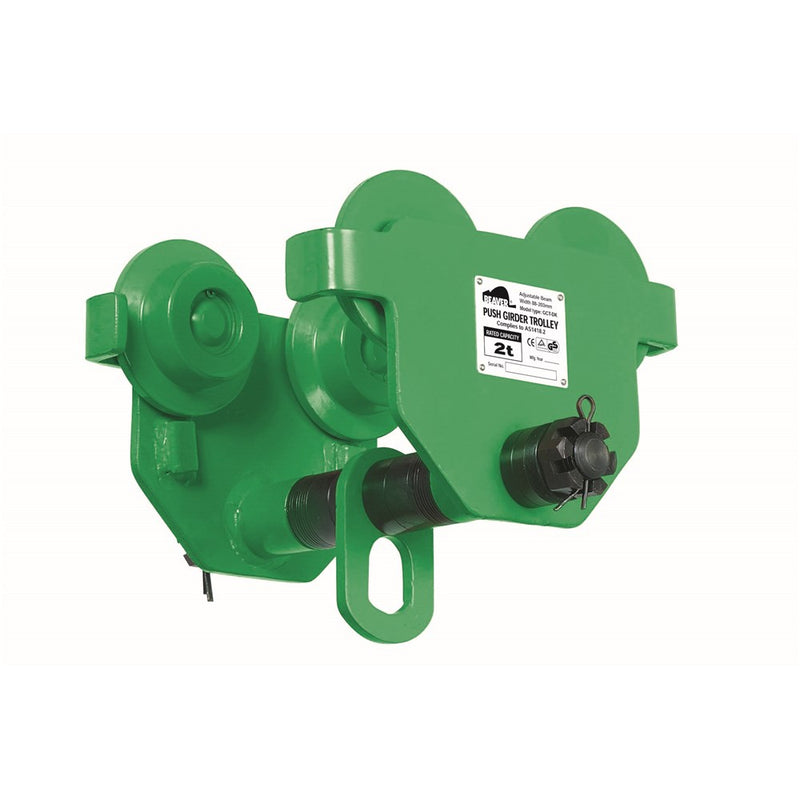

| 522020S | 2t | Green | 29.42kN | 1.1m | 17.5kg | 48 |

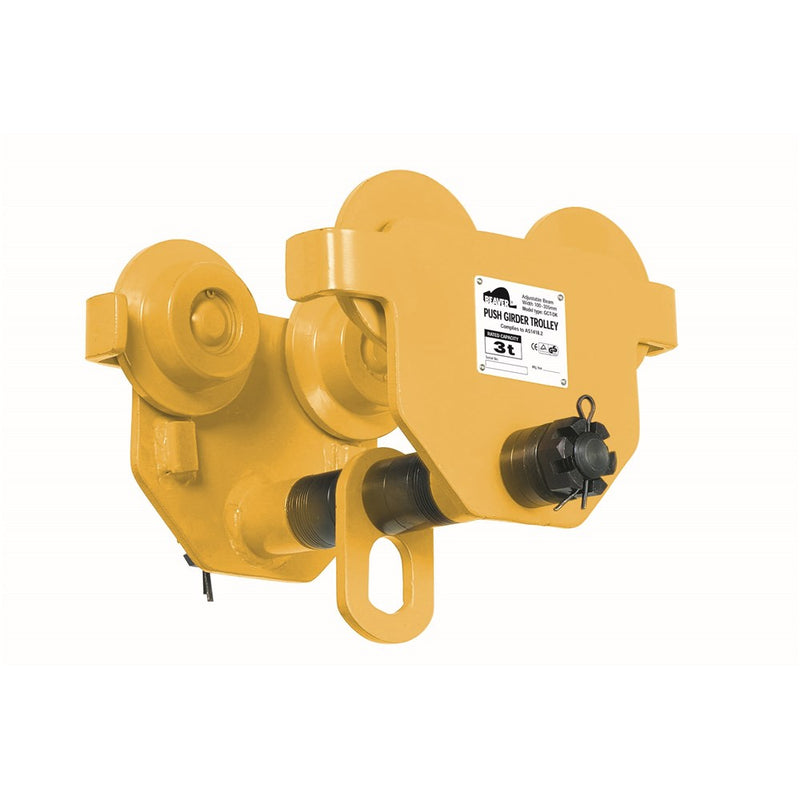

| 522030S | 3t | Yellow | 44.13kN | 1.3m | 27kg | 54 |

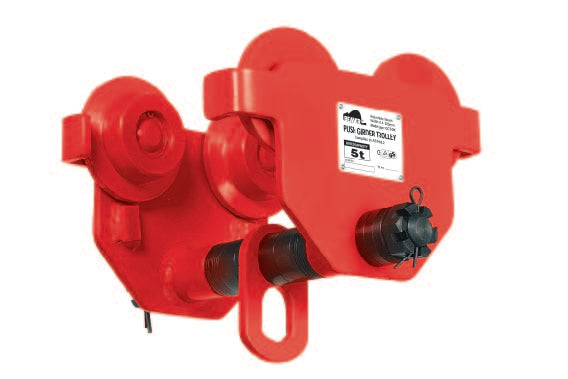

| 522050S | 5t | Red | 61.29kN | 1.4m | 41kg | 69 |
Each Beaver girder trolley has an individual serial number stamped on the stainless steel identification plate. This number coincides directly to the test certificate of the product (which is provided), for quick and easy tracing and reference. These products are also operationally tested to 150% of its rated capacity.
| Product Code | Rated Capacity | A | B | C | D | E | F |
| 522005S | 0.5t | 245mm | 199mm | 187mm | 34mm | 30mm | 1.5-3mm |
| 522010S | 1t | 311mm | 246mm | 222mm | 40mm | 38mm | 1.5-3mm |
| 522015S | 1.5t | 338mm | 260mm | 238mm | 45mm | 38mm | 1.5-3mm |
| 522020S | 2t | 327mm | 276mm | 263mm | 52mm | 38mm | 1.5-3mm |
| 522030S | 3t | 445mm | 332mm | 309mm | 58mm | 40mm | 1.5-3mm |
| 522050S | 5t | 457mm | 377mm | 353mm | 64mm | 42mm | 2-3.5mm |
| Rated Capacity | G | H | I | J | L1 | M | |
| 522005S | 0.5t | 24mm | 105mm | 79mm | 55mm | 100mm | 50-152mm |
| 522010S | 1t | 30mm | 125mm | 95mm | 68mm | 120mm | 64-203mm |
| 522015S | 1.5t | 33mm | 134mm | 102mm | 74mm | 125mm | 74-203mm |
| 522020S | 2t | 36mm | 150mm | 108mm | 80mm | 132mm | 88-203mm |
| 522030S | 3t | 42mm | 171mm | 131mm | 100mm | 155mm | 100-305mm |
| 522050S | 5t | 48mm | 196mm | 144mm | 110mm | 168mm | 114-305mm |
For more information on our materials handling range, please contact our Customer Care team.
