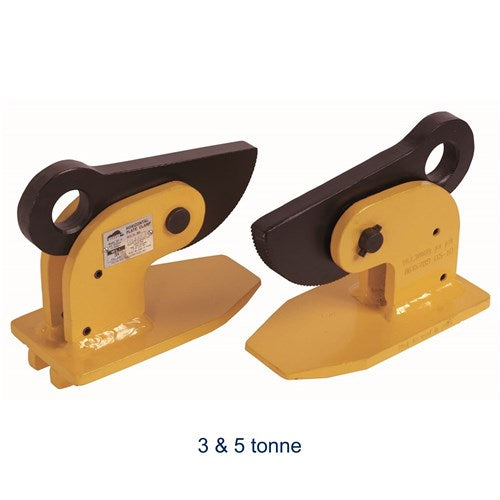

Beaver CQ Horizontal Plate Clamps
The heavy-duty Beaver CQ Horizontal Plate Clamps are sold in pairs to be used for lifting non-flexing steel plates on a flat plane configuration.
The plate clamps should only be used on steel with a hardness of 37RC (345 Brinell)
They are available in three sizes 1.5, 3t & 5 tonneFeatures:
- Heavy duty all-steel construction
- Durable baked enamel finish
- For lifting non-flexing steel plates from 0-60mm
Approved Standards
- Complies to AS4991

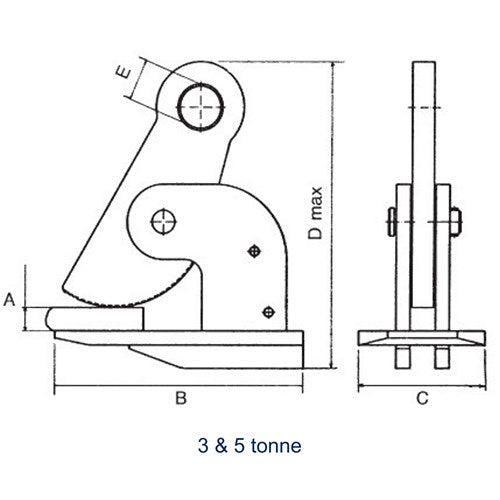

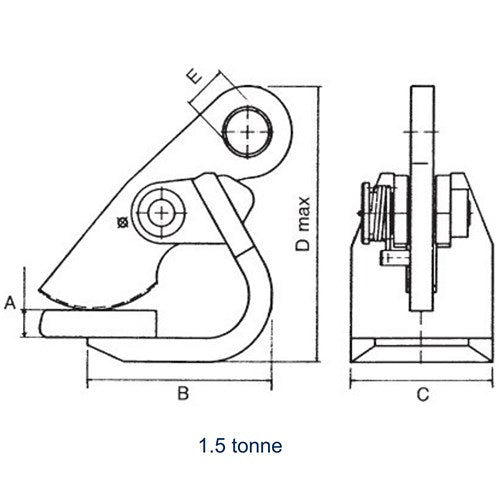

| Product Code | WLL (per pair) | Jaw Openings (Max) | Model Type | A | B (max) | C | D | E | Net Weight (per pair) |
| 250150A | 1.5t | 50mm | CQ | 0-50mm | 127mm | 100mm | 218mm | 30mm | 8.2kg |
| 250300A | 3t | 50mm | CQ | 0-50mm | 220mm | 110mm | 270mm | 36mm | 15kg |
| 250500A | 5t | 60mm | CQ | 0-60mm | 260mm | 130mm | 315mm | 40mm | 27.6kg |
