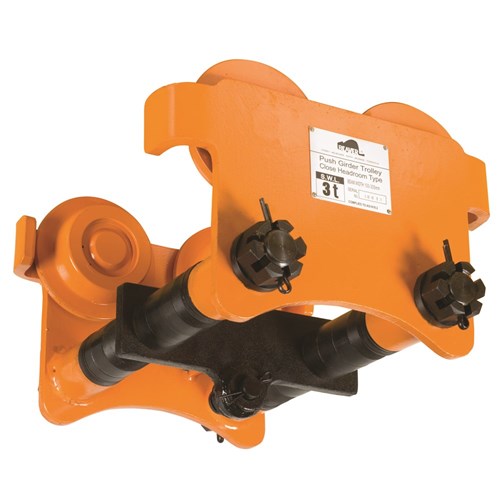

Beaver Close Headroom Push Girder Trolleys
Beaver Close Headroom Push Girder Trolleys Beaver push girder trolleys are used for applications where reduced headroom is required. The units suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin and are ideally suited to Beaver 3S Chain Blocks.
These girder trolleys are lightweight, despite their robust all-steel construction and have been operationally tested to 150% of their rated capacity.
Features:
- Fully adjustable
- Anti-tilt blocks fitted as standard for additional safety
- Stainless steel ID plate for traceability
- Complies to AS 1418.2
| Product Code | Rated Capacity | Colour Code | Proof Load | Minimum Radius Curve | Net Weight |
| 522010SC | 1t | Violet | 14.71kN | 0.9m | 23.5kg |
| 522020SC | 2t | Green | 29.42kN | 1m | 39kg |
| 522030SC | 3t | Yellow | 44.13kN | 1.2m | 59.5kg |
Each Beaver girder trolley has an individual serial number stamped on the stainless steel identification plate. This number coincides directly to the test certificate of the product (which is provided), for quick and easy tracing and reference. These products are also operationally tested to 150% of its rated capacity.
| Product Code | Rated Capacity | A | B | C | H | S | F | M |
| 522010SC | 1t | 303mm | 246mm | 164mm | 385mm | 38mm | 1.5-3mm | 64-203mm |
| 522020SC | 2t | 317mm | 276mm | 183mm | 480mm | 38mm | 1.5-3mm | 88-203mm |
| 522030SC | 3t | 435mm | 332mm | 224mm | 520mm | 40mm | 1.5-3mm | 100-305mm |
For more information on our materials handling range, please contact our Customer Care team.
