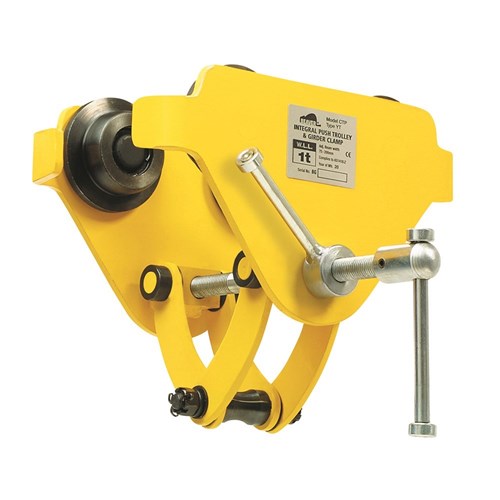

Beaver YT Integral Push Trolley and Girder Clamps (Yellow)
The Beaver integral push trolley and girder clamps are designed to provide a quick and easy attachment to overhead beams for transporting loads for permanent or temporary mounting in different locations. The integral clamp is adjustable to the beam width in the same manner as the YC model, by rotating the threaded spindle.
All Beaver integral push trolley and girder clamps have an individual serial number stamped onthe body of the clamp, and also onto the aluminium identification plate, which is securely mounted to the trolley side plate. This number coincides directly to the test certificate of the product for quick and easy tracing. These clamps are also operationally tested to 150% of the rated campacity and come with indidivual test certificates.
Features:
- Heavy duty steel construction
- For additional safety the threaded adjustment mechanism is secured by tightening the locking lever against the side plate.
- Threaded spindle mechanism, zinc plated for superior corrosion protection.
- Easily adjustable to suit a wide range of flange widths and beams from 75mm to 200mm.
- Built-in load bar for reduced headroom.
- Serial number identification on body and ID plate for better traceability
- Proof load tested at time of manufacture
- Complies to AS 1418.2
| Product Code | WLL | Net Weight | Beam Width | Model Type |
| 270010YT | 1t | 9.4kg | 75-200mm | YT |
| 270020YT | 2t | 9.9kg | 75-200mm | YT |

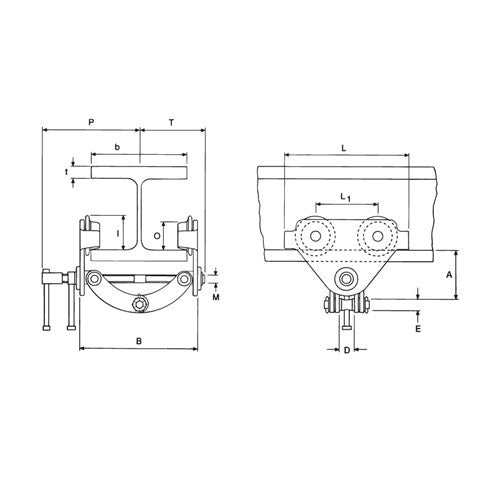

| Product Code | WLL | A | D | E | I | L | L1 | M | O | P | T | t |
| 270010YT | 1t | 80-152mm | 42mm | 20mm | 71.5mm | 260mm | 130mm | 16mm | 60mm | 195mm | 155mm | 25mm |
| 270020YT | 2t | 106-155mm | 42mm | 20mm | 71.5mm | 260mm | 130mm | 18mm | 60mm | 205mm | 139mm | 25mm |
