Beaver 3S Lever Block Steel Pro 250kg

Product Code: 509025

 Find a Stockist
Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

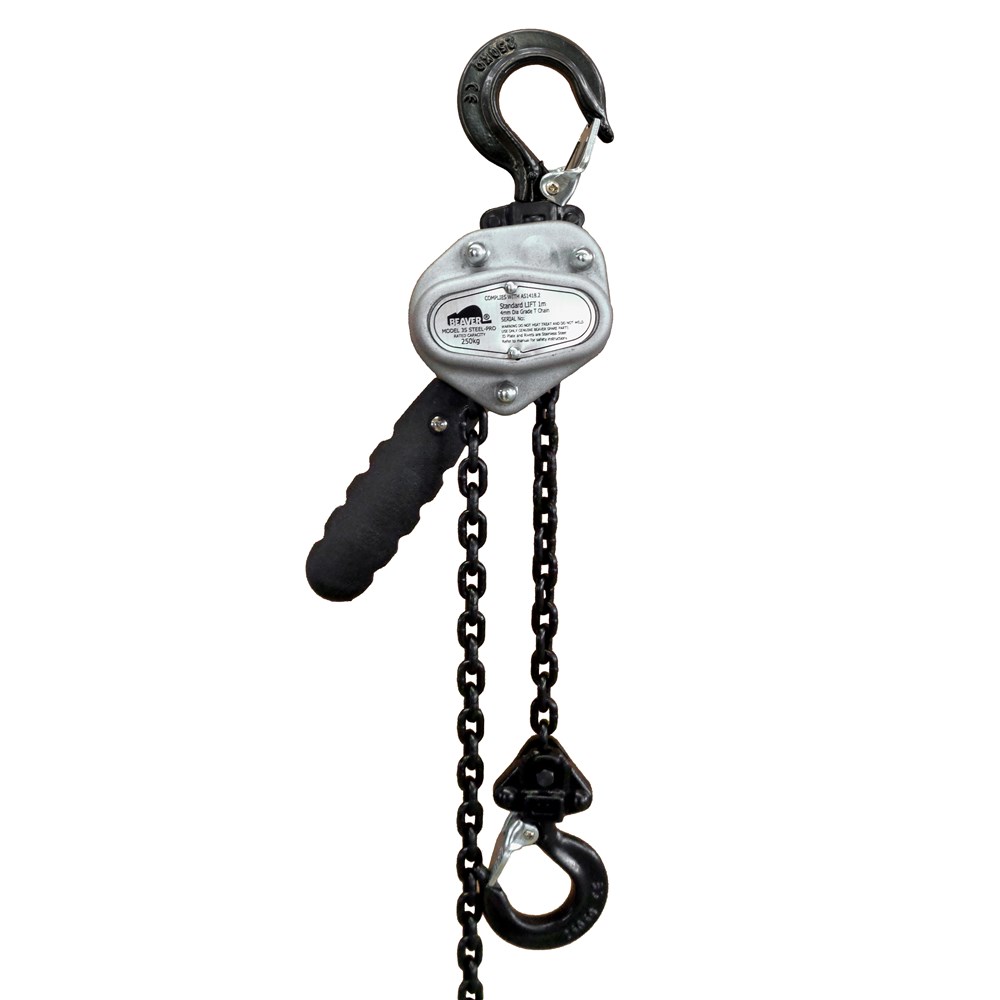

The Beaver 3S Steel Pro Lever Block 250kg x 1m lift is designed for small to medium size lifting and pulling applications. The compact, yet heavy duty 250kg WLL lever block is a must have for most workshops and garages. Individual test certificate and Operational Manual included in the packaging.


Features & Benefits:
  • Compact, lightweight rugged design only weighs 2.3kg
  • Full Body Steel cast construction, gear case and cover are impact resistant
  • Unique design on top and bottom hooks with ball bearings with safety catches
  • Rubberised safety grip handle
  • Comprehensive range of spare parts are available
  • Every 3S Lever Block Steel Pro 250kg is identified with its own serial number that relates directly to a test certificate
Materials:
  • Steel
  • G80 Calibrated load chain
  • Robust cast steel housing
  • Rubberised handle
  • Ball bearings in top & bottom hooks
Applications:
  • Mining
  • Rigging and constructions
  • General Purpose
  • Industrial use
  • Mechanical
  • Lightweight small and compact for confined work areas
Approved Standards:
  • Complies to AS/NZS 1418.2
  • Grade 80 Calibrated Chain and marked according to ISO 3077
Product Code Working Load Limit Standard Lift Running Test  Headroom (H) Effort on Lever to lift Full Load  Number of Load Chain Falls Load Chain Diamater Net Weight
509025 250kg 1m 375kg 230mm 200N 1 4mm x 12mm 2.3kg

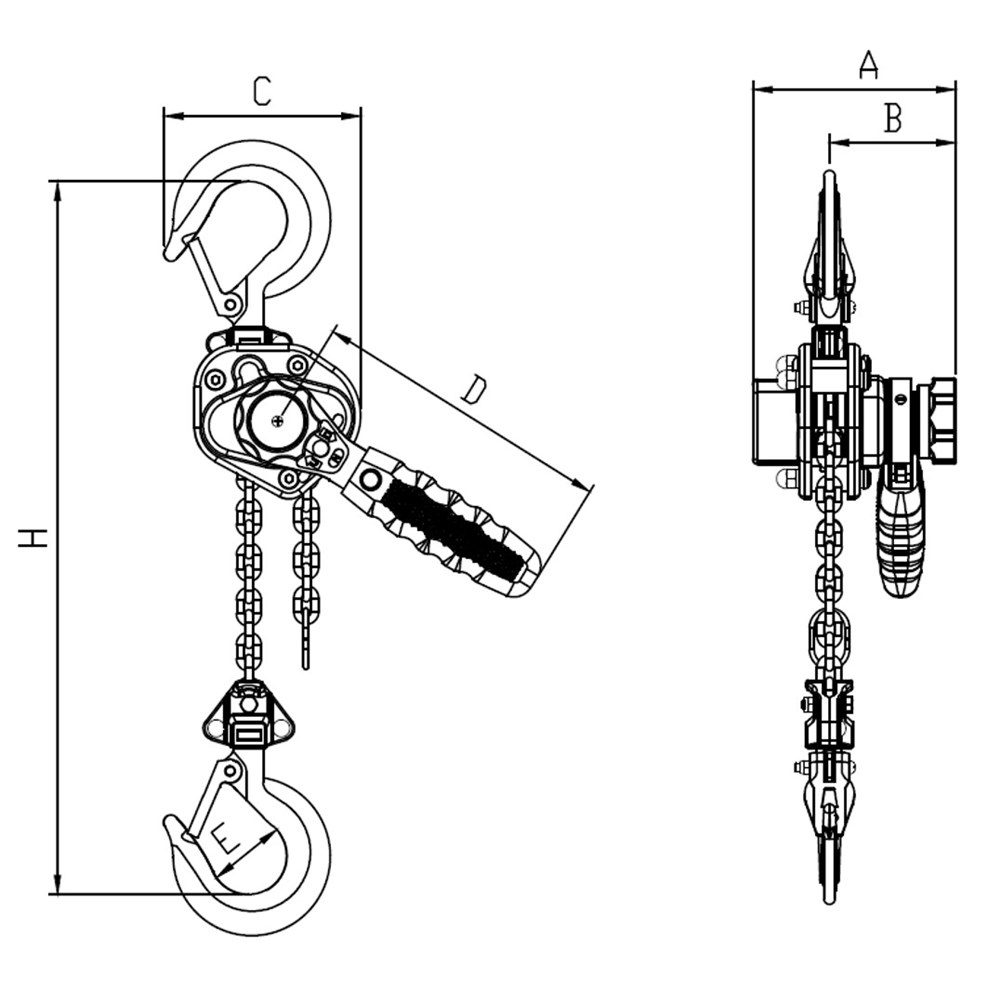

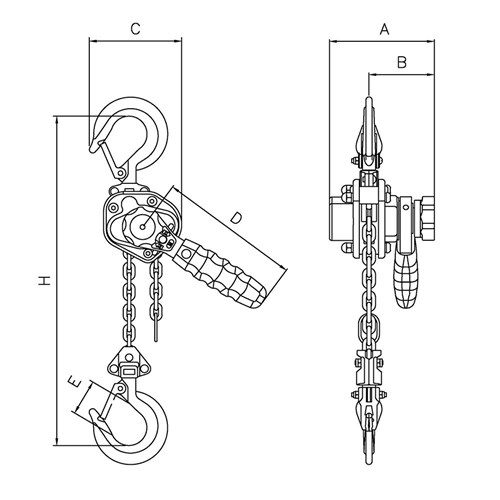

Dimensions Table:

Product Code A B C D E
509025 106mm 66mm 90mm 160mm 32mm

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.
