Beaver 3S Industrial Manual Chain Blocks (1.5-3m Standard Lift)

Product Code: MH503

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur. This product features a double pawl and double roller guide for enhanced performance and reliability, as well as a unique curling design which enables the hand chain to successfully feed directly into the wheel sprocket.

The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

Product Code Rated Capacity Colour Code Standard Lift Effort on Lever to Lift Full Load No. Load Chain Falls Load Chain Diameter
503025 0.25t Grey 1.5m 240kg 1 4mm x 12mm

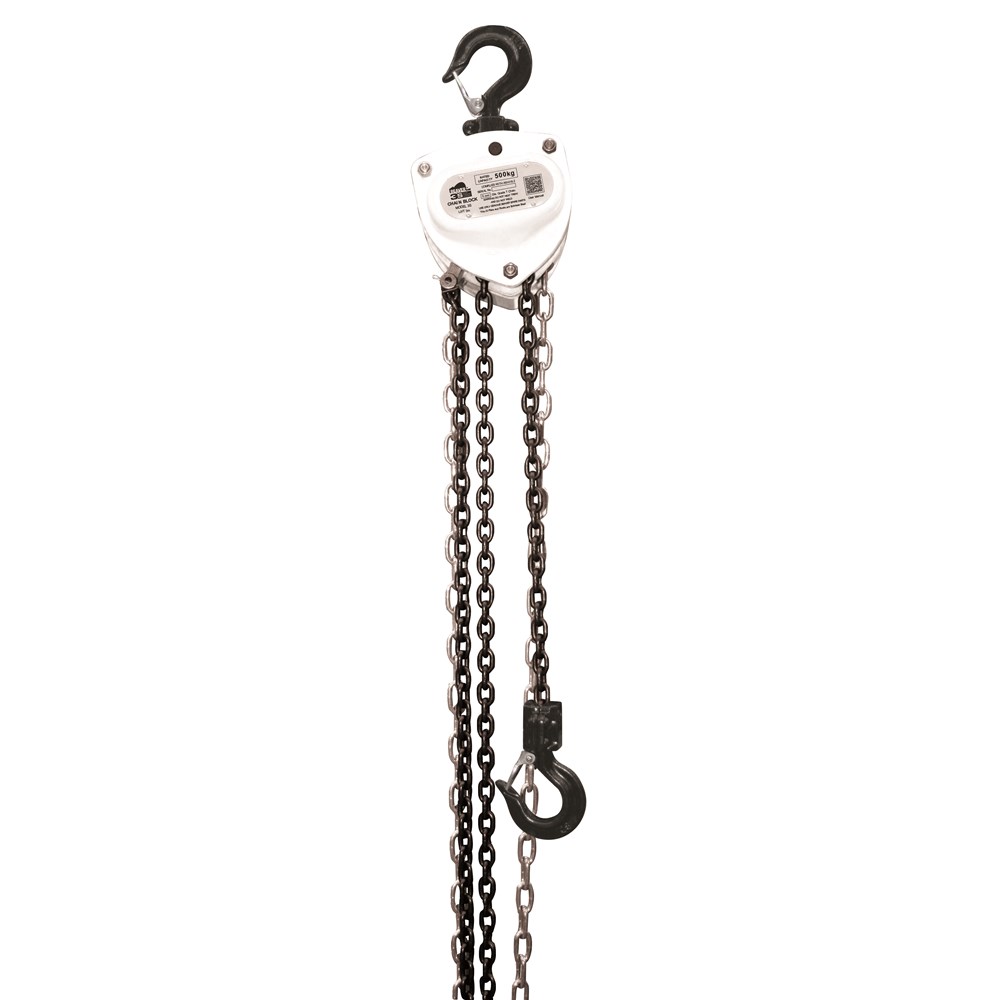

503053 0.5t White 3m 240kg 1 5mm x 15mm

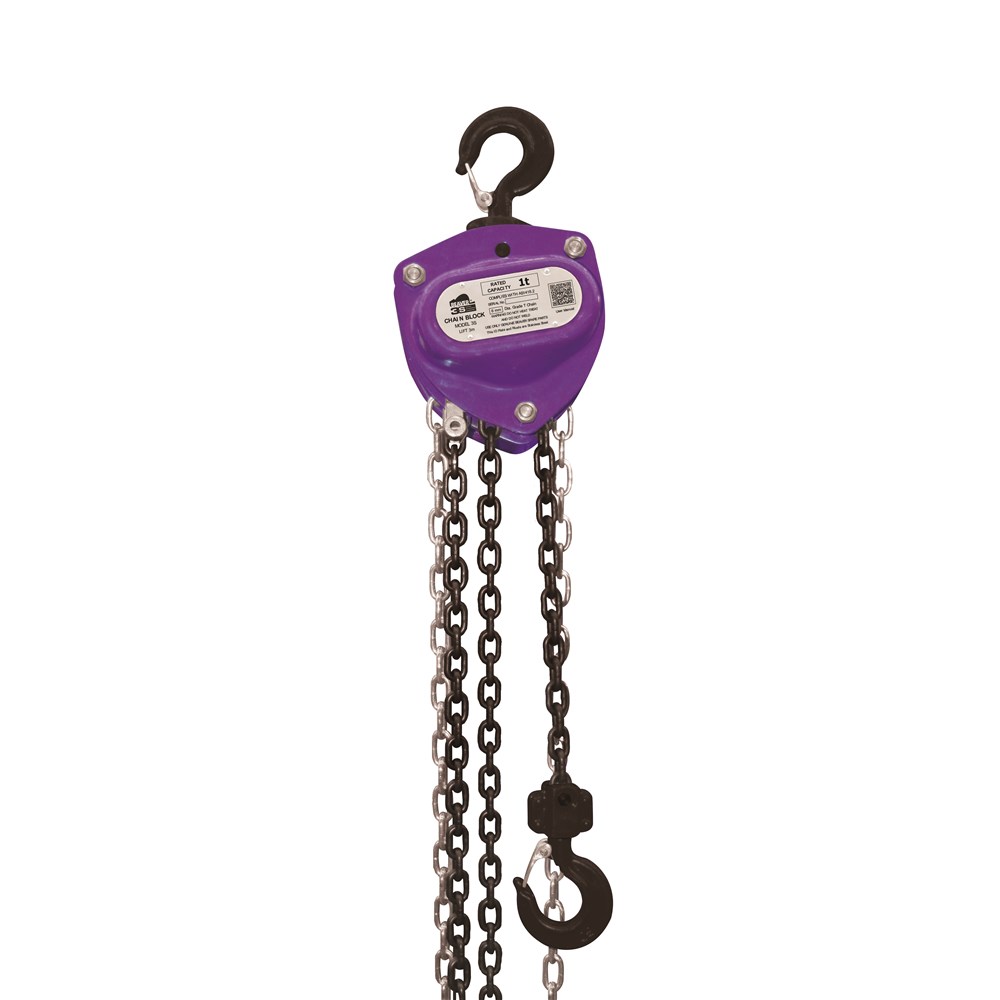

503103 1t Violet 3m 250kg 1 6mm x 18mm

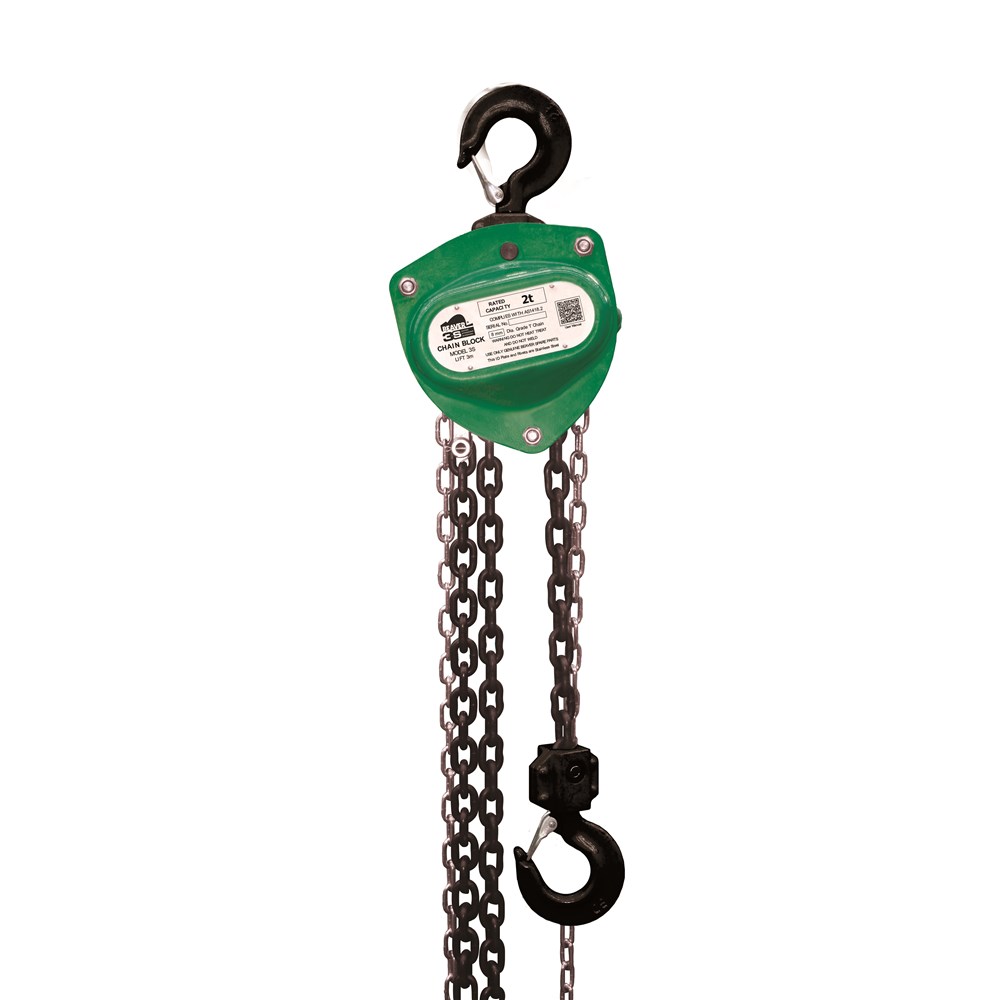

503203 2t Green 3m 335kg 1 8mm x 24mm

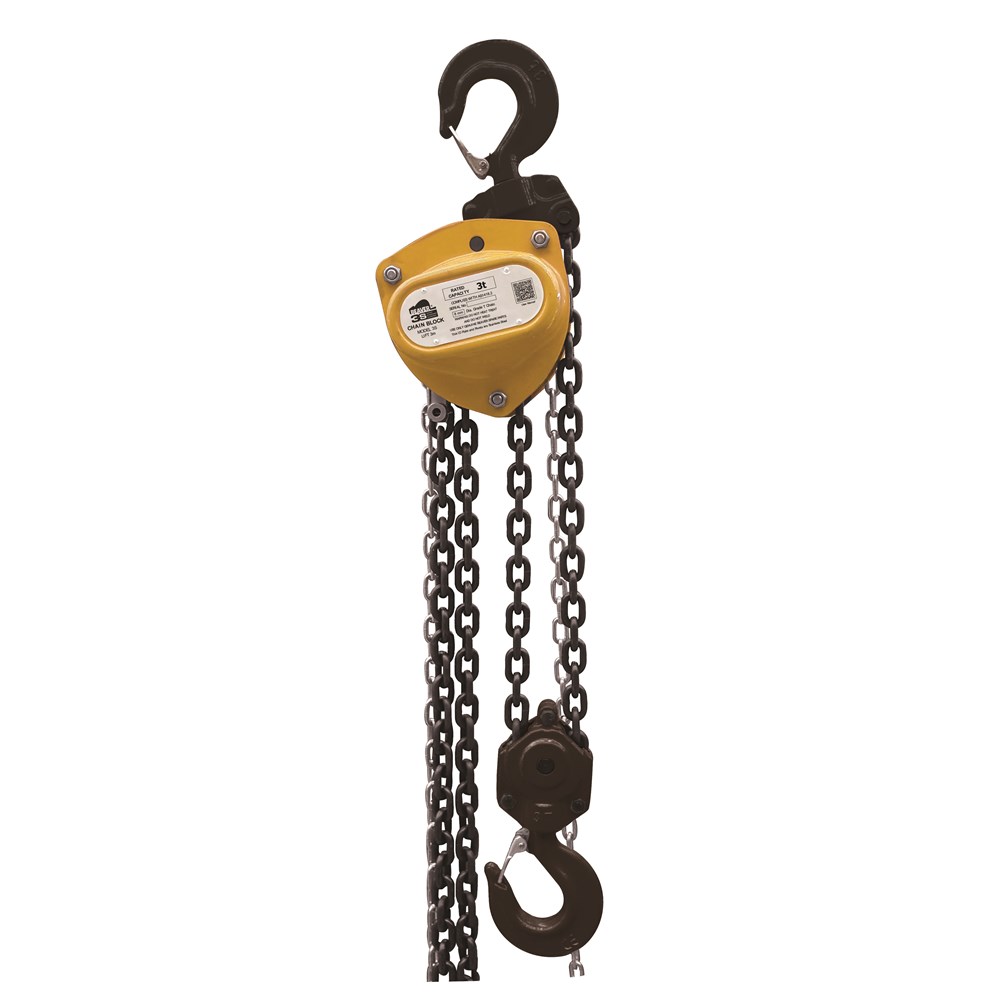

503303 3t Yellow 3m 265kg 2 8mm x 24mm

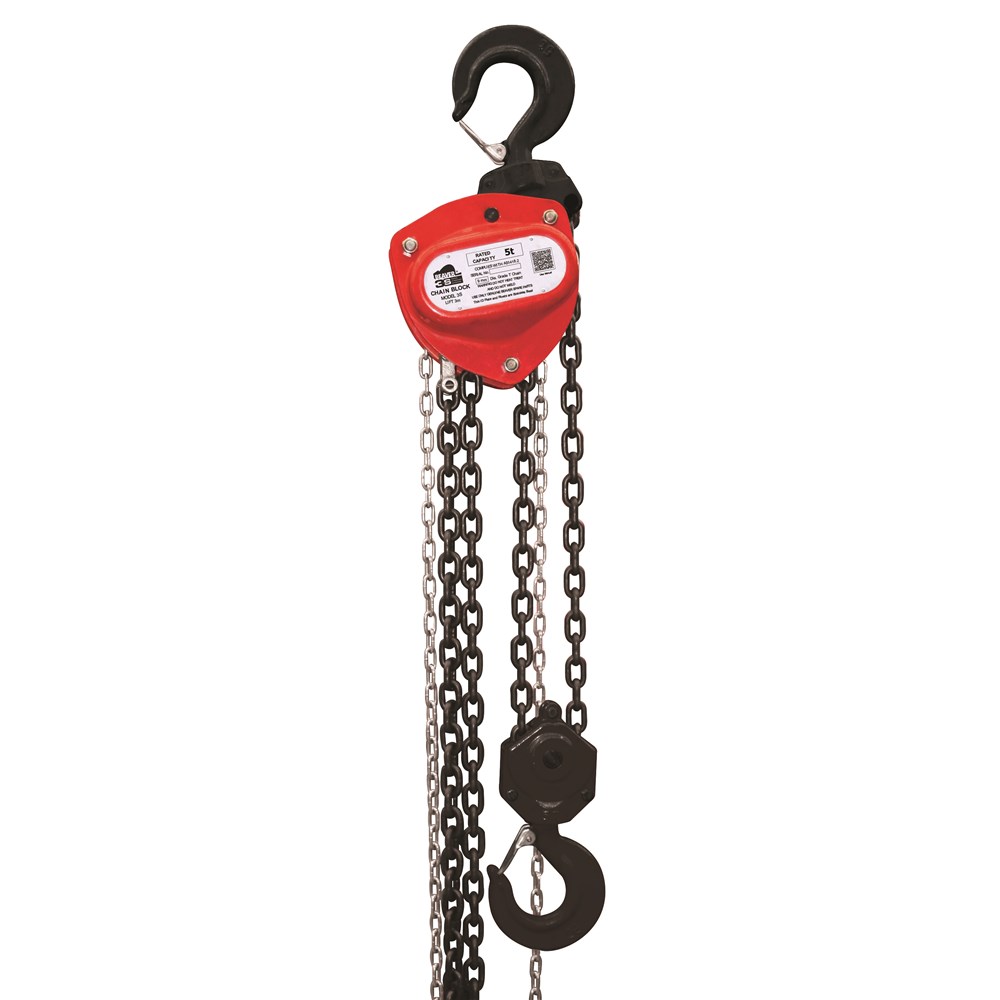

503503 5t Red 3m 360kg 2 9mm x 30mm

These chain blocks are colour coded to match international lifting standards for fast and accurate identification of WLL. Every chain block is also operationally tested to its rated capacity and is supplied with a Beaver test certificate, relating to its stamped identification side plate.

Product Code Rated Capacity A B C H Net Weight
503025 0.25t 110mm 100mm 18mm 230mm 3.5kg
503053 0.5t 132mm 148mm 28mm 345mm 11kg
503103 1t 151mm 172mm 32mm 376mm 12.5kg
503203 2t 175mm 210mm 36mm 470mm 19.5kg
503303 3t 176mm 230mm 46mm 565mm 29kg
503503 5t 189mm 280mm 46mm 688mm 41.3kg

For technical drawings of these lever blocks, please see the linked data sheet below.
