Beaver 3S Manual Lever Blocks

Product Code: MH506

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

General Purpose

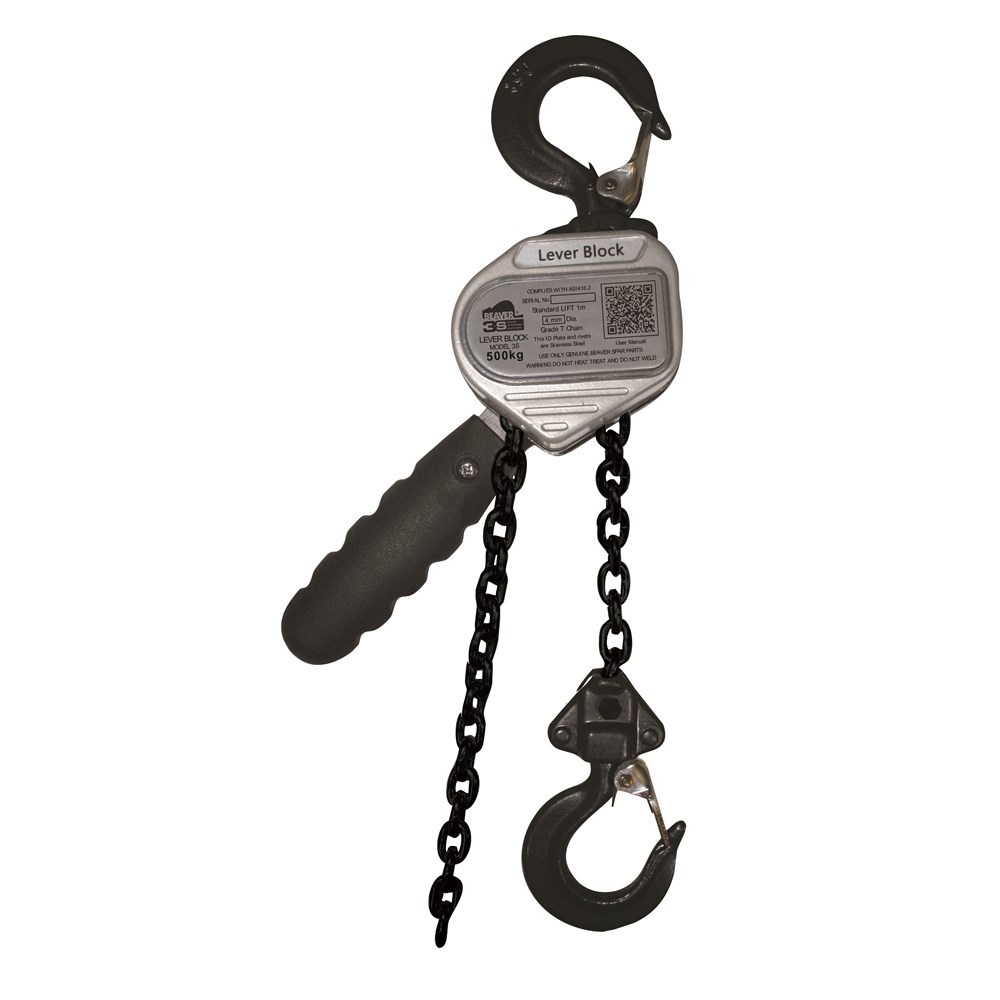

Beaver 250Kg and 500Kg 3S Lever Block are designed for small to medium size lifting and pulling applications. The design combines strength and compact design into one, to provide a high quality and versatile Lever Block. The load chain is made of high resistance Grade 80 zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834.

Product Ccode Rated Capacity Colour Code Standard Lift Testing Load Effort on Lever to Lift Full Load No. Load Chain Fails Load Chain Diameter
506025 0.25t Grey 1.5m 4.9kN 210N 1 4mm
506050 0.5t Grey 1.5M 9.8kN 320N 1 4mm

Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate. This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.

Product Code Rated Capacity A B C D E H Net Weight
506025 0.25t 87mm 55.5mm 68mm 145mm 21mm 200mm 1.5kg
506050 0.5t 100.5mm 62.5mm 81mm 160mm 24.5mm 250mm 2.5kg

Rigging, Construction and Mining

The heavy duty Beaver lever blocks are a versatile lifting and tensioning device with some models being widely used in rigging, construction, and mining, applicable models are marked with an asterisks below. Please note: not all models are suitable for all applications. The Beaver 3S industrual chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

Product code Rated Capacity Colour Code Standard Lift Test Load Effort on Lever to Lift Full Load No. Load Chain Falls Load Chain Diameter
506080* 0.8t White 1.5m 11.3kN 140N 1 6mm x 16mm

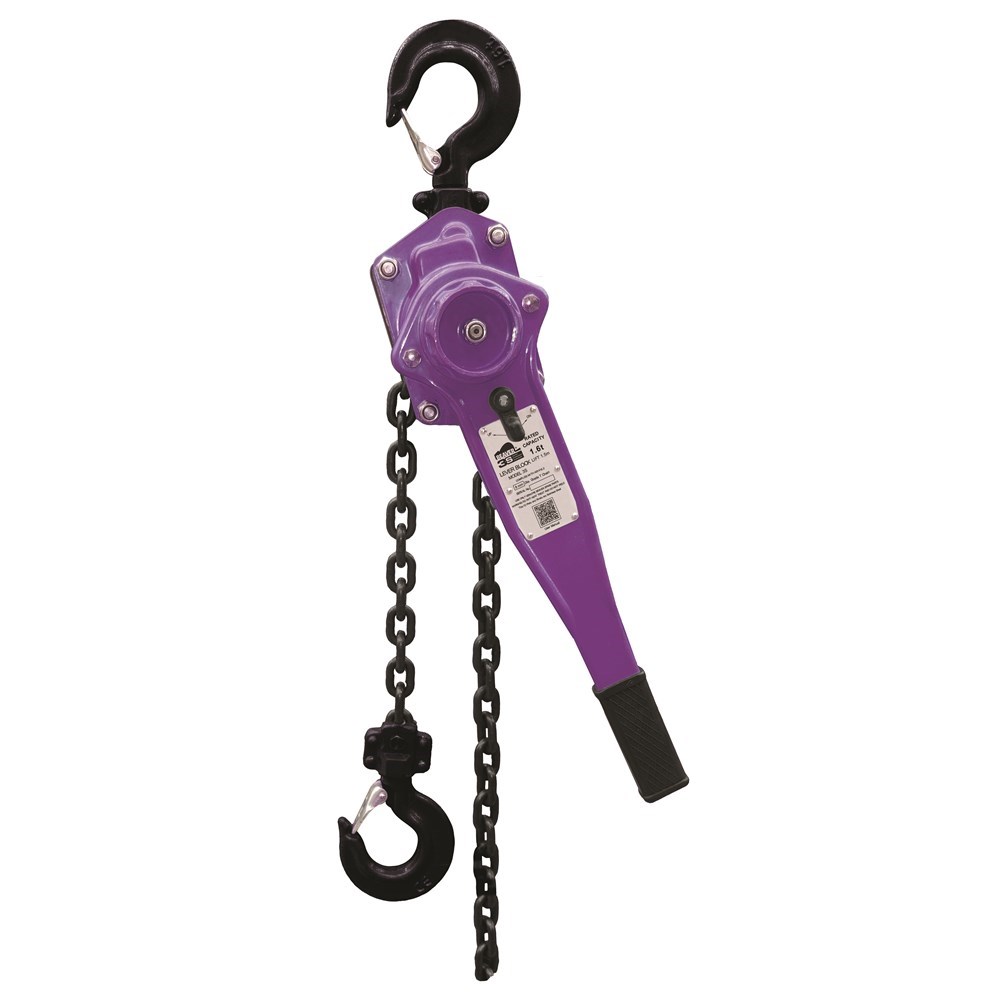

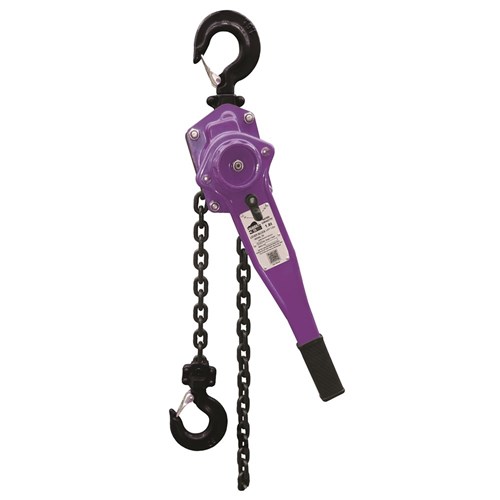

506160* 1.6t Violet 1.5m 22.5kN 240N 1 8mm x 24mm

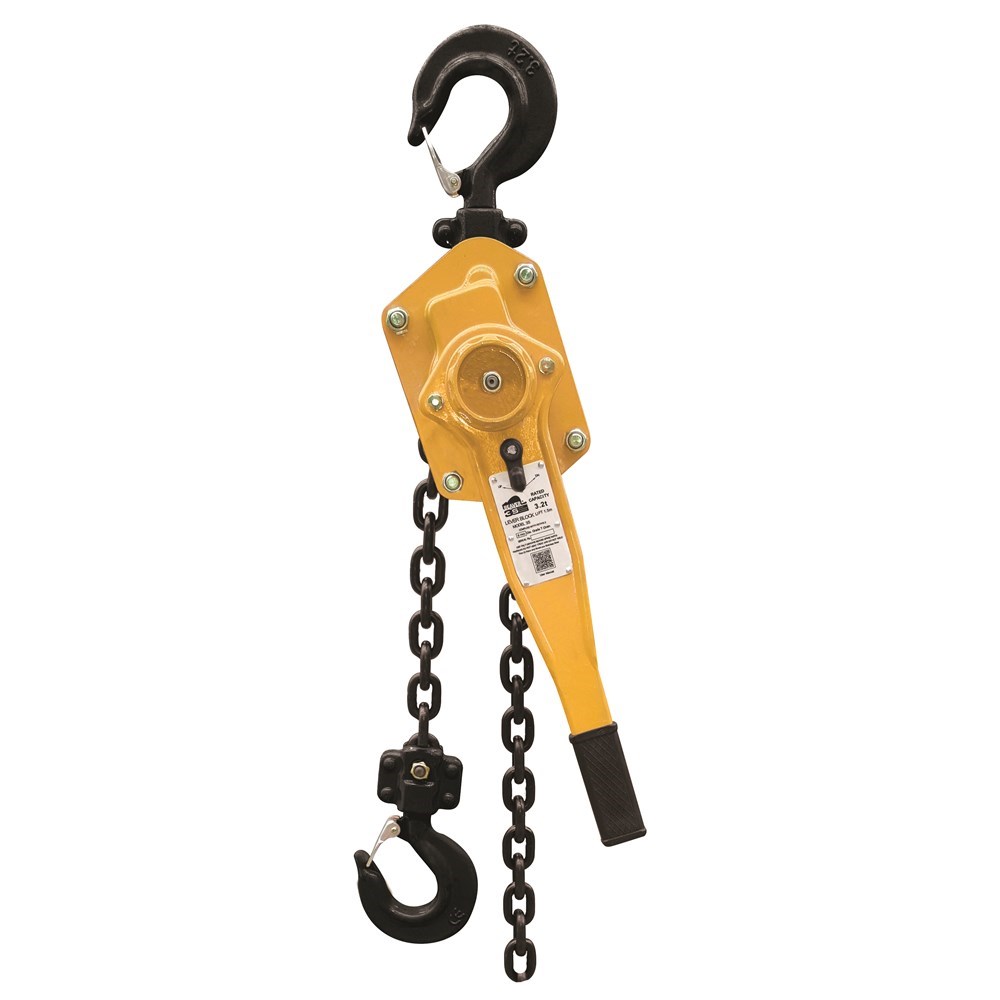

506320* 3.2t Yellow  1.5m 45kN 320N 1 10mm x 30mm

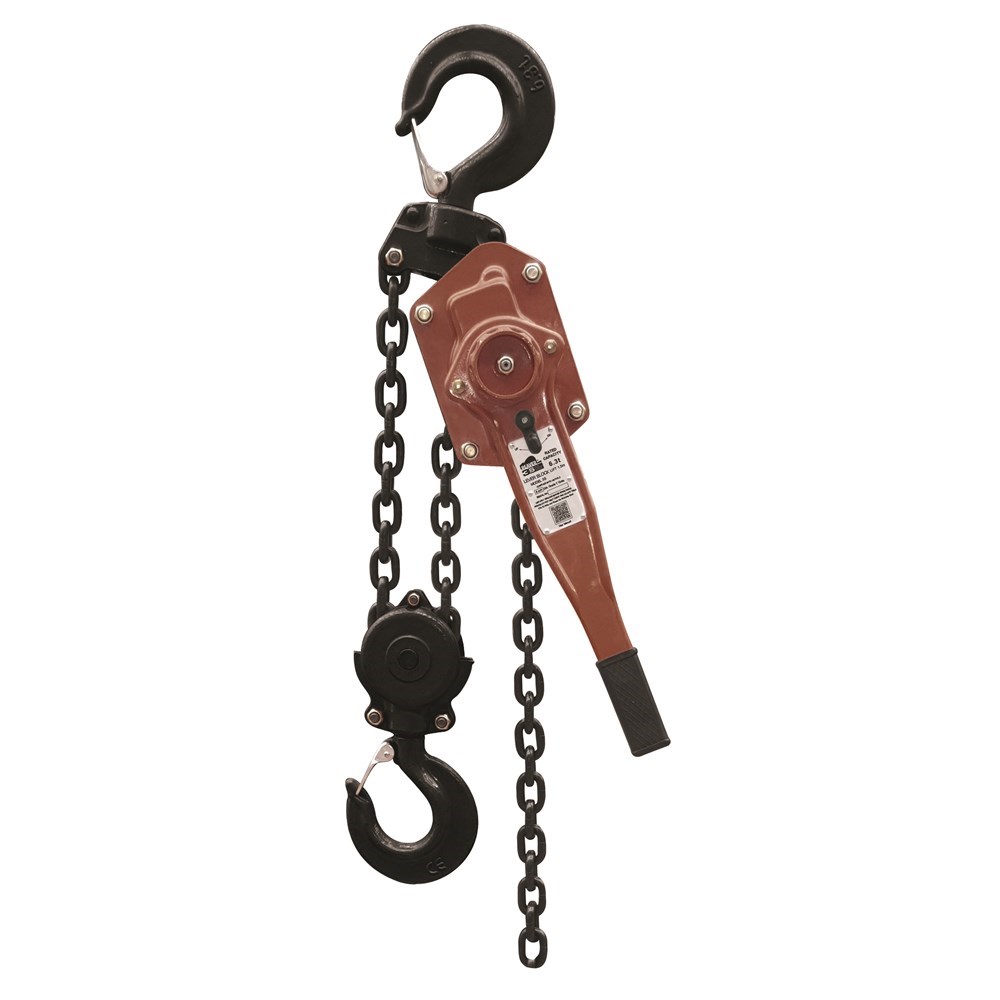

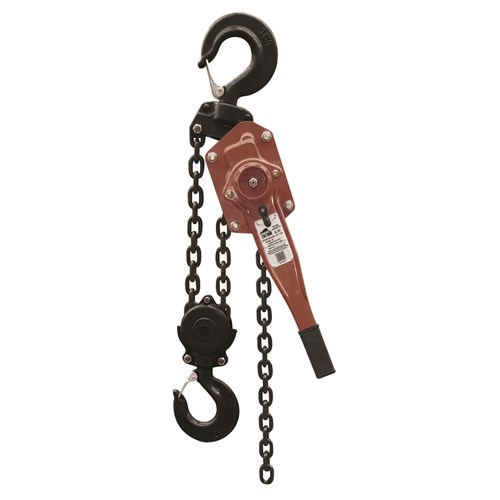

506630* 6.3t Brown 1.5m 1.5kN 340N 2 10mm x 30mm

Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate. This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.

Product Code Rated Capacity A B C D E H Net Weight
506080* 0.8t 148mm 90mm 136mm 280mm 30mm 325mm 7kg
506160* 1.6t 172mm 98mm 160mm 410mm 35mm 380mm 11kg
506320* 3.2t 200mm 115mm 180mm 410mm 40mm 480mm 21kg
506630* 6.3t 200mm 115mm 235mm 410mm 50mm 620mm 31kg

For technical drawings of these lever blocks, please see the linked data sheet below.

Please speak to our Customer Care team to ensure you're selecting the correct product for your needs.
