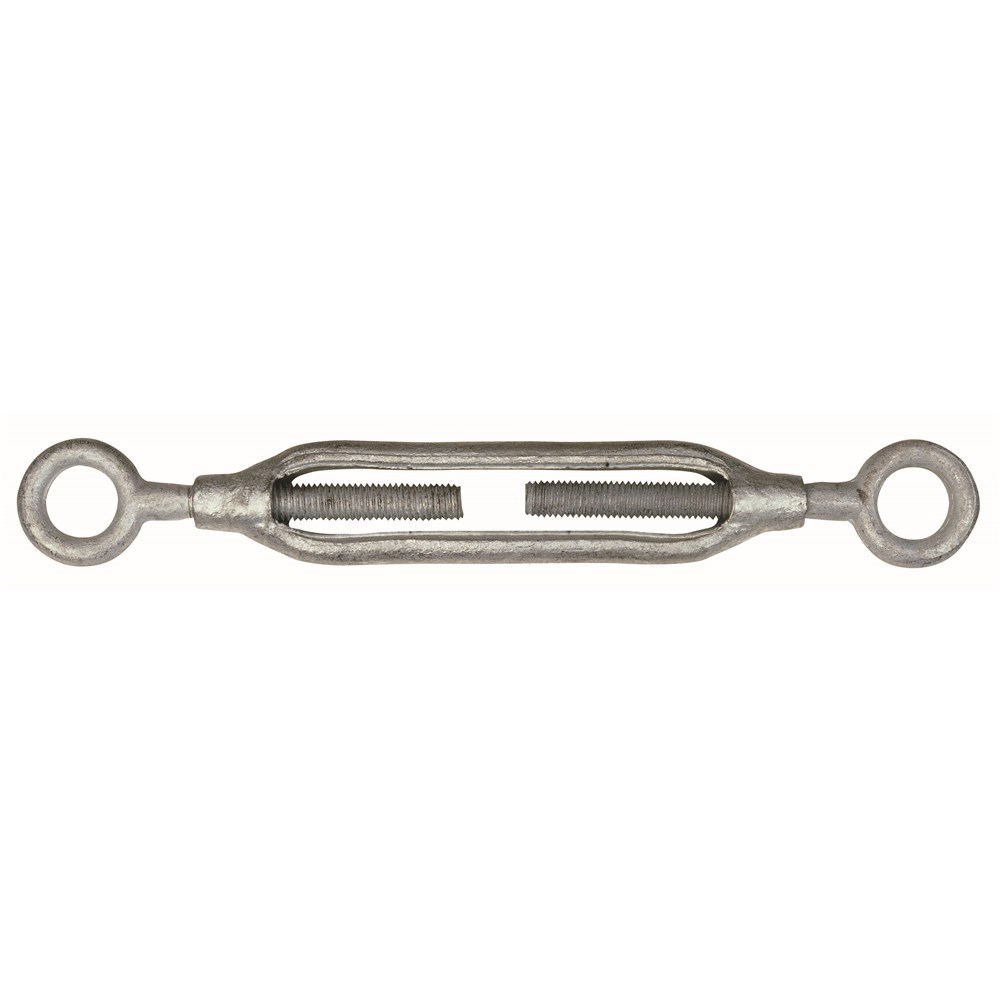

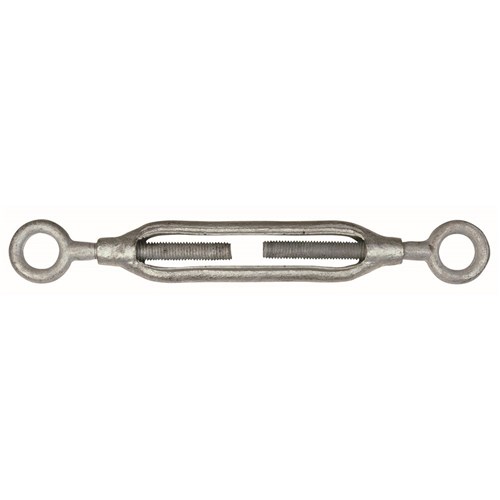

Beaver Commercial Eye / Eye Turnbuckles are ideal for straight or inline tension applications, and are generally used with wire rope and chain assemblies.
Product Features:
- Heavy duty, manufactured from forged steel
- Hot dipped galvanised finish for added protection against rust and corrosion
- Also available in an electro plated finish
Note:- Not to be used for lifting applications

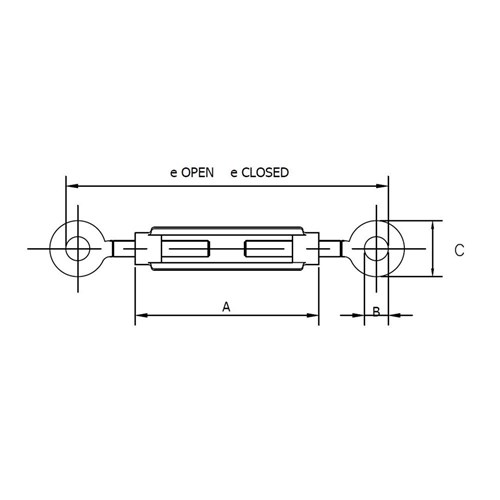

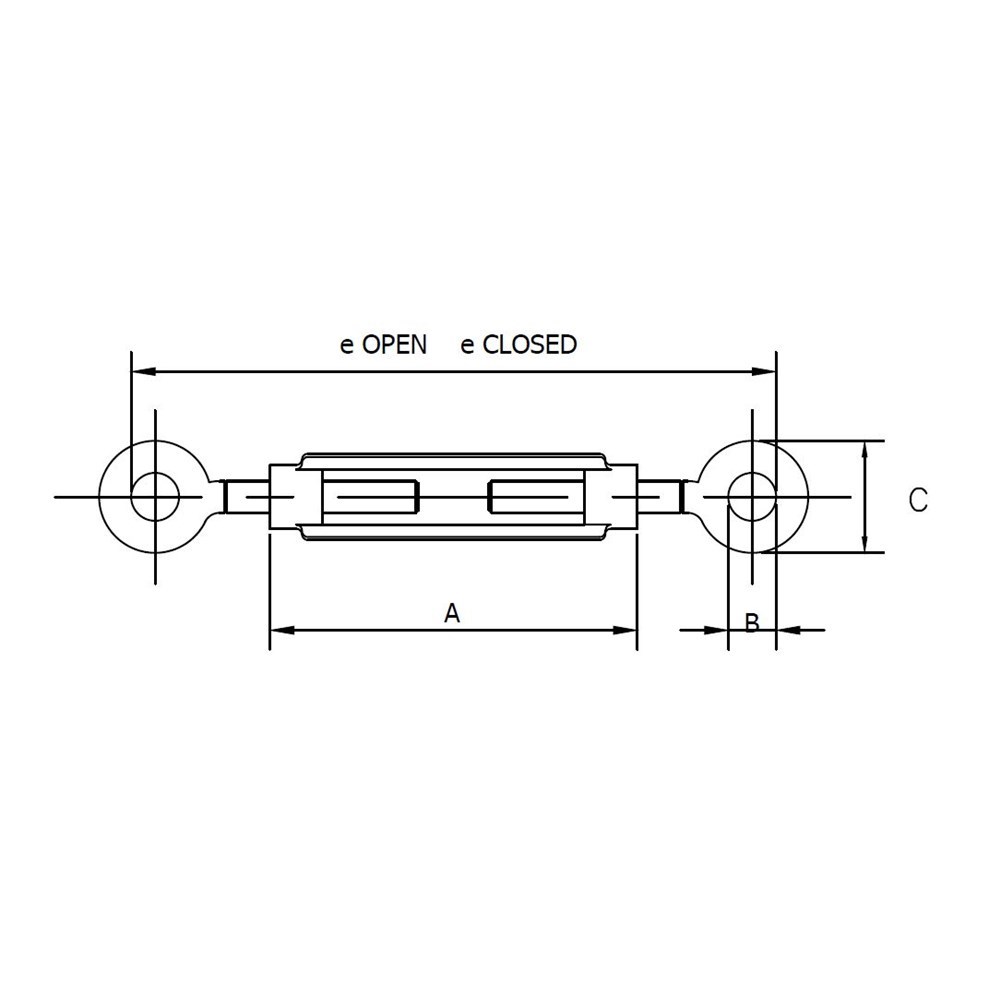

Product Code |
Size mm |
e Open mm |
e Closed mm |
A mm |
B mm |
C mm |
Finish |
Pack Qty |
Weight per 100 (kg) |
324206 |
6 |
200 |
132 |
98 |
10 |
19.5 |
Galvanised |
250 |
8 |
324208 |
8 |
250 |
166 |
123 |
11 |
22 |
Galvanised |
150 |
14 |
324210 |
10 |
295 |
188 |
144 |
12 |
25 |
Galvanised |
100 |
26 |
324213 |
13 |
420 |
255 |
297 |
17 |
33.5 |
Galvanised |
40 |
50 |
324216 |
16 |
525 |
340 |
250 |
24 |
45.5 |
Galvanised |
25 |
100 |
324220 |
20 |
605 |
395 |
285 |
28 |
52 |
Galvanised |
15 |
168 |
324225 |
25 |
720 |
490 |
345 |
32.5 |
67 |
Galvanised |
8 |
256 |
Size and dimension will have a +/- 10% for both the electro plated and hot dipped galvanised commercial turnbuckles.
