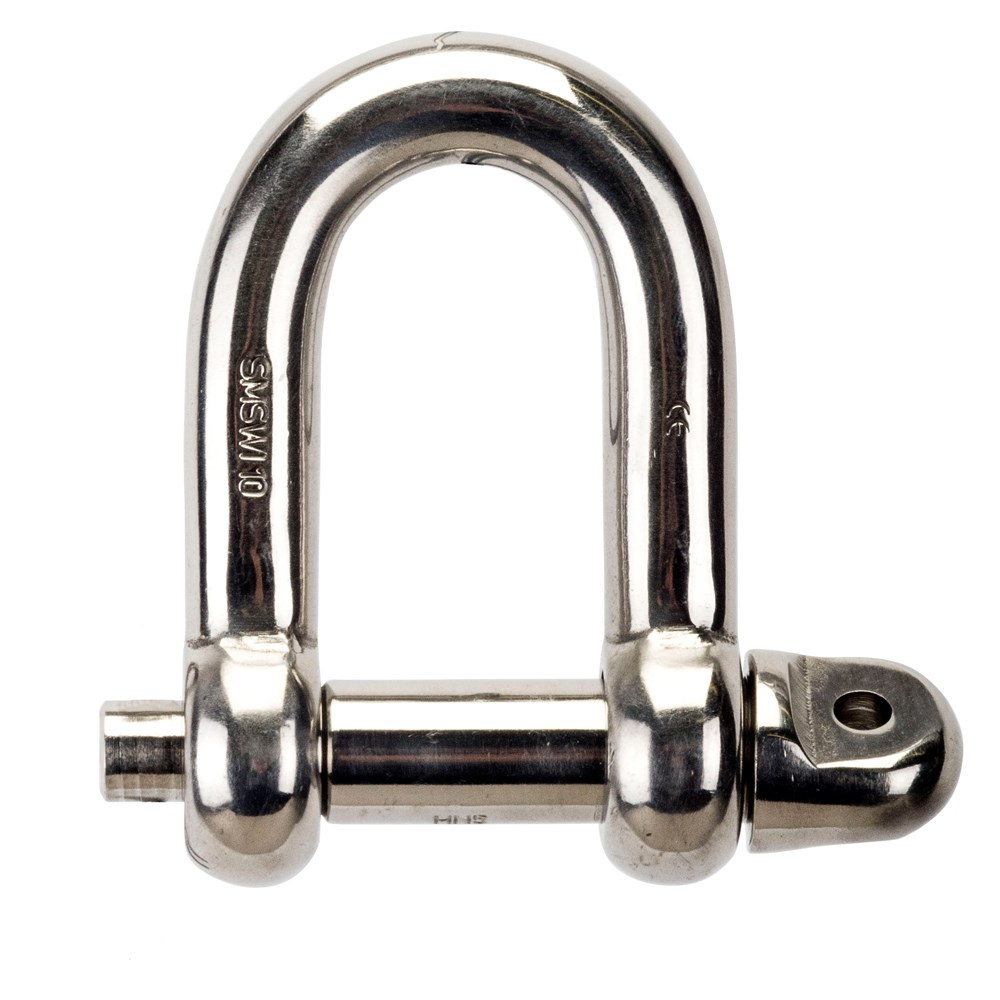

Beaver G50 Stainless Steel Screw Pin Dee Shackle

Product Code: MHSMSWI

 Find a Stockist
Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver Grade 50 Stainless Steel Screw Pin Dee Shackle is ideal for lifting applications in corrosive environments, such as marine, water treatment plants and food processing facilities.

Screw pin shackles are easier to remove and are therefore used largely for non-permanent applications.

Suitable for lifting applications.

Product Features:

  • Made from high quality Grade 316 stainless steel
  •  screw pin enables quick (dis)assembly making it ideal for  rigging
  • High corrosion resistance
  • High durability
Approved Standards:
  • Complies to AS 4791


Product Code Size WLL Type Shape Closing Method Weight
SMSWI16 16mm x 19mm 5t Grade 50 Dee Screw Pin 0.36kg

Screw pin shackles are used mainly for non-permanent applications.

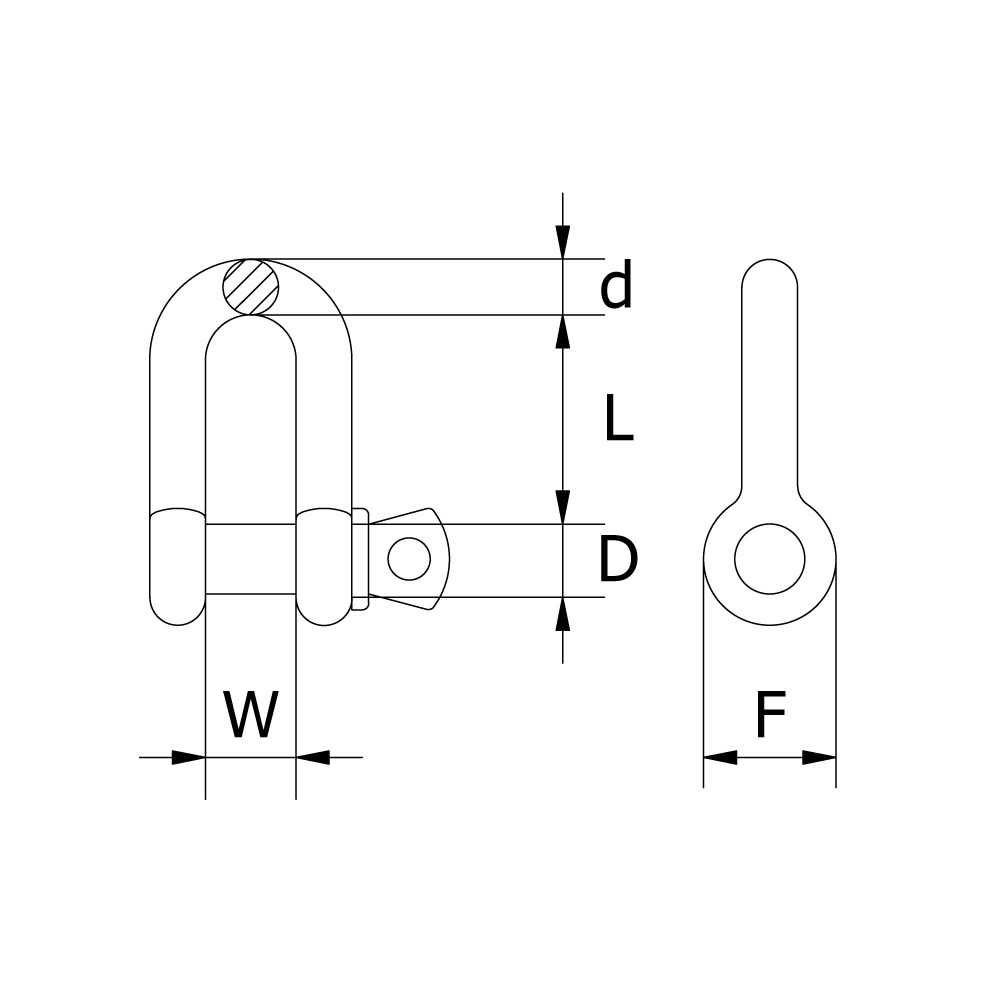

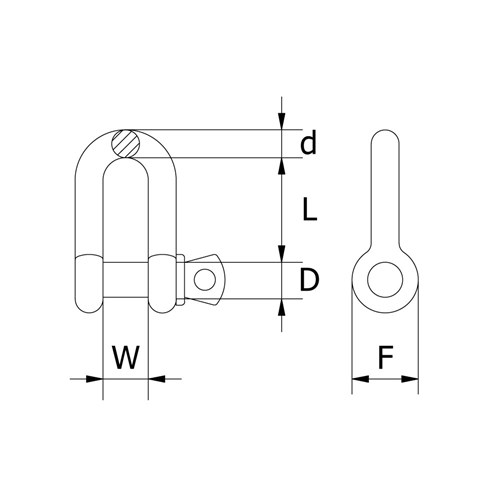

Product Code Size Diameter Pin Diameter (D) Inside Width (W) Inside Length (L) Diameter Boss (F)
SMSWI16 16mm x 19mm 25mm 27mm 50mm 100mm 50mm

For more information on special pricing available for bulk/pail sales, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Technical Specifications
Category Beaver
Category Dee Shackles
Category Stainless Steel Fittings & Components
Brand Material Handling
