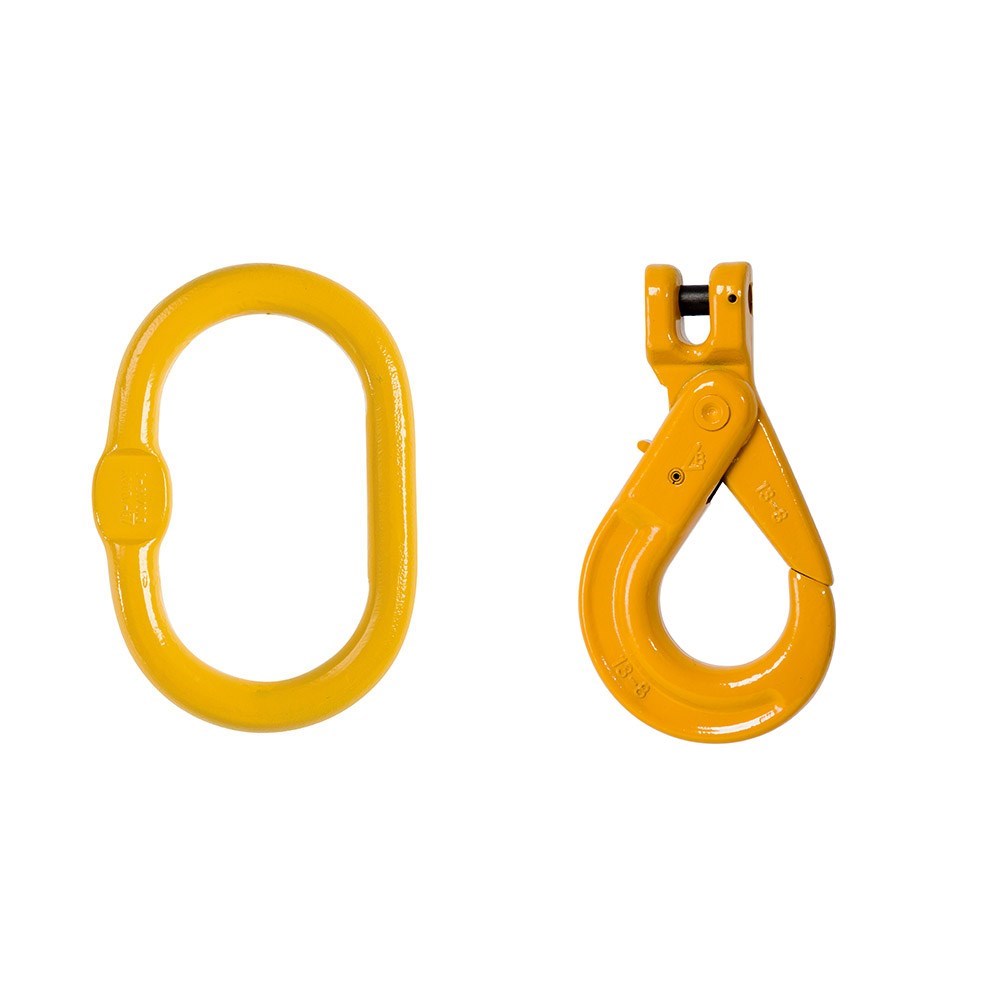

Beaver Grade 80 (T) chain and lifting components are manufactured using heat treated alloy steel, and meet AS 2321 and AS 3776 respectively. These chains and components are designed to be high strength, rugged, versatile, low weight, and are ideal for heavy lifting applications.

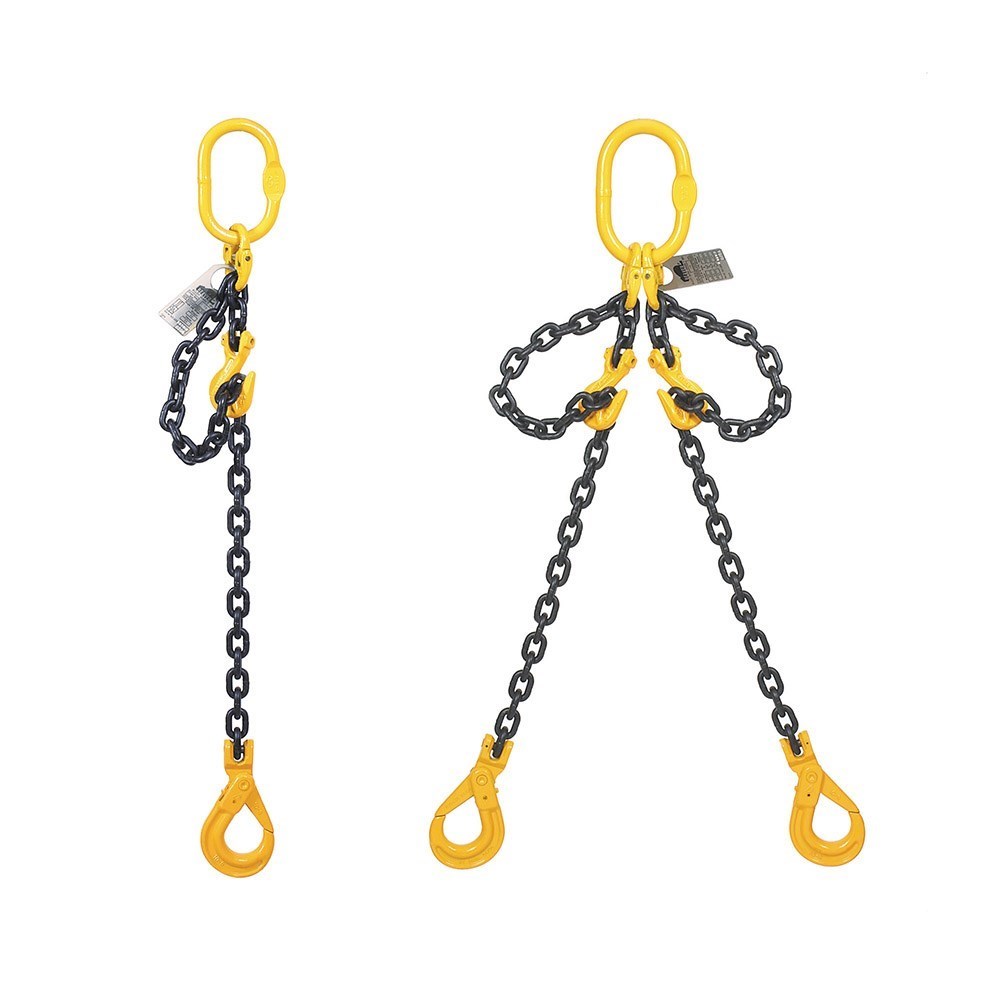

Quality testing is done throughout the manufacturing process, and both chains and lifting components have distinctive markings for tracibility. The single-chain sling comes with a shortening grab hook certified to AS 3775.1. The double-chain sling comes with 2 shortening grab hooks certified to AS 3775.1.

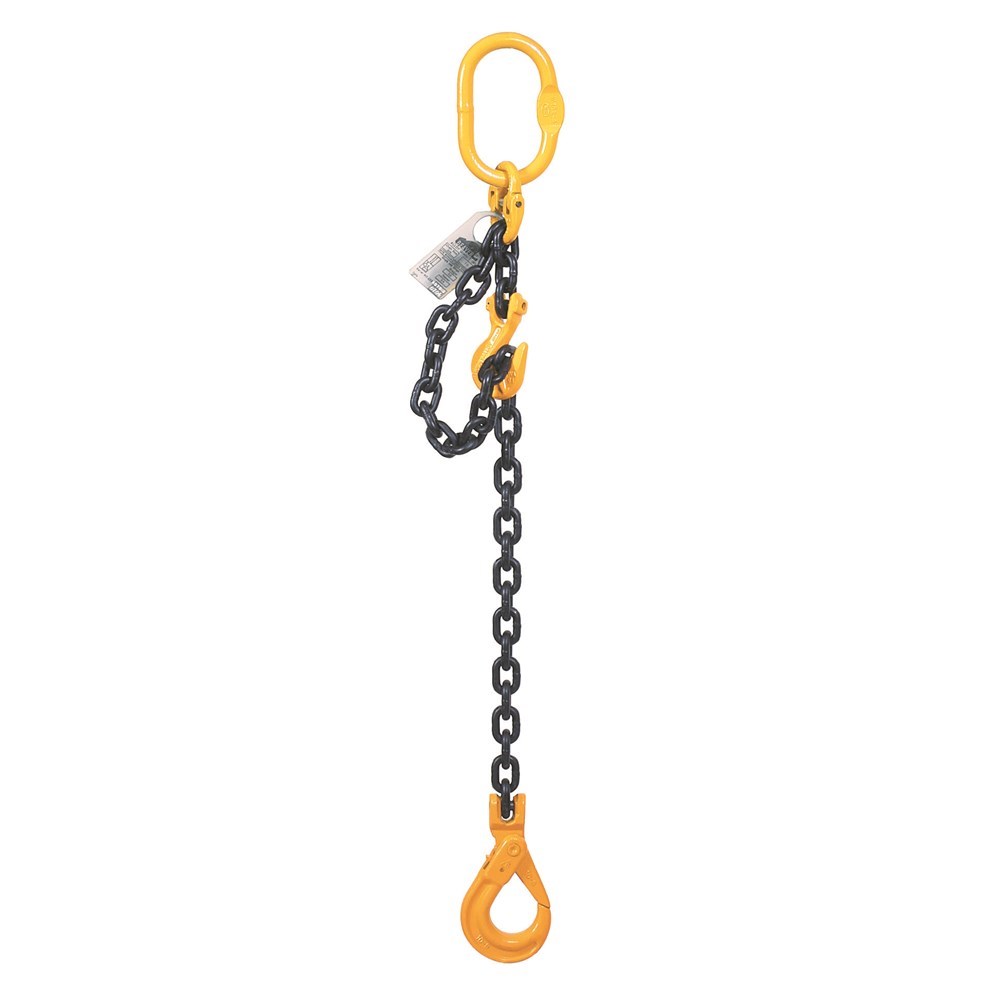

Product code | Single-Leg Specifications | | |
| Chain Size | Effective Length | WLL No Deration |
CSA08117545 | 8mm | 1m | 2t |
CSA08127545 | 8mm | 2m | 2t |
CSA08137545 | 8mm | 3m | 2t |
CSA10117545 | 10mm | 1m | 3.2t |
CSA10127545 | 10mm | 2m | 3.2t |
CSA10137545 | 10mm | 3m | 3.2t |

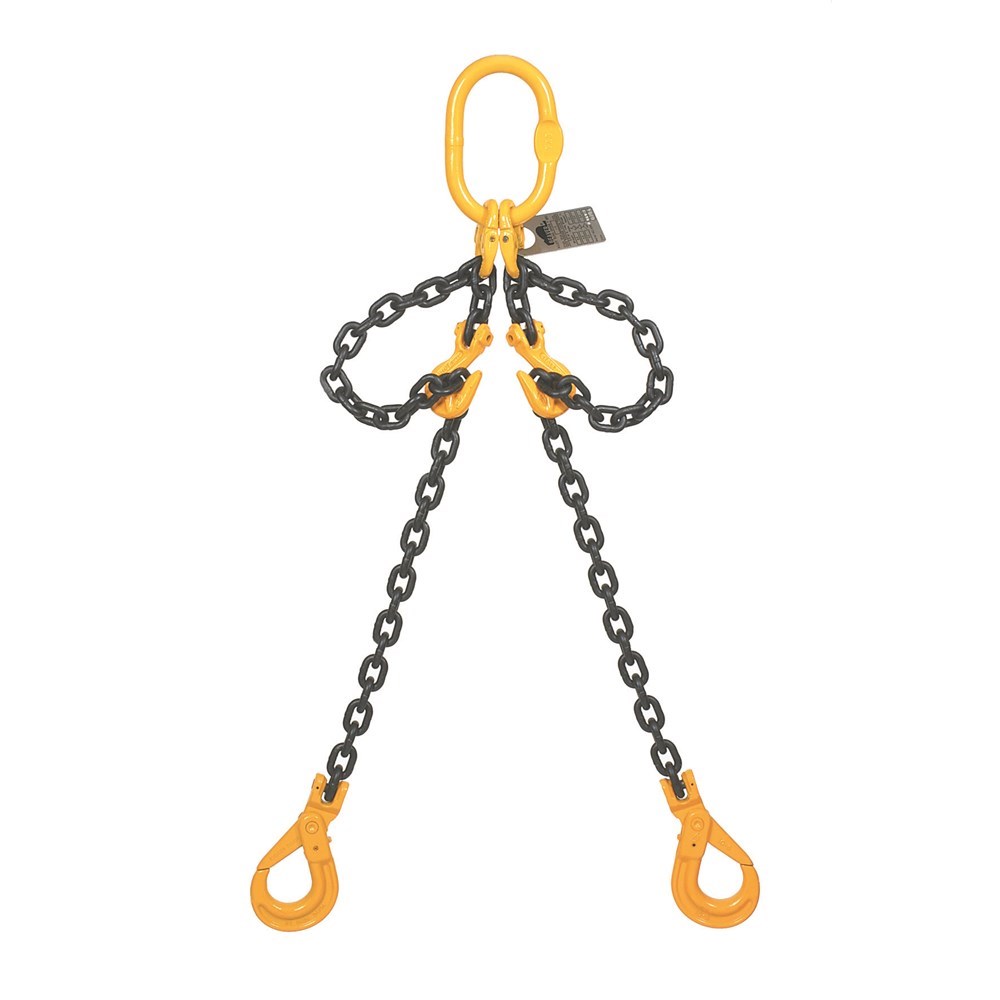

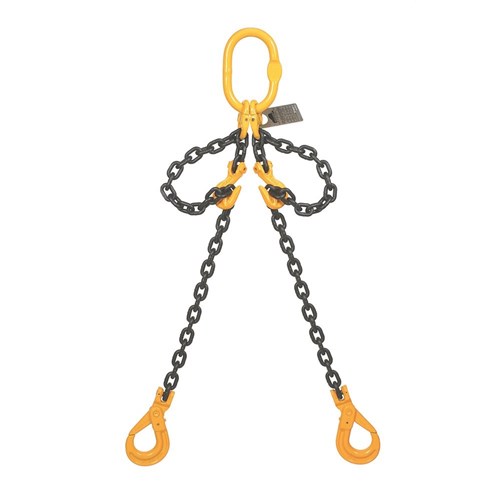

| Double-Leg Specifications | | |
| Chain Size | Effective Length | WLL at 60° No Deration |
CSA08217545 | 8mm | 1m | 3.5t |
CSA08227545 | 8mm | 2m | 3.5t |
CSA08237545 | 8mm | 3m | 3.5t |
CSA08247545 | 8mm | 4m | 3.5t |
CSA08267545 | 8mm | 6m | 3.5t |
CSA10217545 | 10mm | 1m | 5.5t |
CSA10227545 | 10mm | 2m | 5.5t |
CSA10237545 | 10mm | 3m | 5.5t |
CSA10247545 | 10mm | 4m | 5.5t |
CSA10267545 | 10mm | 6m | 5.5t |
CSA13227545 | 13mm | 2m | 9.2t |
CSA13237545 | 13mm | 3m | 9.2t |
CSA13247545 | 13mm | 4m | 9.2t |
Other lengths and configurations are available upon request, please contact our Customer Care team for further information.
