Beaver G80 Component Connector

Product Code: MHCCON

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

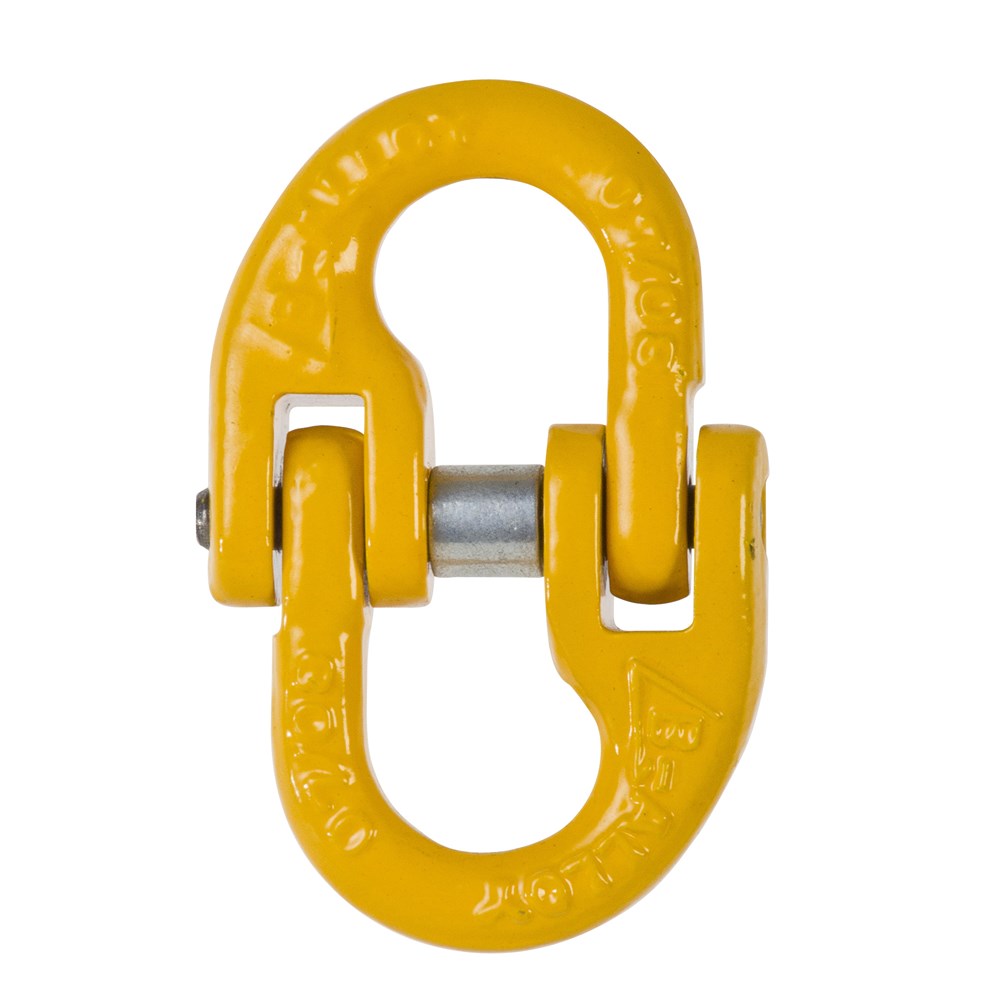

The Beaver Grade 80 Component Connector or Coupler is highly versatile for heavy lifting applications. The connector consists of two heavy duty symmetrical, die-forged halves joined with a heavy-duty stud and pin which can be disconnected if required. Available in sizes to suit chain from 6m to 32mm. Beaver Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. All Beaver Grade 80 hooks and components also carry distinguishing marks for easy identification.

Product Features:

  • Ideal for heavy duty lifting applications
  • Conventional style chain connector
  • High strength, versatile and low weight
Approved Standards:
  • Complies to AS 3776

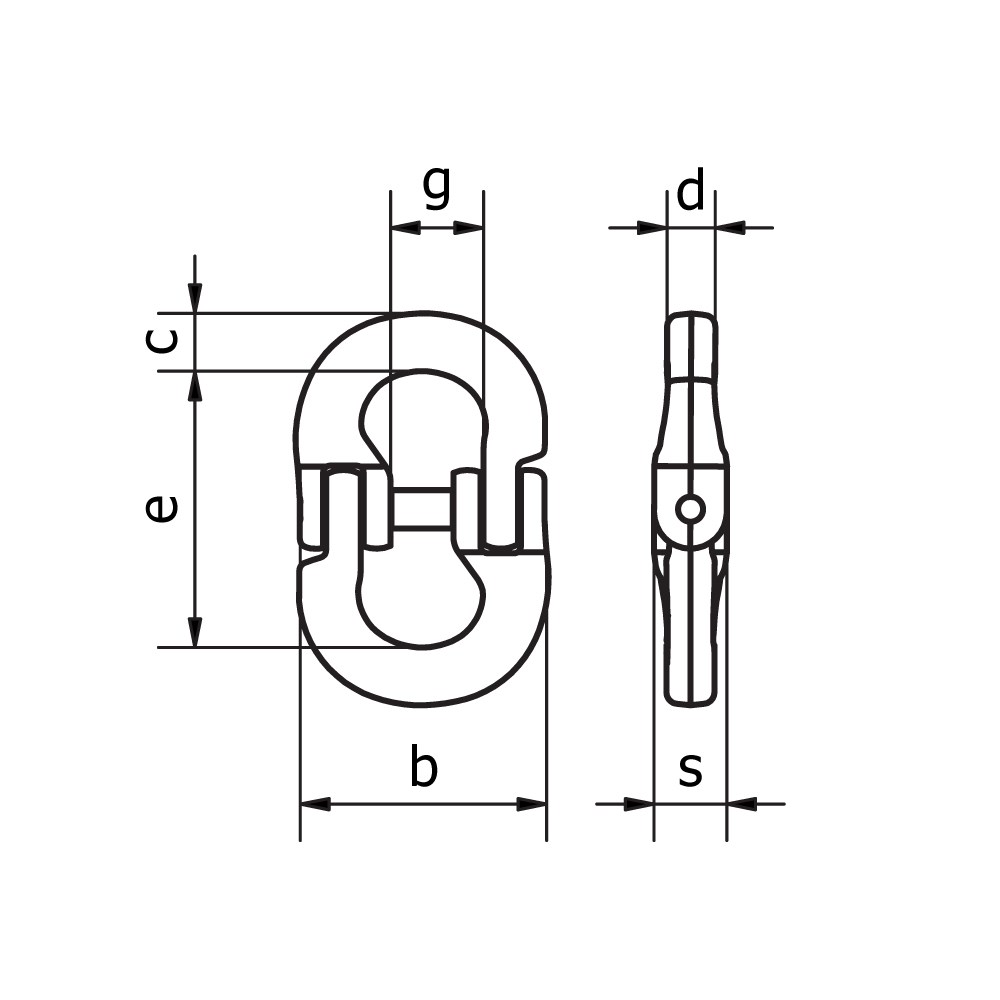

Product code  Chain Size (mm) WLL (KG) b (mm) c (mm) e (mm) g (mm) d (mm) s (mm) Approx Weight (kg) Replacement Pin and Stud Kit
C6 6 1100 46 7 44 20 6.3 11 0.08 894206BA
C7-8 7-8 2000 55 9 60.5 20.5 8.8 14.8 0.15 894208BA
C10 10 3200 69 12 68 26 11.5 17.8 0.30 894210BA
C13 13 5300 86.6 15 87 30 15 25 0.63 894213BA
C16 16 8000 103 19.8 108.4 35 19.8 30 1.20 894216BA
C20 20 12500 120 24 121.5 41.8 22 34 2.10 894220BA
C22 22 15000 147 26 141.5 49.5 26 40 3.10 894222BA
C26 26 21200 174 31 158 58 30 44 4.50 894226BA
C32 32 31500 214 38 205 67.5 37 56 8.21 894232BA

For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.
