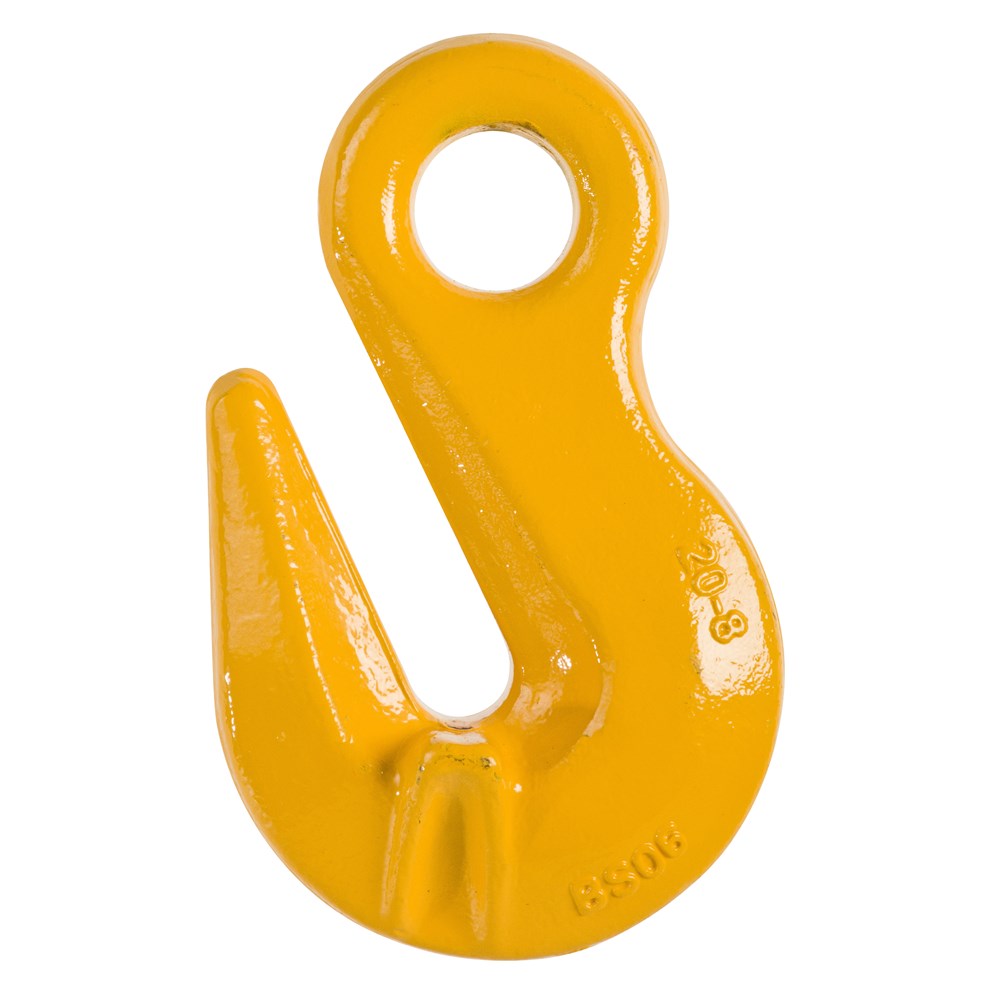

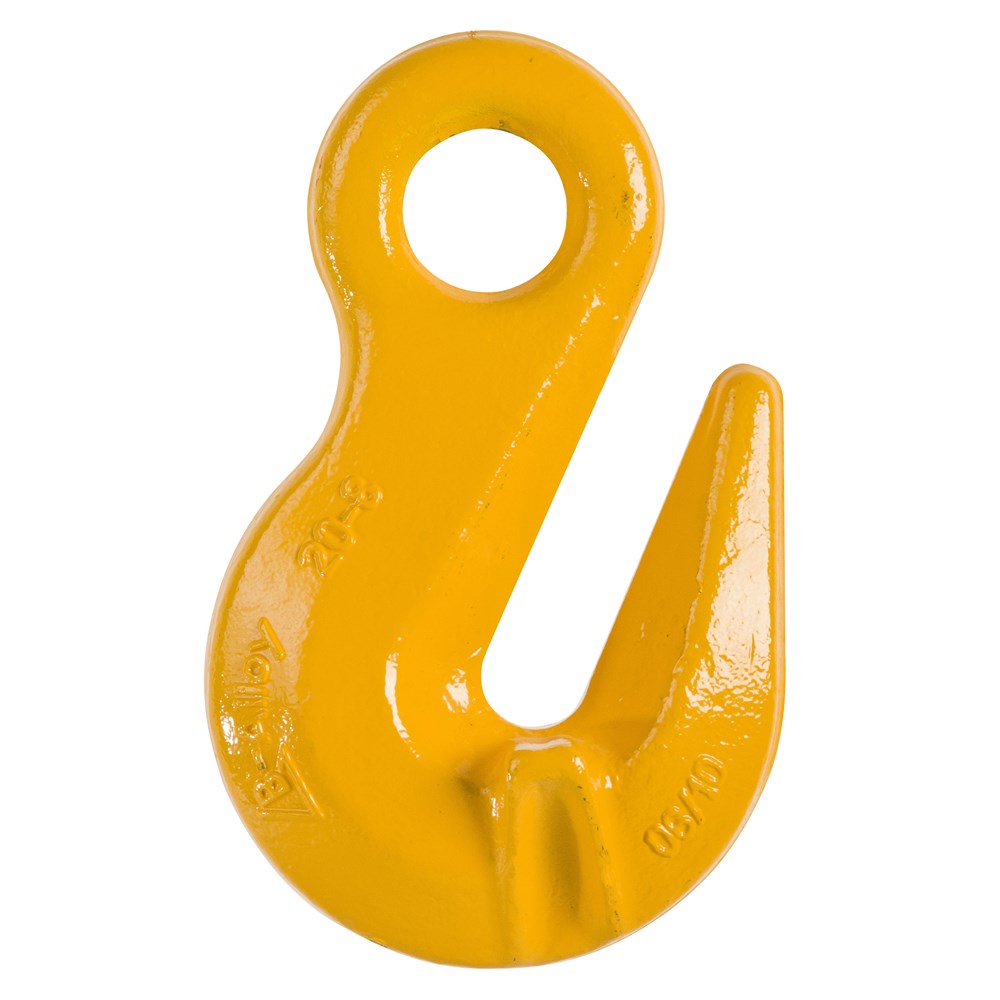

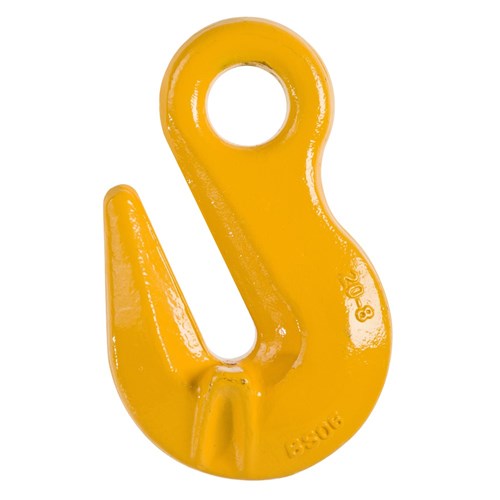

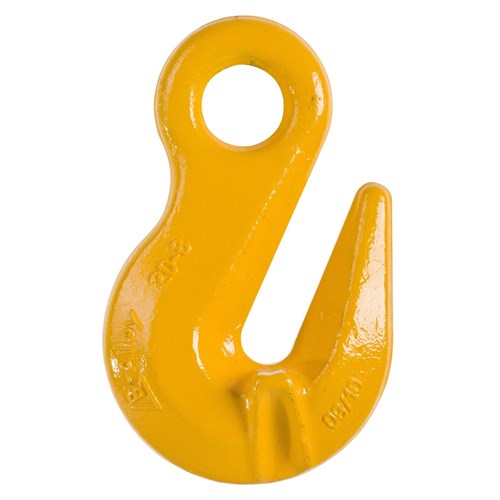

The Beaver Grade 80 Shortening Eye Grab Hook enables easy connection to couplers / connectors, shackles, and wire rope slings due to the style of the eye at the top of the hook. They can be used to shorten chain slings. These eye grab lifting hooks come with supporting lugs, are highly versatile, and available in 6mm to 32mm sizes. Please note:- Eye Grab Hooks are not suitable for tip loading. Beaver Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. All Beaver Grade 80 hooks and components also carry distinguishing marks for easy identification.
Product Features:
- Ideal for shortening chain length
- Supporting lugs either side to prevent chain link deformation and reduction of WLL
- High strength, rugged, and versatile
Approved Standards:

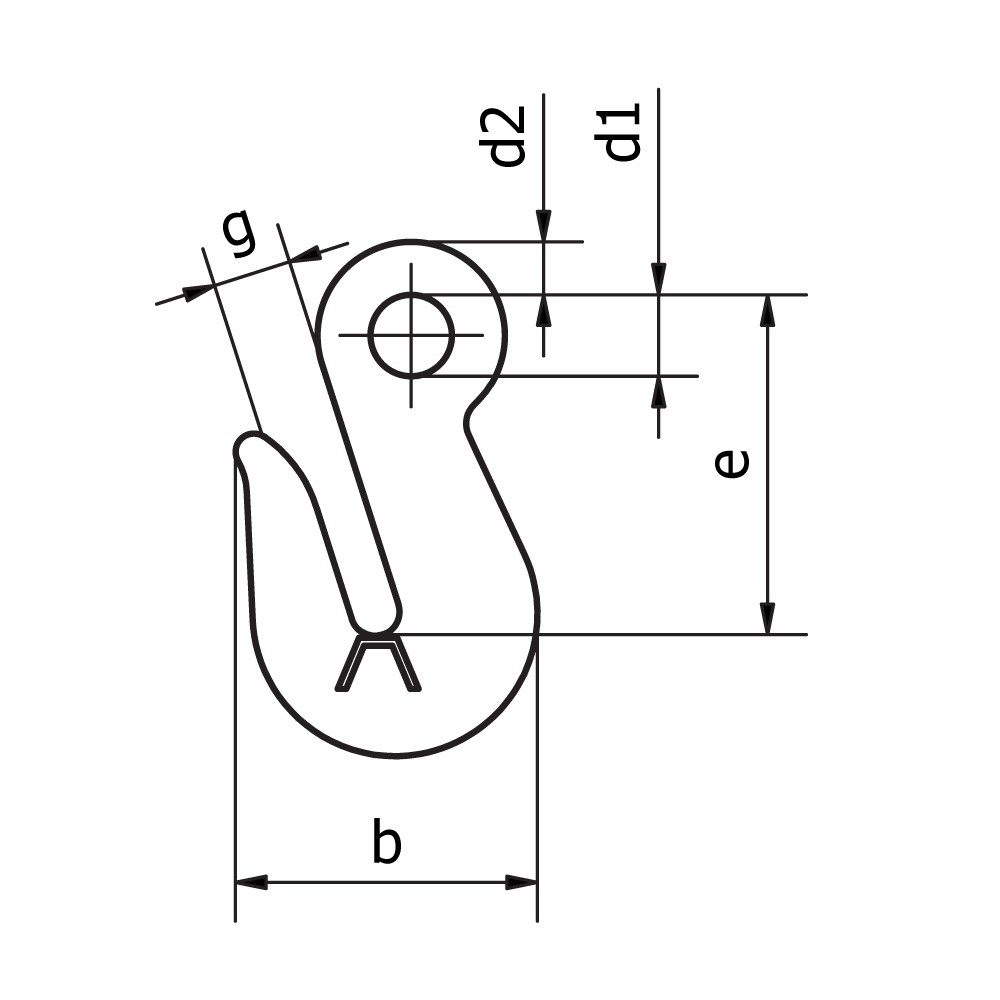

Product code |
Chain Size |
WLL |
e |
b |
d1 |
d2 |
g |
Approx Weight |
885306 |
6mm |
1.1t |
51mm |
45.8mm |
13.5mm |
8mm |
8.3mm |
0.14kg |
885307 |
7-8mm |
2t |
61.7mm |
51mm |
18mm |
9.5mm |
10.8mm |
0.35kg |
885310 |
10mm |
3.2t |
80mm |
70mm |
20.5mm |
13mm |
13.5mm |
0.65kg |
885313 |
13mm |
5.3t |
99.7mm |
89.7mm |
26mm |
15.5mm |
16.5mm |
1.39kg |
885316 |
16mm |
8t |
105.5mm |
113mm |
30.5mm |
19mm |
20mm |
2.1kg |
885320 |
20mm |
12.5t |
140.7mm |
143mm |
37.5mm |
23mm |
25mm |
4kg |
885322 |
22mm |
15t |
165mm |
160.5mm |
44mm |
26mm |
28mm |
6.36kg |
885326 |
26mm |
21.2t |
188.5mm |
181.3mm |
44mm |
34mm |
30mm |
9.6kg |
885332 |
32mm |
31.5t |
230mm |
223mm |
57mm |
40mm |
38mm |
19.4kg |
For more information on our materials handling range, please contact our Customer Care team.
