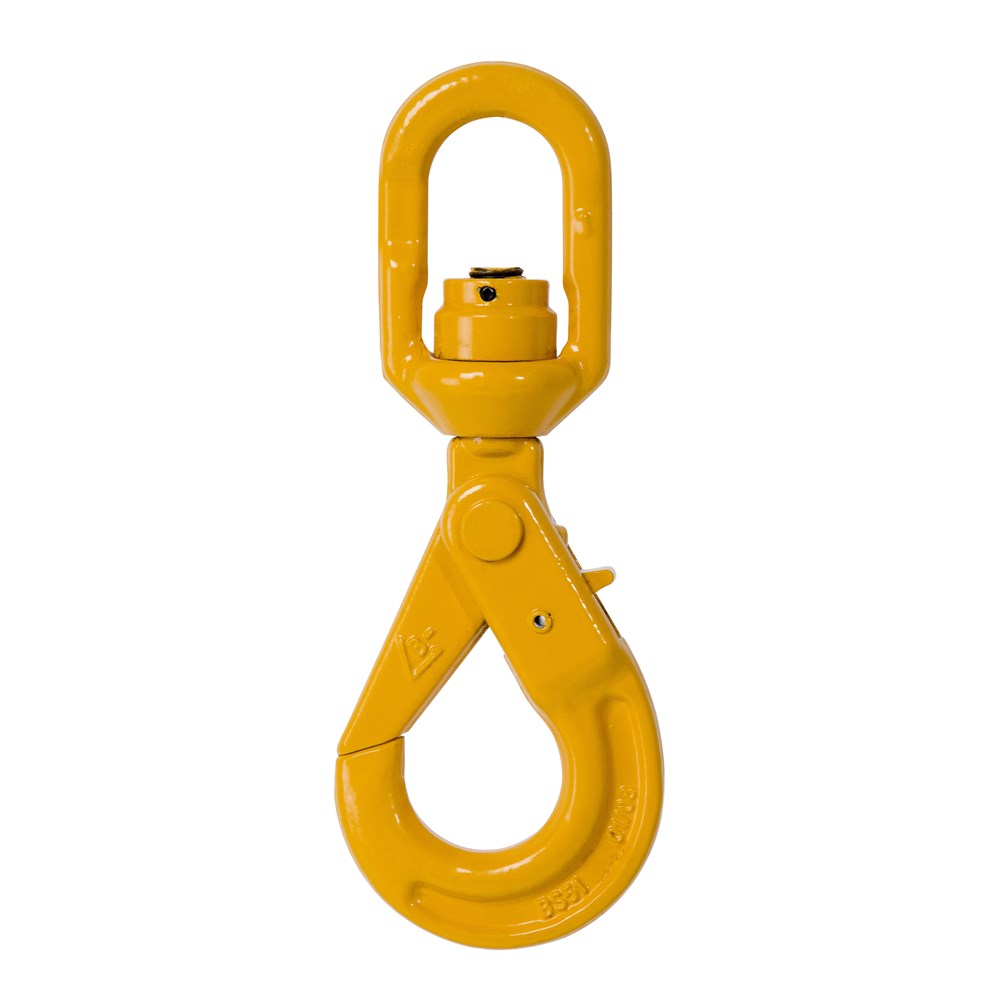

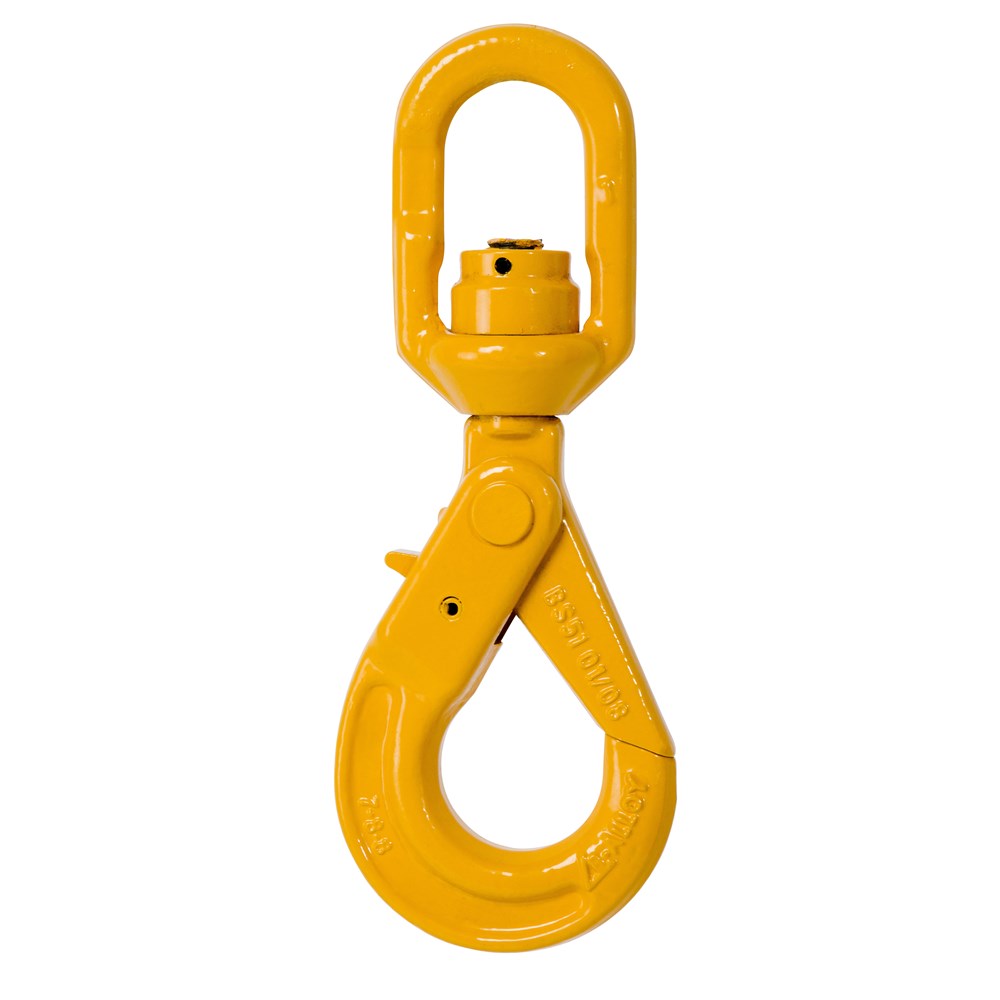

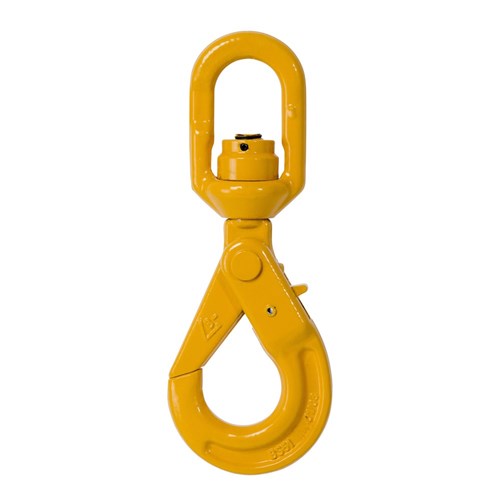

The Beaver Grade 80 Eye Swivel Self Locking Hook With heavy duty ball bearings enables the easy swivel of the lifting hook under load, thereby reducing the twist of a sling. The hook is designed with an enlarged eye for accommodating larger shackles without disassembly of the
hook. Available in sizes from 6mm to 20mm. Beaver Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. All Beaver Grade 80 hooks and components also carry distinguishing marks for easy identification.
Product Features:
- Self locking when hook is under load
- Ball bearing swivel allows load to be easily rotated
- High strength, versatile and Low weight
Approved Standards:

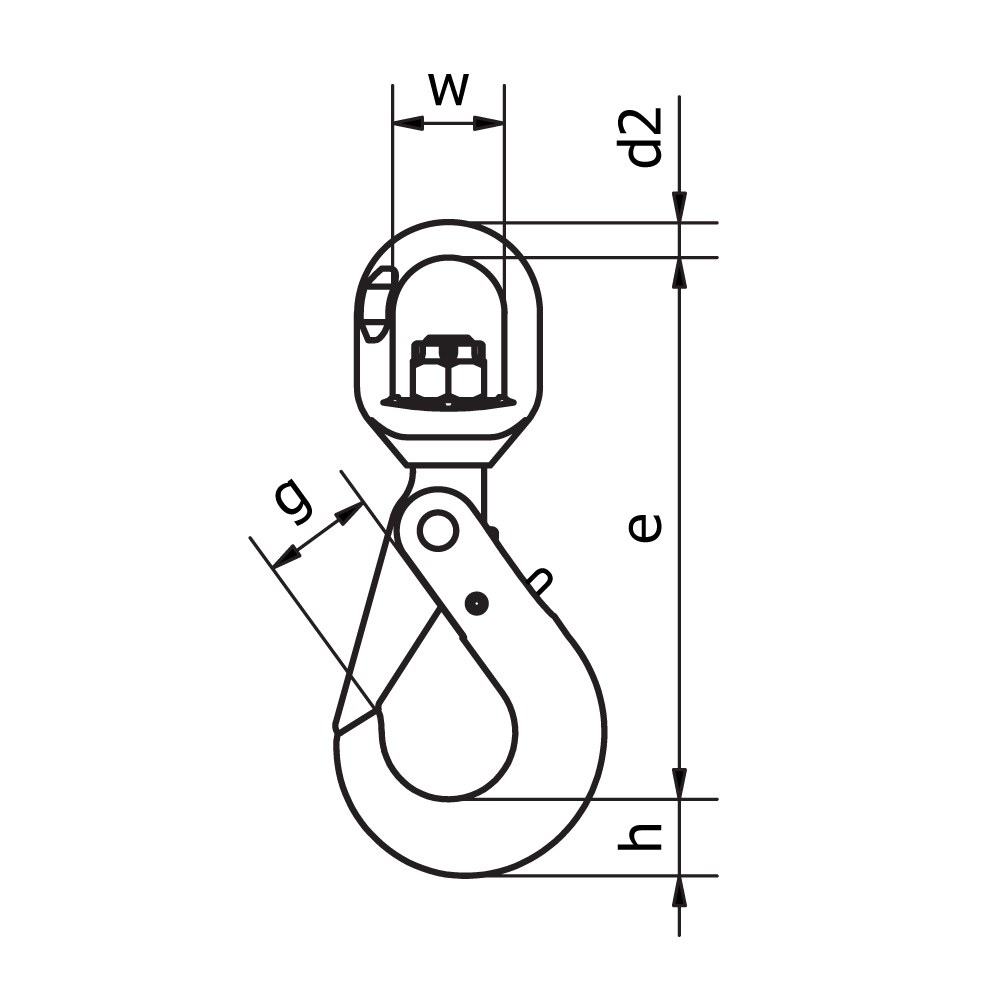

Product code |
Chain Size |
WLL |
e |
d2 |
h |
g |
w |
Approx Weight |
886606 |
6mm |
1.1t |
163.3mm |
11.5mm |
19mm |
27mm |
32.5mm |
0.71kg |
886607 |
7-8mm |
2t |
195mm |
13mm |
26mm |
35mm |
36mm |
1.1kg |
886610 |
10mm |
3.2t |
237mm |
15.5mm |
30mm |
44mm |
42mm |
2kg |
886613 |
13mm |
5.3t |
282mm |
17mm |
27mm |
53mm |
50mm |
4kg |
886616 |
16mm |
8t |
341.5mm |
21.5mm |
48mm |
60mm |
61mm |
7.3kg |
886620 |
20mm |
12.5t |
399.5mm |
26.5mm |
61mm |
87mm |
76mm |
11.6kg |
