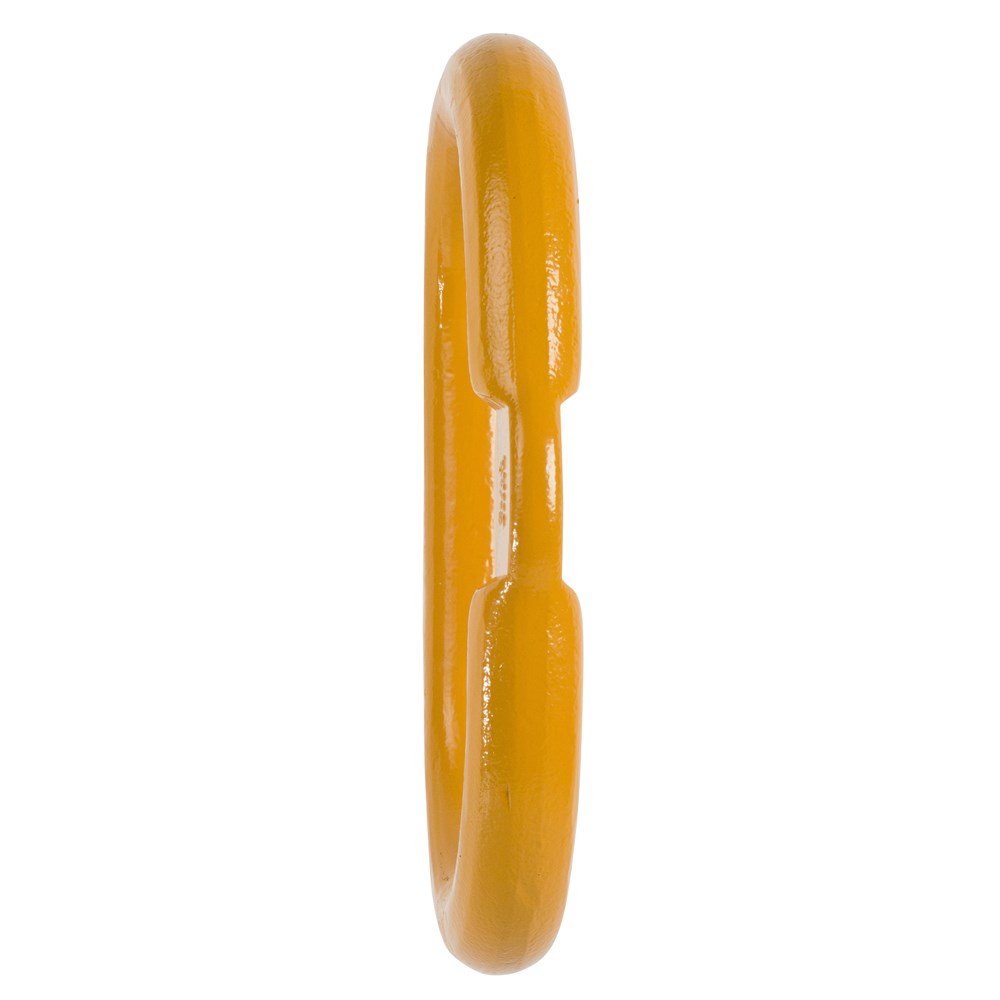

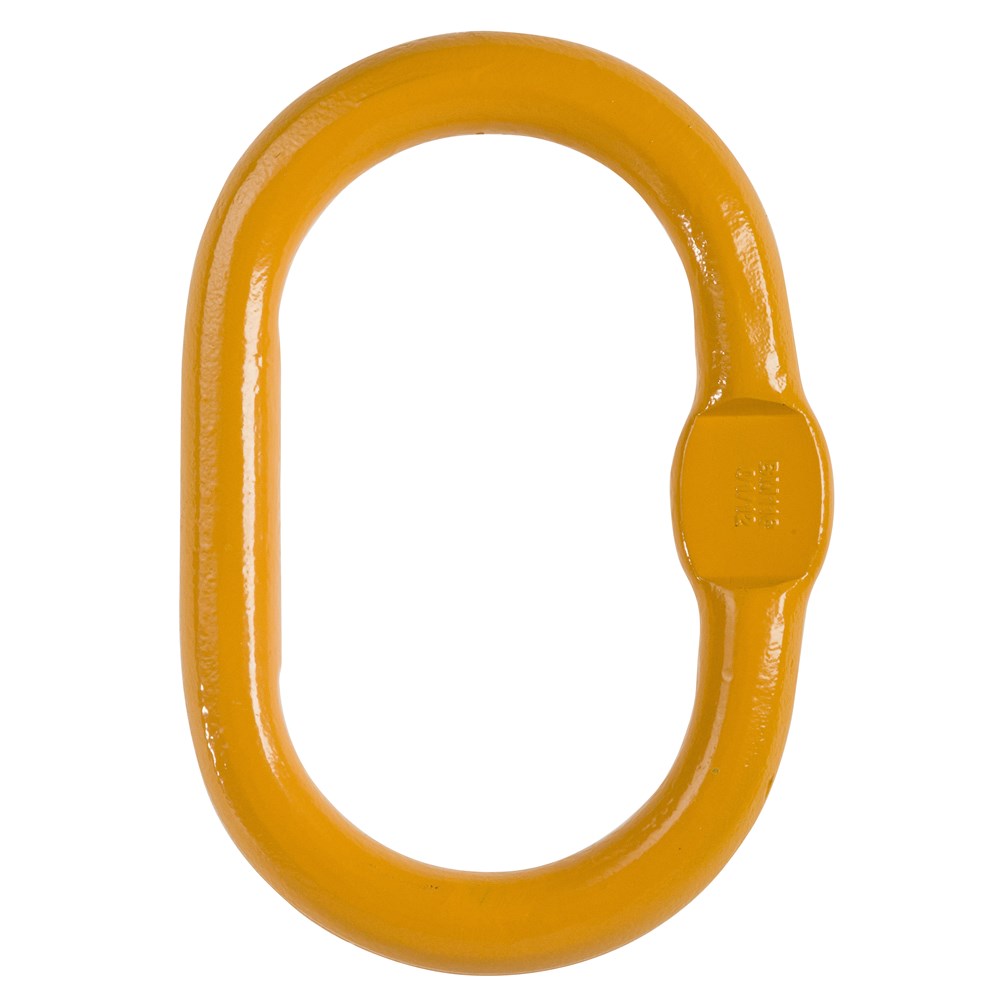

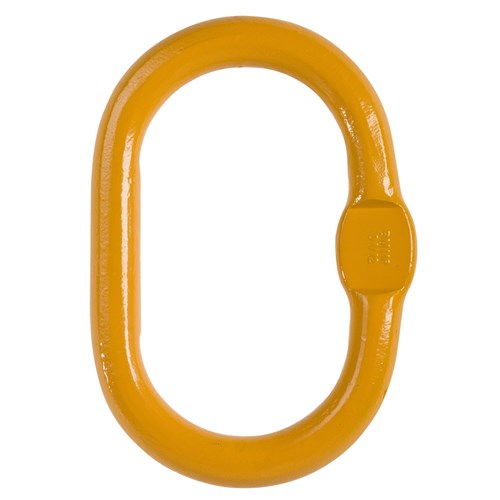

Beaver G80 Single Master Link

Product Code: MH8835

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver Grade 80 Master Links are suitable for both single and 2 leg chain sling configurations. When used in chain slings, please refer to the table below for recommended chain sizes. Beaver Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. All Beaver Grade 80 hooks and components also carry distinguishing marks for easy identification.

Product Features:

  • Ideal for 1 and 2 leg chain slings
  • High strength, rugged, and versatile
Approved Standards:
  • Complies to AS 3776

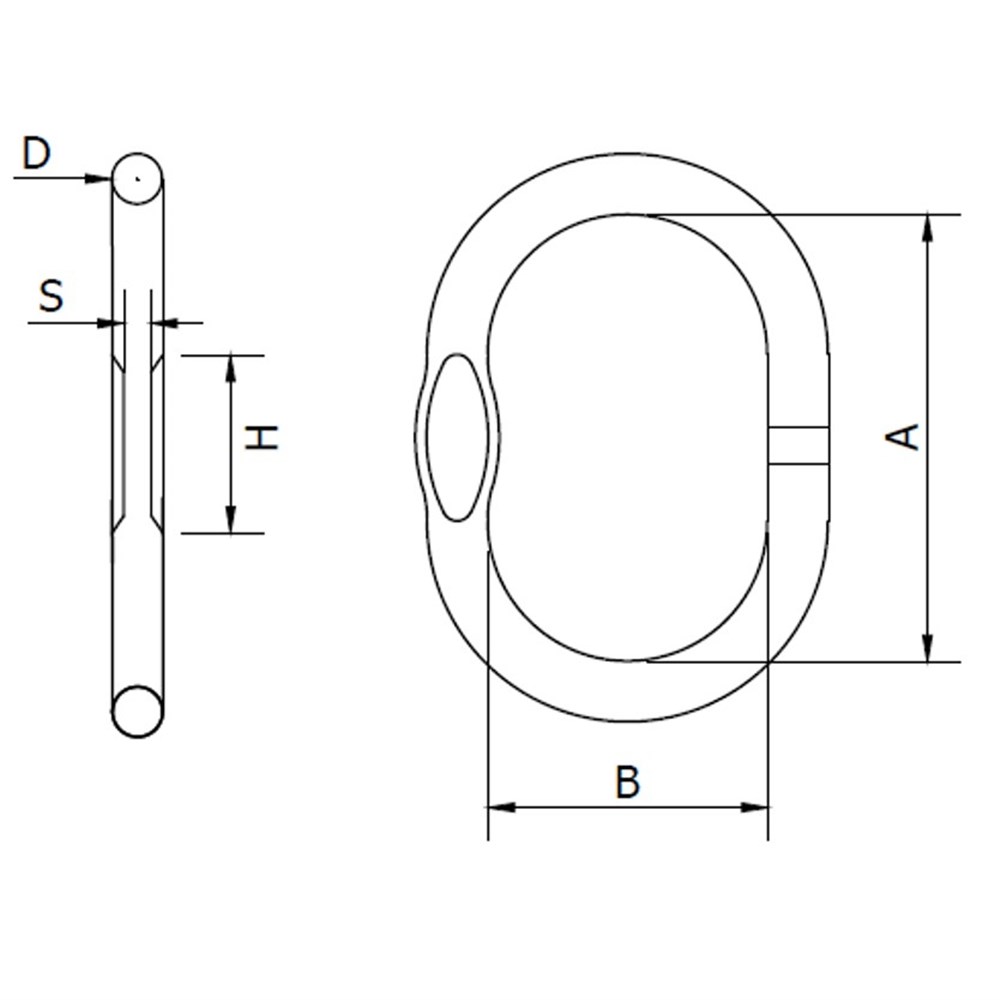

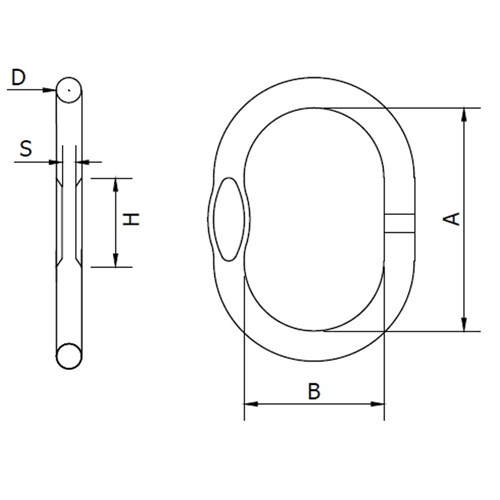

Product Code 1 Leg Chain Size 2 Leg Chain Size WLL A B D S x H Approx Weight Proof Force Break Force
883507A 7mm 6mm 1.9t 110mm 60mm 14mm 7+0.5x25 0.34kg 32kN 64kN
883508A 8mm 7mm 2.6t 120mm 70mm 14mm 7+0.5x25 0.38kg 51kN 102kN
883510A 10mm 8mm 3.5t 140mm 80mm 17mm 8+0.5x28 0.67kg 68.7kN 137kN
883513A 13mm 10mm 5.5t 160mm 95mm 20mm 11±0.5x35 1.20kg 108kN 216kN
883516A 16mm 13mm 9.2t 190mm 110mm 26mm 14±0.5x43 2.45kg 181kN 361kN
883520A 20mm 16mm 13.8t 230mm 130mm 32mm 17±0.5x55 4.48kg 271kN 542kN
883522A 22mm 20mm 21.6t 275mm 150mm 38mm - 7.50kg 424kN 848kN
883526A 26mm 22mm 26t 340mm 180mm 45mm - 12.80kg 510kN 1020kN
883532A 32mm 26mm 36.7t 350mm 190mm 50mm - 16.55kg 720kN 1440kN
883536A 36mm 32mm 54.5t 400mm 200mm 56mm - 23.28kg 1069kN 2139kN

For more information on our special pricing available for bulk/pail sales, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Technical Specifications
Category Beaver
Category Grade 80
Brand Material Handling
