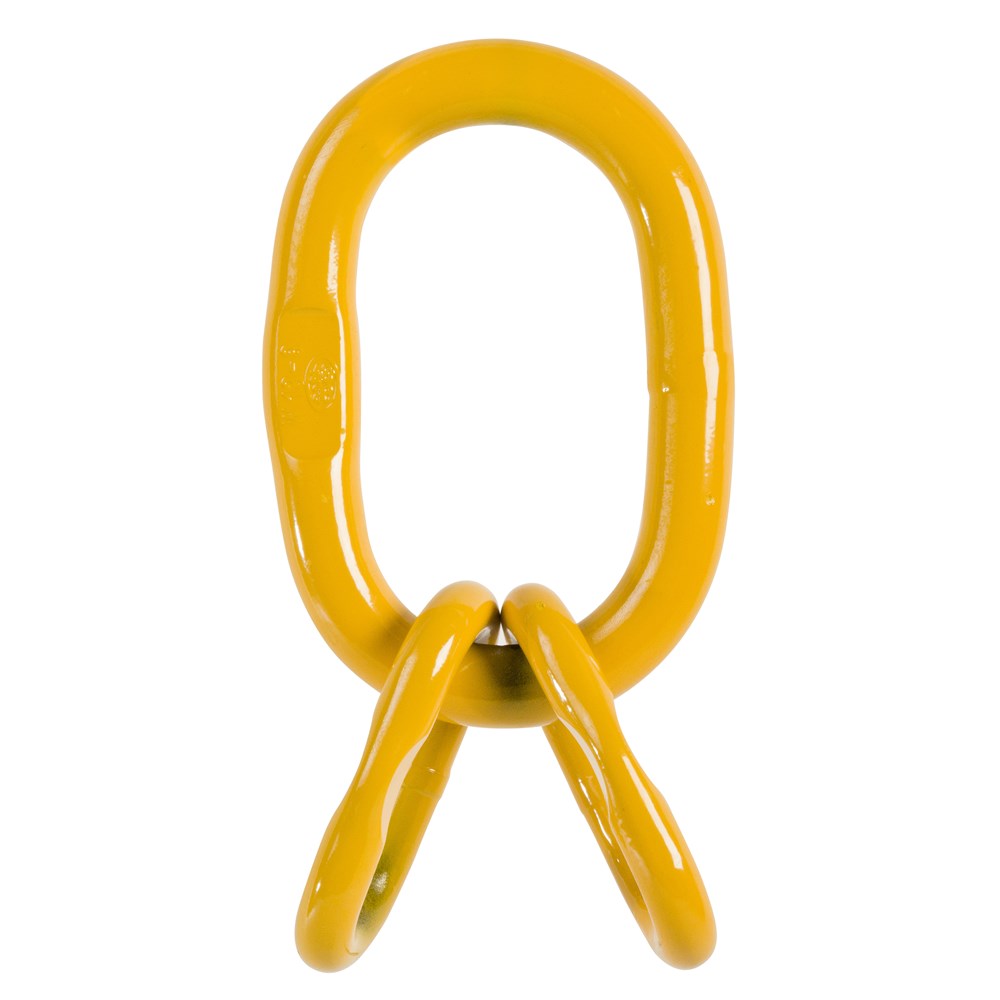

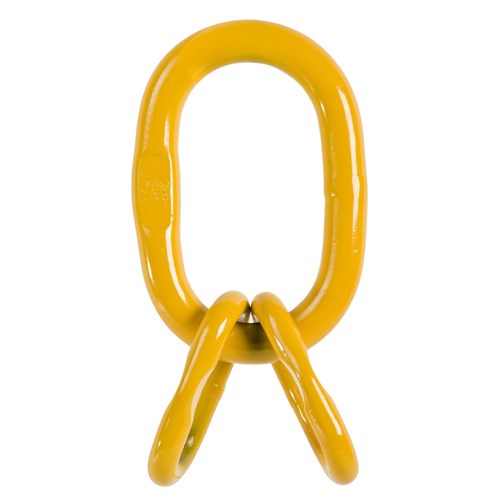

The Beaver Grade 80 Recessed Enlarged Multi-Leg Master Link is designed for 2, 3 and 4 leg lifting chain sling configurations. Each unit consists of a single master link and two intermediate links of the same lifting capacity and come in sizes from 7mm to 32mm. When used in chain slings, please refer to the table below for recommended chain sizes. Beaver Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications. Quality testing is done throughout the manufacturing process. All Beaver Grade 80 hooks and components also carry distinguishing marks for easy identification.
Product Features:
- Enlarged size to accommodate larger crane hooks
- Ideal for 2, 3 and 4 leg slings
- High strength, rugged, and versatile
Approved Standards:

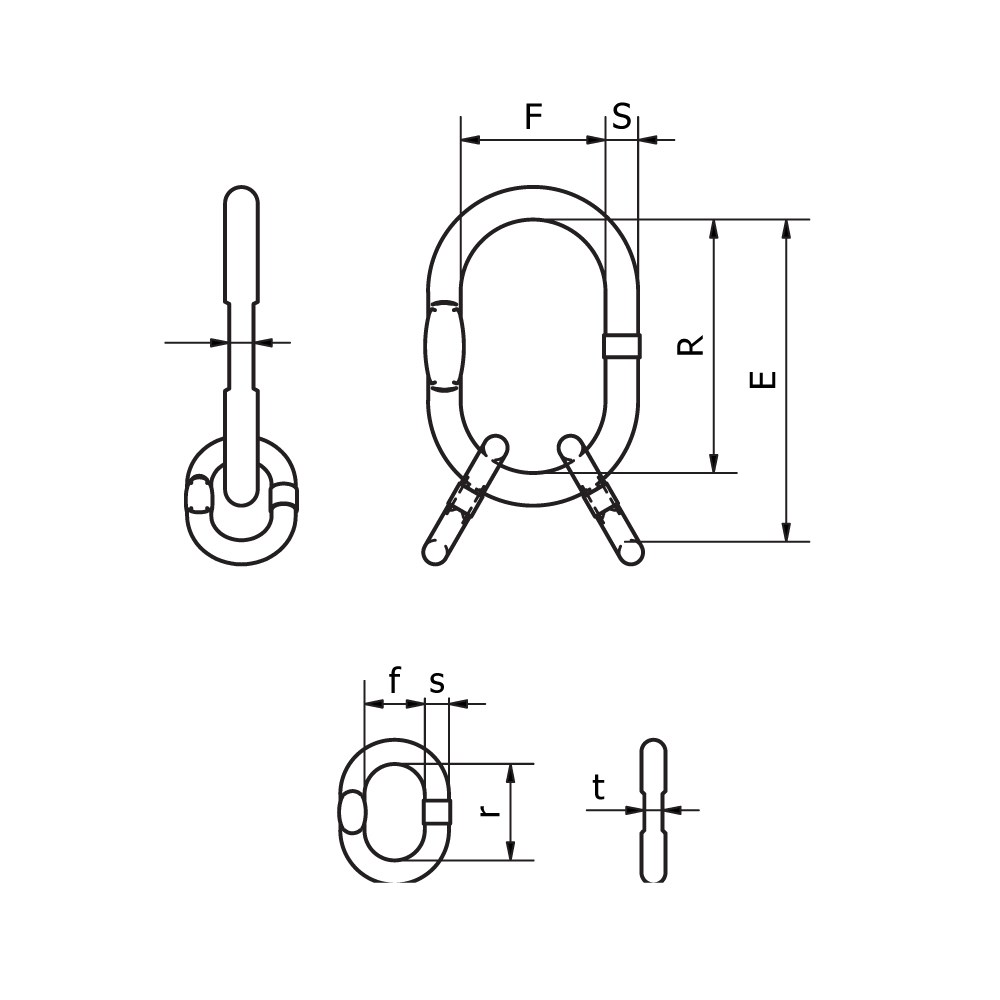

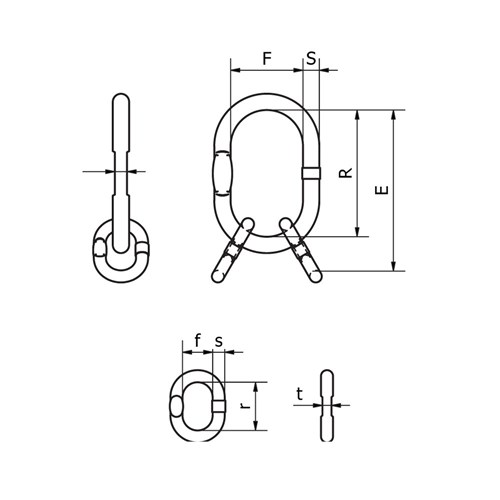

Product code |
Chain Size |
WLL at 60° |
S |
R |
F |
E |
s |
r |
f |
t |
Approx Weight |
883707 |
7mm |
3.15t |
19mm |
135mm |
75mm |
195mm |
13mm |
60mm |
38mm |
8mm |
1.35kg |
883708 |
8mm |
4.25t |
23mm |
160mm |
90mm |
230mm |
16mm |
70mm |
34mm |
8mm |
2.32kg |
883710 |
10mm |
6.7t |
27mm |
180mm |
100mm |
265mm |
18mm |
85mm |
40mm |
11.5mm |
3.58kg |
883713 |
13mm |
11.2t |
33mm |
200mm |
110mm |
315mm |
23mm |
115mm |
50mm |
14mm |
6.57kg |
883716 |
16mm |
17t |
36mm |
260mm |
140mm |
400mm |
27mm |
140mm |
65mm |
18mm |
10.3kg |
883720 |
19-20mm |
26.5t |
45mm |
340mm |
180mm |
490mm |
33mm |
150mm |
70mm |
- |
19.3kg |
883722 |
22mm |
31.5t |
50mm |
350mm |
190mm |
520mm |
36mm |
170mm |
75mm |
- |
25.1kg |
883726 |
26mm |
45t |
56mm |
400mm |
200mm |
570mm |
40mm |
170mm |
80mm |
- |
34.3kg |
883732 |
32mm |
56.8t |
70mm |
460mm |
250mm |
660mm |
50mm |
200mm |
100mm |
- |
64kg |
For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.
