Beaver Metric Shouldered Eye Nuts to DIN 582


Product Code: MH5592

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver lifting eyebolts and eyenuts come in a range of threads, including BSW, UNC, and Metric, and are predominately used for lifting applications. This eyebolt is rated to DIN 582.

Product CodeThread SizeWLLTransverse Load TonneFinishWeight
3592088mm0.14t0.03Zinc Dichromate0.05kg
35921010mm0.23t0.06Zinc Dichromate0.09kg
35921212mm0.30t0.07Zinc Dichromate0.16kg
35921616mm0.7t0.17Zinc Dichromate0.24kg
35922020mm1.2t0.3Zinc Dichromate0.36kg
35922222mm1.5t0.37Zinc Dichromate0.58kg
35922424mm1.8t0.45Zinc Dichromate0.72kg

It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.

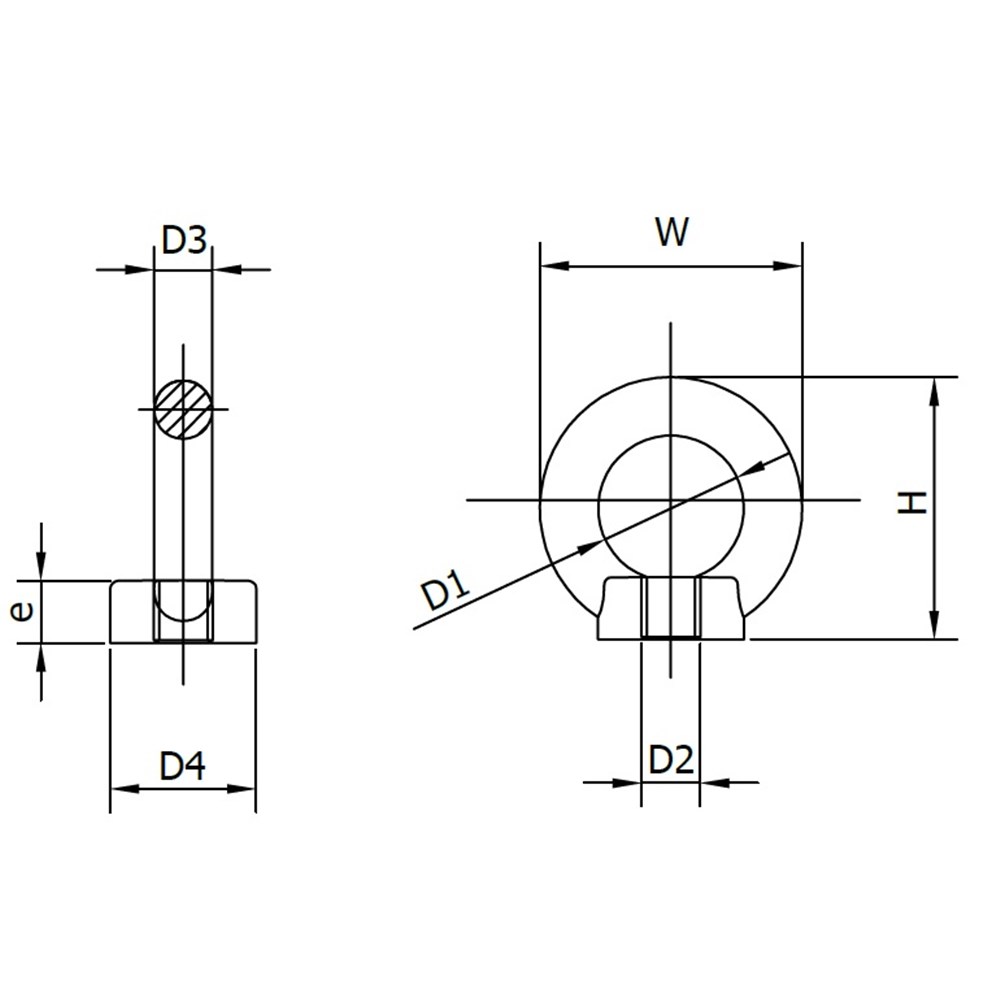

Product CodeThread SizeWHD1D2D3D4E
3592088mm36mm36mm20mm8mm8mm20mm8.5mm
35921010mm45mm45mm25mm10mm10mm25mm10mm
35921212mm54mm52mm30mm12mm12mm30mm11mm
35921616mm63mm61mm35mm16mm14mm35mm13mm
35922020mm72mm70mm40mm20mm16mm40mm16mm
35922222mm81mm80mm45mm22mm18mm45mm19.4mm
35922424mm90mm90mm50mm24mm20mm50mm20mm

For more information on our materials handling range, please contact our Customer Care team.
