Beaver Permanent Magnet Lifters

Product Code: MH2620

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

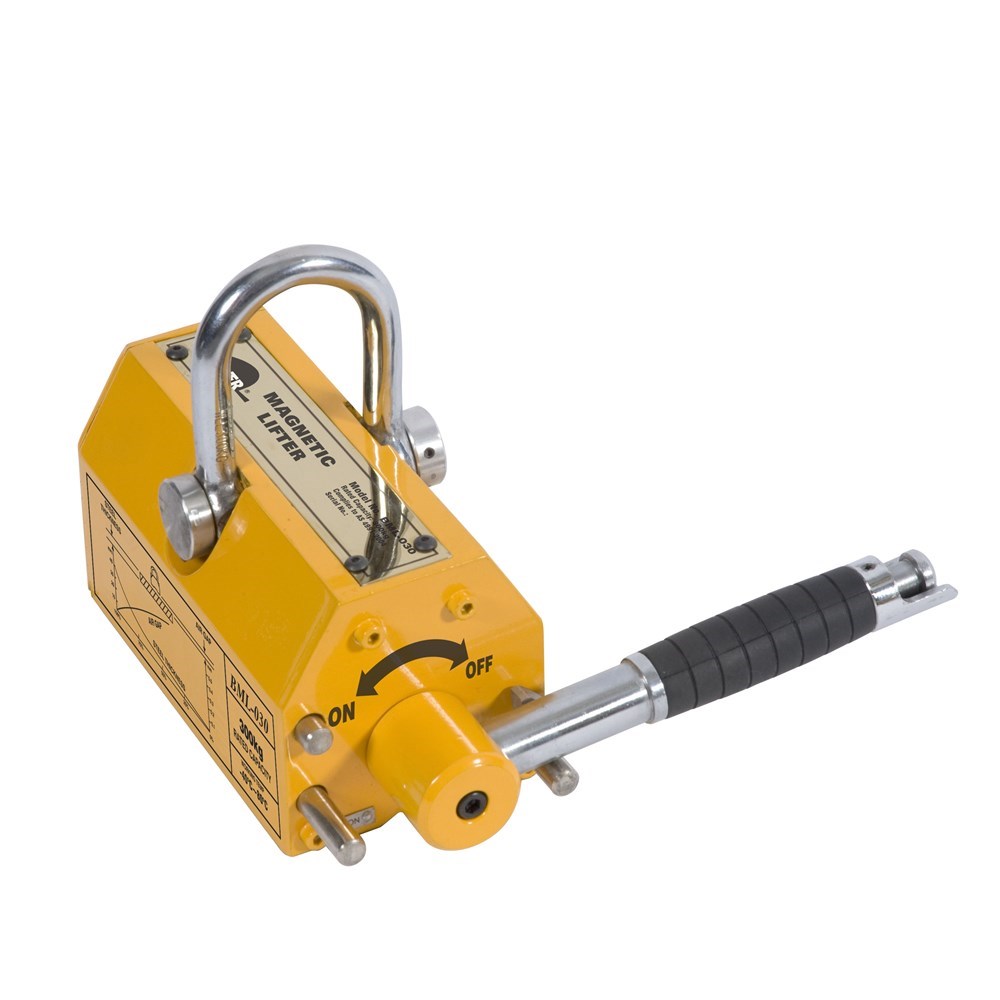

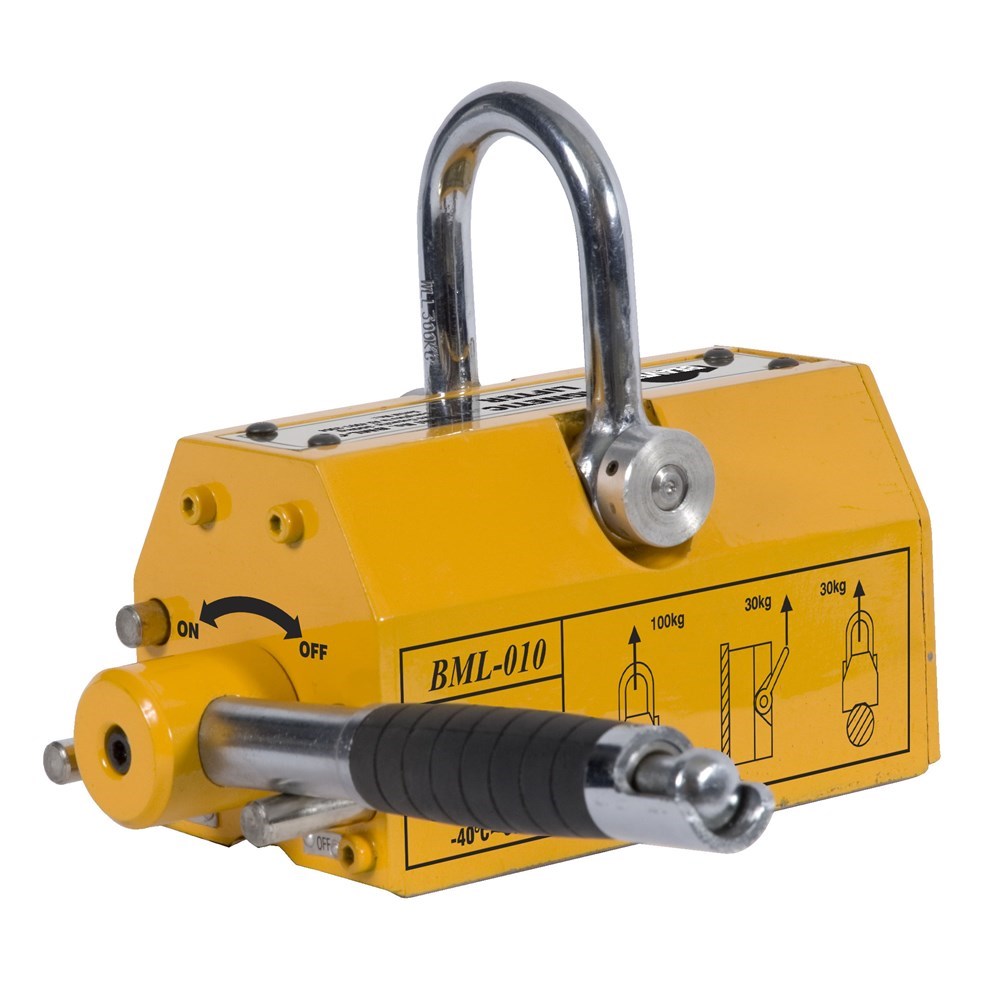

The Beaver permanent magnetic lifter is a safe and reliable product for lifting and handling steel plate, pipes, beams, and cylindrical work pieces of ferromagnetic materials.
These lifters contain a NdFeB permanent magnet, which can generate high holding-power in a magnetic circuit.
With the use of a magnetic lifter, the need for slings, clamps, and special lifting frames can be eliminated.

Features:

  • Compact in design and construction
  • Convenient in operation with a strong holding force
  • Versatile – ideal for lifting and hoisting in factories, warehouses, wharves and transport facilities
  • Comes complete with a rated shackle stamped with the WLL, test number, serial number, month and year of manufacture, and the European standard compliance mark (CE).
Approved Standards:
  • Complies to AS4991
Product Code Model Number Rated Capacity Max Handle Turning Force Net Weight
262010 BML-010 100kg <4kg 3kg
262030 BML-030 300kg <8kg 10kg
262060 BML-060 600kg <8kg 24kg
262100 BML-100 1000kg <16kg 50kg

The magnetic lifter comes complete with a rated shackle that is stamped with the working load limit, test number, serial number, month and year of manufacture, and the European standard compliance mark (CE).

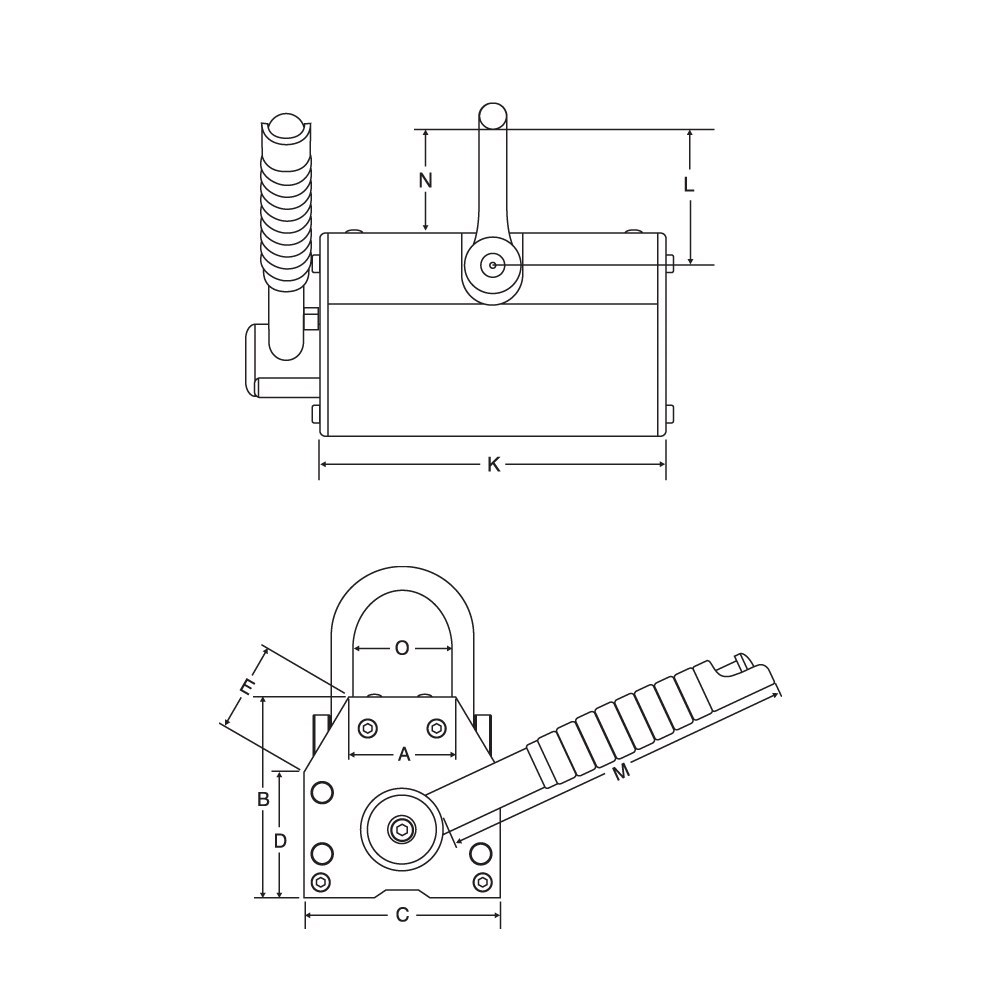

Product Code A B C D E K L M N O
262010 29mm 70mm 64mm 46mm 30mm 92mm 50mm 127mm 39mm 32mm
262030 40mm 96mm 88mm 63mm 41mm 165mm 75mm 158mm 59mm 45mm
262060 52mm 120mm 118mm 74mm 57mm 236mm 110mm 199mm 88mm 60mm
262100 88mm 168mm 168mm 113mm 68mm 264mm 137mm 240mm 110mm 96mm

For more information on our materials handling range, please contact our Customer Care team.
