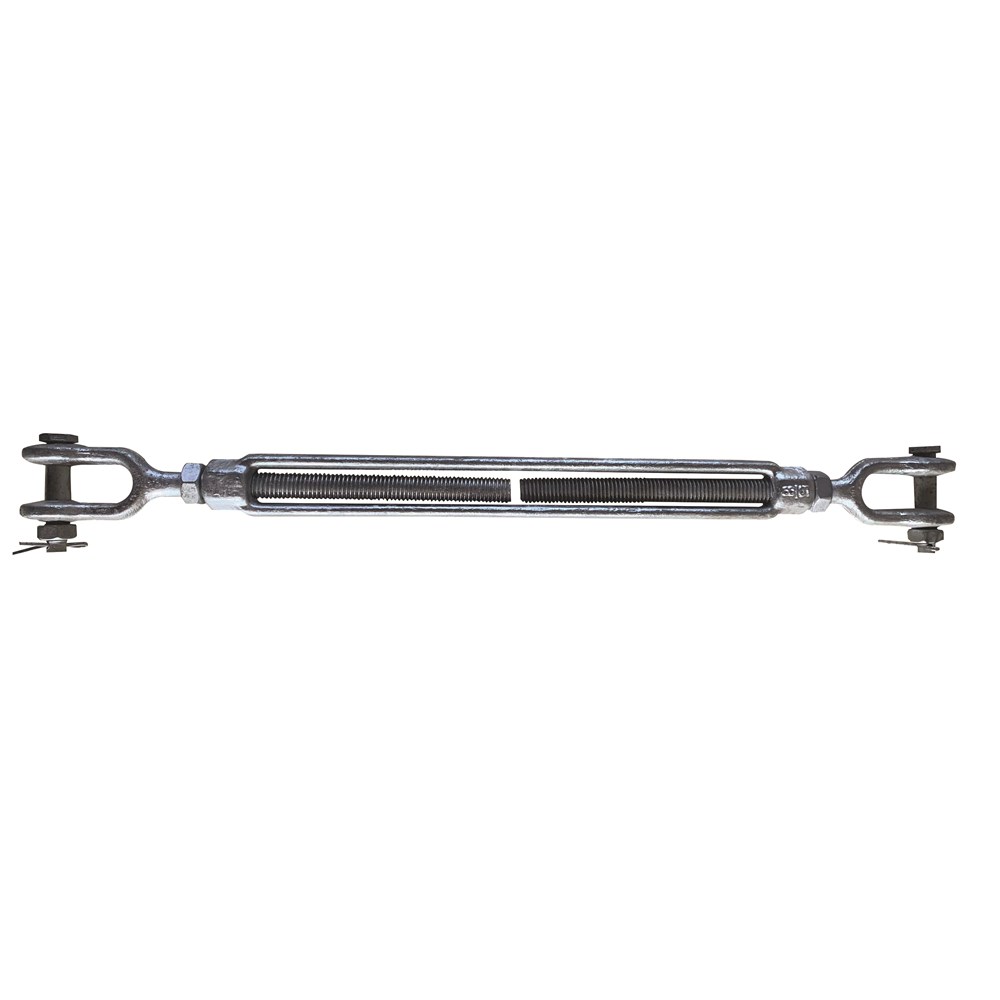

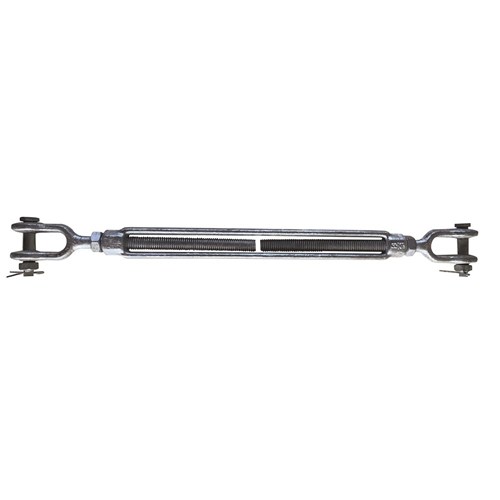

Beaver Super Buckles Jaw and Jaw with Lock Nuts

Product Code: MH3224

 Find a Stockist
Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

Beaver rated rigging hardware complies with a number of different standards. They gave a working load limit (WLL), and are rated for different applications. Beaver's range of quality rigging hardware is manufactured from the finest milling techniques, and designed for both heavy industry use and general hardware applications. This super buckle complies to Federal Spec FF-T-791, and has a forged hot dipped galvanised finish.

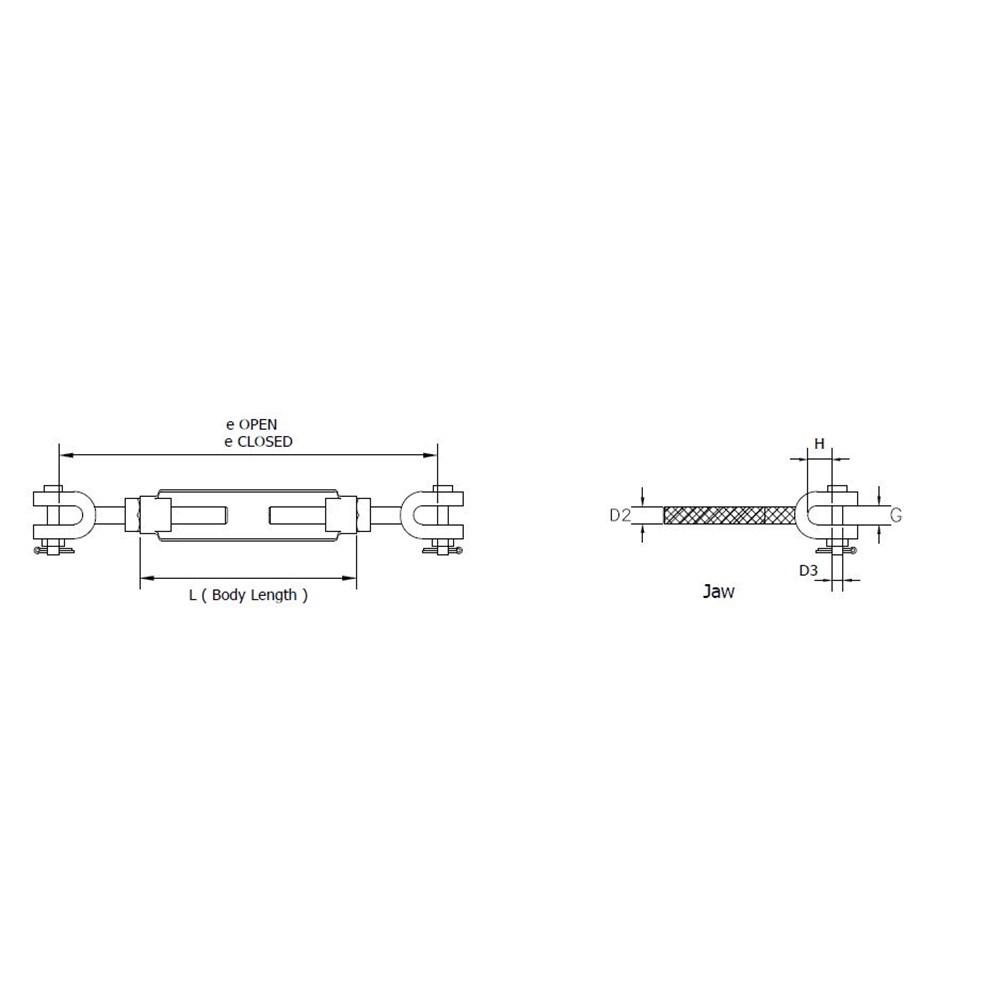

Please find the dimensions for each size turnbuckle below.

Product Code Size Inches Finish e (Open) mm e (Closed) mm L mm D2 mm D3 mm G mm H mm WLL Tonne Pack Qty Weight per 100 (kg)
322412 12 x 305 Galvanised 775 470 342 9.5 9.5 14 26 1 25 1.1
322416 16 x 305 Galvanised 815 510 352 12.5 12.5 20 34 1.59 15 1.75
322419 19 x 305 Galvanised 850 545 360 15.8 15.8 25.5 38 2.36 10 2.8
322422 22 x 305 Galvanised 890 585 370 19 19.9 30 45 3.26 6 3.7
322425 25 x 305 Galvanised 935 630 380 25.4 22.2 32 51 4.54 5 5.6

For more information on our materials handling range, please contact our Customer Care team.
