Beaver Wire Rope Copper Ferrules

Product Code: MH6174

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

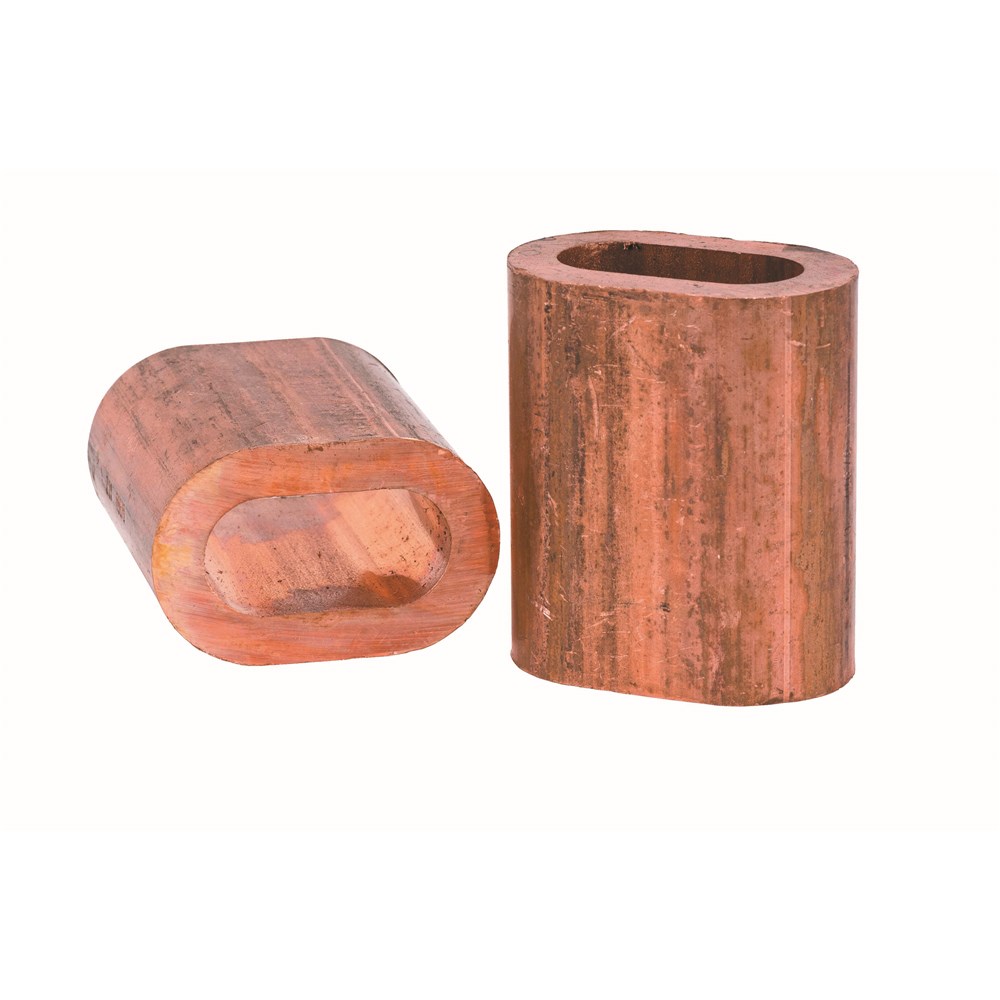

Copper ferrules manufactured by Beaver to DIN 3093.

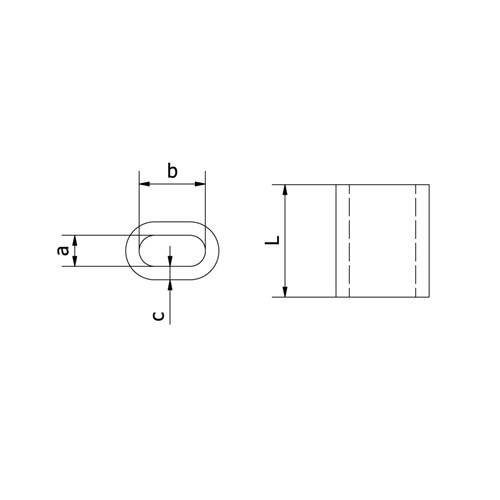

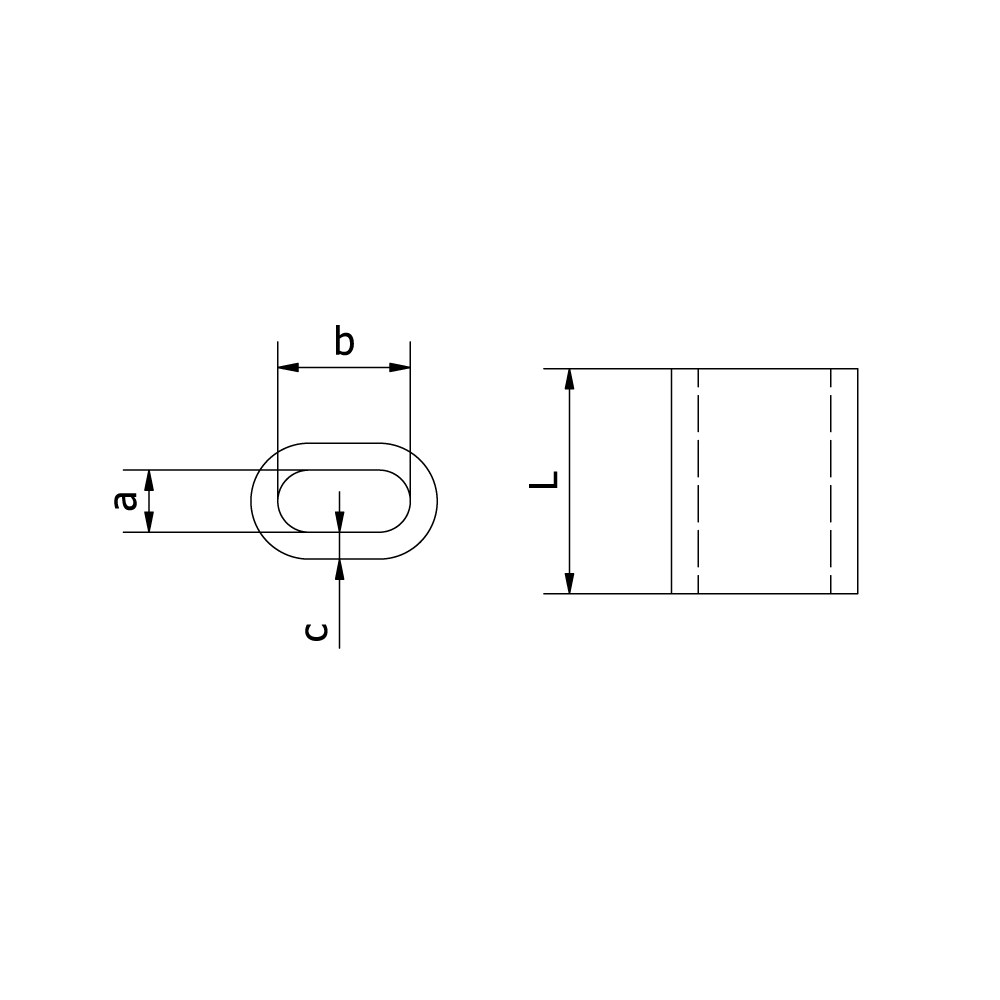

Product CodeSizeabcL
6174022mm2.2mm4.4mm0.9mm7mm
617402A2.5mm2.7mm5.4mm1.05mm9mm
6174033mm3.3mm6.6mm1.25mm11mm
617403A3.5mm3.8mm7.6mm1.5mm13mm
6174044mm4.4mm8.8mm1.7mm14mm
617404A4.5mm4.9mm9.8mm1.9mm16mm
6174055mm5.5mm11mm2.1mm18mm
6174066mm6.6mm13.2mm2.5mm21mm
617406A6.5mm7.2mm14.4mm2.7mm23mm
6174077mm7.8mm15.6mm2.9mm25mm
6174088mm8.8mm17.6mm3.3mm28mm
6174099mm9.9mm19.8mm3.7mm32mm
61741010mm10.9mm21.8mm4.1mm35mm
61741111mm12.1mm24.2mm4.5mm39mm
61741212mm13.2mm26.4mm4.9mm42mm
61741313mm14.2mm28.4mm5.4mm46mm
61741414mm15.3mm30.6mm5.8mm49mm
61741616mm17.5mm35mm6.7mm56mm
61741818mm19.6mm39.2mm7.6mm63mm
61742020mm21.7mm43.4mm8.4mm70mm

For more information on our materials handling range, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Technical Specifications
Category Beaver
Category Stainless Steel Fittings & Components
Brand Material Handling
