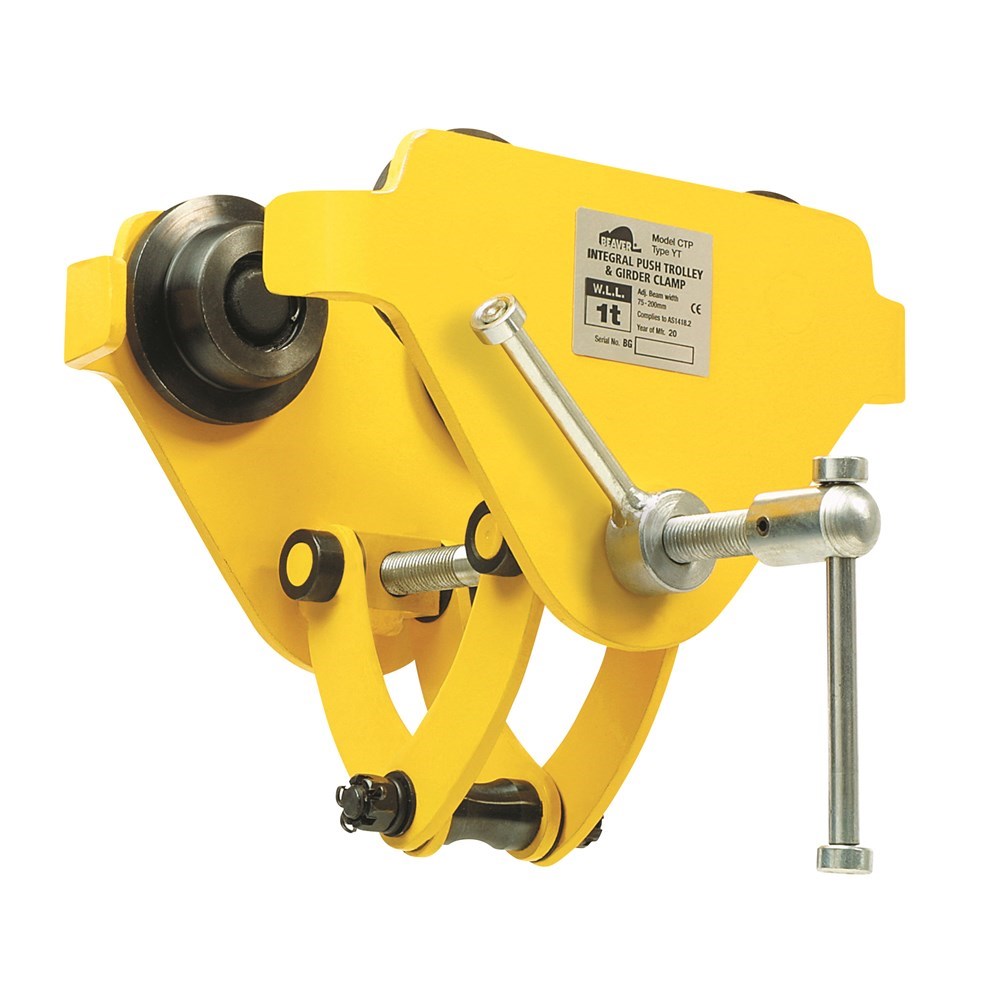

Beaver YT Integral Push Trolley and Girder Clamps (Yellow)

Product Code: MH2700YT

 Find a Stockist
Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

The Beaver integral push trolley and girder clamps are designed to provide a quick and easy attachment to overhead beams for transporting loads for permanent or temporary mounting in different locations. The integral clamp is adjustable to the beam width in the same manner as the YC model, by rotating the threaded spindle.

All Beaver integral push trolley and girder clamps have an individual serial number stamped onthe body of the clamp, and also onto the aluminium identification plate, which is securely mounted to the trolley side plate. This number coincides directly to the test certificate of the product for quick and easy tracing. These clamps are also operationally tested to 150% of the rated campacity and come with indidivual test certificates.

Features:

  • Heavy duty steel construction
  • For additional safety the threaded adjustment mechanism is secured by tightening the locking lever against the side plate.
  • Threaded spindle mechanism, zinc plated for superior corrosion protection.
  • Easily adjustable to suit a wide range of flange widths and beams from 75mm to 200mm.
  • Built-in load bar for reduced headroom.
  • Serial number identification on body and ID plate for better traceability
  • Proof load tested at time of manufacture
Approved Standards:
  • Complies to AS 1418.2
Product Code WLL Net Weight Beam Width Model Type
270010YT 1t 9.4kg 75-200mm YT
270020YT 2t 9.9kg 75-200mm YT

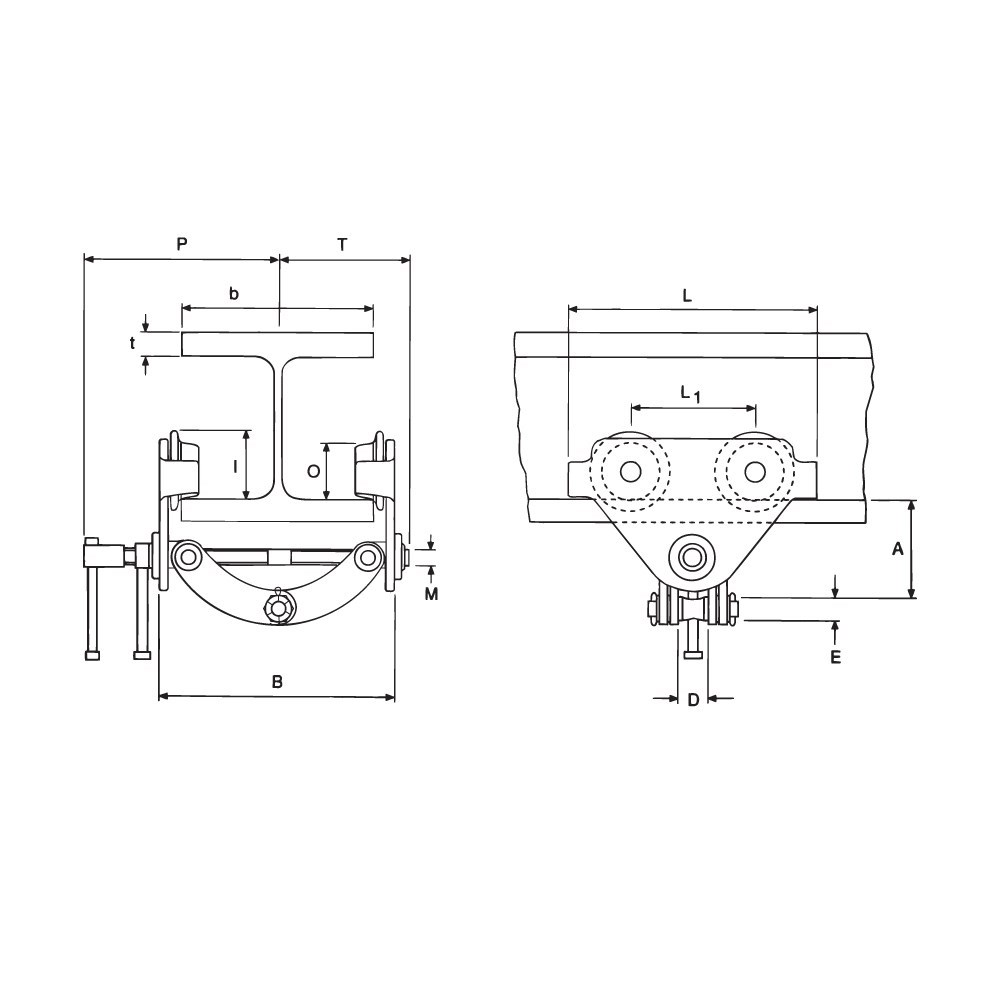

Product Code WLL A D E I L L1 M O P T t
270010YT 1t 80-152mm 42mm 20mm 71.5mm 260mm 130mm 16mm 60mm 195mm 155mm 25mm
270020YT 2t 106-155mm 42mm 20mm 71.5mm 260mm 130mm 18mm 60mm 205mm 139mm 25mm

For more information on our special pricing available bulk/pail sales, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.
