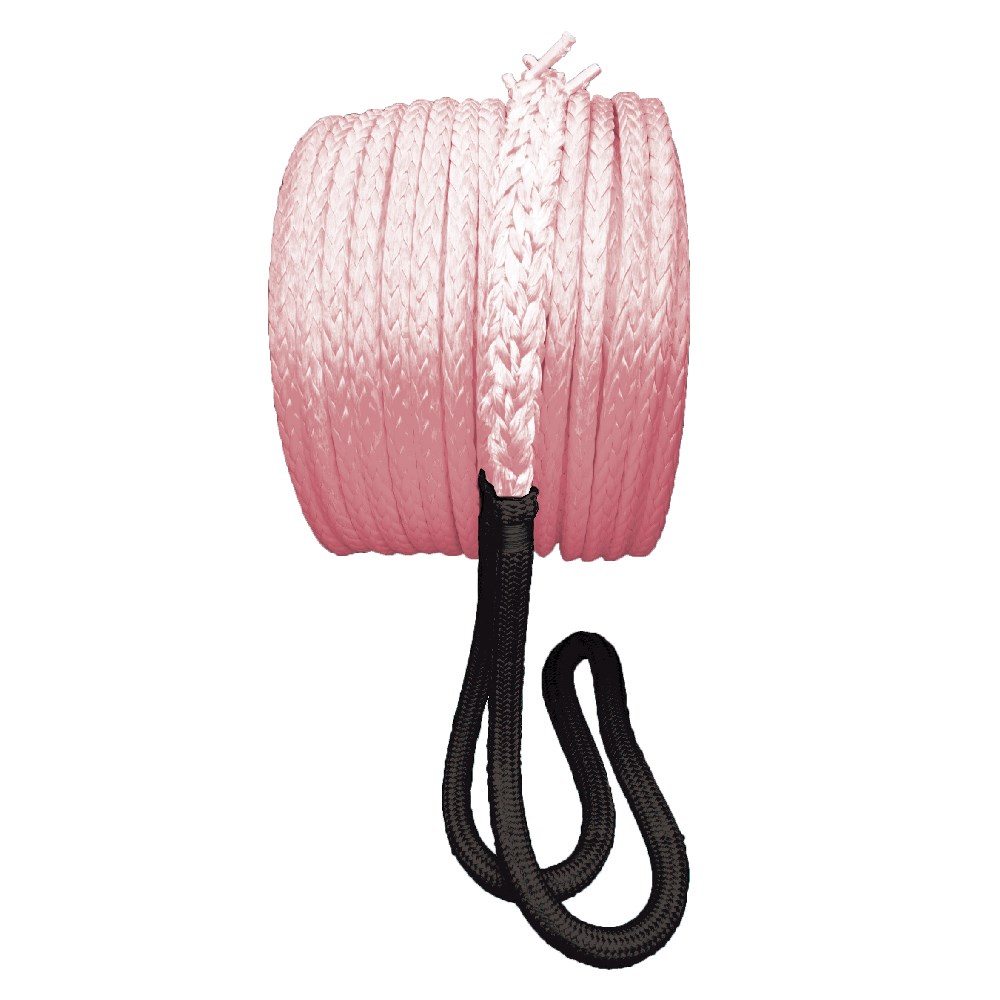

Donaghys Winchline Rope

Product Code: DOBRS

Unit Description
Metre
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

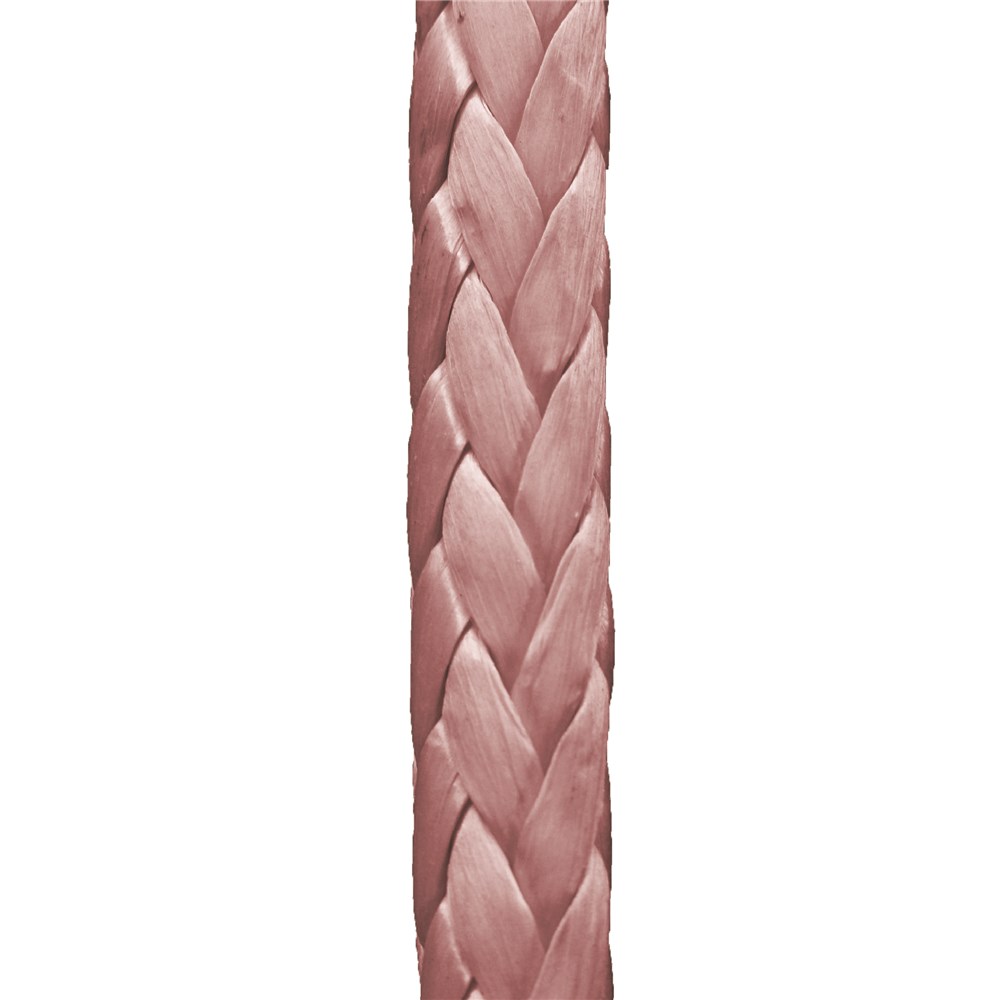

Donaghys winchline is made from high strength UHMwPE (Ultra high molecular weight polyethylene) fibres which have a very low elongation of 4% at break, and a tenacity of up to 15 times that of steel rope.

This winchline is 8 times lighter and 70% stronger than steel wire rope. Coated with Donaghys Armorcoat, this winchline rope braid has high abrasion resistance and can be customised with covers and fittings to suit specific applications. Its very light density allows the rope to float and it is very easy to handle in comparison to wire alternatives.

Product Features:

  • Unique pink colour for safety
  • High UV resistance
  • Floats and does not absorb water
  • High internal and external abrasion resistance
  • Non rotational
Applications:
  • Vehicle rescule line or winchline
  • Logging
  • Towing line
  • Pulling/stringing lines
DiameterBreak ForceMax Lengthkg/100m
9mm9.7t1025m4kg/100m
12mm17.5t3050m7.8kg/100m
14mm21.2t2250m10.5kg/100m
16mm26t1720m12kg/100m
18mm33t1360m17kg/100m
20mm38.8t1100m20kg/100m
22mm47t904m25kg/100m
24mm55t760m29kg/100m
26mm64.5t650m34kg/100m
32mm84.6t1189m52kg/100m
36mm106t939m60kg/100m
44mm157t629m81kg/100m
