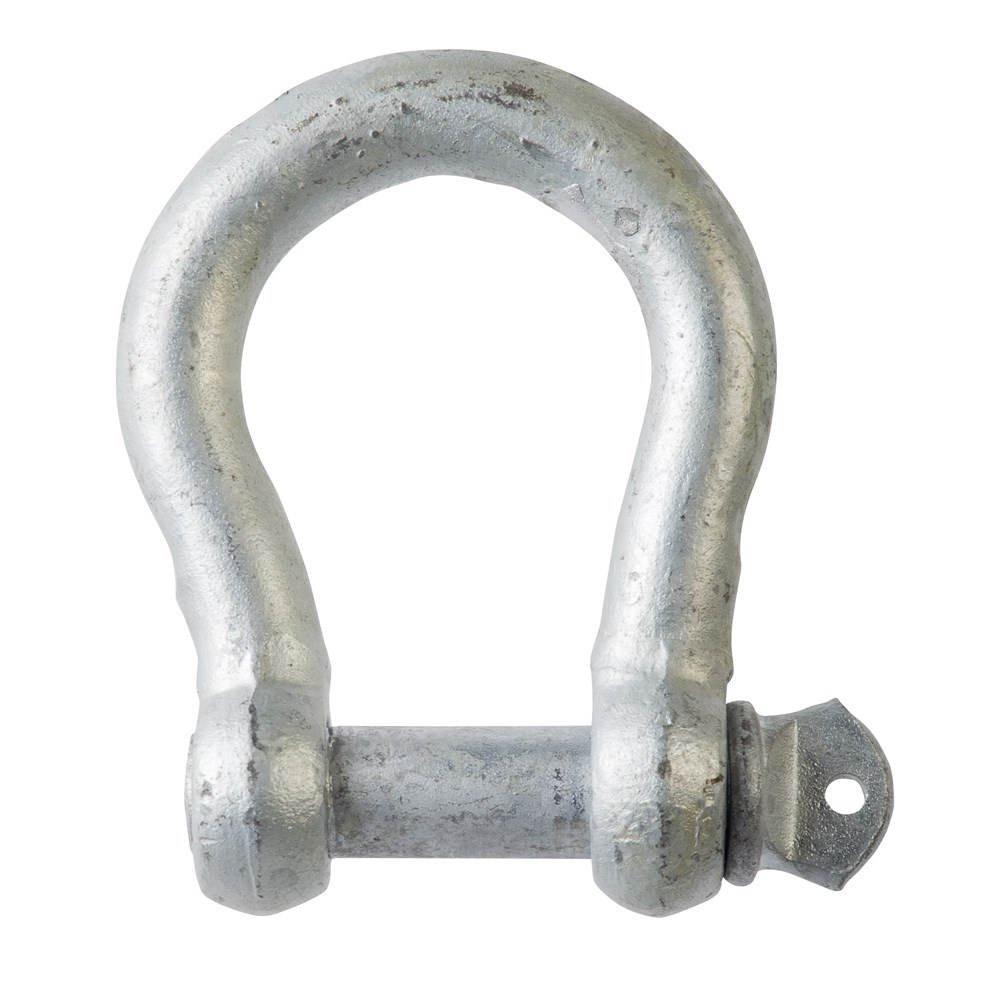

These hot dipped galvanised commercial bow shackles are manufactured by Beaver. Screw pin shackles are used for long-term or permanent applications, or where the load may slide on the pin, causing rotation of the pin. These shackles are not recommended for lifting.
Product Code |
Size |
Finish |
Shape |
Closing Method |
205305 |
5mm |
Galvanised |
Bow |
Screw |
205306 |
6mm |
Galvanised |
Bow |
Screw |
205308 |
8mm |
Galvanised |
Bow |
Screw |
205310 |
10mm |
Galvanised |
Bow |
Screw |
205313 |
13mm |
Galvanised |
Bow |
Screw |
205316 |
16mm |
Galvanised |
Bow |
Screw |
205320 |
20mm |
Galvanised |
Bow |
Screw |
205325 |
25mm |
Galvanised |
Bow |
Screw |
Commercial product specifications may vart to +/- 10% on actual dimensions.
Product Code |
Size |
W |
L |
D |
d |
B |
F |
205305 |
5mm |
11mm |
22mm |
7mm |
4.5mm |
16mm |
11mm |
205306 |
6mm |
13mm |
26mm |
7mm |
5.5mm |
20mm |
12mm |
205308 |
8mm |
18mm |
31mm |
9mm |
7.8mm |
24mm |
16mm |
205310 |
10mm |
19mm |
38mm |
11mm |
9.8mm |
30mm |
18mm |
205313 |
13mm |
29mm |
55mm |
15mm |
13mm |
38mm |
26mm |
205316 |
16mm |
33mm |
58mm |
18mm |
15.5mm |
45mm |
29mm |
205320 |
20mm |
39mm |
76mm |
22mm |
19mm |
56mm |
33mm |
205325 |
25mm |
50mm |
96mm |
27mm |
24mm |
76mm |
45mm |
For more information on our materials handling range, please contact our Customer Care team.
