Beaver B-Alloy Concrete Lifting Clutch

Product Code: MH260C

Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

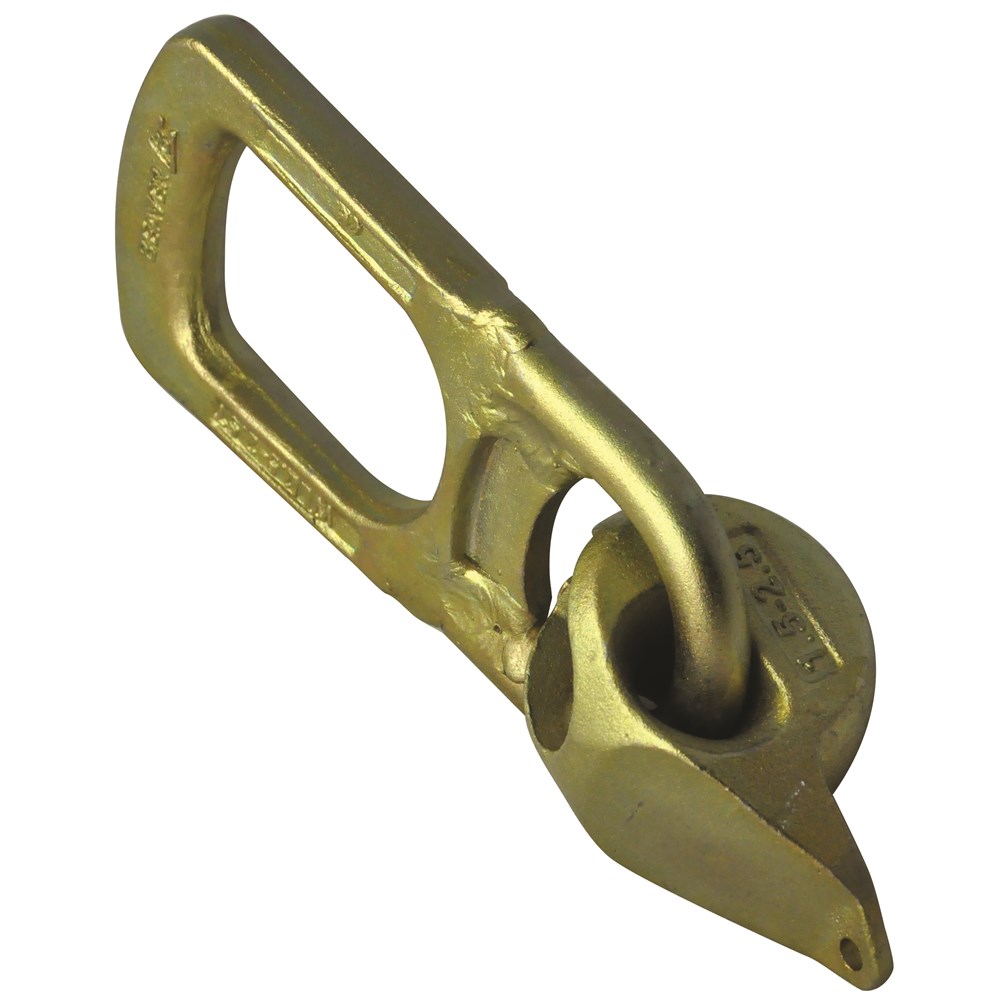

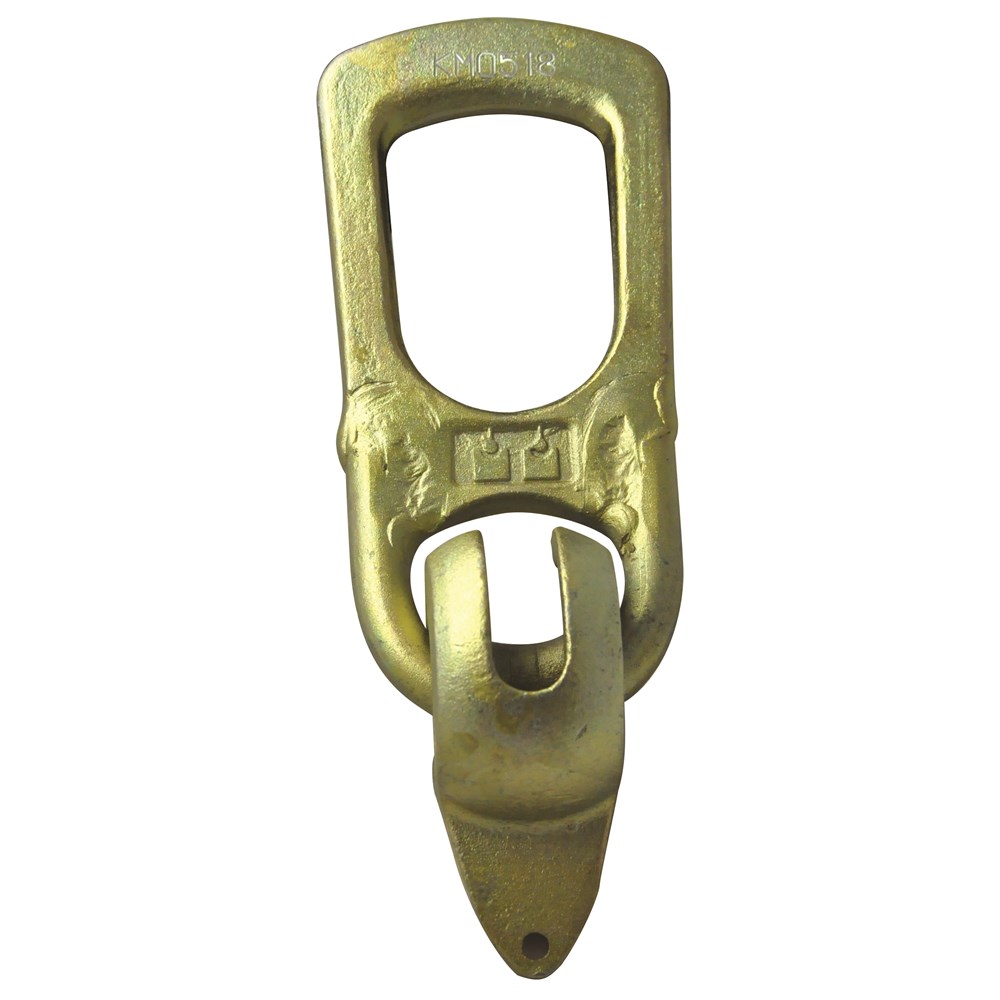

Concrete lifting clutch manufactured by Beaver.

Features:

  • Available in WLL 1.3T to 10T
  • Designed to engage easily while system is under load, providing they are connected correctly
  • Quick and simple clutch release when lift is complete

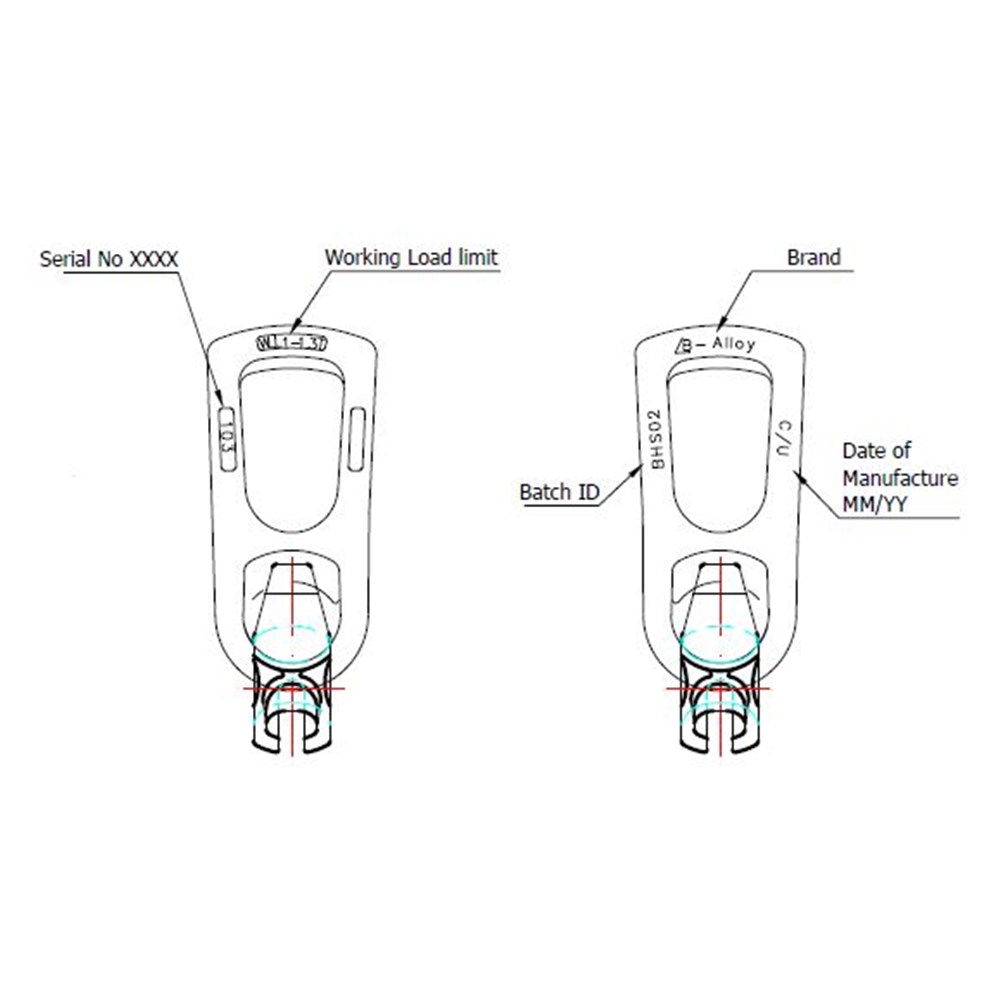

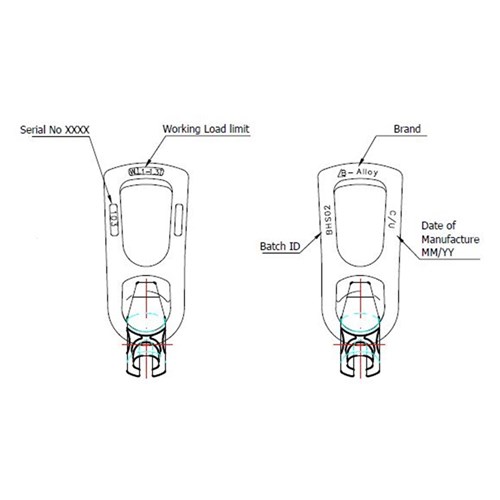

  • Marked with WLL, batch ID, Date of Manufacture and a unique serial number
  • Supplied with load test certificate
  • Complies with AS 3850.1

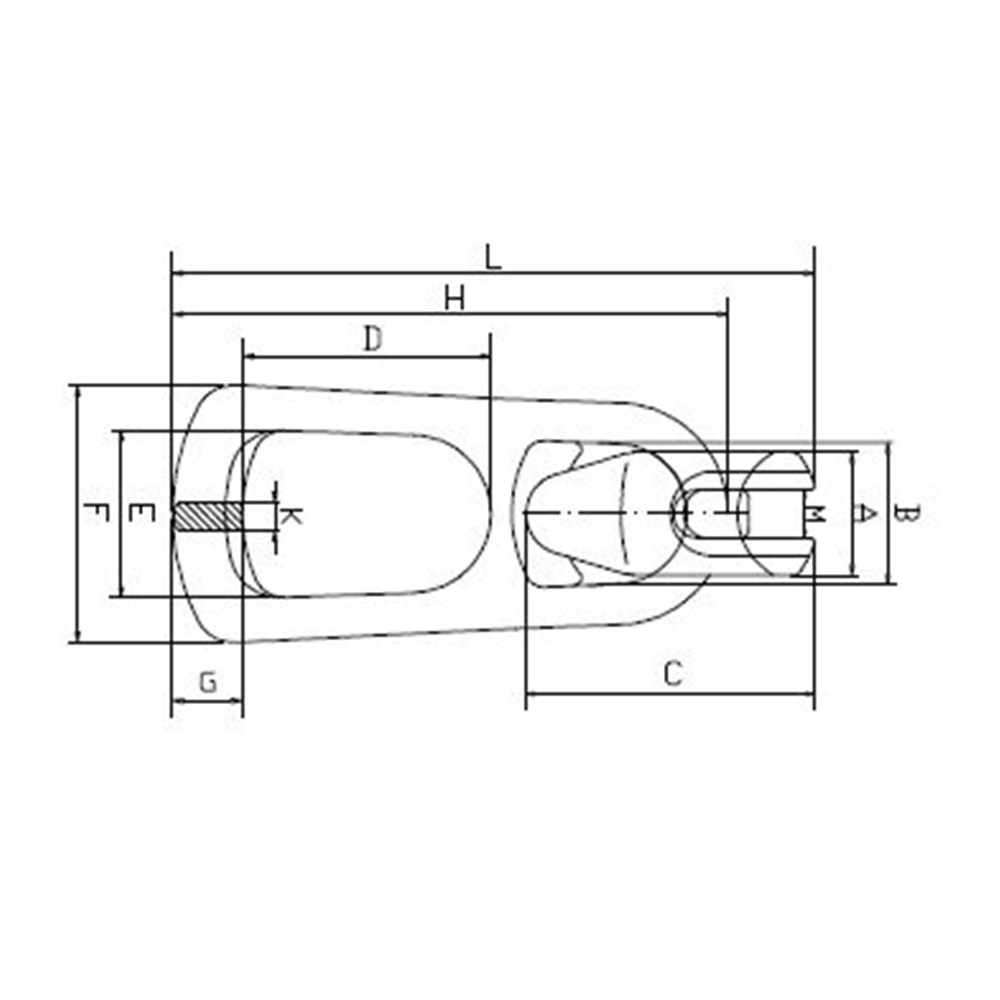

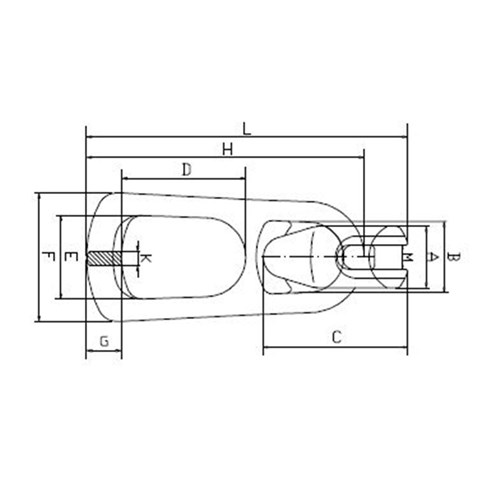

Product Code WLL tonne A mm B mm C mm D mm E mm F mm H mm M mm L mm  G mm   K mm  Approx Weight (KG)
260013 1.3 33 42 82 70 44 73 160 11 185 18 12.5 0.91
260025 2.5 41 48 100 85 56 88 188 16 217 24 14 1.44
260050 5 57 69 129 88 68 110 240 22 278 38 18 3.24
260100 10 74 90 170 112 82 160 338 30 386 50 28 9.13
260200 20 111 112 227 132 106 180 429 42 497 74 32 20.39

For more information on our materials handling range, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in the Trade Practices Act 1974 or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Technical Specifications
Category Beaver
Category Lifting Hardware
Brand Material Handling
