Beaver Electric Single Phase Mini Hoist

Product Code: MHBMI1

 Find a Stockist
Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

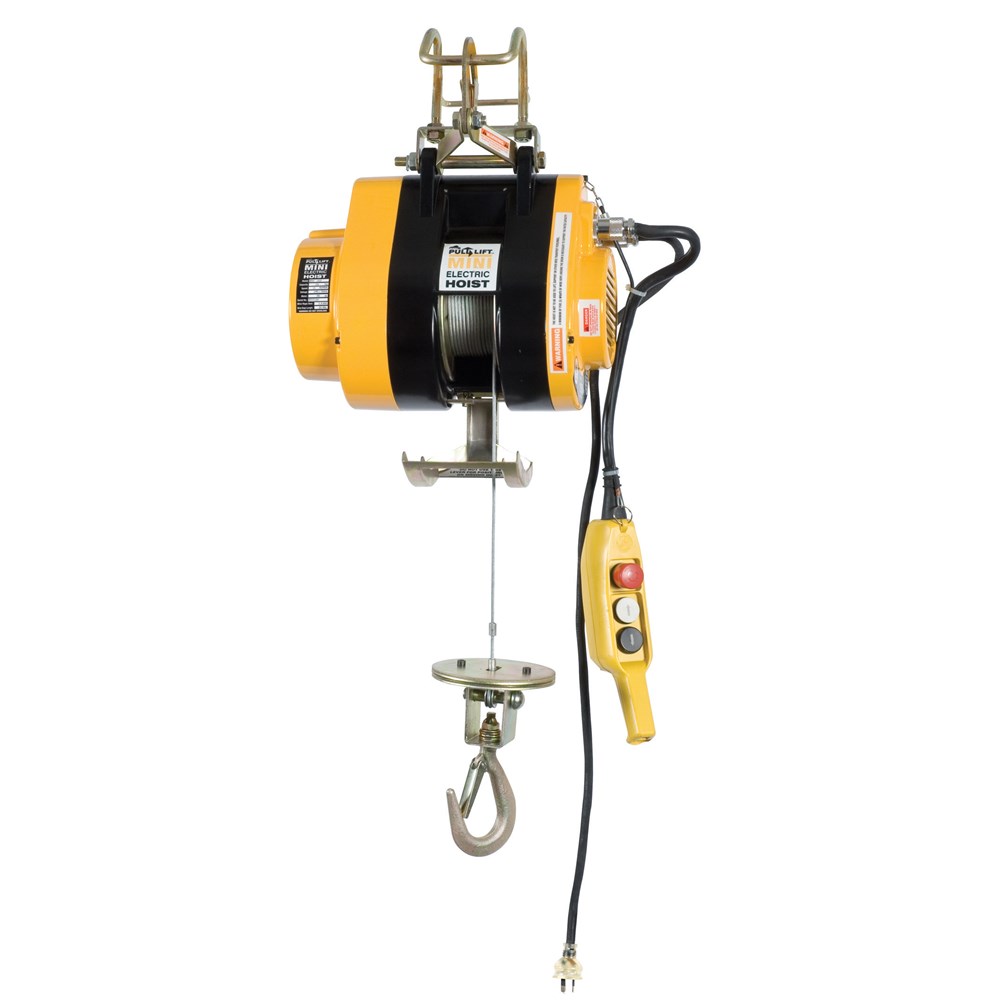

Beaver Single Phase Electric Mini Hoists are ideal for lifting small loads that are too heavy to be handled manually.
The compact and convenient hoist has a robust construction suitable for building sites.

Product Features:
  • Heavy duty motor with automatic load brake and overload clutch
  • IP54 rated lightweight body
  • IP65 European pendant control c/w emergency stop
  • Upper limit switch
  • Complete with 20Meters -Non Rotating Galvanised wire rope
Approved Standards:
  • AS1418.2 Section 5
Product Code Rated Capacity Speed Lifting Height Weight
BMI1015 0.15t 15m/min 20m 28kg
BMI1025 0.25t 12m/min 2m0 30kg

The connection of the wire rope to the winch drump is via set screw, to ensure rope retention.

Rated Capacity Input Power % ED Rope Diameter  Rope Construction Grade of Rope
0.15t 780W 25 3.8mm 7x19 1960min
0.25t 1200W 25 4.2mm 7x19 1960min

For more information on our materials handling range, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Technical Specifications
Category Beaver
Category Hoists & Winches
Brand Material Handling
